BAS40-06T-13 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS40-06T-13

Preview

BAS40-06T-13: DescriptionRectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size77KB，2 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

BAS40-06T-13 Overview

Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3

BAS40-06T-13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	ULTRA SMALL, PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	FAST SWITCHING
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Maximum power dissipation	0.15 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

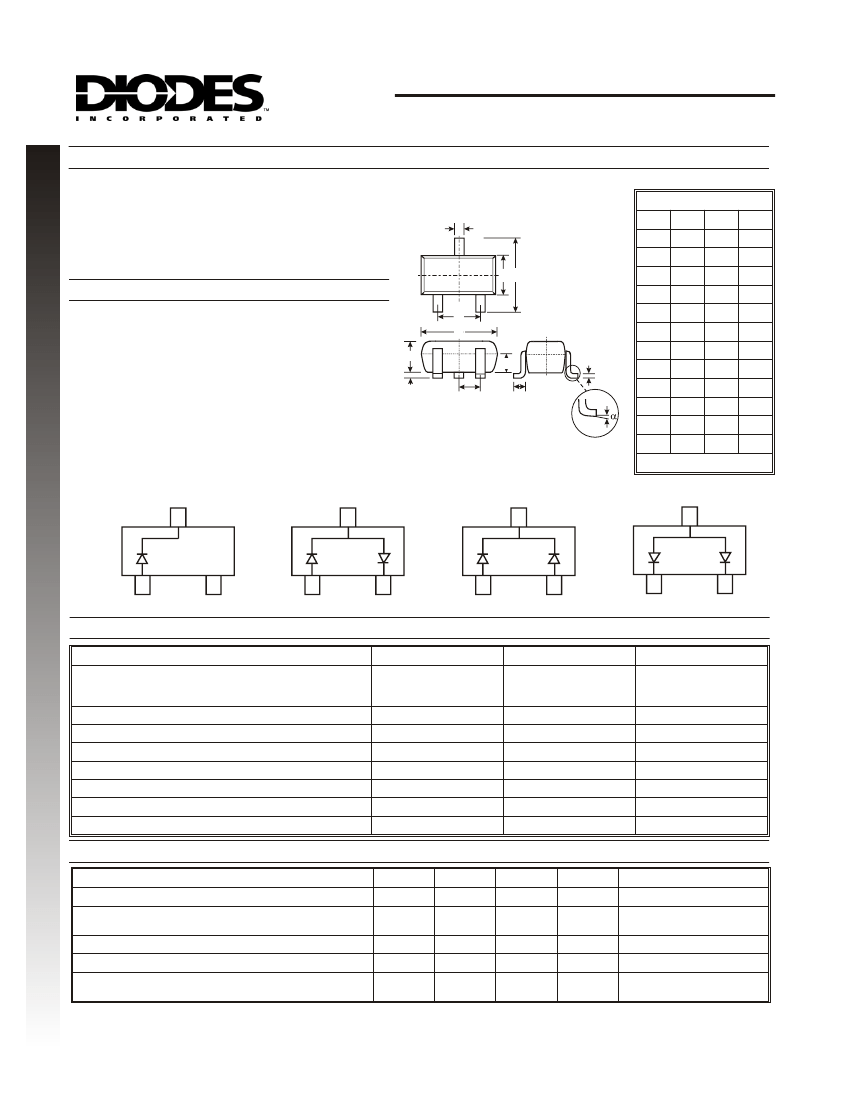

BAS40T/-04T/-05T/-06T

SURFACE MOUNT SCHOTTKY BARRIER DIODE

SPICE MODELS: BAS40T BAS40-04T BAS40-05T BAS40-06T

Features

NEW PRODUCT

·

Low Forward Voltage Drop

Fast Switching

Ultra-Small Surface Mount Package

PN Junction Guard Ring for Transient and ESD Protection

Available in Lead Free/RoHS Compliant Version (Note 3

)

B C

A

SOT-523

Dim

A

B

C

D

G

H

K

M

Min

0.15

0.75

1.45

¾

0.90

1.50

0.00

0.60

0.10

0.45

0°

Max

0.30

0.85

1.75

¾

1.10

1.70

0.10

0.80

0.30

0.20

0.65

8°

Typ

0.22

0.80

1.60

0.50

1.00

1.60

0.05

0.75

0.22

0.12

0.50

¾

Mechanical Data

·

Case: SOT-523

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Solderable per MIL-STD-202, Method 208

Also Available in Lead Free Plating (Matte Tin Finish

annealed over Alloy 42 leadframe). Please see Ordering

Information, Note 5, on Page 2

Polarity: See Diagrams Below

Marking: See Diagrams Below & Page 2

Weight: 0.002 grams (approx.)

Ordering Information, see Page 2

J

D

G

H

J

K

L

N

L

M

N

a

All Dimensions in mm

TOP VIEW

BAS40T Marking: 43

BAS40-04T Marking: 44

BAS40-05T Marking: 45

BAS40-06T Marking: 46

Maximum Ratings

@ T

A

= 25°C unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Forward Continuous Current (Note 1)

Non-Repetitive Peak Forward Surge Current

Power Dissipation (Note 1)

Thermal Resistance Junction to Ambient (Note 1)

Operating Temperature Range

Storage Temperature Range

@ t = 1.0s

Symbol

V

RRM

V

RWM

V

R

V

R(RMS)

I

FM

I

FSM

P

d

R

qJA

T

j

T

STG

@ T

A

= 25°C unless otherwise specified

Symbol

V

(BR)R

V

F

I

R

C

T

t

rr

Min

40

¾

Max

¾

380

1000

200

5.0

Unit

V

mV

nA

pF

ns

Test Condition

I

R

= 10mA

I

F

= 1.0mA, t

p

< 300ms

I

F

= 40mA, t

p

< 300ms

V

R

= 30V

V

R

= 0, f = 1.0MHz

I

F

= I

R

= 10mA,

I

rr

= 0.1 x I

R

, R

L

= 100W

Value

40

28

200

600

150

833

-55 to +125

-65 to +150

Unit

V

mA

mW

°C/W

°C

Electrical Characteristics

Characteristic

Reverse Breakdown Voltage (Note 2)

Forward Voltage (Note 2)

Leakage Current (Note 2)

Total Capacitance

Reverse Recovery Time

Notes:

1. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.

2. Short duration test pulse used to minimize self-heating effect.

3. No purposefully added lead.

DS30265 Rev. 8 - 2

1 of 2

www.diodes.com

BAS40T/-04T/-05T/-06T

ã

Diodes Incorporated

BAS40-06T-13 Related Products

	BAS40-06T-13	BAS40-05T-13	BAS40-04T-13	BAS40T-13
Description	Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 1 Element, 0.2A, 40V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
package instruction	ULTRA SMALL, PLASTIC PACKAGE-3	ULTRA SMALL, PLASTIC PACKAGE-3	ULTRA SMALL, PLASTIC PACKAGE-3	ULTRA SMALL, PLASTIC PACKAGE-3
Contacts	3	3	3	3
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	FAST SWITCHING	FAST SWITCHING	FAST SWITCHING	FAST SWITCHING
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e0	e0	e0
Number of components	2	2	2	1
Number of terminals	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235	235	235	235
Maximum power dissipation	0.15 W	0.15 W	0.15 W	0.15 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	40 V	40 V	40 V
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10
Base Number Matches	1	1	1	1
