AIF120F300-NTL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AIF120F300-NTL

AIF120F300-NTL: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 600W, Hybrid, ROHS COMPLIANT PACKAGE-22; CategoryPower/power management The power supply circuit; File Size135KB，2 Pages; ManufacturerVertiv; Environmental Compliance

Download Datasheet Parametric Compare View All

AIF120F300-NTL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AIF120F300-NTL	-	-	View	Buy Now

AIF120F300-NTL Overview

DC-DC Regulated Power Supply Module, 1 Output, 600W, Hybrid, ROHS COMPLIANT PACKAGE-22

AIF120F300-NTL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vertiv
package instruction	, MODULE,22LEAD,4.3
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	420 V
Minimum input voltage	250 V
Nominal input voltage	300 V
JESD-30 code	R-XXMA-X22
JESD-609 code	e3
Number of functions	1
Output times	1
Number of terminals	22
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Maximum output current	120 A
Maximum output voltage	3.63 V
Minimum output voltage	1.65 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,22LEAD,4.3
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN OVER NICKEL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	600 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

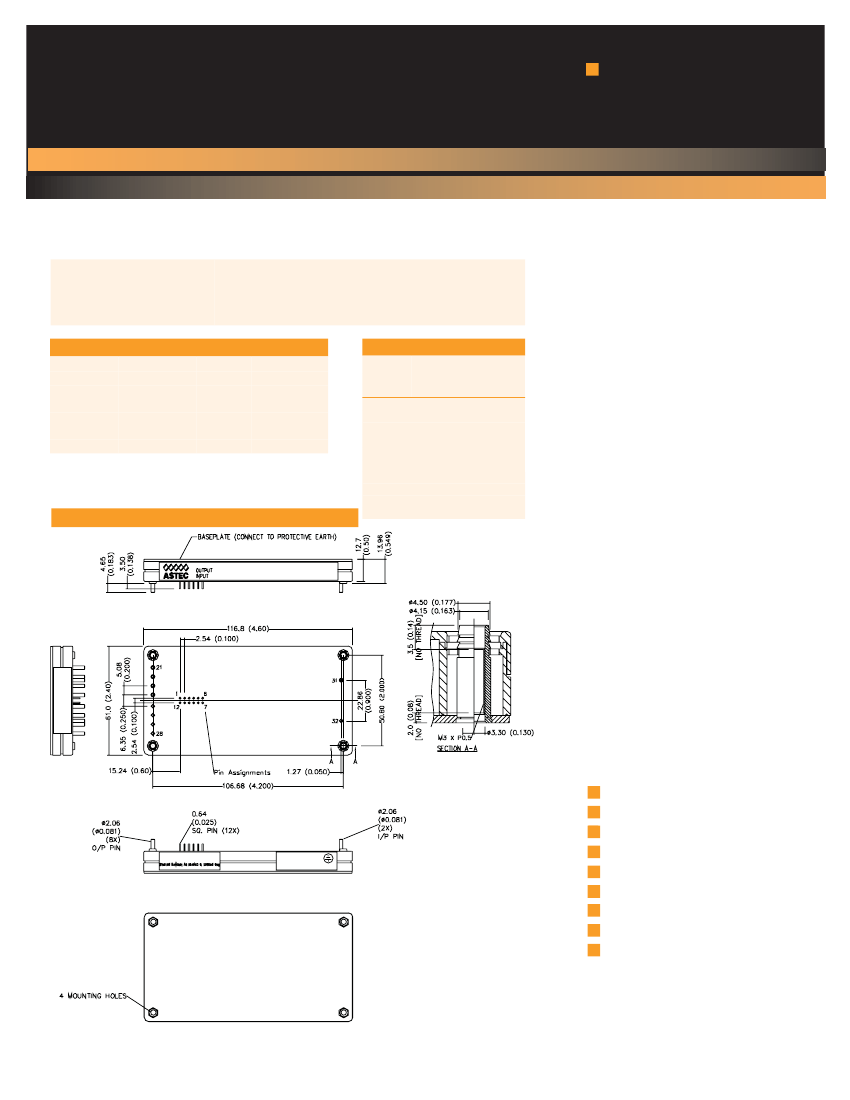

Preview

Download Datasheet

View All

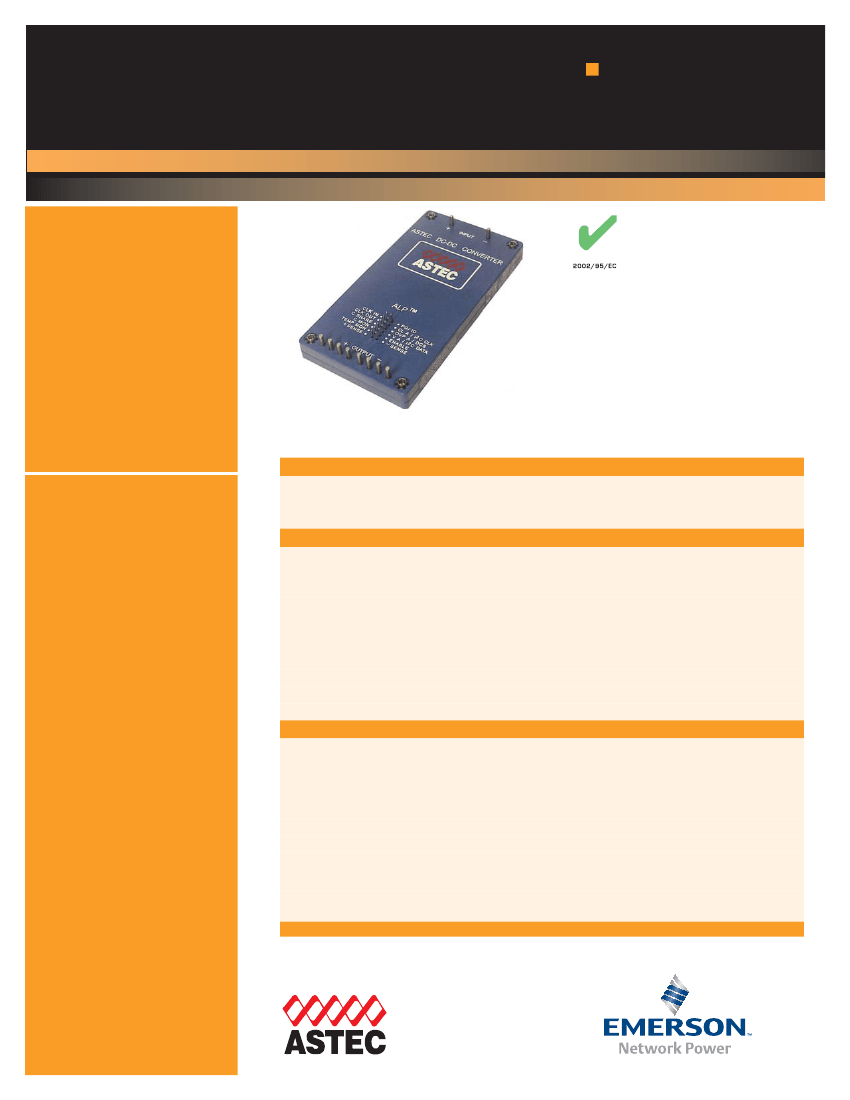

Embedded Power for

Business-Critical Continuity

AIF Series

600 Watts

(12V@50Amps)

Input Voltage: 300V

# of Outputs: Single

Total Power:

Rev. 05.23.07

AIF Series

1 of 2

RoHS

Electrical Specifications

Input

Special Features

• 600W Continuous power at

100°C baseplate temperature

• 108W/in

(6.6W/cm

)

• High efficiency - up to 90%

• Low output ripple and noise

• Positive and Negative enable

function

• Excellent transient response

• OVP, OCP, V Adj control with

ALP

analog mode linear

control, or through I

C bus

with digital mode control.

• Paralleable with accurate

current sharing

• EU Directive 2002/95/EC

compliant for RoHS

Input range

Input surge

Efficiency

250 - 420 VDC

450V / 100ms

90%@5.0V (Typical)

0.2% typical down to no load

0.2% typical

100mV typical (below 5V); 2% typical (5V and above)

Up to 0.5V

+/-20% for 5V and above; +10%/ -50% for below 5V

5% max for 3.3V and above, 150mV for 1.8V, deviation with 25%

to 75% full load 250 μS (max) recovery

3% typical

115% Vo (nominal)

115% Io maximum

Output

Load Regulation

Line Regulation

Noise / Ripple

Remote sense

Output voltage adjust range

Transient Response

Current Share Accuracy

Overvoltage Protection

Current Limit

Control

Voltage Adjust

80 to 120% Vo linear programming for 12V, 15V, 24V, 48V 50%

to 110% for 1.8V - 5.0V

Enable

TTL compatible (positive & negative enable options)

Current Limit Adjust

20 to 100% Io linear programming or digital mode control

Clock Input (external sync)

3.3 to 5.5Vp-p @ 800KHz ±10%

Clock Output (internal clock) 4.5Vp-p typical@ 800KHz ±5%

Power Good Identification

High (Vo) = power good

Temperature Monitor Output 10mV/°K (2.73 = 0°C)

Current Monitor Output

0 to 1mA (1mA = 100% Io rated)

Over Voltage Protection

Adjust

110 to 150% Vo linear programming by voltage or resistor,

or digital mode control

Safety

cUL

TUV

60950 Recognized

EN60950 Licensed

CE Mark

Notes

Nominal values apply with sense pins connected and other control pin unconnected.

ALP: Astec Linear Programming
