5485DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5485DMQB

5485DMQB: DescriptionMagnitude Comparator, TTL, CDIP16,; Categorylogic logic; File Size258KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5485DMQB Overview

Magnitude Comparator, TTL, CDIP16,

5485DMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	MAGNITUDE COMPARATOR
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

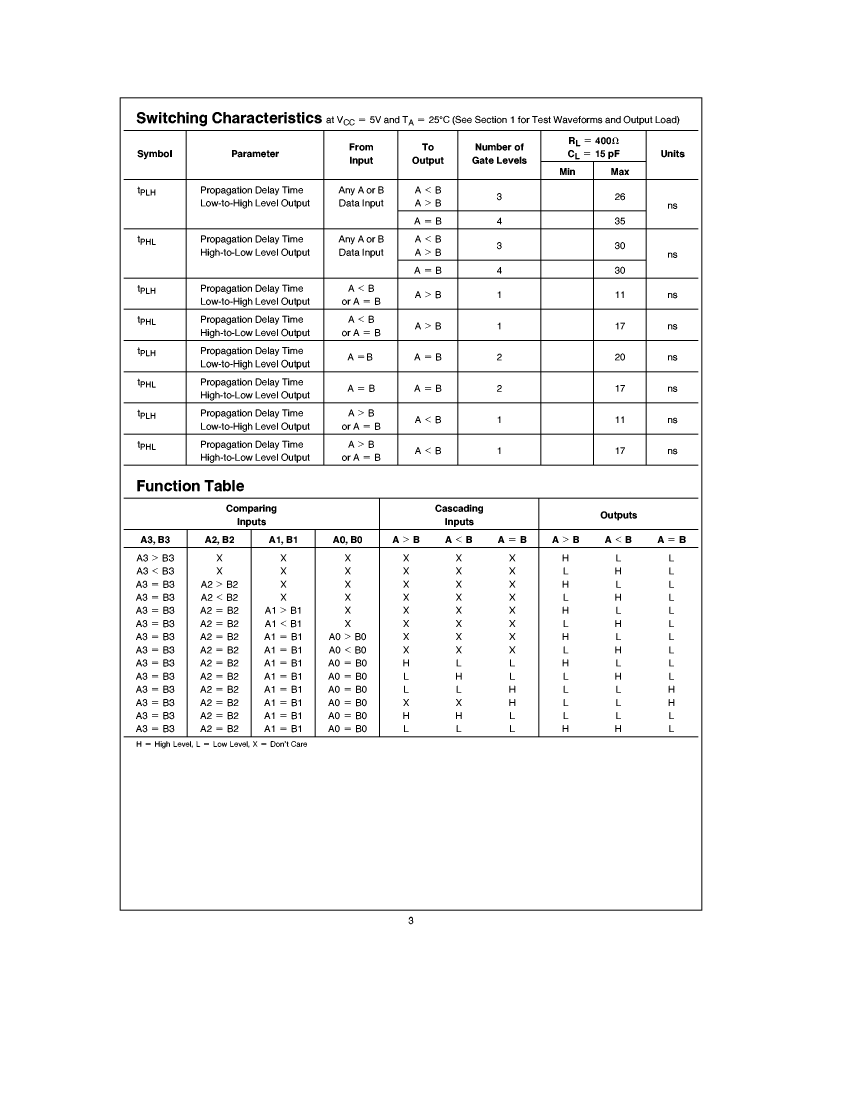

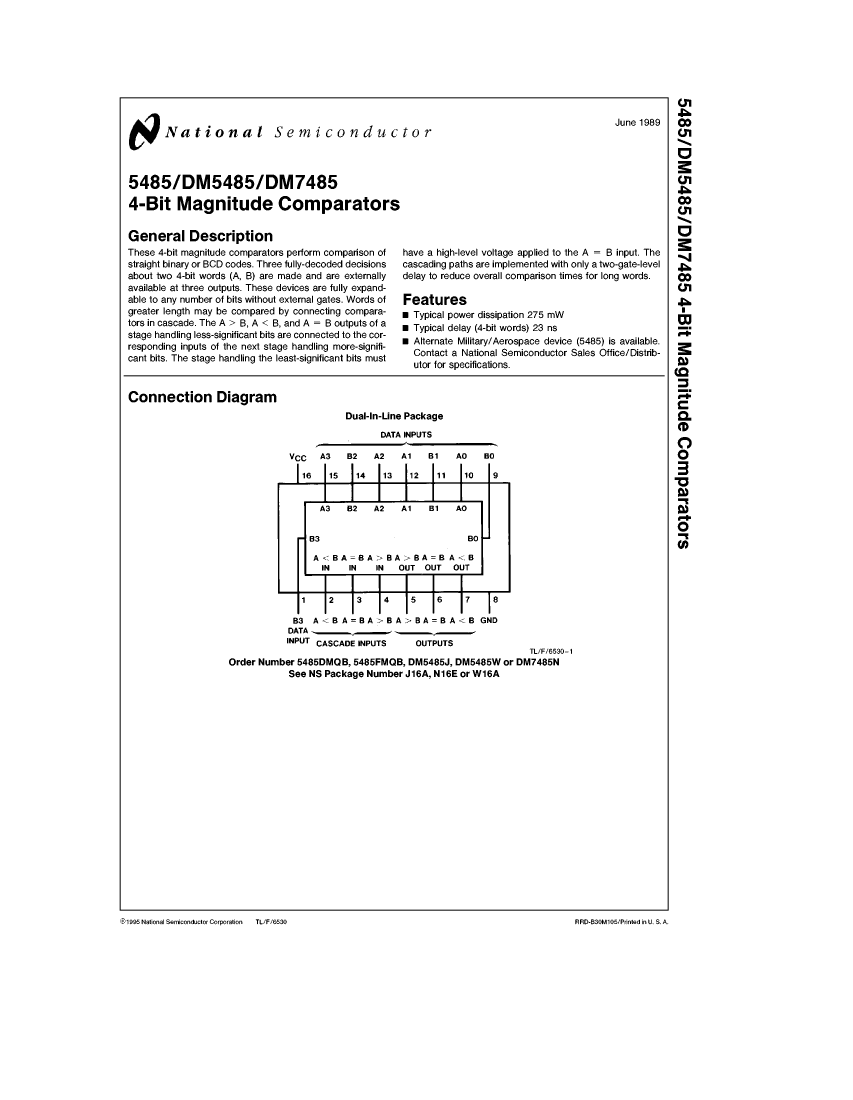

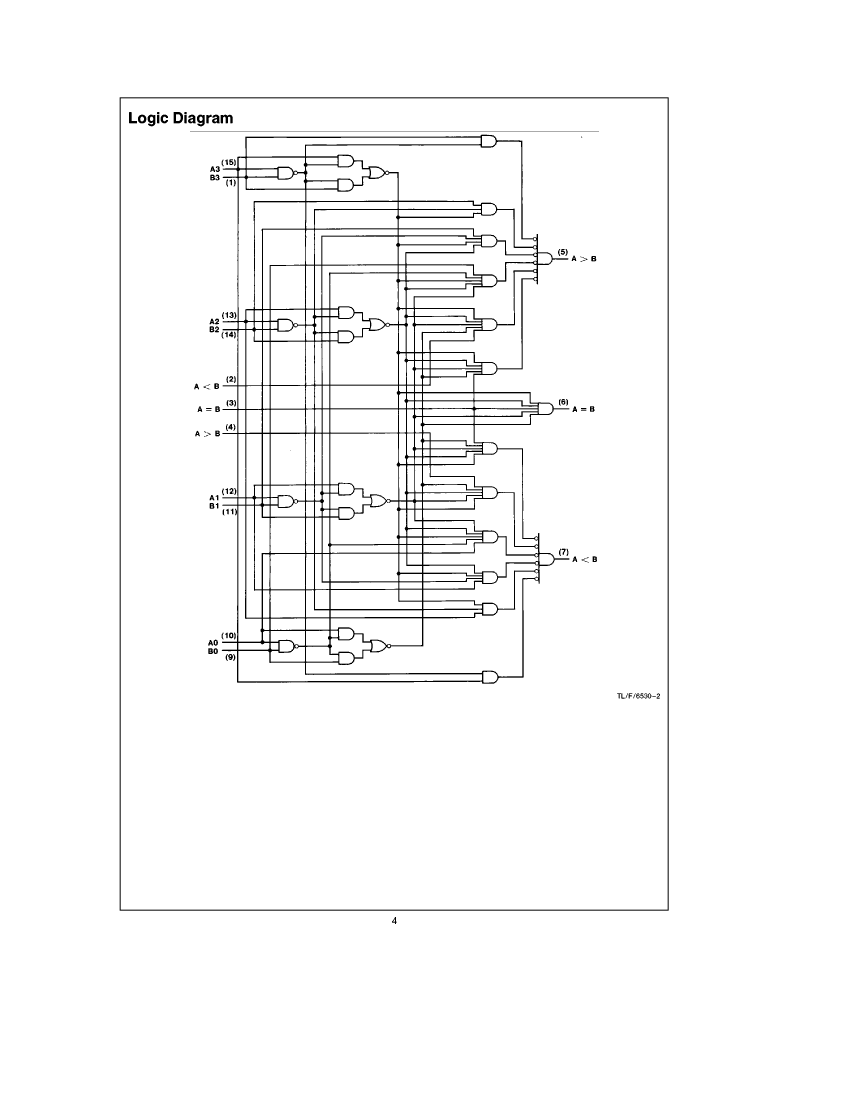

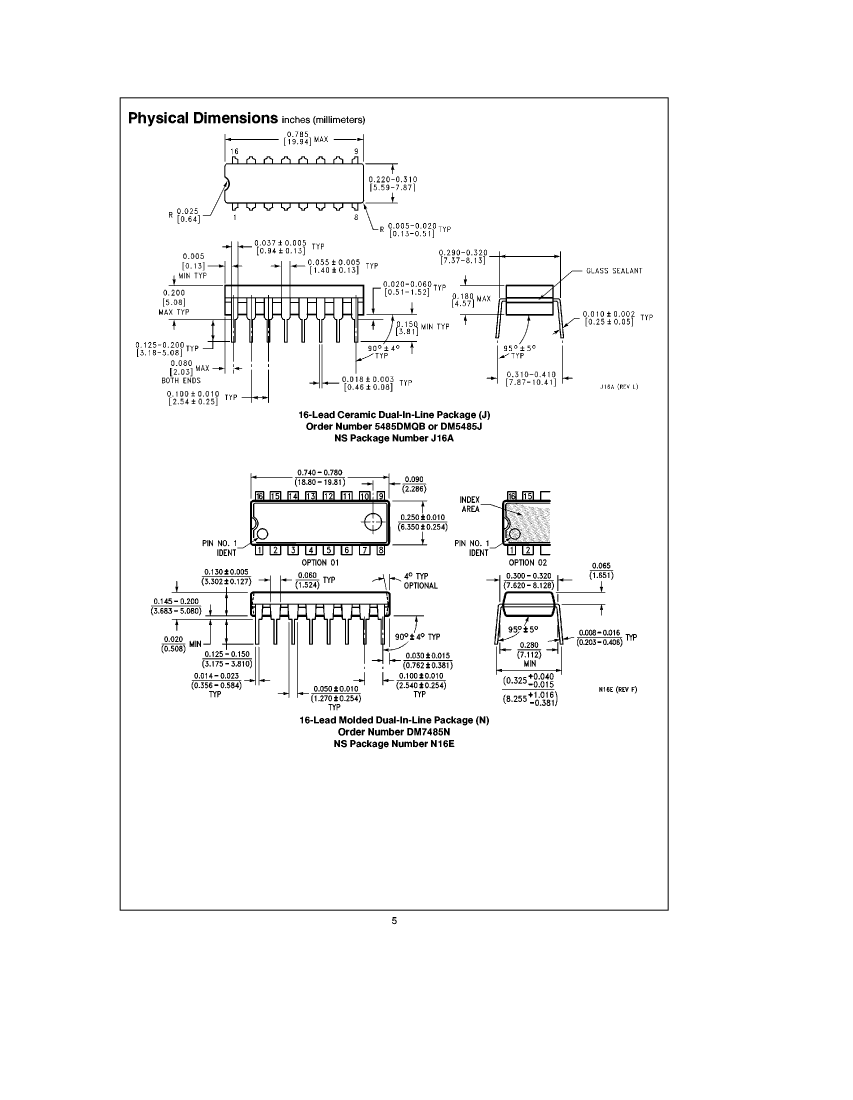

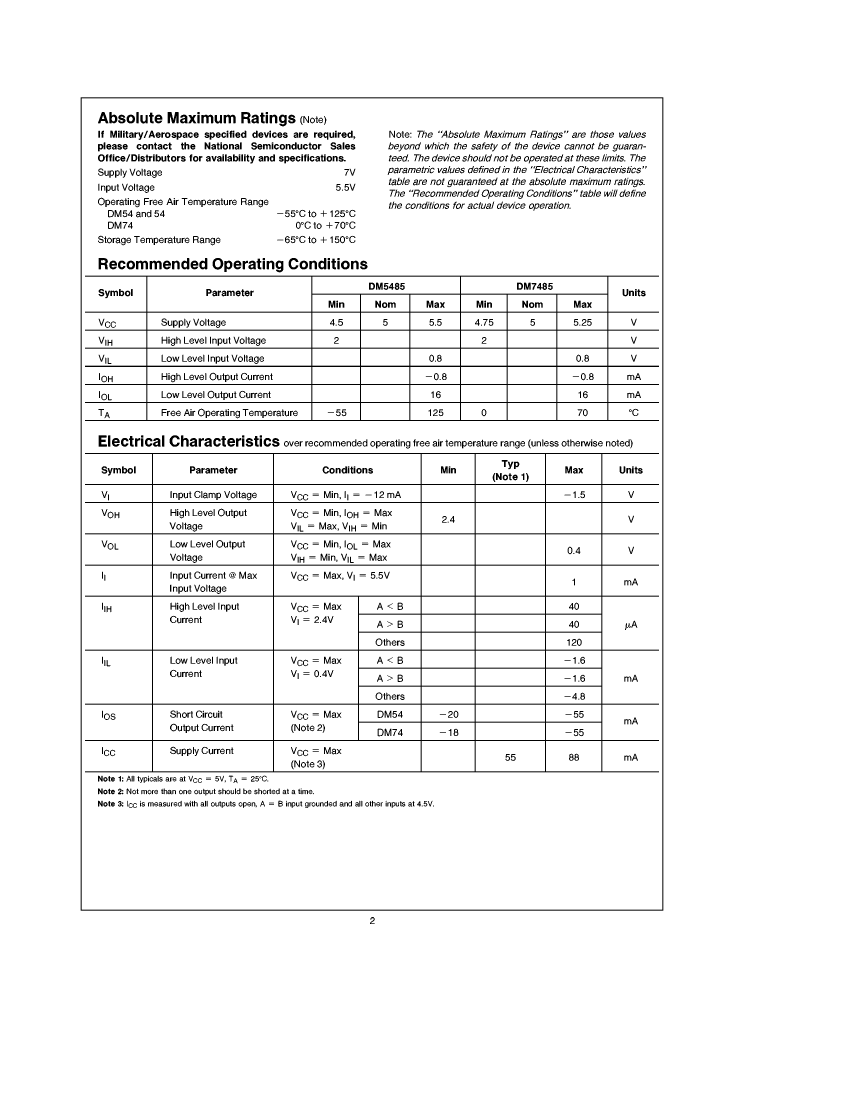

Preview

Download Datasheet

View All

5485DMQB Related Products

	5485DMQB	5485FMQB	7485FCQM	DM7485N	7485PCQM	7485PCQR	DM5485W	7485DCQR
Description	Magnitude Comparator, TTL, CDIP16,	Magnitude Comparator, TTL, CDFP16,	Magnitude Comparator, TTL, CDFP16	Magnitude Comparator, TTL, PDIP16,	Magnitude Comparator, TTL, PDIP16	Magnitude Comparator, TTL, PDIP16	Magnitude Comparator, TTL, CDFP16,	Magnitude Comparator, TTL, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DFP, FL16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T16	R-XDFP-F16	R-XDFP-F16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-XDFP-F16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	125 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DFP	DFP	DIP	DIP	DIP	DFP	DIP
Encapsulate equivalent code	DIP16,.3	FL16,.3	FL16,.3	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	NO	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-
Base Number Matches	1	1	1	1	1	1	-	-
