DM54LS33W: DescriptionNOR Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size87KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

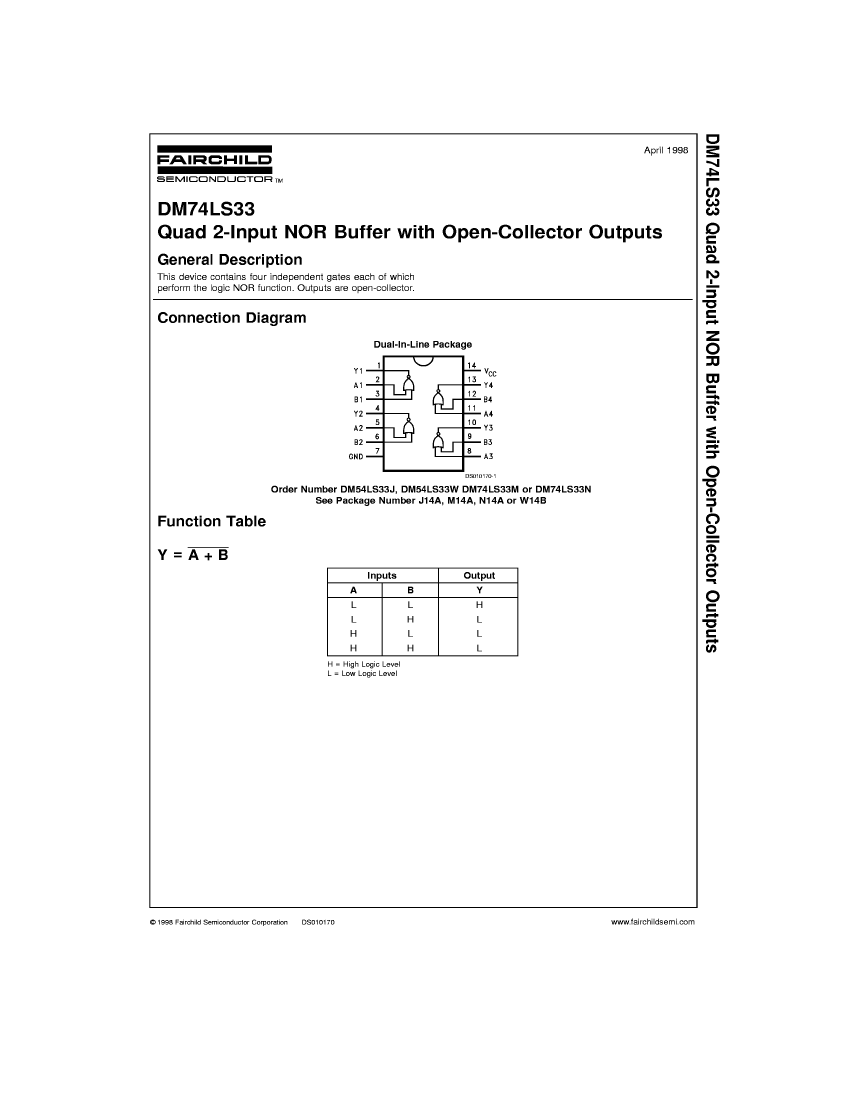

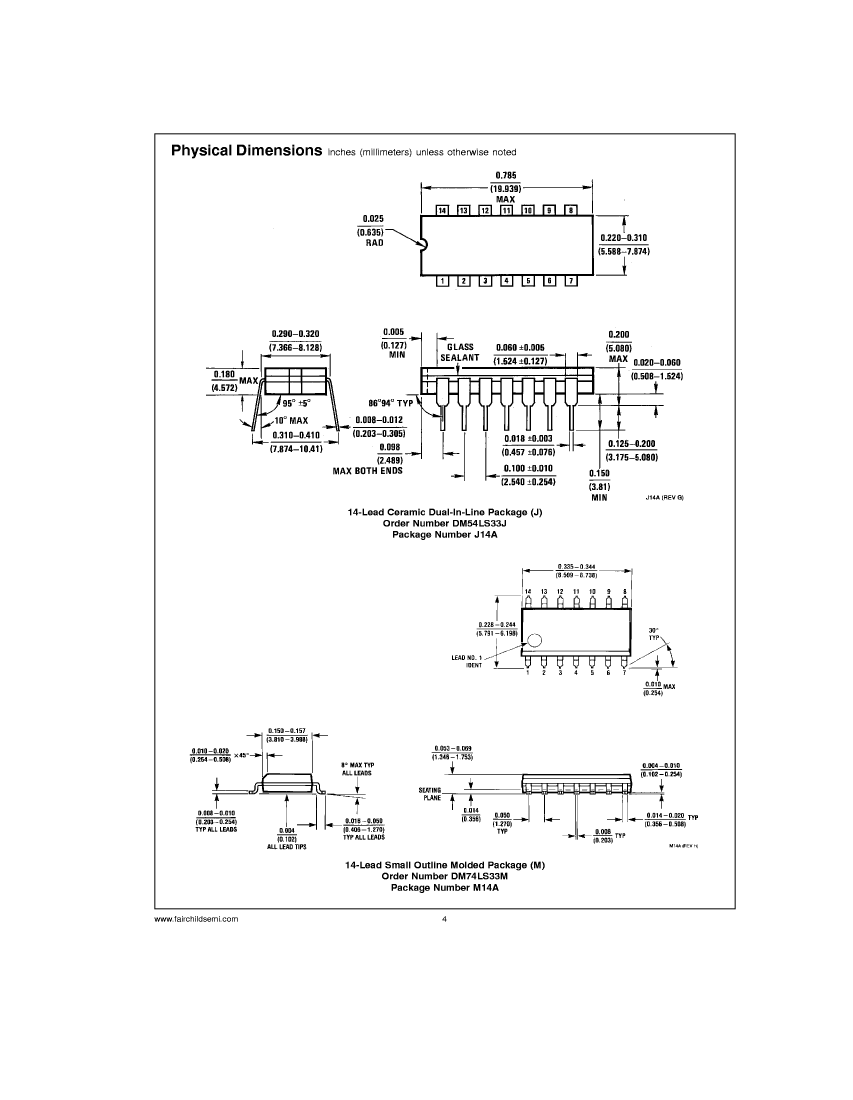

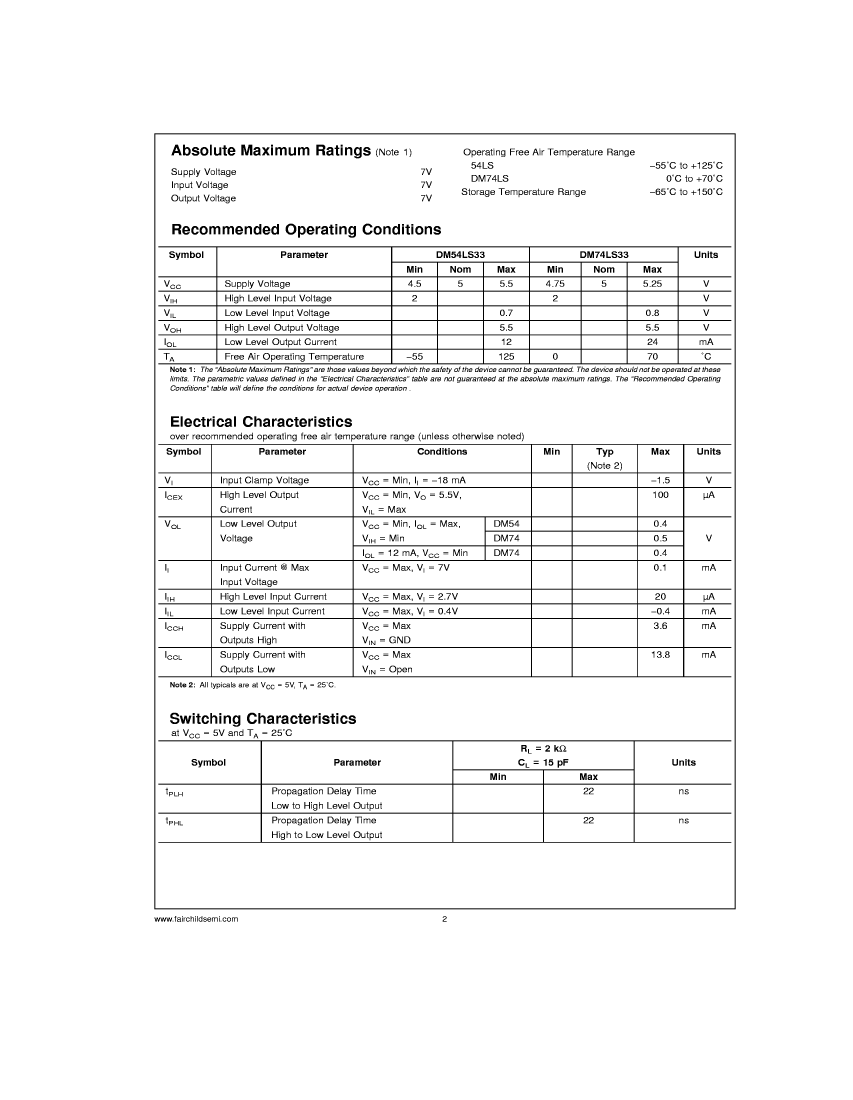

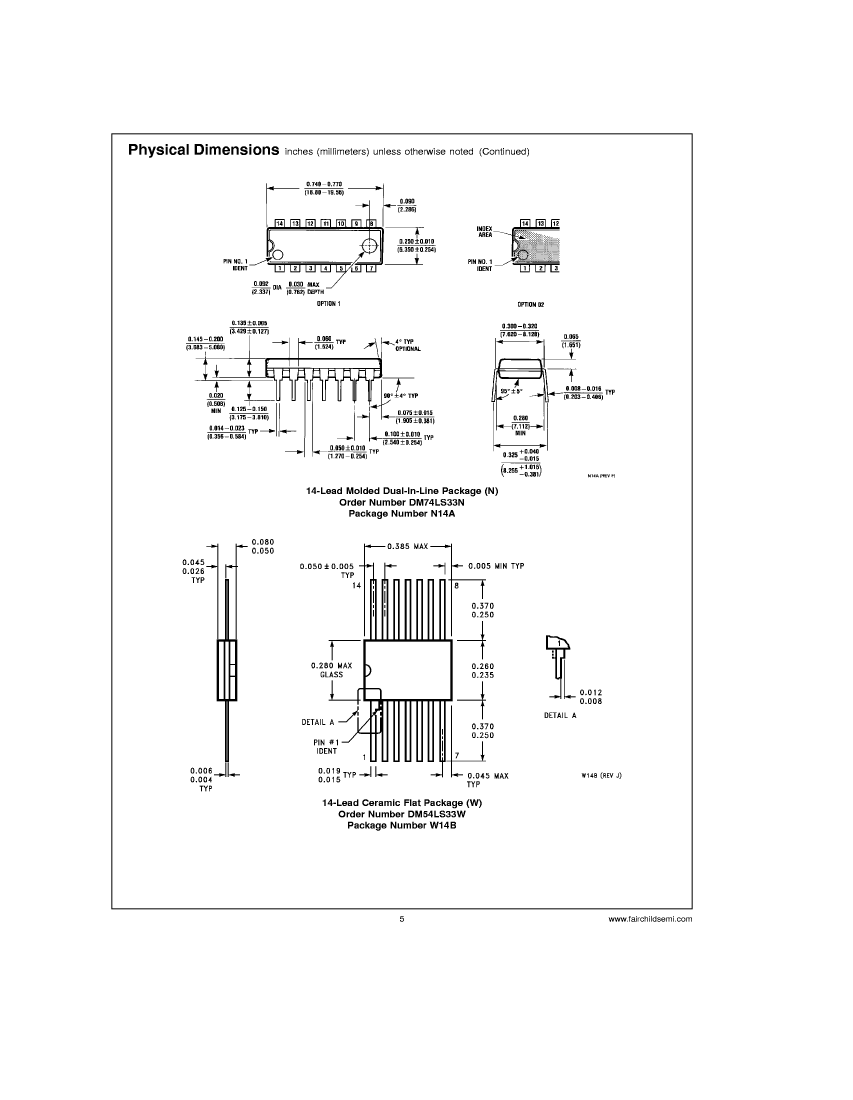

DM54LS33W Overview

NOR Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14

DM54LS33W Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DFP
package instruction	CERAMIC, FP-14
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
Logic integrated circuit type	NOR GATE
MaximumI(ol)	0.012 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	13.8 mA
Prop。Delay @ Nom-Sup	22 ns
propagation delay (tpd)	22 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.2865 mm
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DM54LS33W Related Products

	DM54LS33W	DM54LS33J
Description	NOR Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14	NOR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Fairchild	Fairchild
Parts packaging code	DFP	DIP
package instruction	CERAMIC, FP-14	CERAMIC, DIP-14
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	LS	LS
JESD-30 code	R-GDFP-F14	R-GDIP-T14
JESD-609 code	e0	e0
Logic integrated circuit type	NOR GATE	NOR GATE
MaximumI(ol)	0.012 A	0.012 A
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Maximum supply current (ICC)	13.8 mA	13.8 mA
Prop。Delay @ Nom-Sup	22 ns	22 ns
propagation delay (tpd)	22 ns	22 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Maximum seat height	2.032 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	6.2865 mm	7.62 mm
Base Number Matches	1	1
