GFB15235035100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> GFB15235035100

GFB15235035100: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID; CategoryPassive components capacitor; File Size593KB，4 Pages; ManufacturerLeclanche Capacitors; Websitehttp://www.lcap.ch; Environmental Compliance

Download Datasheet Parametric View All

GFB15235035100 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

GFB15235035100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Leclanche Capacitors
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	1500 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35 mm
dielectric materials	ALUMINUM (WET)
ESR	74 mΩ
length	100 mm
Manufacturer's serial number	GF
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
ripple current	3700 mA
series	GF
Terminal pitch	13 mm
Base Number Matches	1

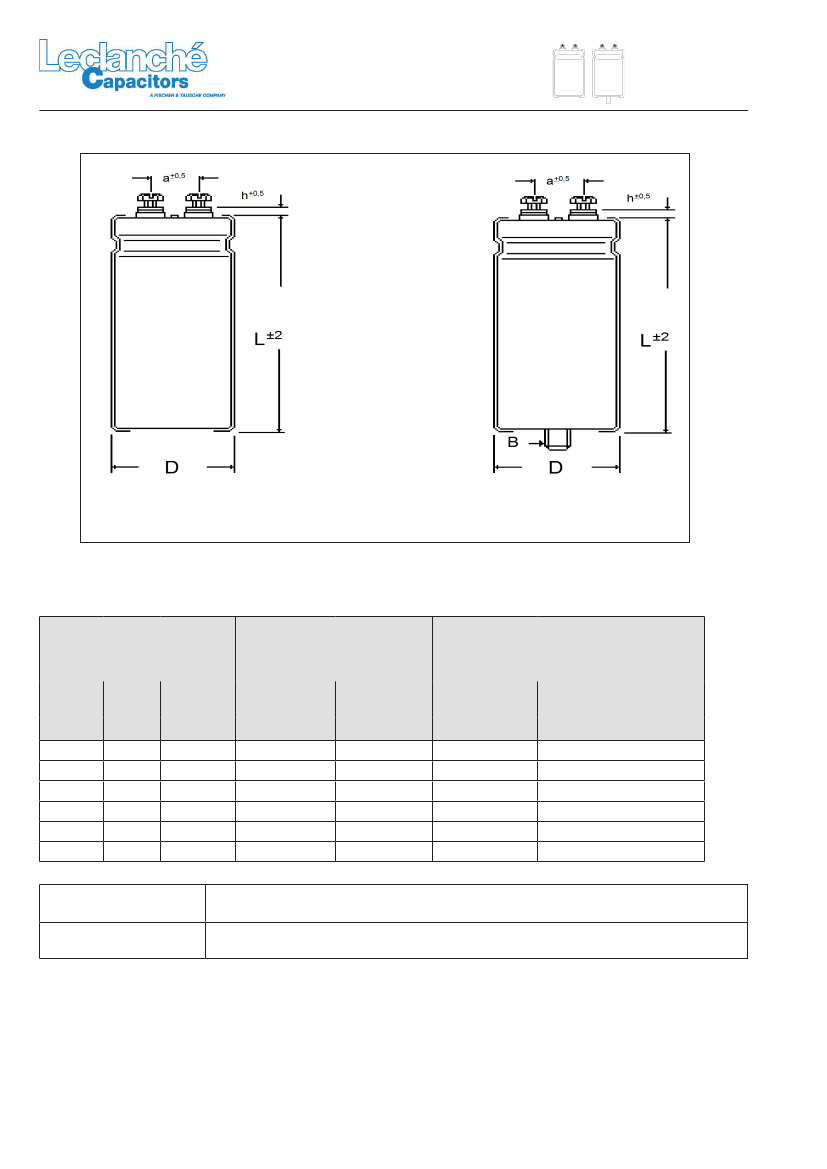

Preview

Download Datasheet

View All

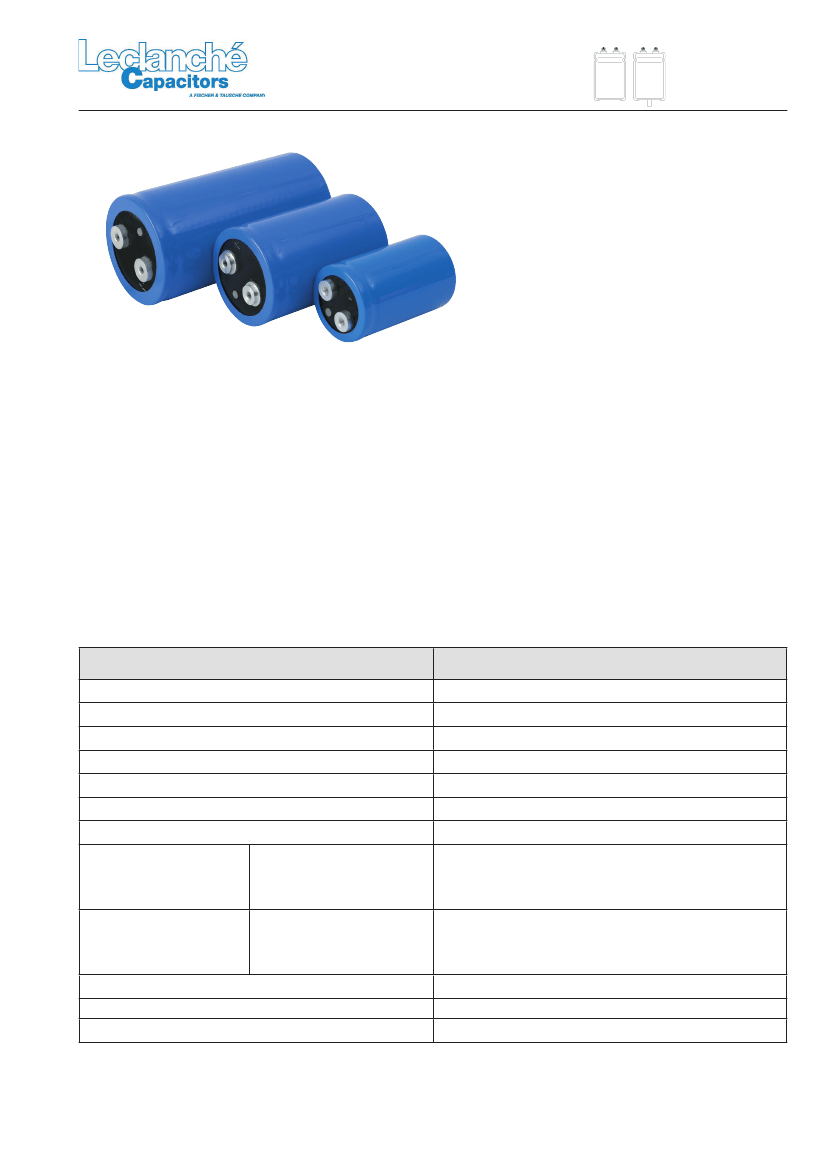

Special electrolyte

85 °C

Screw terminals

High CV product

Non flammable electrolyte

Long life 8000 h @ 85°C

Features

•

RoHS compliant

REACH compliant

Different case sizes, voltages and

capacitance combinations

are available on request.

Also in small lots.

All internal contact welded

Self distinguishing electrolyte

High capacitance

High reliability

Industrial

Inverter/drives

Professional photoflash

Welding

Applications

General specifications

Items

Rated capacitance range C

Capacitance tolerance

Rated voltage range U

Surge voltage U

Max. reverse voltage / ESL

Category temperature range

Leakage current I

after 5 min @ U

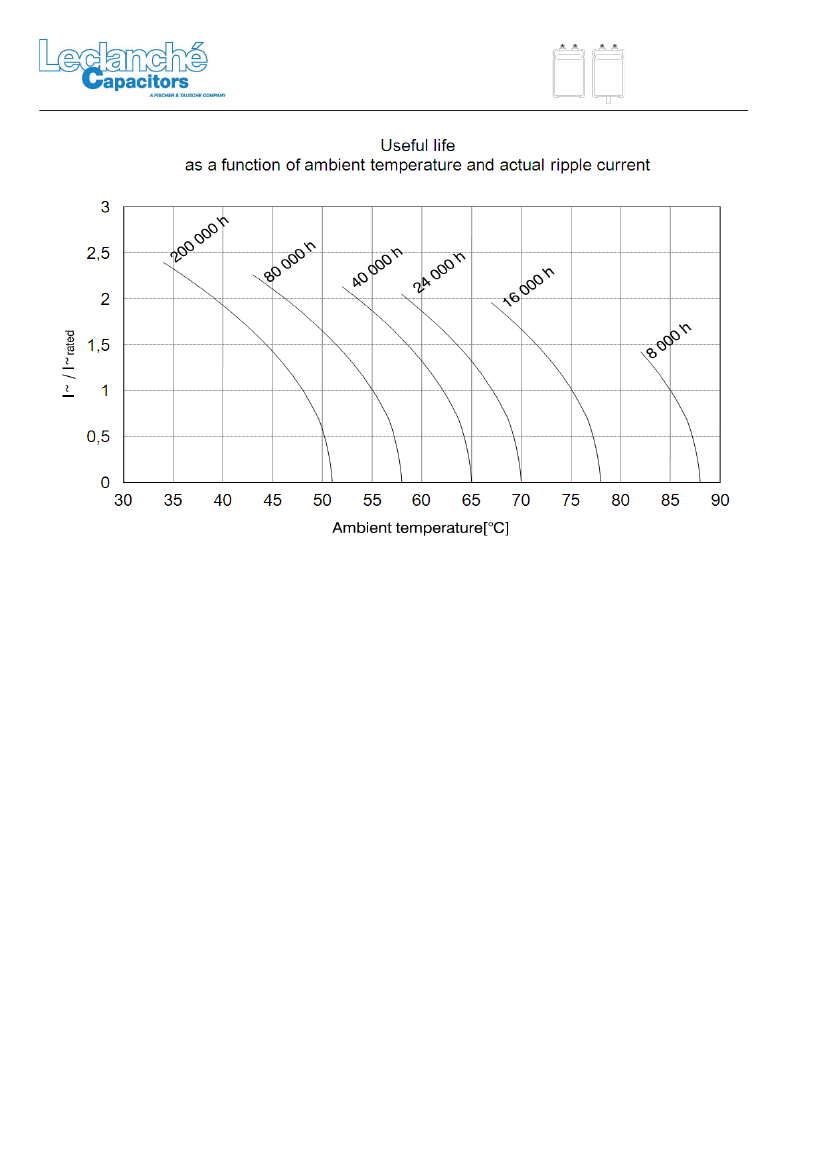

Useful life

8000 h

@ 85 °C ; U

; I

Characteristics

390 … 18.000 µF

± 20%

350 … 450 V

= 1,10 U

2 V / 20 nH

- 25°C ... + 85°C

≤ 0,008 * C

[µF] * U

[V] + 6 µA [µA]

Requirements

Δ C/C ≤ 30 % of initial value

ESR ≤ 300 % of specified limit

≤ /specified limit

Requirements

Δ C/C ≤ 20 % of initial value

ESR ≤ 130 % of specified limit

≤ specified limit

25/085/56

≥ 2500 V AC

IEC 60384-4

Endurance test

Climatic category IEC 60068

2000 h @ 85 °C , U

Voltage proof of the external insulation

Sectional specification

Leclanché Capacitors

1400 Yverdon, Switzerland

Tel. +41 24 445 66 88

Fax +41 24 445 66 89

www.Lcap.ch
