KPDE008-BP13
1.3µm Bandpass PD
Features
• Low capacitance and high speed with
a PIN structure
• Low dark current
• Low voltage operation
• High reliability
• Pigtail type is available as an option
Applications
• FTTH, FTTB
• Digital and analog optical communication
• Optical LAN
KPDE008-BP13- 56B
- H8
- 56
Description

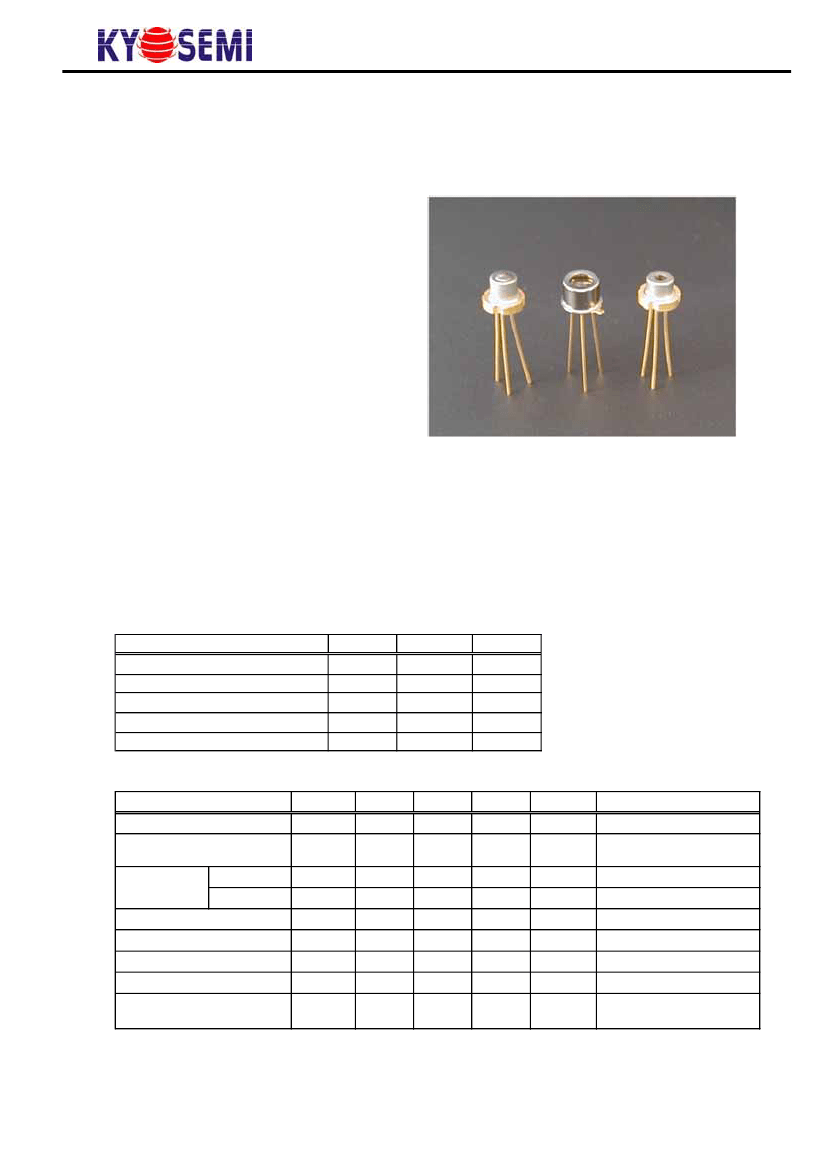

Reliable planar InGaAs photodiodes are packaged in hermetically sealed cans with an AR coated glass
window or an AR coated ball lens. KPDE008-BP13 has the sensitive area of 80µm dia. and it can be
efficiently coupled with a single and multi mode fiber through the ball lens cap. The pigtail type,
KPDE008-BP13T is available with various industry - standard connectors.
Specifications
Absolute Maximum Ratings
Parameter
Reverse voltage
Maximum optical power input
Forward current
Oparating ambient temperature
Storage temperature
Symbol
V
R
Pmax
I
F
T
a
Tstg
Value
20
10
10
‐
40 to +85
‐
40 to +85
Units
V
mW
mA
℃
℃

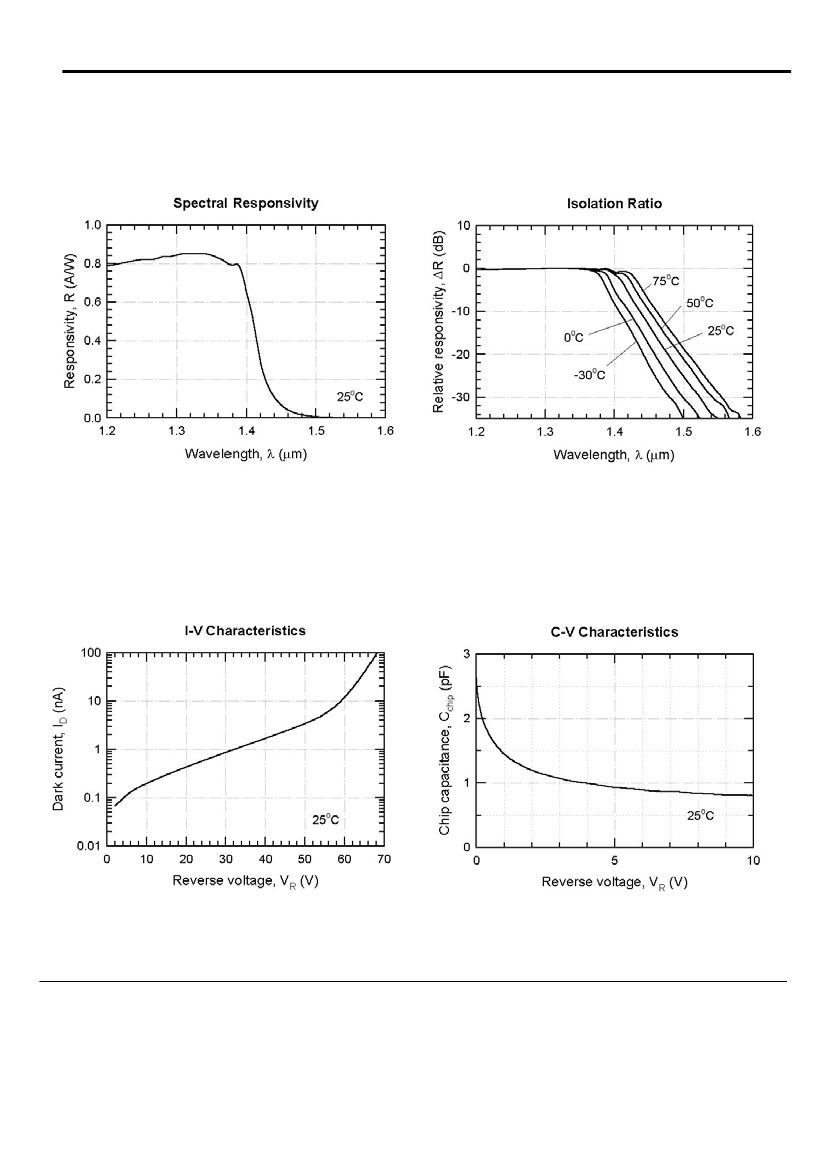

Characteristics
(V
R
= 5V, Ta = 25°C unless otherwise noted)
Parameter
Active diameter
Bandwidth
Responsivity
@1310nm
@1550nm
Symbol
D
B
R13
R15
R13/R15
I
D
C
C
chip
∆
R
Min.
Typ.
80
1.5
Max.
Unit
µ
m
GHz
A/W
Test Conditions
Pin=-10dBm, small signal
modulation
T
a
=-10 to +85°C
T
a
=-10 to +85°C
T
a
=-10 to +85°C
f=1MHz
f=1MHz
λ
=1260-1360nm
T
a
=-10 to +85°C
0.8
0.003
-25
20
1.3
1.0
-0.5
200
1.9
1.6
+0.2
A/W
dB
pA
pF
pF
dB
1550/1310 isolation ratio
Dark current
Total capacitance
Chip capacitance
Responsivity uniformity
