Hall Sensor
KSY 13
Version 2.0
Features
•
•
•
•
High sensitivity
High operating temperature
Low offset voltage
Low
TC
of sensitivity and
internal resistance
• Plastic miniature package
SOT 143 for surface
mounting (SMT)
Typical Applications
• Digital speed sensors
• Digital position sensors
• Commutatorless DC motors

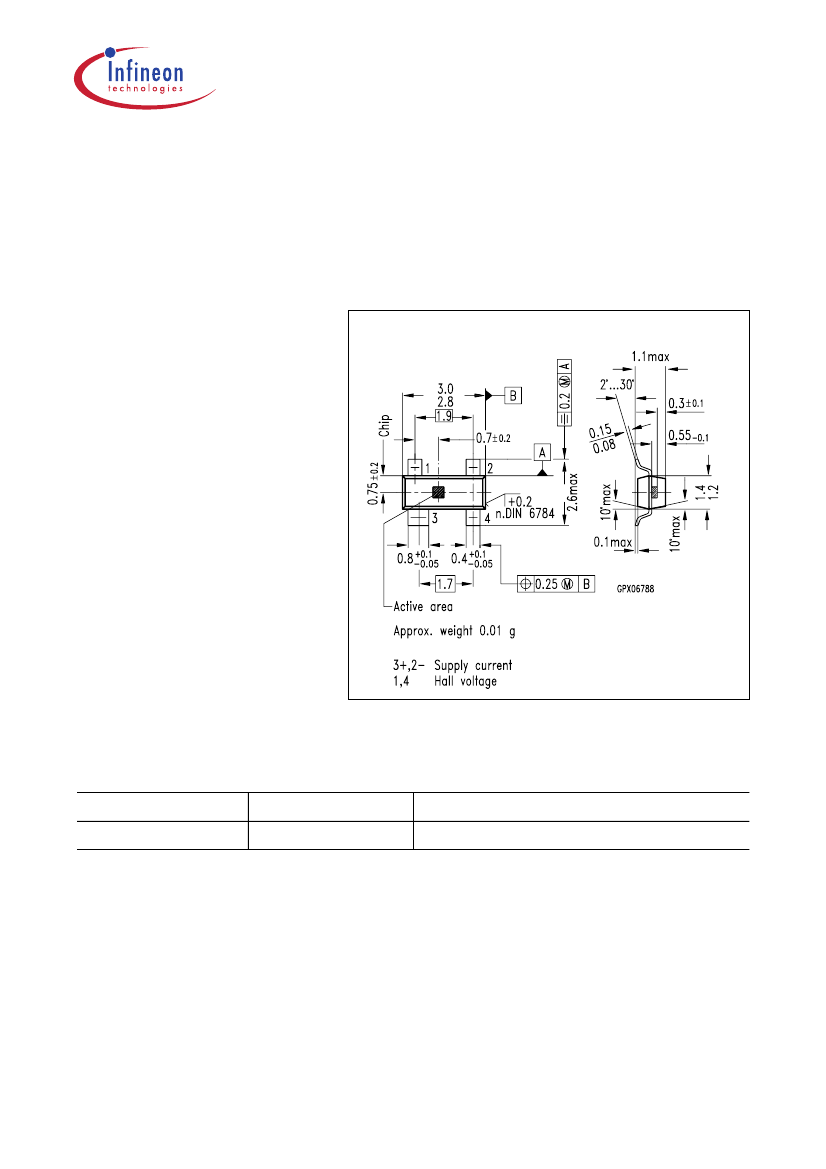

Dimensions in mm
Type
KSY 13 (E 7502)
Marking
S 13
Ordering Code
Q62705-K209 (taped on 18-cm reel)
The position sensor KSY 13 is an ion-implanted Hall generator made of mono-crystalline
GaAs material. Enclosed in a miniature package (SOT 143), it is suitable for surface
mounting (SMT).
If the sensor is operated with a constant supply current, the output Hall voltage is directly
proportional to a magnetic field acting upon the sensor. This sensor is outstanding for its
high magnetic field sensitivity and very low temperature coefficient.
The active area of the GaAs chip is approx. 0.2 mm
×
0.2 mm and is placed approx.
0.3 mm below the plastic surface of the package. The chip carrier is softmagnetic.
Data Sheet
1
1999-04-01
KSY 13
Absolute Maximum Ratings
Parameter
Operating temperature range
Storage temperature range
Supply current
Thermal conductivity
1)
Symbol
Limit Values
– 40 / + 150
– 50 / + 160
7
≥
2.7
Unit
°C
°C
mA
mW/K
T
A
T
stg
I
1
G
th A
Electrical Characteristics (
T
A
= 25
°C)
Nominal supply current
Open-circuit Hall voltage
I
1
=
I
1N
,
B
= 0.1 T
Ohmic offset voltage
I
1
=
I
1N
,
B
= 0 T
Supply and Hall side internal resistance
B
=0 T
Temperature coefficient of the
open-circuit Hall voltage
I
1
=
I
1N
,
B
= 0.2 T
Temperature coefficient of the internal
resistance
B
= 0.2 T
I
1N
V
20
V
R0
R
10, 20
TC
V20
5
95…145
≤ ±
20
900…1200
approx. –0.05
mA
mV
mV
Ω
%/K
TC
R10, R20
approx.
+ 0.1…0.18
%/K
1)
Thermal conductivity chip-ambient when mounted on alumina ceramic 15 mm
×
16.7 mm
×
0.7 mm
Data Sheet
2
1999-04-01
