HD40L4019RS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> HD40L4019RS

HD40L4019RS: DescriptionMicrocontroller, 4-Bit, MROM, HMCS400 CPU, 1.13MHz, CMOS, PDIP64, SDIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size213KB，63 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD40L4019RS Overview

Microcontroller, 4-Bit, MROM, HMCS400 CPU, 1.13MHz, CMOS, PDIP64, SDIP-64

HD40L4019RS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, SDIP64,.75
Contacts	64
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
CPU series	HMCS400
maximum clock frequency	4.5 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T64
length	57.6 mm
Number of I/O lines	58
Number of terminals	64
On-chip program ROM width	10
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	SDIP64,.75
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	496
rom(word)	16384
ROM programmability	MROM
Maximum seat height	5.08 mm
speed	1.13 MHz
Maximum slew rate	8 mA
Maximum supply voltage	6 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

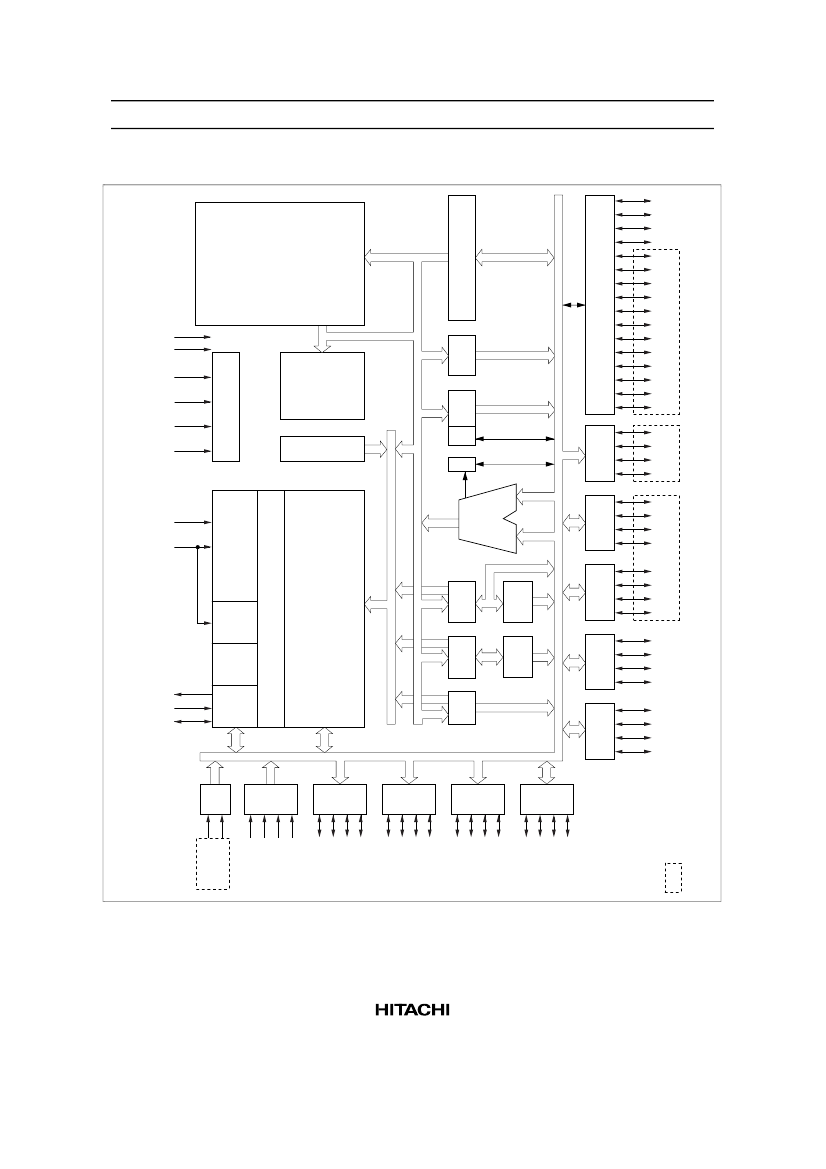

HD404019R Series

Rev. 6.0

Sept. 1998

Description

The HD404019R series are HMCS400-series CMOS 4-bit single-chip microcomputers. Each device

incorporates a ROM, RAM, I/O, serial interface, and two timer/counters, and contains high-voltage I/O

pins including high-current output pins to directly drive fluorescent displays.

The HD404019R series includes four chips. The HD404019R and HD40L4019R are Mask ROM versions.

The HD4074019 and HD407L4019 are PROM versions. The HD40L4019R and HD407L4019 are low-

voltage operation versions.

Features

•

16,384-word

10-bit ROM



Mask ROM: HD404019R, HD40L4019R



PROM: HD4074019, HD407L4019

•

992-digit

4-bit RAM

•

58 I/O pins, including 26 high-voltage I/O pins (40 V max.)

•

Two timer/counters



8-bit free-running timer



8-bit auto-reload timer/counter

•

Clock synchronous 8-bit serial interface

•

Five interrupt sources



Two by external sources



Two by timer/counters



One by serial interface

•

Subroutine stack, up to 16 levels including interrupts

•

Minimum instruction execution time: 0.89

µs

•

Low-power dissipation modes



Standby: Stops instruction execution while allowing clock oscillation and interrupt functions to

operate



Stop: Stops instruction execution and clock oscillation while retaining RAM data

HD40L4019RS Related Products

	HD40L4019RS	HD40L4019RH	HD407L4019H	HD407L4019S
Description	Microcontroller, 4-Bit, MROM, HMCS400 CPU, 1.13MHz, CMOS, PDIP64, SDIP-64	Microcontroller, 4-Bit, MROM, HMCS400 CPU, 1.13MHz, CMOS, PQFP64, QFP-64	Microcontroller, 4-Bit, OTPROM, HMCS400 CPU, 1.13MHz, CMOS, PQFP64, QFP-64	Microcontroller, 4-Bit, OTPROM, HMCS400 CPU, 1.13MHz, CMOS, PDIP64, SDIP-64
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	QFP	QFP	DIP
package instruction	DIP, SDIP64,.75	QFP, QFP64,.66SQ,32	QFP, QFP64,.66SQ,32	DIP, SDIP64,.75
Contacts	64	64	64	64
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO
bit size	4	4	4	4
CPU series	HMCS400	HMCS400	HMCS400	HMCS400
maximum clock frequency	4.5 MHz	4.5 MHz	4.5 MHz	4.5 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
JESD-30 code	R-PDIP-T64	S-PQFP-G64	S-PQFP-G64	R-PDIP-T64
length	57.6 mm	14 mm	14 mm	57.6 mm
Number of I/O lines	58	58	58	58
Number of terminals	64	64	64	64
On-chip program ROM width	10	10	10	10
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QFP	QFP	DIP
Encapsulate equivalent code	SDIP64,.75	QFP64,.66SQ,32	QFP64,.66SQ,32	SDIP64,.75
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE
power supply	3/5 V	3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	496	496	496	496
rom(word)	16384	16384	16384	16384
ROM programmability	MROM	MROM	OTPROM	OTPROM
Maximum seat height	5.08 mm	3.05 mm	3.05 mm	5.08 mm
speed	1.13 MHz	1.13 MHz	1.13 MHz	1.13 MHz
Maximum slew rate	8 mA	8 mA	8 mA	8 mA
Maximum supply voltage	6 V	6 V	5.5 V	5.5 V
Minimum supply voltage	2.7 V	3 V	4.5 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.778 mm	0.8 mm	0.8 mm	1.778 mm
Terminal location	DUAL	QUAD	QUAD	DUAL
width	19.05 mm	14 mm	14 mm	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	-
