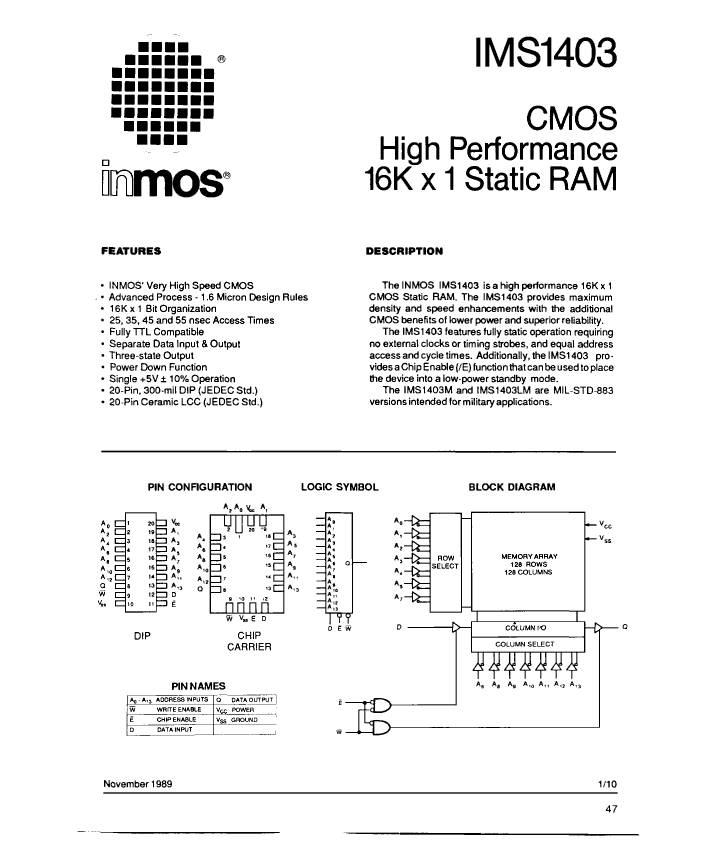

16KX1 STANDARD SRAM, 25ns, CDIP20, 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20

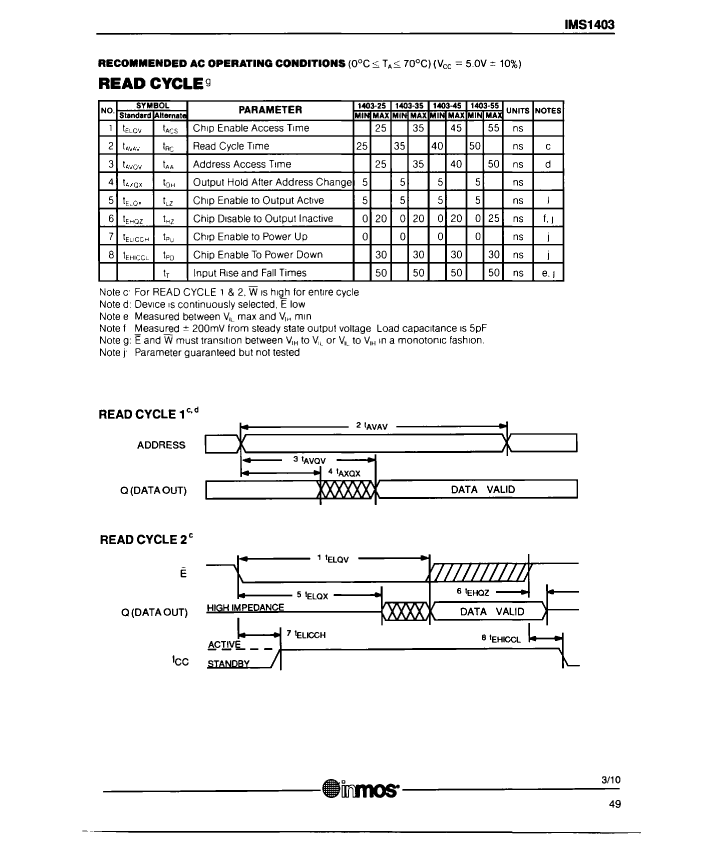

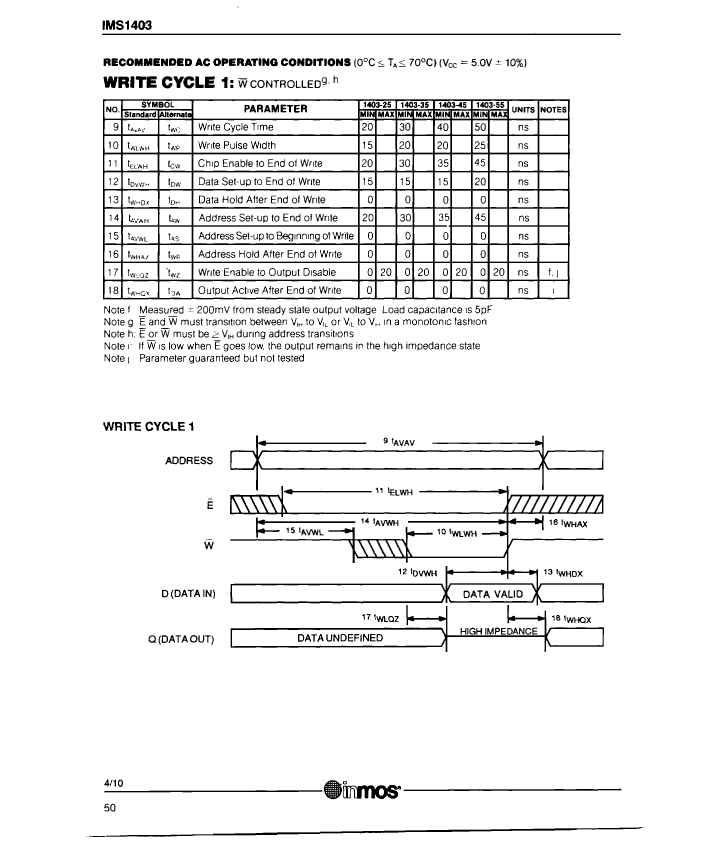

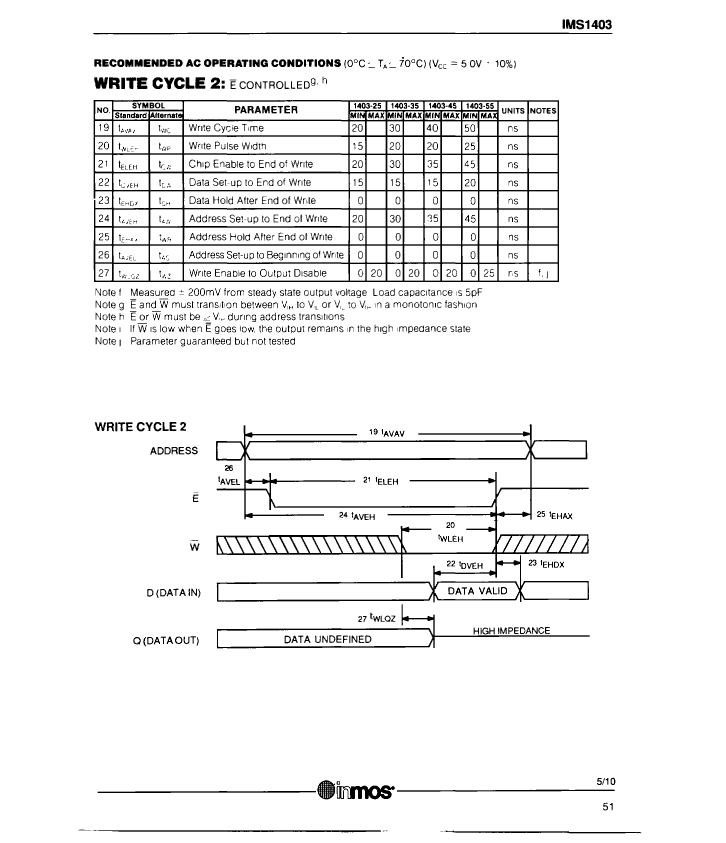

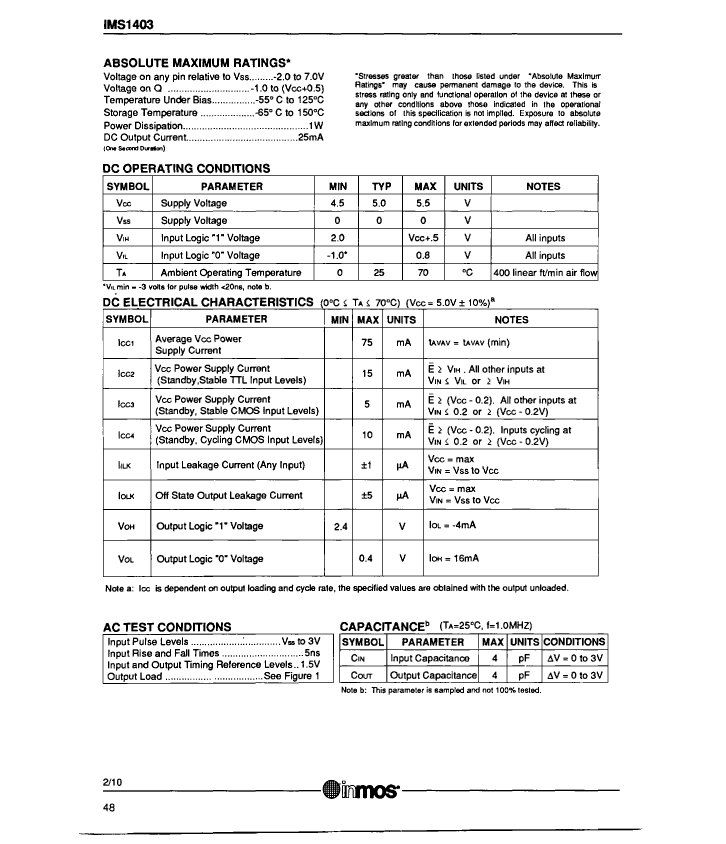

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | STMicroelectronics |
| Parts packaging code | DIP |
| package instruction | 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20 |
| Contacts | 20 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Maximum access time | 25 ns |
| I/O type | SEPARATE |
| JESD-30 code | R-CDIP-T20 |
| JESD-609 code | e0 |
| length | 25.4 mm |
| memory density | 16384 bit |
| Memory IC Type | STANDARD SRAM |
| memory width | 1 |
| Number of functions | 1 |
| Number of ports | 1 |
| Number of terminals | 20 |
| word count | 16384 words |
| character code | 16000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| organize | 16KX1 |
| Output characteristics | 3-STATE |
| Exportable | NO |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP20,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum seat height | 3.124 mm |
| Minimum standby current | 4.5 V |
| Maximum slew rate | 0.075 mA |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| IMS1403S-25 | IMS1403S-45 | IMS1403P-25 | IMS1403S-55 | IMS1403W-55 | IMS1403W-25 | IMS1403S-35 | IMS1403P-55 | IMS1403W-35 | IMS1403P-45 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | 16KX1 STANDARD SRAM, 25ns, CDIP20, 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20 | 16KX1 STANDARD SRAM, 40ns, CDIP20, 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20 | 16KX1 STANDARD SRAM, 25ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20 | 16KX1 STANDARD SRAM, 50ns, CDIP20, 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20 | 16KX1 STANDARD SRAM, 50ns, CQCC20, CERAMIC, LCC-20 | 16KX1 STANDARD SRAM, 25ns, CQCC20, CERAMIC, LCC-20 | 16KX1 STANDARD SRAM, 35ns, CDIP20, 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20 | 16KX1 STANDARD SRAM, 50ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20 | 16KX1 STANDARD SRAM, 35ns, CQCC20, CERAMIC, LCC-20 | 16KX1 STANDARD SRAM, 40ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20 |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Parts packaging code | DIP | DIP | DIP | DIP | QLCC | QLCC | DIP | DIP | QLCC | DIP |
| package instruction | 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20 | 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20 | 0.300 INCH, PLASTIC, DIP-20 | 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20 | CERAMIC, LCC-20 | CERAMIC, LCC-20 | 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20 | 0.300 INCH, PLASTIC, DIP-20 | CERAMIC, LCC-20 | 0.300 INCH, PLASTIC, DIP-20 |
| Contacts | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | _compli |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum access time | 25 ns | 40 ns | 25 ns | 50 ns | 50 ns | 25 ns | 35 ns | 50 ns | 35 ns | 40 ns |
| I/O type | SEPARATE | SEPARATE | SEPARATE | SEPARATE | SEPARATE | SEPARATE | SEPARATE | SEPARATE | SEPARATE | SEPARATE |
| JESD-30 code | R-CDIP-T20 | R-CDIP-T20 | R-PDIP-T20 | R-CDIP-T20 | R-CQCC-N20 | R-CQCC-N20 | R-CDIP-T20 | R-PDIP-T20 | R-CQCC-N20 | R-PDIP-T20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| length | 25.4 mm | 25.4 mm | 26.289 mm | 25.4 mm | 10.795 mm | 10.795 mm | 25.4 mm | 26.289 mm | 10.795 mm | 26.289 mm |
| memory density | 16384 bit | 16384 bit | 16384 bit | 16384 bit | 16384 bit | 16384 bit | 16384 bit | 16384 bit | 16384 bit | 16384 bi |
| Memory IC Type | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM |
| memory width | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| word count | 16384 words | 16384 words | 16384 words | 16384 words | 16384 words | 16384 words | 16384 words | 16384 words | 16384 words | 16384 words |
| character code | 16000 | 16000 | 16000 | 16000 | 16000 | 16000 | 16000 | 16000 | 16000 | 16000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| organize | 16KX1 | 16KX1 | 16KX1 | 16KX1 | 16KX1 | 16KX1 | 16KX1 | 16KX1 | 16KX1 | 16KX1 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Exportable | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | DIP | QCCN | QCCN | DIP | DIP | QCCN | DIP |
| Encapsulate equivalent code | DIP20,.3 | DIP20,.3 | DIP20,.3 | DIP20,.3 | LCC20,.3X.43 | LCC20,.3X.43 | DIP20,.3 | DIP20,.3 | LCC20,.3X.43 | DIP20,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | CHIP CARRIER | CHIP CARRIER | IN-LINE | IN-LINE | CHIP CARRIER | IN-LINE |
| Parallel/Serial | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 3.124 mm | 3.124 mm | 4.455 mm | 3.124 mm | 1.981 mm | 1.981 mm | 3.124 mm | 4.455 mm | 1.981 mm | 4.455 mm |
| Minimum standby current | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Maximum slew rate | 0.075 mA | 0.075 mA | 0.075 mA | 0.075 mA | 0.075 mA | 0.075 mA | 0.075 mA | 0.075 mA | 0.075 mA | 0.075 mA |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | YES | YES | NO | NO | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | QUAD | QUAD | DUAL | DUAL | QUAD | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.36 mm | 7.36 mm | 7.62 mm | 7.62 mm | 7.36 mm | 7.62 mm |
