54LS125/B2A datasheet, PDF - EEWORLD Datasheet

54LS125/B2A: DescriptionBus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, CQCC20,; Categorylogic logic; File Size126KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

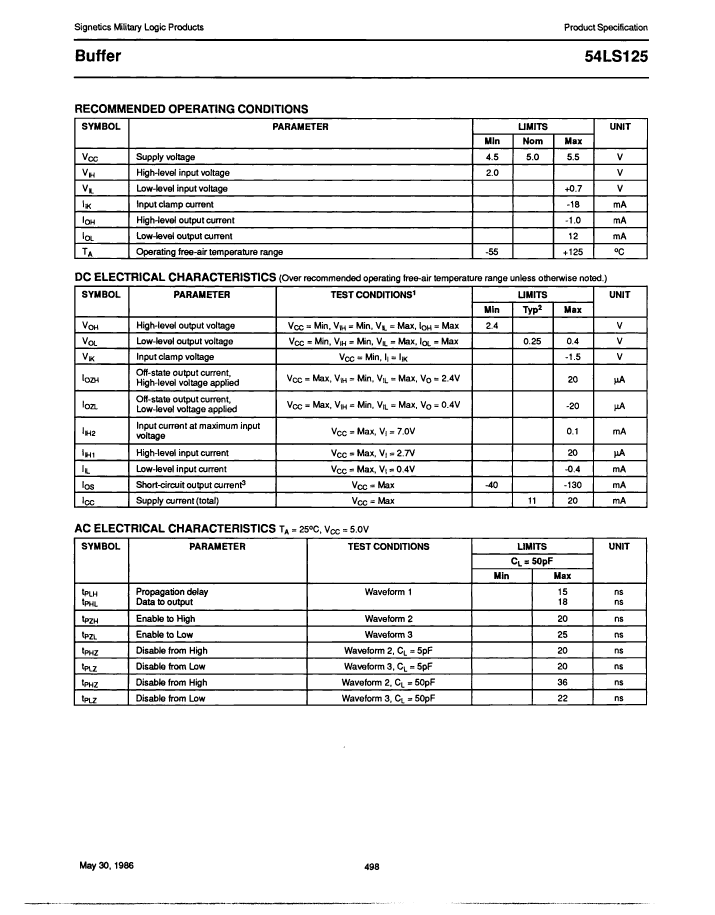

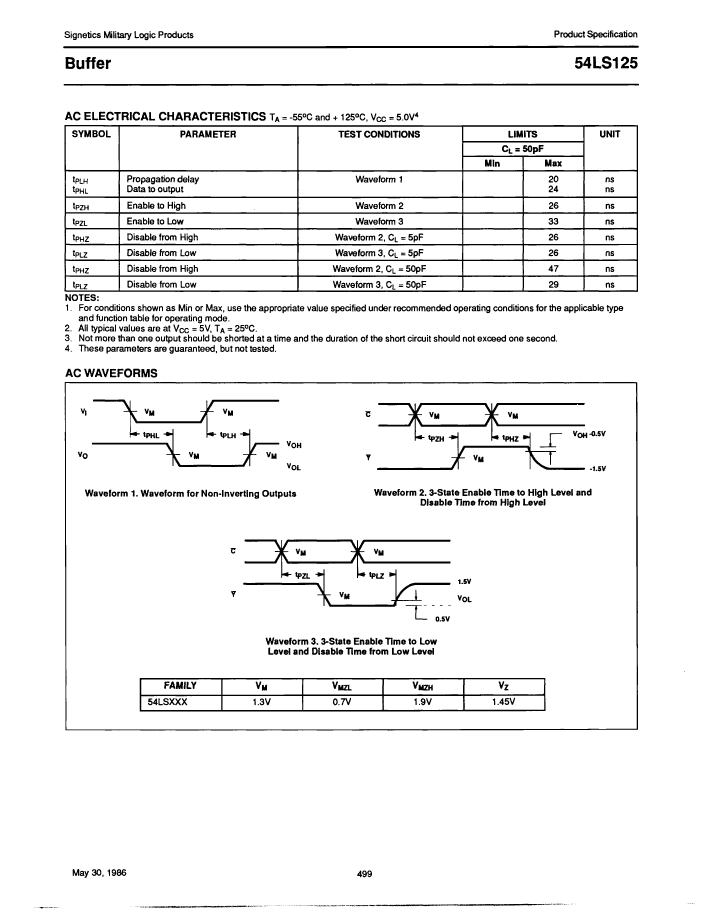

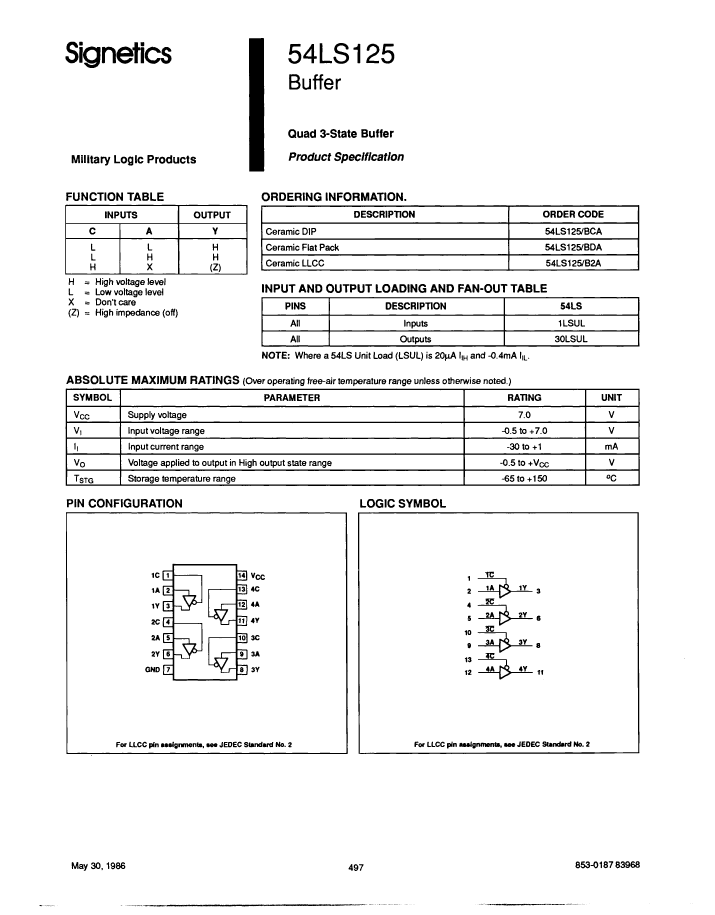

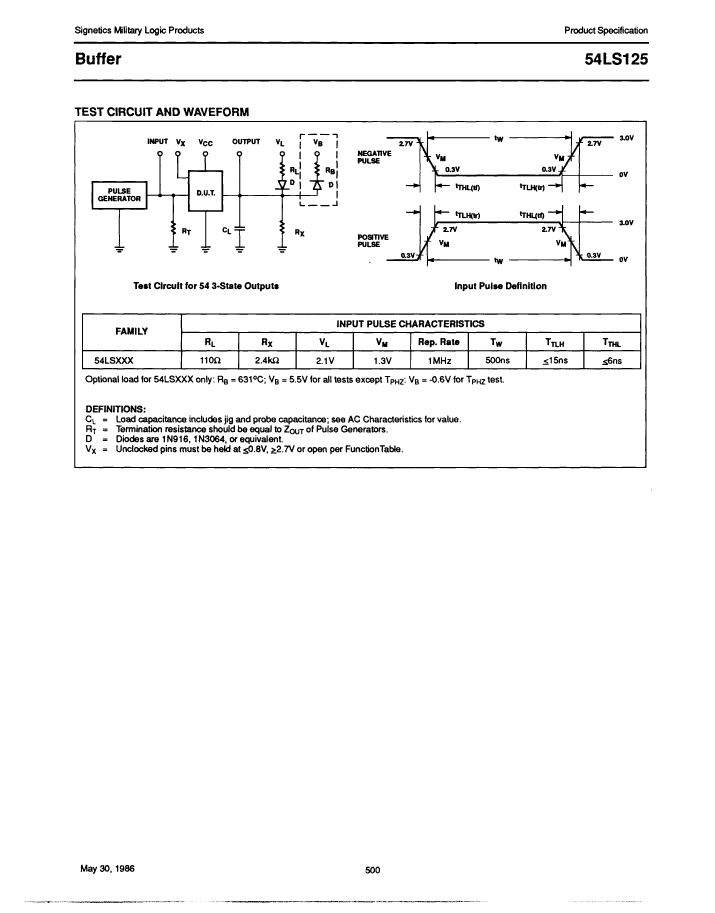

54LS125/B2A Overview

Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, CQCC20,

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	1
Number of functions	4
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	20 mA
propagation delay (tpd)	24 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

	54LS125/B2A	54LS125/BDA	54LS125/BCA
Description	Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, CQCC20,	Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, CDFP14	Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, CDIP14,
Reach Compliance Code	unknown	unknown	unknown
series	LS	LS	LS
JESD-30 code	S-CQCC-N20	R-CDFP-F14	R-CDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	1	1	1
Number of functions	4	4	4
Number of ports	2	2	2
Number of terminals	20	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE
Maximum supply current (ICC)	20 mA	20 mA	20 mA
propagation delay (tpd)	24 ns	24 ns	24 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL
Base Number Matches	1	1	1
