5962-9233802M2A datasheet, PDF

5962-9233802M2A: DescriptionOT PLD, 10ns, BICMOS, CQCC20, CERAMIC, LCC-20; CategoryProgrammable logic devices Programmable logic; File Size377KB，10 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

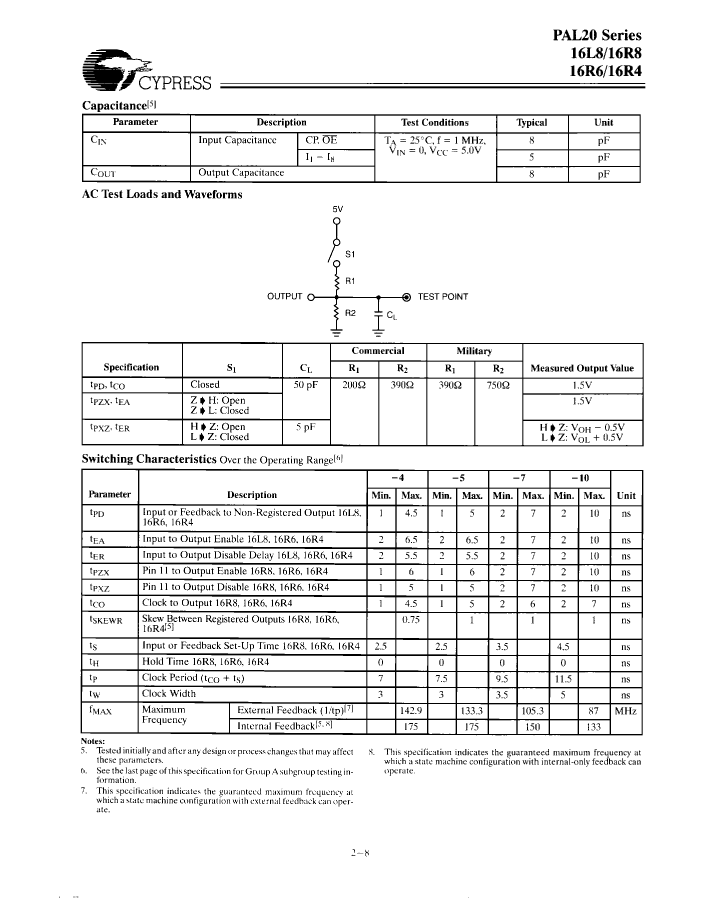

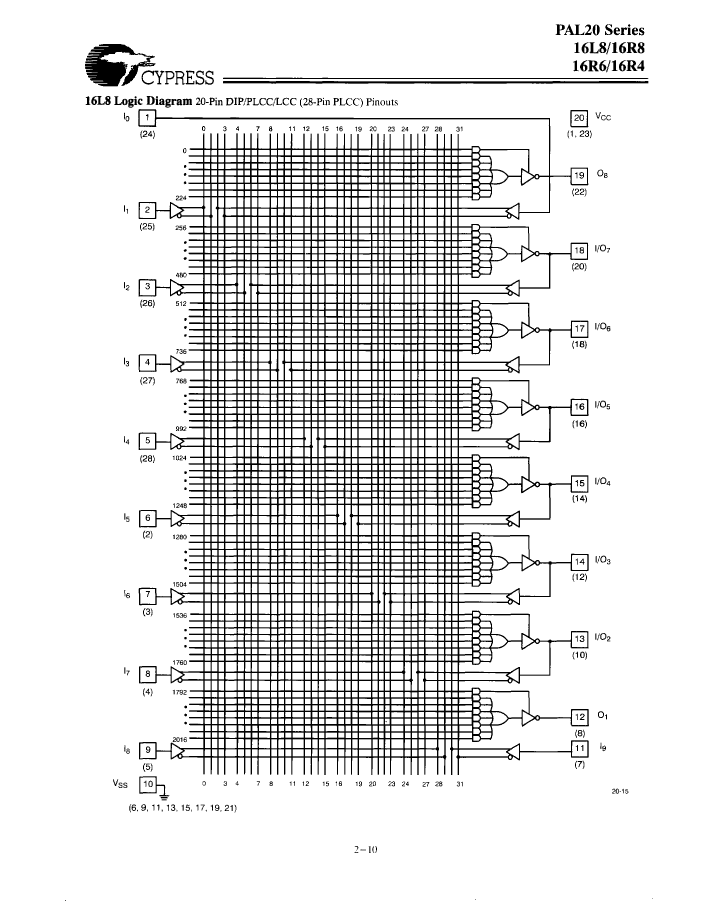

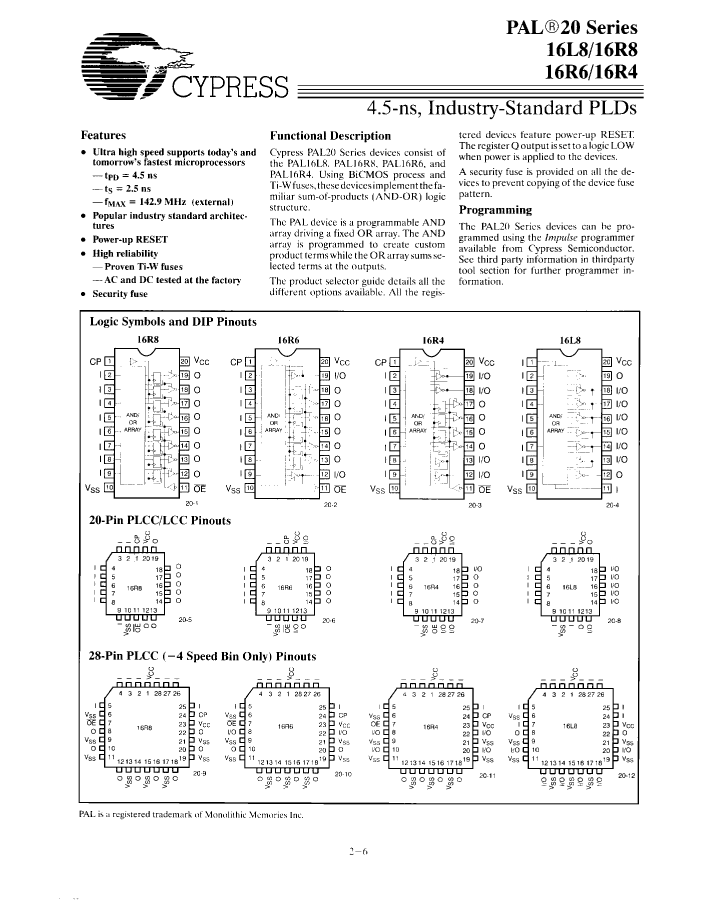

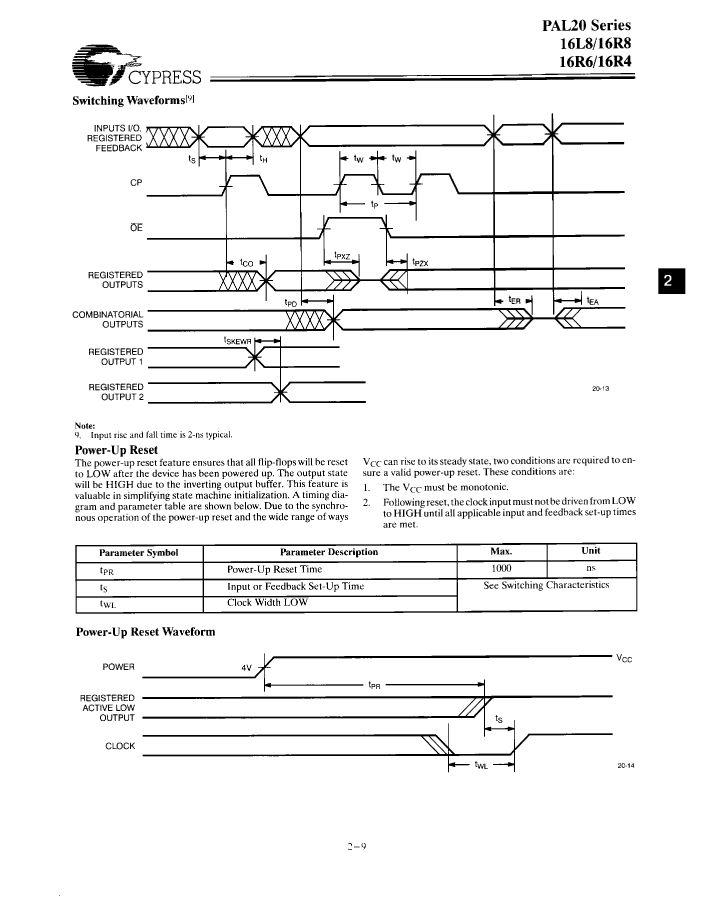

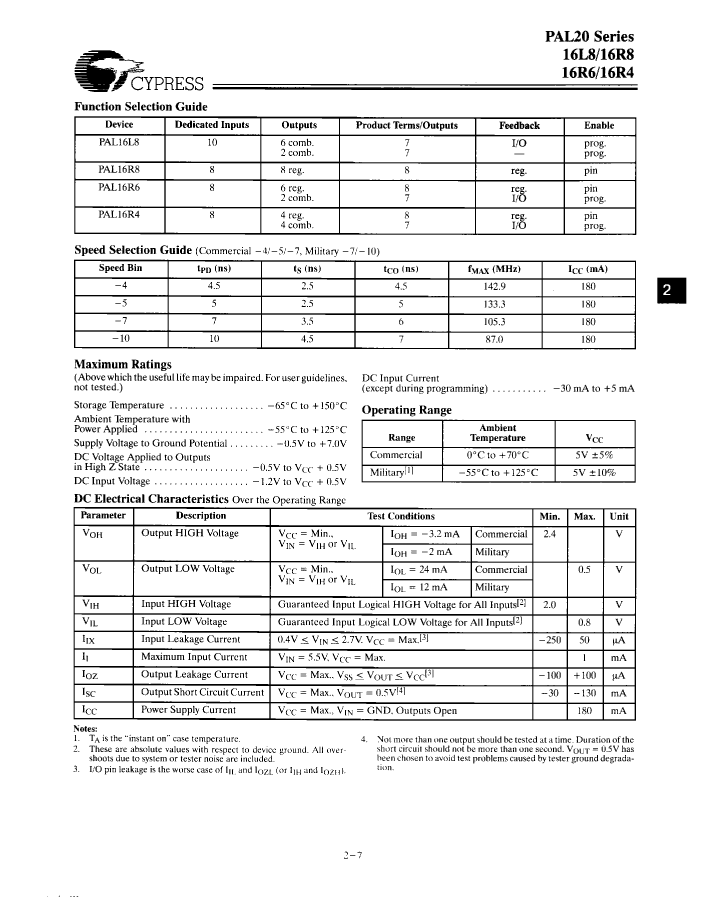

5962-9233802M2A Overview

OT PLD, 10ns, BICMOS, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Other features	POWER-UP RESET
maximum clock frequency	87 MHz
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Dedicated input times	8
Number of I/O lines
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD
propagation delay	10 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	1.905 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1
