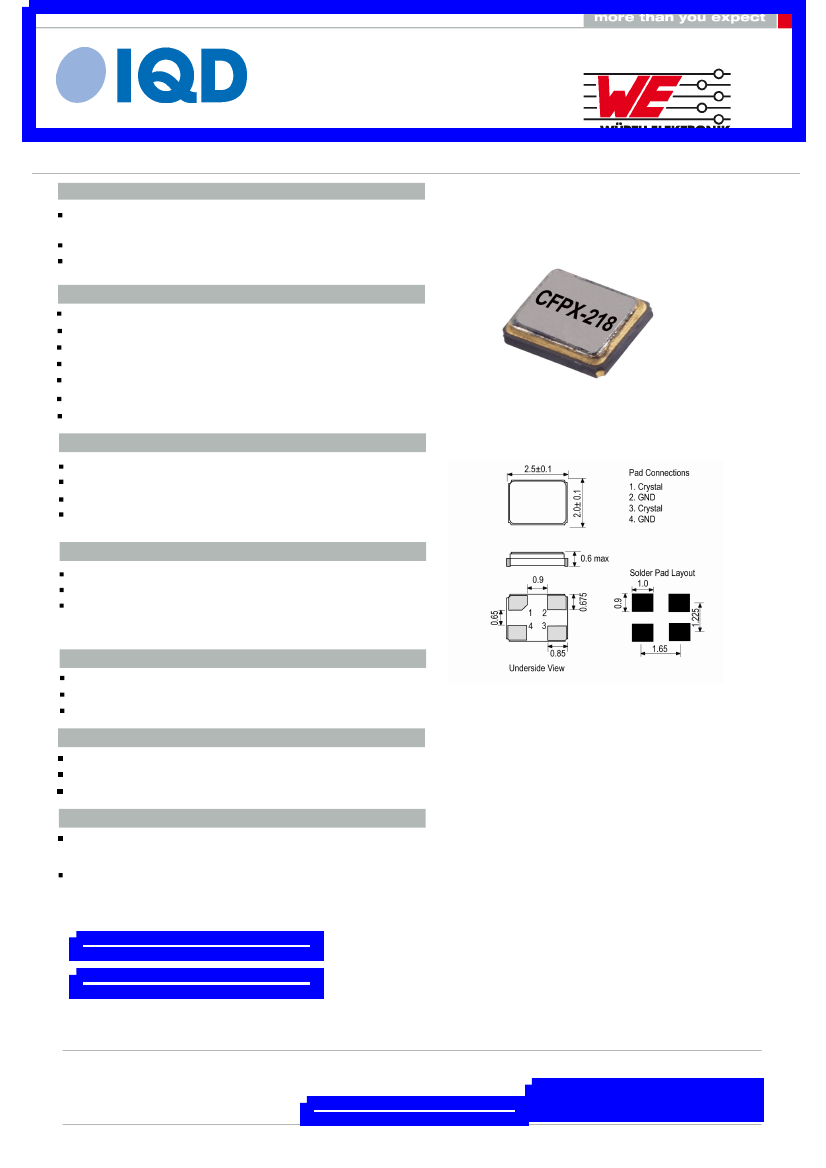

Quartz Crystal Specification
IQD Part No. + Packaging: LFXTAL072844RL3K
Wurth Part No.
830107284409
Description
2.5 x 2mm SMD crystal in a hermetically sealed ceramic
package with a seam sealed metal lid.
Model
CFPX-218
Model Issue number
4
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
30.0MHz
±10.00ppm
@ 25°C
±10.00ppm
-20.00 to 70.00°C
Fundamental
±3ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
10.00pF
5pF max
100µW max
70.00Ω max
Storage Temperature Range: -55 to 125°C
Drop: 100cm drop (3 times) onto hard wooden board.
Vibration: MIL-STD-883F, Method 2007.3: 20G
(20Hz-2000Hz), 1.52mm amplitude, 20mins in 3 mutually
perpendicular planes (total 4hrs).
Manufacturing Details
Maximum Process Temperature: 260°C (10secs max)
RoHS Terminations
NiAu
RoHS Reflow Temp
260°C max for 10secs max
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: RL3K
Pack Size: 3,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
USEFUL LINKS
Toolbox:
www.we-online.com/toolbox
Product Catalog:
www.we-online.com/products
CONTACT INFORMATION:
Würth Elektronik eiSos GmbH & Co. KG
Max-Eyth-Str. 1, 74638 Waldenburg, Germany
Tel: +49(0) 7942 945-0
Printed on 27 Jun 19 10:29 using WE Part Data Sheet V1.00019
Email: eiSos@we-online.de
Web: www.we-online.com
Page 1 of 1
