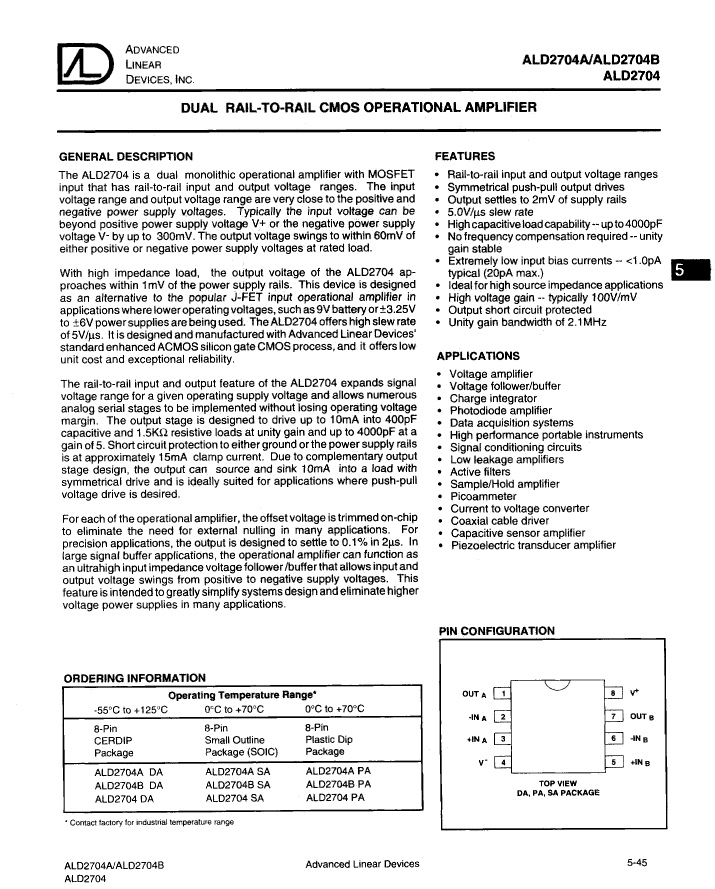

ALD2704SAXXXX amplifier basic information:
ALD2704SAXXXX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP,
ALD2704SAXXXX amplifier core information:
The ALD2704SAXXXX has a minimum operating temperature of 70 °C and a maximum operating temperature of 70 °C. Its maximum average bias current is 0.0003 µA

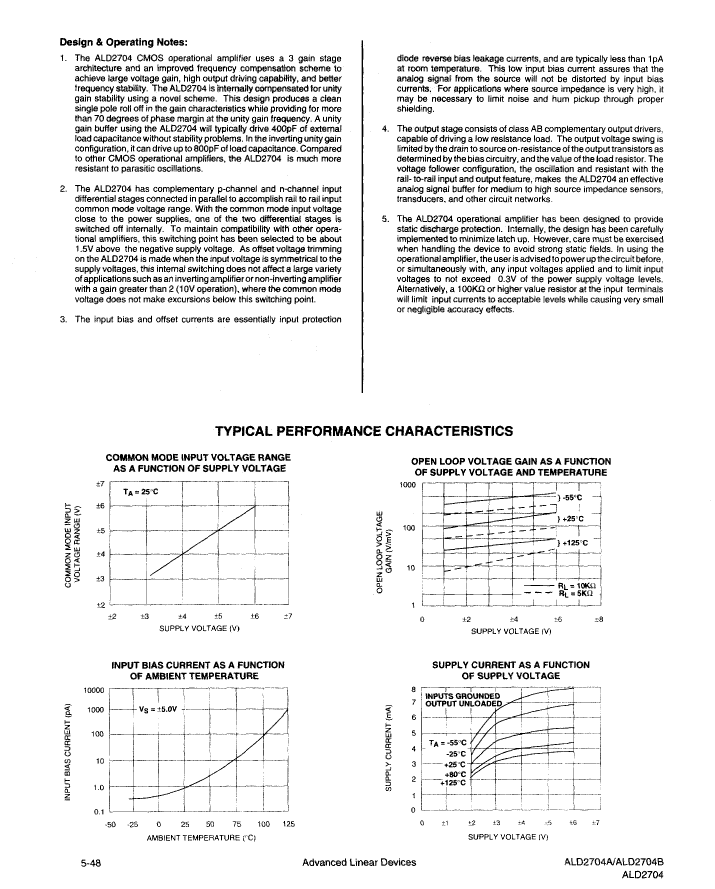

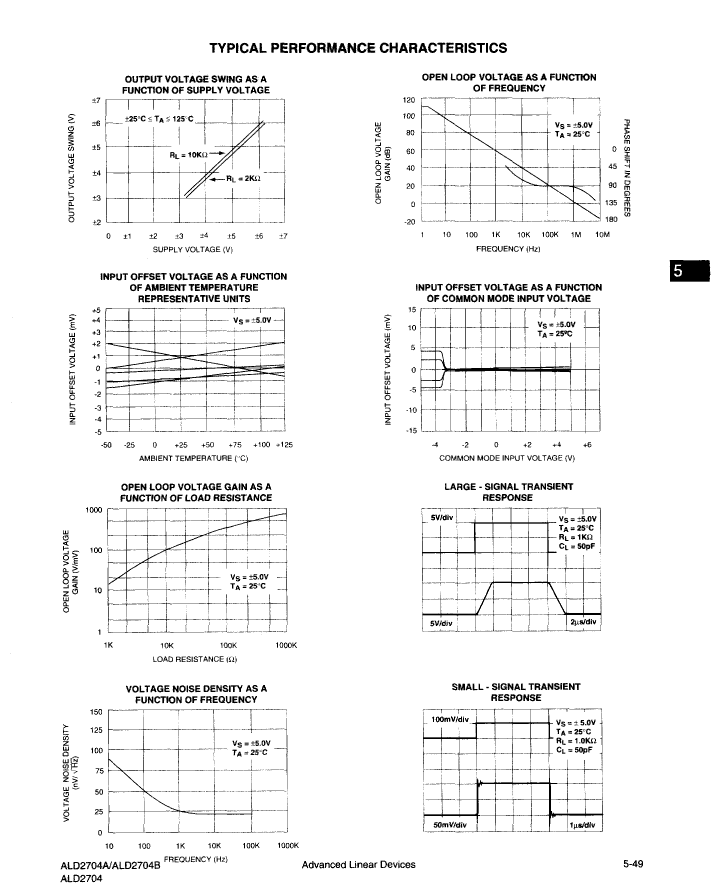

How to simply check the efficiency of an amplifier? Looking at its slew rate, the ALD2704SAXXXX has a nominal slew rate of 5 V/us. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the ALD2704SAXXXX gain becomes 0.707 times the low-frequency gain is 2100 kHz.
The nominal supply voltage of the ALD2704SAXXXX is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of the ALD2704SAXXXX is 6000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of ALD2704SAXXXX:
ALD2704SAXXXX has 8 terminals. Its terminal position type is: DUAL. Total pins: 8
ALD2704SAXXXX amplifier additional information:
Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of ALD2704SAXXXX is: SOP. ALD2704SAXXXX packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The ALD2704SAXXXX package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING.
ALD2704SAXXXX amplifier basic information:
ALD2704SAXXXX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP,
ALD2704SAXXXX amplifier core information:
The ALD2704SAXXXX has a minimum operating temperature of 70 °C and a maximum operating temperature of 70 °C. Its maximum average bias current is 0.0003 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the ALD2704SAXXXX has a nominal slew rate of 5 V/us. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the ALD2704SAXXXX gain becomes 0.707 times the low-frequency gain is 2100 kHz.
The nominal supply voltage of the ALD2704SAXXXX is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of the ALD2704SAXXXX is 6000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of ALD2704SAXXXX:
ALD2704SAXXXX has 8 terminals. Its terminal position type is: DUAL. Total pins: 8
ALD2704SAXXXX amplifier additional information:
Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of ALD2704SAXXXX is: SOP. ALD2704SAXXXX packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The ALD2704SAXXXX package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING.

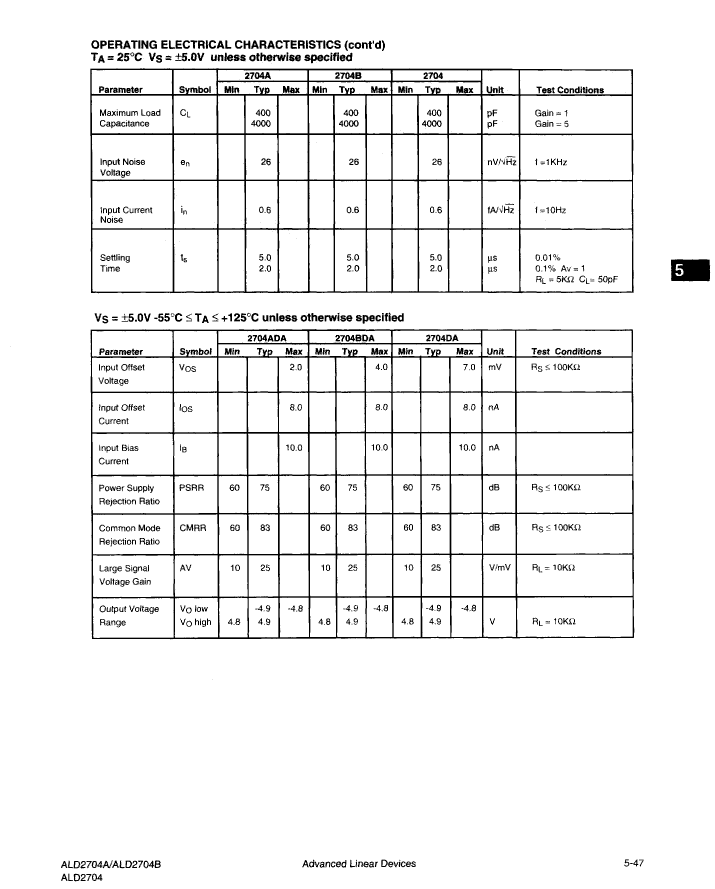

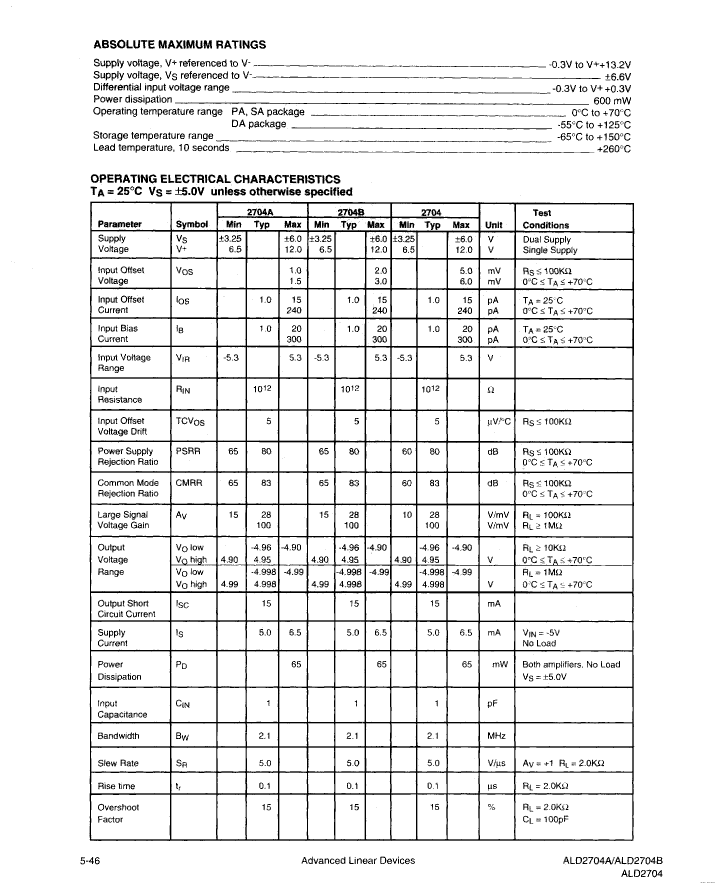

| Parameter Name | Attribute value |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.0003 µA |
| Nominal Common Mode Rejection Ratio | 83 dB |
| Maximum input offset voltage | 6000 µV |
| JESD-30 code | R-PDSO-G8 |
| Negative supply voltage upper limit | -6.6 V |
| Nominal Negative Supply Voltage (Vsup) | -5 V |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Nominal slew rate | 5 V/us |
| Supply voltage upper limit | 6.6 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 2100 kHz |
| Base Number Matches | 1 |
| ALD2704SAXXXX | ALD2704BDAMXXXX | ALD2704BPAXXXX | ALD2704BSAXXXX | ALD2704DAMXXXX | ALD2704ASAXXXX | ALD2704APAXXXX | ALD2704PAXXXX | ALD2704ADAMXXXX | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Operational Amplifier, 2 Func, 6000uV Offset-Max, CMOS, PDSO8 | Operational Amplifier, 2 Func, 4000uV Offset-Max, CMOS, CDIP8 | Operational Amplifier, 2 Func, 3000uV Offset-Max, CMOS, PDIP8 | Operational Amplifier, 2 Func, 3000uV Offset-Max, CMOS, PDSO8 | Operational Amplifier, 2 Func, 7000uV Offset-Max, CMOS, CDIP8 | Operational Amplifier, 2 Func, 1500uV Offset-Max, CMOS, PDSO8 | Operational Amplifier, 2 Func, 1500uV Offset-Max, CMOS, PDIP8 | Operational Amplifier, 2 Func, 6000uV Offset-Max, CMOS, PDIP8 | Operational Amplifier, 2 Func, 2000uV Offset-Max, CMOS, CDIP8 |
| Parts packaging code | SOIC | DIP | DIP | SOIC | DIP | SOIC | DIP | DIP | DIP |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | unknown | unknow | unknow | unknow | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.0003 µA | 0.01 µA | 0.0003 µA | 0.0003 µA | 0.01 µA | 0.0003 µA | 0.0003 µA | 0.0003 µA | 0.01 µA |
| Nominal Common Mode Rejection Ratio | 83 dB | 83 dB | 83 dB | 83 dB | 83 dB | 83 dB | 83 dB | 83 dB | 83 dB |
| Maximum input offset voltage | 6000 µV | 4000 µV | 3000 µV | 3000 µV | 7000 µV | 1500 µV | 1500 µV | 6000 µV | 2000 µV |
| JESD-30 code | R-PDSO-G8 | R-CDIP-T8 | R-PDIP-T8 | R-PDSO-G8 | R-CDIP-T8 | R-PDSO-G8 | R-PDIP-T8 | R-PDIP-T8 | R-CDIP-T8 |
| Negative supply voltage upper limit | -6.6 V | -6.6 V | -6.6 V | -6.6 V | -6.6 V | -6.6 V | -6.6 V | -6.6 V | -6.6 V |
| Nominal Negative Supply Voltage (Vsup) | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 125 °C | 70 °C | 70 °C | 125 °C | 70 °C | 70 °C | 70 °C | 125 °C |
| Package body material | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal slew rate | 5 V/us | 5 V/us | 5 V/us | 5 V/us | 5 V/us | 5 V/us | 5 V/us | 5 V/us | 5 V/us |
| Supply voltage upper limit | 6.6 V | 6.6 V | 6.6 V | 6.6 V | 6.6 V | 6.6 V | 6.6 V | 6.6 V | 6.6 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | YES | NO | YES | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | MILITARY | COMMERCIAL | COMMERCIAL | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | MILITARY |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Nominal Uniform Gain Bandwidth | 2100 kHz | 2100 kHz | 2100 kHz | 2100 kHz | 2100 kHz | 2100 kHz | 2100 kHz | 2100 kHz | 2100 kHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
