F4500-125.000-AE0

Description
Oscillator
CategoryPassive components    oscillator
File Size79KB,1 Pages
ManufacturerFOX [Fox Electronics]
Environmental Compliance
Download Datasheet Parametric Compare View All

F4500-125.000-AE0 Overview

Oscillator

F4500-125.000-AE0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFOX [Fox Electronics]
Reach Compliance Codecompliant
JESD-609 codee4
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
Base Number Matches1

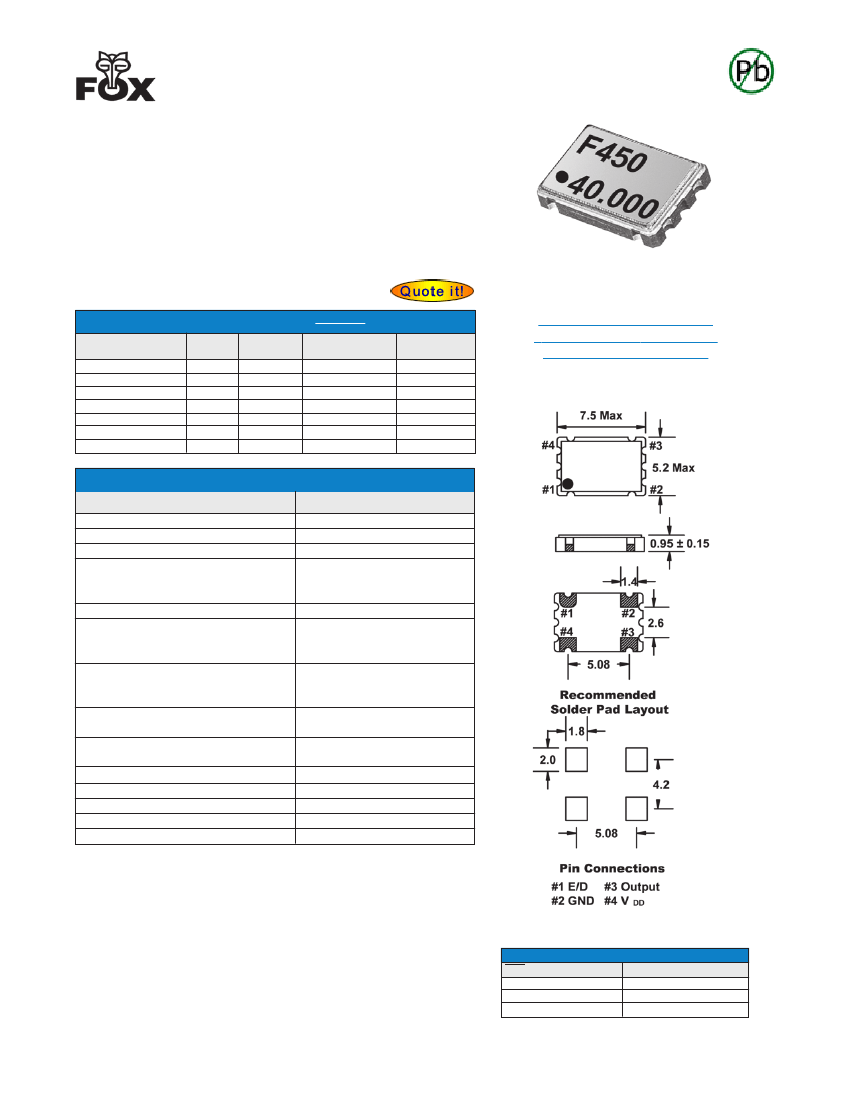

1.8V HCMOS SMD OSCILLATOR WITH STANDBY
MODEL: F4500 SERIES
FEATURES
1.8V Operation
HCMOS Output
Low Power Consumption
Standby Function
Tape and Reel
(2,000 pcs. STD)
• PART NUMBER SELECTION
Learn More - Internet Required
Part Number
528-Frequency-xxxxx
529-Frequency-xxxxx
530-Frequency-xxxxx
531-Frequency-xxxxx
532-Frequency-xxxxx
533-Frequency-xxxxx
534-Frequency-xxxxx
Model
Number
F4500
F4500R
F4505
F4505R
F4506
F4506R
F4508
Frequency
Stability
1
±100PPM
±100PPM
±50PPM
±50PPM
±25PPM
±25PPM*
±20PPM*
Operating
Temperature (ºC)
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
Frequency
Range (MHz)
1.800 ~ 125.000
1.800 ~ 125.000
1.800 ~ 125.000
1.800 ~ 125.000
1.800 ~ 125.000
1.800 ~ 125.000
1.800 ~ 125.000
Learn more about:
Part Marking Identification
Tape and Reel Specification
Mechanical Specification
Internet required
• ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
O
)
Storage Temperature Range (T
STG
)
Supply Voltage
(V
DD
)
Input Current
(I
DD
)
1.000 ~ 32.100 MHz
32.100+ ~ 70.000 MHz
Output Symmetry (50% V
DD
)
Rise Time (20% ~ 80% V
DD
) (T
R
)
1.800 ~ 32.100 MHz
32.100+ ~ 70.000 MHz
Fall Time (80% ~ 20% V
DD
) (T
F
)
1.800 ~ 32.100 MHz
32.100+ ~ 70.000 MHz
Output Voltage
(V
OL
)
(V
OH
)
Output Current
(I
OL
)
(I
OH
)
Output Load
(HCMOS)
Standby Current
Start-up Time
(T
S
)
Output Disable Time
2
Output Enable Time
2
1
MAX
(unless otherwise noted)
1.800 ~ 125.000 MHz
-55ºC ~ +125ºC
1.8V ± 5%
7mA
15mA
40% ~ 60%
5nS
3.5nS
5nS
3.5nS
20% V
DD
80% V
DD
Min
2mA Min
2mA Min
15pF
10µA
10mS
300nS
10mS
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration. *Excludes Shock/Vibration
2
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to
minimize power supply line noise.
All specifications subject to change without notice.
Rev. 1/24/05
All dimensions are in millimeters.
See
page 60
for tape and reel specifications.
• ENABLE / DISABLE FUNCTION
INH (Pin 1)
OUTPUT (Pin 3)
OPEN
2
ACTIVE
'1' Level V
IH
70% V
DD
ACTIVE
'0' Level V
IL
30% V
DD
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239) 693.0099 FAX +1 (239) 693.1554
http://www.foxonline.com
EMEA
Munich, Germany +49.(0).89.90936870 FAX +49.(0).89.90936776 |
Asia
Hong Kong +852.2854.4285 FAX +852.2854.4282
© 2005 FOX ELECTRONICS
53
