TES2N-1211: DescriptionAnalog Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size107KB，1 Pages; ManufacturerPowersolve Electronics Ltd

Download Datasheet Parametric View All

TES2N-1211 Overview

Analog Circuit

TES2N-1211 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

DC-DC Converters

www.powersolve.co.uk

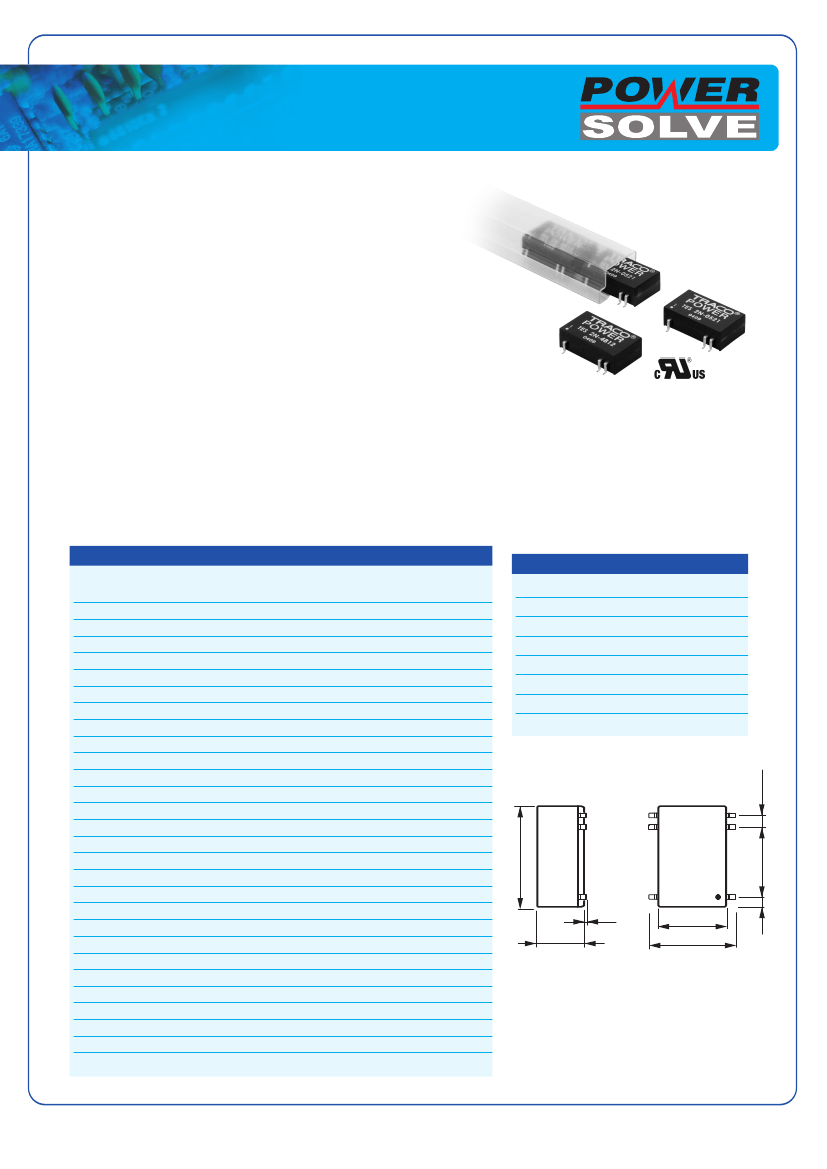

TES 2N Series, 2 Watt

•

Ultracompact SMD-Package

•

Wide 2:1 Input Range

•

Regulated Output

•

I/O Isolation 1500 VDC

•

Operating Temperature Range –40°C to +71°C

•

Low Ripple and Noise

•

Short Circuit Protection

•

Input Filter to meet EN 55022, Class A

•

Reflow solder temperature up to 250°C

Line regulation:

Load regulation:

Ripple & Noise:

Conducted EMI:

Short circuit protection:

Efficiency:

Operating temperature range:

I/O isolation voltage:

Safety standards:

Case:

±0.5% max.

Single output models: ±0.75% max. Dual output models: ±2.0% max.

<50 mVpk-pk (20 MHz BW)

EN55022, class A, and FCC, level A (internal filter)

continuous, automatic recovery

78% typ.

–40°C … +71°C

1500 VDC

cUL/UL 60950, IEC/EN 60950

plastic (UL 94V-0 rating)

Models

Order Code

TES 2N-0510

TES

2N-0511

2N-0512

2N-0513

2N-0521

2N-0522

Input voltage

Output voltage

3.3 VDC

5

12

15

±5

VDC

Output current

max.

500 mA

400

165

135

±200

mA

1

7

8

9

10

16

Pin-Out

Single Output

– Vin (GND)

No con.

+ Vout

– Vout

+ Vin

Dual Output

– Vin (GND)

No con.

Common

+ Vout

– Vout

+ Vin

4.5 – 9 VDC

±12 VDC

±15 VDC

3.3 VDC

5 VDC

12 VDC

9 – 18 VDC

15 VDC

±5 VDC

±12 VDC

±15 VDC

3.3 VDC

5 VDC

18 – 36 VDC

12 VDC

15 VDC

±5 VDC

±12 VDC

±15 VDC

3.3 VDC

5 VDC

12 VDC

36 – 72 VDC

15 VDC

±5 VDC

±12 VDC

±15 VDC

±85 mA

±65 mA

500 mA

400 mA

165 mA

135 mA

±200 mA

±85 mA

±65 mA

500 mA

400 mA

165 mA

135 mA

±200 mA

±85 mA

±65 mA

500 mA

400 mA

165 mA

135 mA

±200 mA

±85 mA

±65 mA

23.8

(0.94)

TES 2N-0523

TES 2N-1210

TES 2N-1211

TES 2N-1212

TES 2N-1213

TES 2N-1221

TES 2N-1222

TES 2N-1223

TES 2N-2410

TES 2N-2411

TES 2N-2412

TES 2N-2413

TES 2N-2421

TES 2N-2422

TES 2N-2423

TES 2N-4810

TES

2N-4811

2N-4812

2N-4813

2N-4821

2N-4822

2N-4823

9

8

Top View

15.24

2.54

3

0.25

(0.01)

13.7

(0.54)

18.1

(0.71)

7.6

(0.30)

() = Inches

Powe

rsolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk

(0.13)

16

1

(0.6)

(0.1)
