3M
Pak 100 Header Accessories
.100″
×

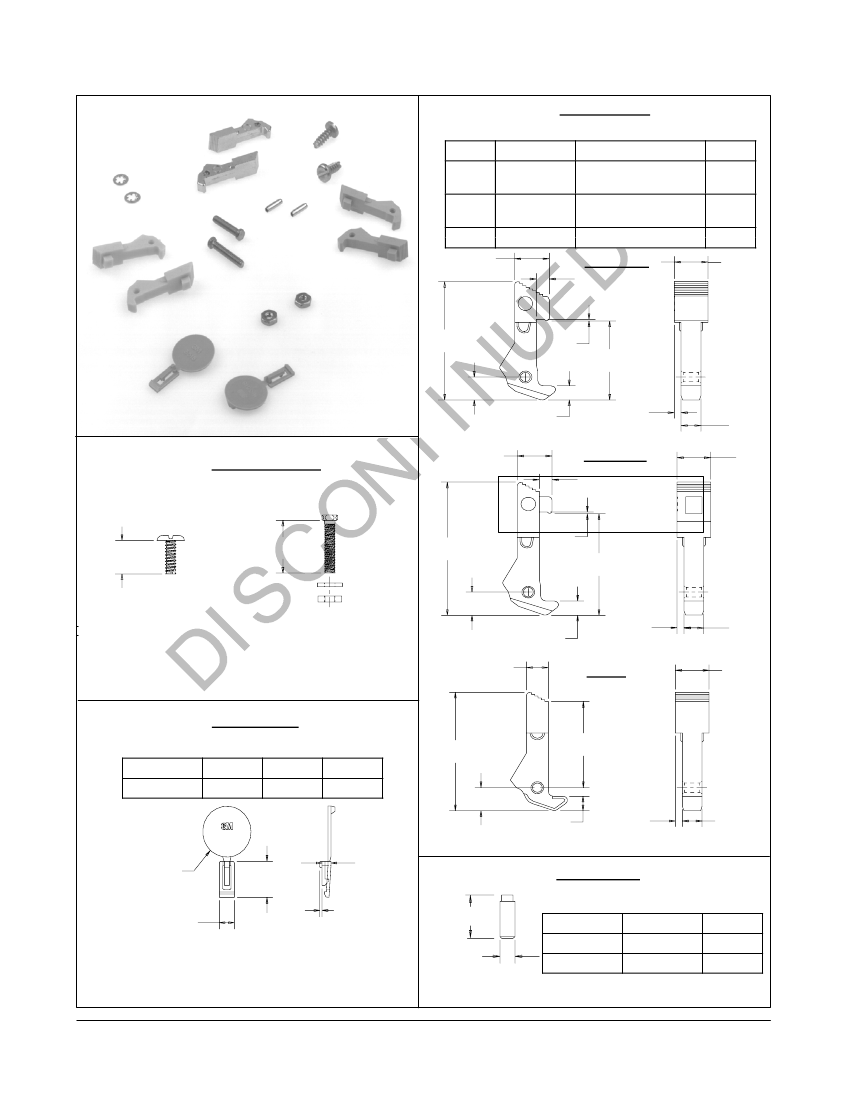

.100″ Latch/Ejector
3400 Series
Roll Pin Latches
Product
Short
Latch
Long
Latch
Ejector
.207 Ref
[5.26]
Part Number
3505-2
3505-3
3505-4
3505 4
Material
PBT
PBT
Nickel Plated Zinc Alloy
Color
Gray
Gray
Nickel
.204
[5.18]
Short Latch
.077
[1.96]
.773
[19.63]
.010
[0.25]
.517
[13.19]
.150
[3.81]
.093
[2.36]
.207 Ref
[5.28]
.043
[1.09]
.118
[3.00]
.204
[5.18]
Mounting Hardware
3341-5
(Installed from bottom of board)
3341-6
(Installed with Latches removed)
Long Latch
.077
File Replace by consolidated ts file:
[1.96]
.31
[7.9]
.50
[12.7]
.868
[22.05]
.010
[0.25]
.666
[18.92]
.150
[3.81]
Panhead Thread Cutting
Screw: #4-24 X 5/16″
Type: USA Std BT, Federal BG
Hex Head Bolt, Nut and Washer
Bolt -- #2-56 X 1/2″
.132
[3.36]
.093
[2.36]
.043
[1.09]
.118
[3.00]
.204
[5.18]
3341-5 & 6
Material -- Stainless Steel
Ejector
Polarizing Keys
.857
[21.77]
.642
[16.31]
Part Number
3518
Material
PBT
Color
Gray
Dim A
.02
.150
[3.81]
.093
[2.36]
Note: Roll Pins included with latches.
.042
[1.07]
.120
[3.05]
Breakaway Tab
.34 Ref
[8.6]
A
.09
[2.3]
Polarizing Post
.321
[8.15]
.15
[3.8]
Part Number
3201-3
Material
PBT
LCP
Color
Gray
Black
TS-0162-15
Sheet 1 of 2
.100 Dia
[2.54]
Note: #2216 B/A Scotchweld can be used to adhere keys.
3201-4
Note: Insert Post into one mounting hardware hole on
bottom of header. Set post to protrude .115″.
3
Interconnect Solutions
http://www.3M.com/interconnects/
data_pp (For Web PDF Output)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
Header Accessories
.100″
×
.100″ Latch/Ejector
3400 Series
Snap-In Latches
Product
Short
Latch
Long
Latch
Part Number
3505-30
N3505-30
3505-31
N3505-31
Material
PPA
PPA
PPA
PPA
Color
Gray
Beige
Gray
Beige

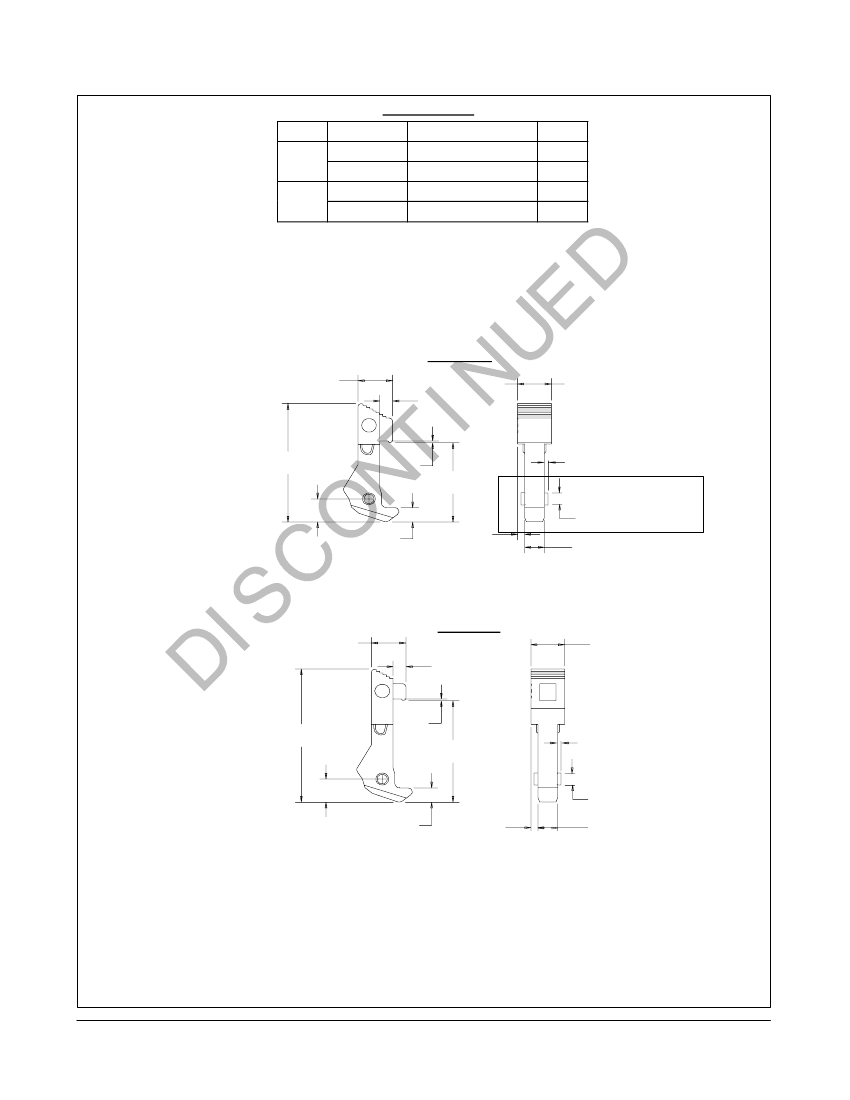

Short Latch
.207 Ref
[5.26]
.077
[1.96]
.204
[5.18]
.773
[19.63]
.010
[0.25]
.517
[13.19]
.030
[0.76]
File Replace by consolidated ts file:
«.066
[1.68]
.118
[3.00]
.150
[3.81]
.093
[2.36]
.043
[1.09]
Long Latch
.207 Ref
[5.28]
.077
[1.96]
.204
[5.18]
.868
[22.05]
.010
[0.25]
.666
[18.92]
.030
[0.76]
.150
[3.81]
.093
[2.36]
«.066
[1.68]
.043
[1.09]
.118
[3.00]
TS-0162-15
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
data_pp (For Web PDF Output)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
