54194/BEA datasheet, PDF - EEWORLD Datasheet

54194/BEA: DescriptionParallel In Parallel Out, TTL/H/L Series, 4-Bit, Bidirectional, True Output, TTL, CDIP16; Categorylogic logic; File Size226KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

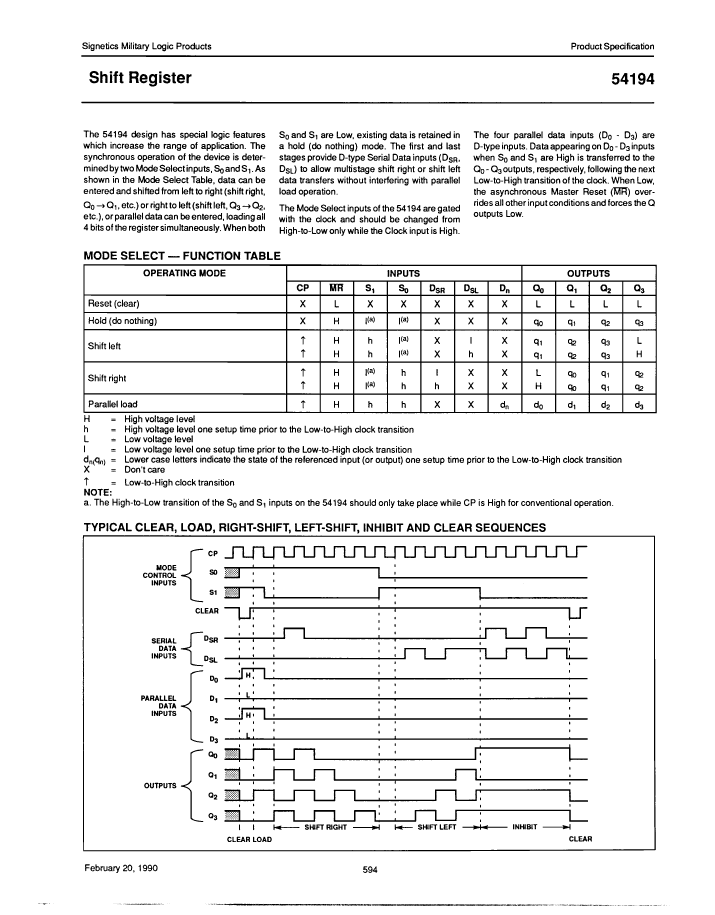

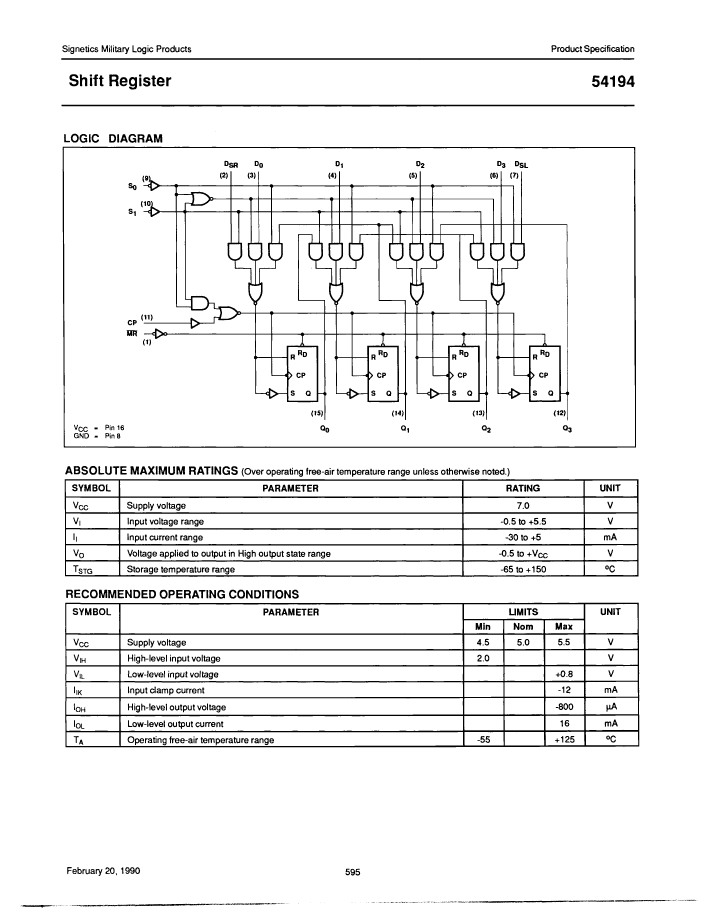

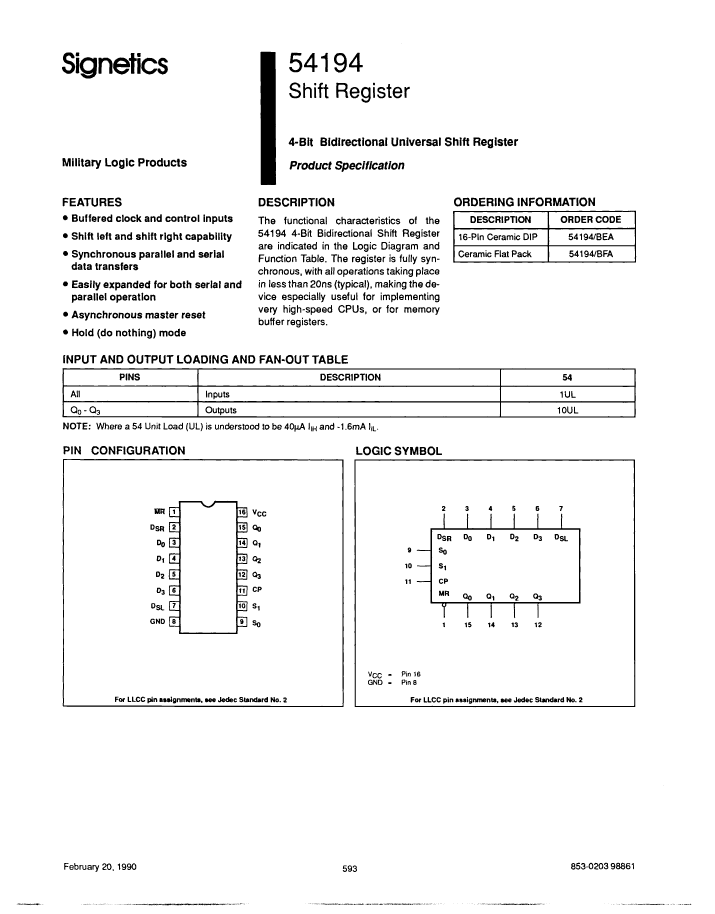

54194/BEA Overview

Parallel In Parallel Out, TTL/H/L Series, 4-Bit, Bidirectional, True Output, TTL, CDIP16

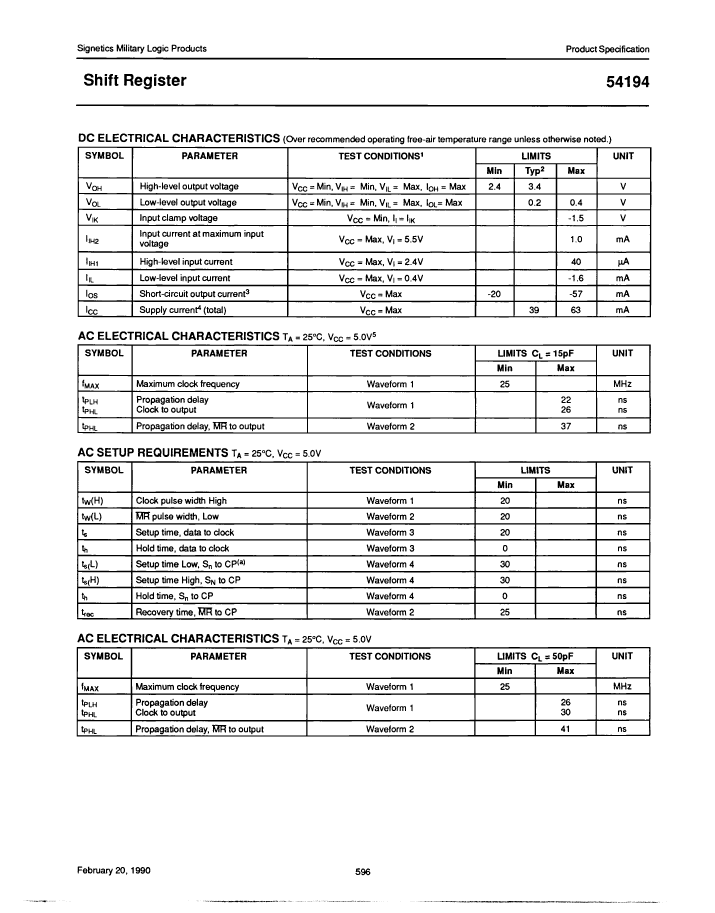

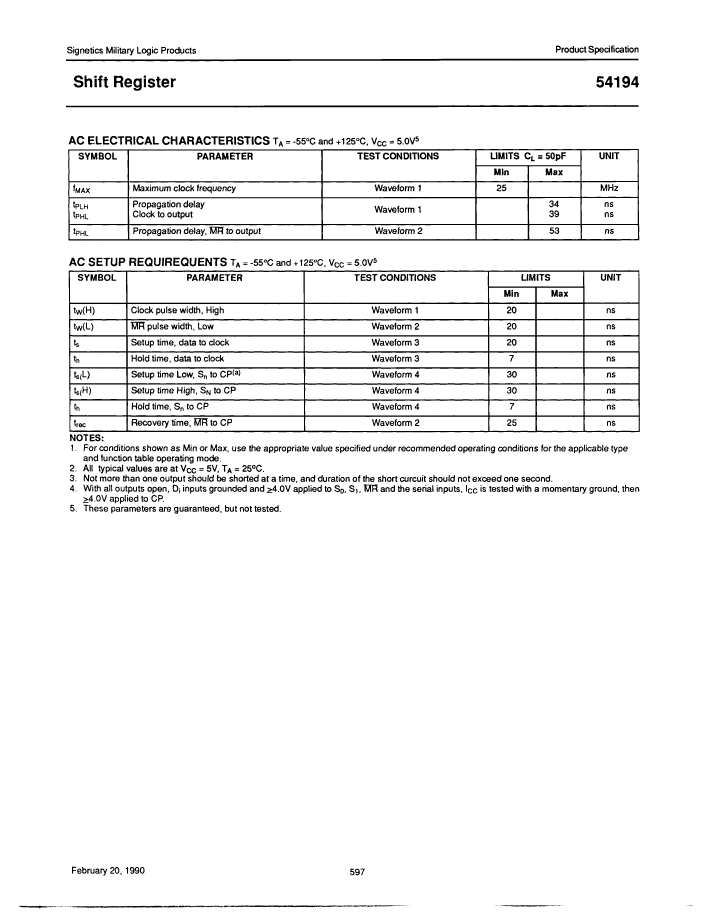

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	HOLD MODE
Counting direction	BIDIRECTIONAL
series	TTL/H/L
JESD-30 code	R-CDIP-T16
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	63 mA
propagation delay (tpd)	39 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	25 MHz
Base Number Matches	1

	54194/BEA	54194/BFA
Description	Parallel In Parallel Out, TTL/H/L Series, 4-Bit, Bidirectional, True Output, TTL, CDIP16	Parallel In Parallel Out, TTL/H/L Series, 4-Bit, Bidirectional, True Output, TTL, CDFP16
Reach Compliance Code	unknown	unknow
Other features	HOLD MODE	HOLD MODE
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
series	TTL/H/L	TTL/H/L
JESD-30 code	R-CDIP-T16	R-CDFP-F16
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
Maximum supply current (ICC)	63 mA	63 mA
propagation delay (tpd)	39 ns	39 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
minfmax	25 MHz	25 MHz
