39-27-4244 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-27-4244

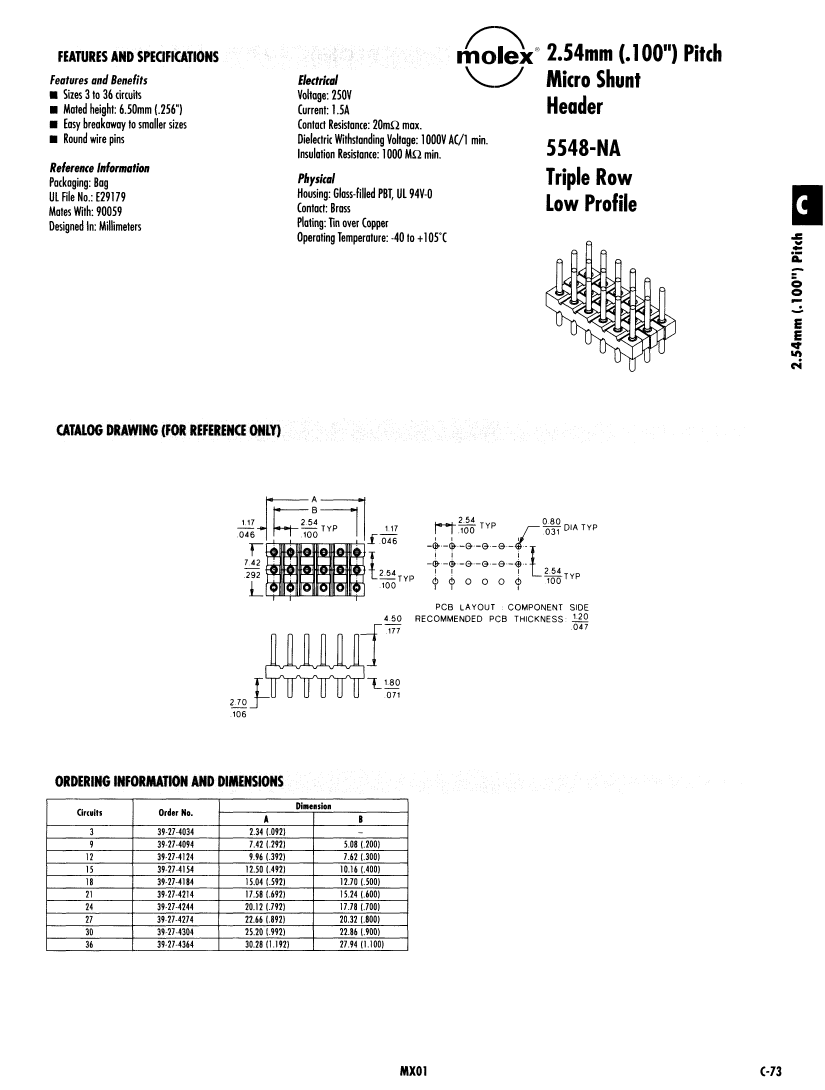

39-27-4244: DescriptionBoard Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-27-4244 Overview

Board Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,

39-27-4244 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Other features	LOW PROFILE
body width	0.292 inch
subject depth	0.071 inch
body length	0.792 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	5548
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	120u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

39-27-4244 Related Products

	39-27-4244	39-27-4124	39-27-4034	39-27-4304	39-27-4154	39-27-4184	39-27-4214	39-27-4274	39-27-4364	39-27-4094
Description	Board Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,	Board Connector, 12 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 3 Contact(s), 3 Row(s), Male, Straight, Solder Terminal	Board Connector, 30 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 15 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 18 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 21 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 27 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 36 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 9 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	compliant	compliant	unknown	compliant	unknown	compliant	compliant	compliant	compliant	compliant
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	TIN	NOT SPECIFIED	TIN	NOT SPECIFIED	TIN	TIN	TIN	TIN	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	5548	5548	5548	5548	5548	5548	5548	5548	5548	5548
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3	3	3	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	12	3	30	15	18	21	27	36	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1	1
body width	0.292 inch	0.292 inch	-	0.292 inch	0.292 inch	0.292 inch	0.292 inch	0.292 inch	0.292 inch	0.292 inch
subject depth	0.071 inch	0.071 inch	-	0.071 inch	0.071 inch	0.071 inch	0.071 inch	0.071 inch	0.071 inch	0.071 inch
body length	0.792 inch	0.392 inch	-	0.992 inch	0.492 inch	0.592 inch	0.692 inch	0.892 inch	1.192 inch	0.292 inch
Body/casing type	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	-	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	-	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Number of connectors	ONE	ONE	-	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	3	3	-	3	3	3	3	3	3	3
Maximum operating temperature	105 °C	105 °C	-	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	120u inch	120u inch	-	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch
Rated current (signal)	1.5 A	1.5 A	-	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	-	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.106 inch	0.106 inch	-	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch
ECCN code	-	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
