Data sheet
OMNIMATE Signal - series BL/SL 5.08
SLS 5.08/04/180B SN OR BX PRT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Male plugs with clamping-yoke screw wire-connect
system. The male plugs provide space for labelling and
can be coded.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
Product data
Packaging
SLS 5.08/04/180B SN OR BX PRT
1768361001
PCB plug-in connector, male plug, 5.08 mm, No. of
poles: 4, 180°, Screw connection, Clamping range,
max. : 3.31 mm², Box
4032248109906
84 pc(s).
IEC: 400 V / 21.5 A / 0.2 - 2.5 mm²
UL: 300 V / 14 A / AWG 26 - AWG 12
Box
Creation date May 13, 2019 12:45:51 PM CEST
Catalogue status 26.04.2019 / We reserve the right to make technical changes.
1
Data sheet
OMNIMATE Signal - series BL/SL 5.08
SLS 5.08/04/180B SN OR BX PRT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
15.2 mm
22.3 mm
6.51 g
Height (inches)
Depth (inches)
Dimensions and weights
Height
Depth
Net weight
0.598 inch
0.878 inch
system parameters
Product family
OMNIMATE Signal - series
BL/SL 5.08
Screw connection
0.2 inch
4
finger-safe plugged/ back-
of-hand-safe unplugged
Yes
0.4 Nm
M 2.5
DIN 5264-A
4N
Type of connection
Pitch in mm (P)
Conductor outlet direction
Pin series quantity
Volume resistance
Stripping length
Tightening torque, max.
Screwdriver blade
Plugging cycles
Pulling force/pole, max.
Field connection
5.08 mm
180°
1
4.50 mΩ
7 mm
0.5 Nm
0.6 x 3.5
25
3N
Wire connection method
Pitch in inches (P)
No. of poles
Touch-safe protection acc. to DIN VDE
57 106
Can be coded
Tightening torque, min.
Clamping screw
Screwdriver blade standard
Plugging force/pole, max.
Material data
Insulating material
Colour chart (similar)
CTI
PBT
RAL 2000
UL 94 flammability rating
Contact material
Layer structure of plug contact
Storage temperature, max.
Operating temperature, min.
Temperature range, installation, min.
≥ 200
V-0
CuSn
4-8 µm Sn hot-dip tinned
55 °C
-50 °C
-25 °C
Colour code
Insulating material group
Insulation strength
orange
IIIa
GWFI
Contact surface
Storage temperature, min.
Max. relative humidity during storage
Operating temperature, max.
Temperature range, installation, max.
≥ 10
8
Ω
960 °C
tinned
-25 °C
80 %
100 °C
100 °C
Conductors suitable for connection
Clamping range, min.
0.13 mm²
Clamping range, max.
3.31 mm²
Wire connection cross section AWG,
AWG 26
min.
Wire connection cross section AWG,
AWG 12
max.
Solid, min. H05(07) V-U
0.2 mm²
Solid, max. H05(07) V-U
2.5 mm²
Flexible, min. H05(07) V-K
0.2 mm²
Flexible, max. H05(07) V-K
2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, 0.2 mm²
min.
w. plastic collar ferrule, DIN 46228 pt 4, 2.5 mm²
max.
w. wire end ferrule, DIN 46228 pt 1, min0.2 mm²
w. wire end ferrule, DIN 46228 pt 1,
2.5 mm²
max.
Plug gauge in accordance with EN
2.8 mm x 2.0 mm; 2.4 mm
60999 a x b; ø
Creation date May 13, 2019 12:45:51 PM CEST
Catalogue status 26.04.2019 / We reserve the right to make technical changes.
2
Data sheet
OMNIMATE Signal - series BL/SL 5.08
SLS 5.08/04/180B SN OR BX PRT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Type
nominal
Stripping length
Type
nominal
Stripping length
Type
nominal
Stripping length
Type
nominal
Stripping length
Type
nominal
Stripping length
fine-wired
0.5 mm²
nominal
fine-wired
1 mm²
nominal
fine-wired
1.5 mm²
nominal
fine-wired
2.5 mm²
nominal
fine-wired
0.75 mm²
nominal
Technical data
Cross-section for conductor connection
AEH
Cross-section for conductor connection
AEH
Cross-section for conductor connection
AEH
Cross-section for conductor connection
AEH
Cross-section for conductor connection
Clampable conductor
6 mm
6 mm
7 mm
7 mm
6 mm
Max. clamping range
AEH
3.31 mm²
Rated data acc. to IEC
tested acc. to standard
IEC 60664-1, IEC 61984
16 A
14 A
320 V
4 kV
4 kV
Rated current, min. no. of poles
(Tu=20°C)
Rated current, min. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree II/2
Rated voltage for surge voltage class /
pollution degree III/3
Rated impulse voltage for surge voltage
class/ pollution degree III/2
Short-time withstand current resistance
21.5 A
18 A
400 V
250 V
4 kV
3 x 1s with 120 A
Rated current, max. no. of poles
(Tu=20°C)
Rated current, max. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree III/2
Rated impulse voltage for surge voltage
class/ pollution degree II/2
Rated impulse voltage for surge voltage
class/ contamination degree III/3
Rated data acc. to CSA
Rated voltage (Use group B / CSA)
Rated current (Use group B / CSA)
Wire cross-section, AWG, min.
300 V
15 A
AWG 26
Rated voltage (Use group D / CSA)
Rated current (Use group D / CSA)
Wire cross-section, AWG, max.
300 V
10 A
AWG 12
Rated data acc. to UL 1059
Institute (UR)
Certificate No. (UR)
E60693
Rated voltage (Use group D / UL 1059) 300 V
Rated current (Use group D / UL 1059) 10 A
Wire cross-section, AWG, max.
AWG 12
Rated voltage (Use group B / UL 1059)
Rated current (Use group B / UL 1059)
Wire cross-section, AWG, min.
Reference to approval values
300 V
14 A
AWG 26
Specifications are
maximum values, details -
see approval certificate.
Packing
Packaging
VPE width
Box
131 mm
VPE length
VPE height
45 mm
226 mm
Creation date May 13, 2019 12:45:51 PM CEST
Catalogue status 26.04.2019 / We reserve the right to make technical changes.
3
Data sheet
OMNIMATE Signal - series BL/SL 5.08
SLS 5.08/04/180B SN OR BX PRT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
EC002637
EC002637
27-44-04-02
27-44-04-02
ETIM 5.0
eClass 6.2
eClass 8.1
eClass 9.1
Classifications
ETIM 4.0
ETIM 6.0
eClass 7.1
eClass 9.0
EC002637
27-26-07-04
27-44-04-02
27-44-04-02
Notes
Notes
IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized
standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties
in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Approvals
Approvals
ROHS
Conform
Creation date May 13, 2019 12:45:51 PM CEST
Catalogue status 26.04.2019 / We reserve the right to make technical changes.
4
Data sheet
OMNIMATE Signal - series BL/SL 5.08
SLS 5.08/04/180B SN OR BX PRT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

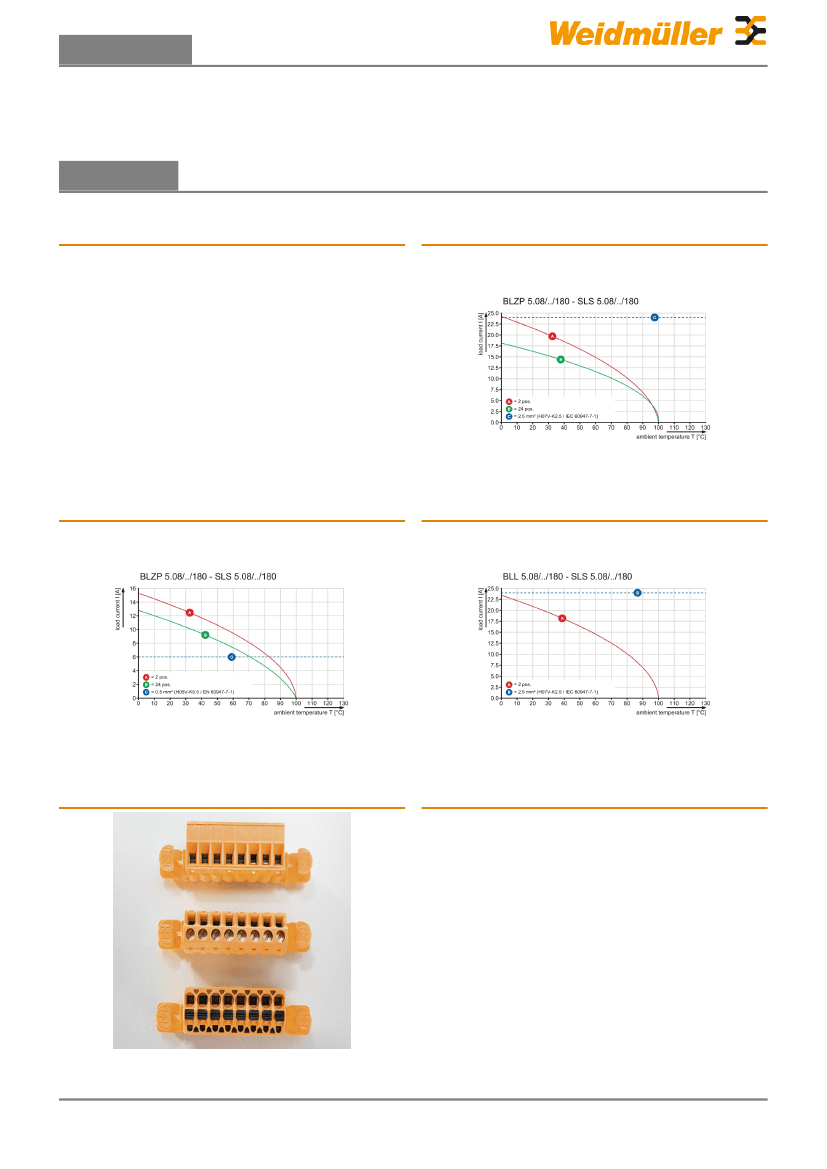

Drawings
Graph
Graph
Graph
Product benefits
Flexible application options
For 3 connection systems
Creation date May 13, 2019 12:45:51 PM CEST
Catalogue status 26.04.2019 / We reserve the right to make technical changes.
