DV74HCT374AN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74HCT374AN

DV74HCT374AN: DescriptionBus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20; Categorylogic logic; File Size696KB，5 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74HCT374AN Overview

Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20

DV74HCT374AN Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-PDIP-T20
length	26.415 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

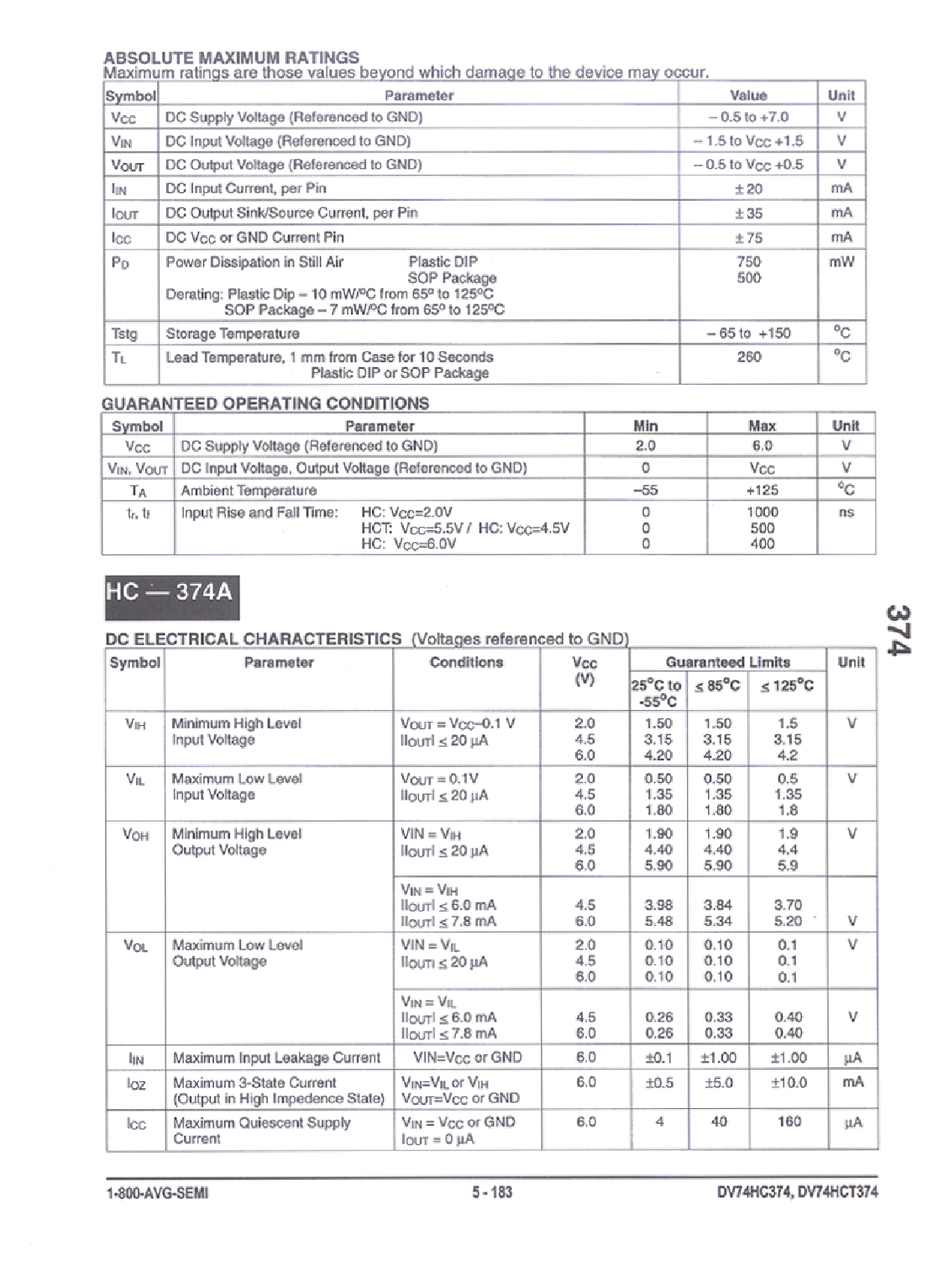

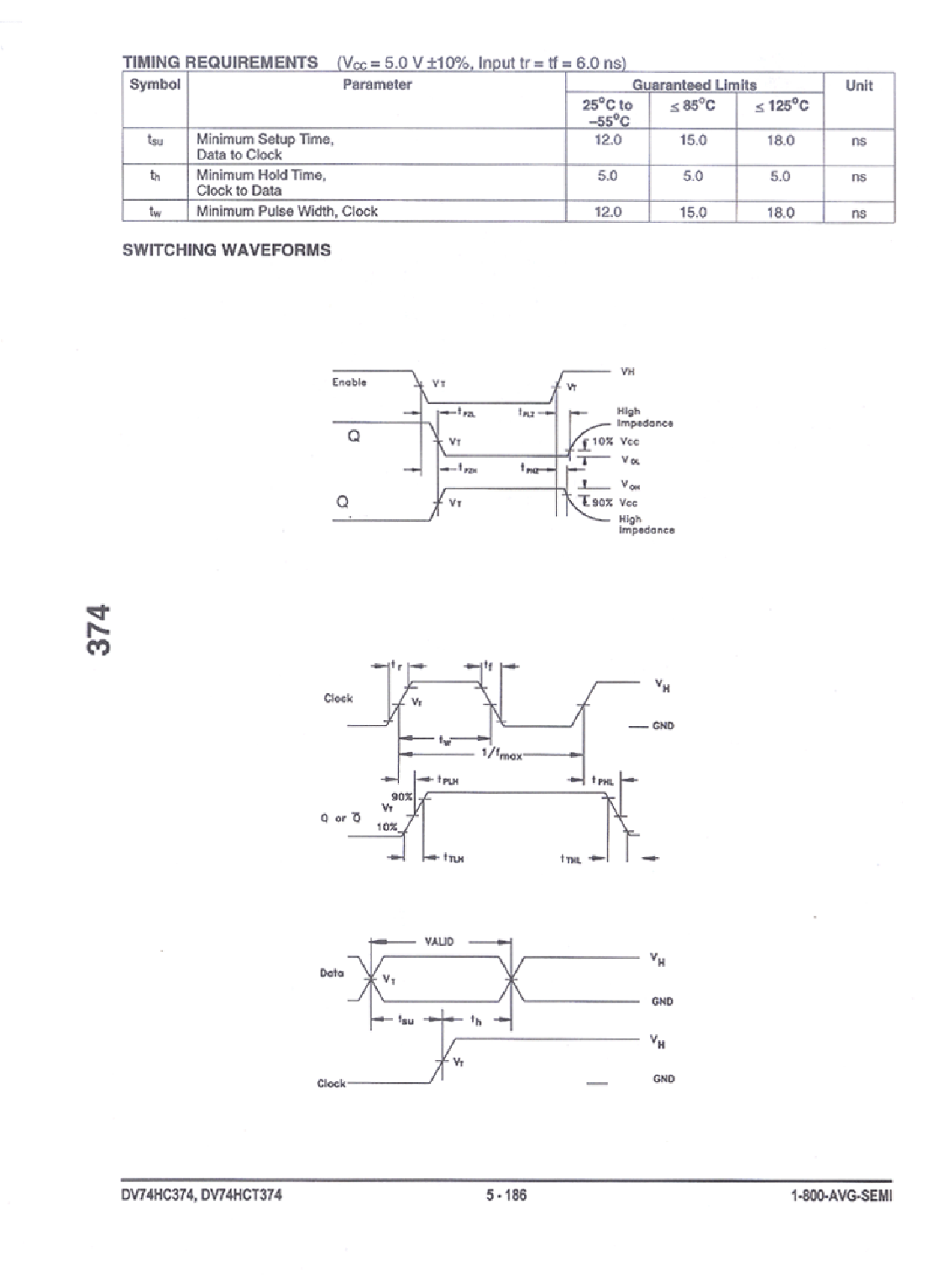

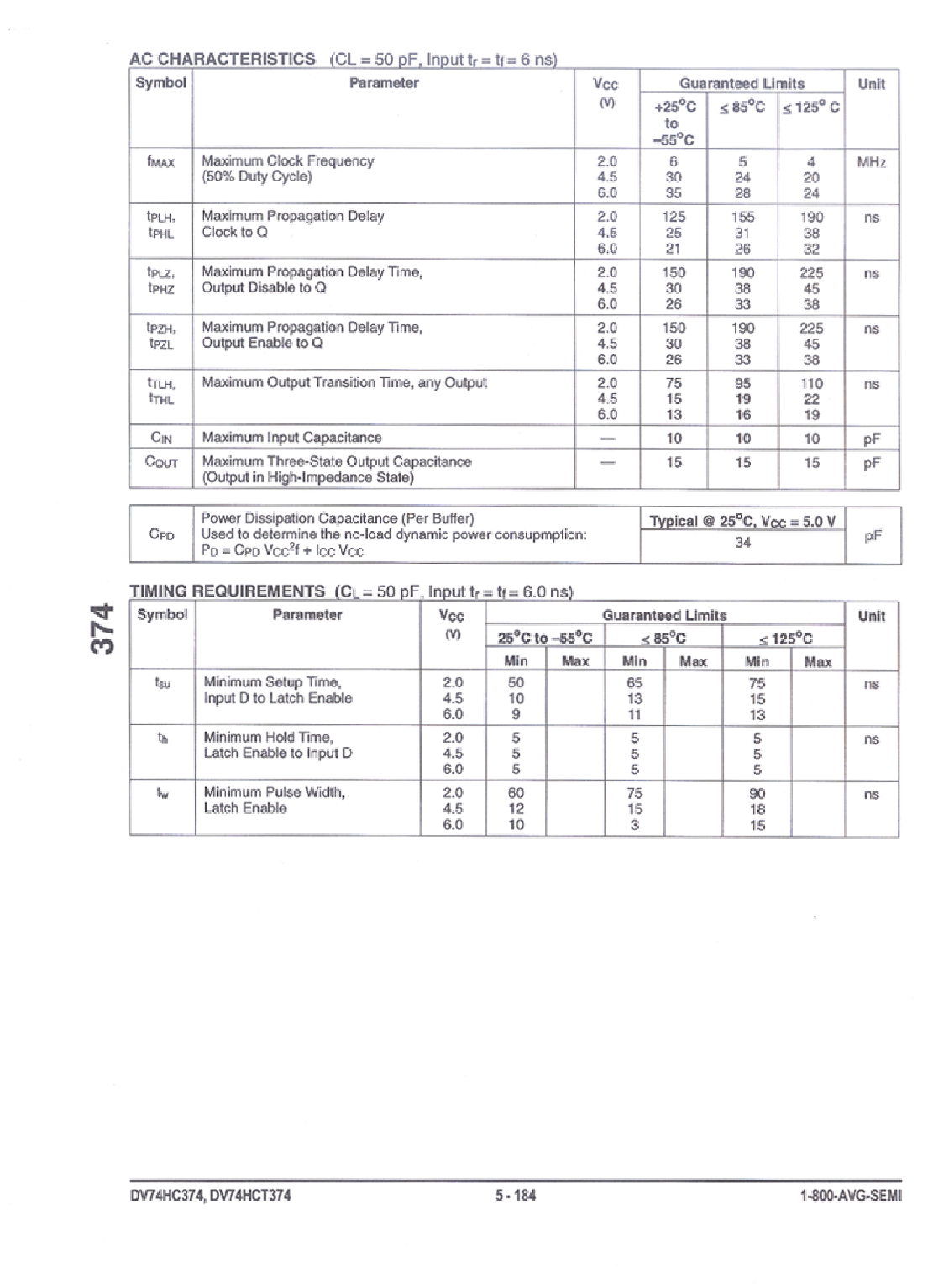

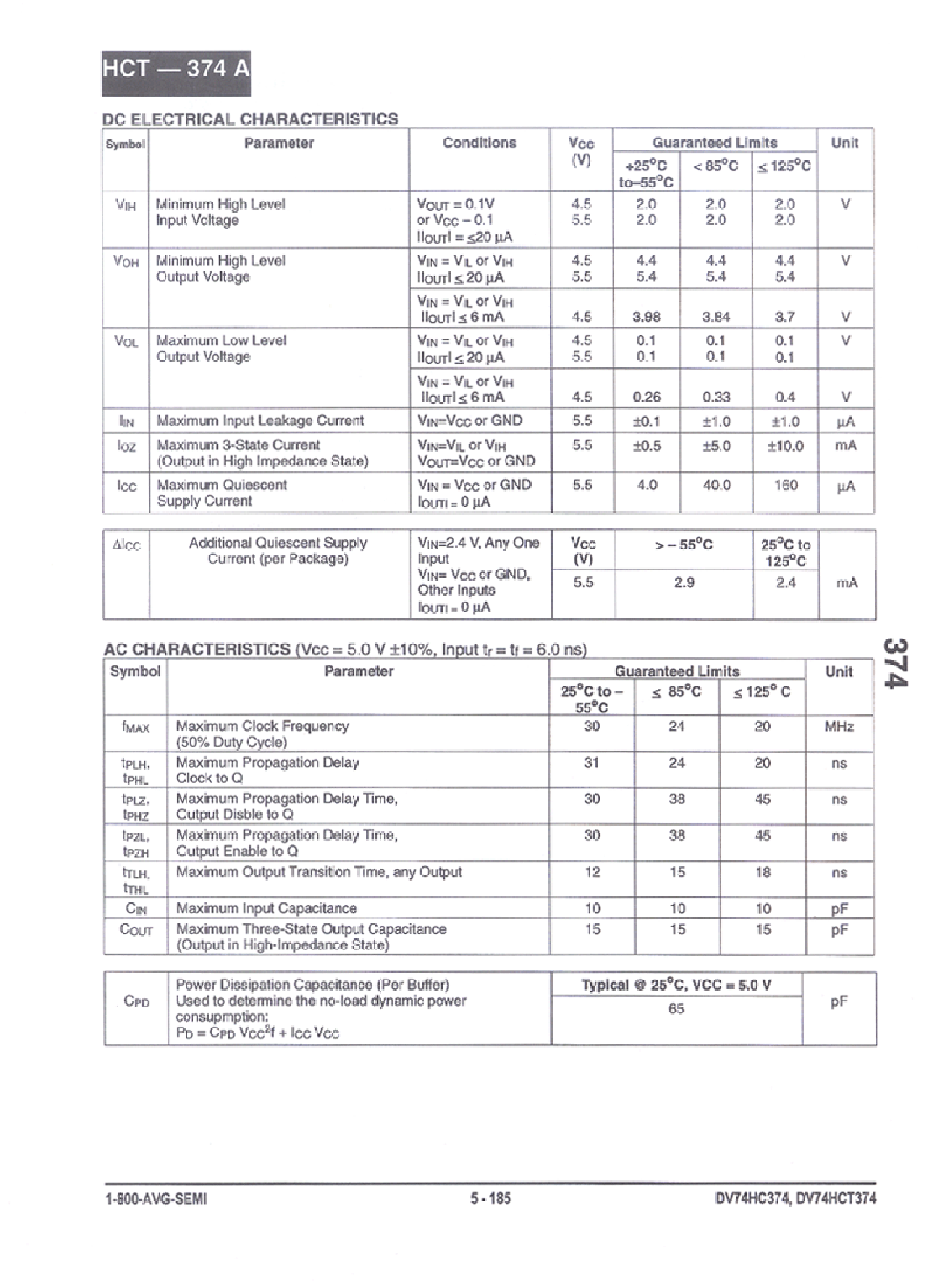

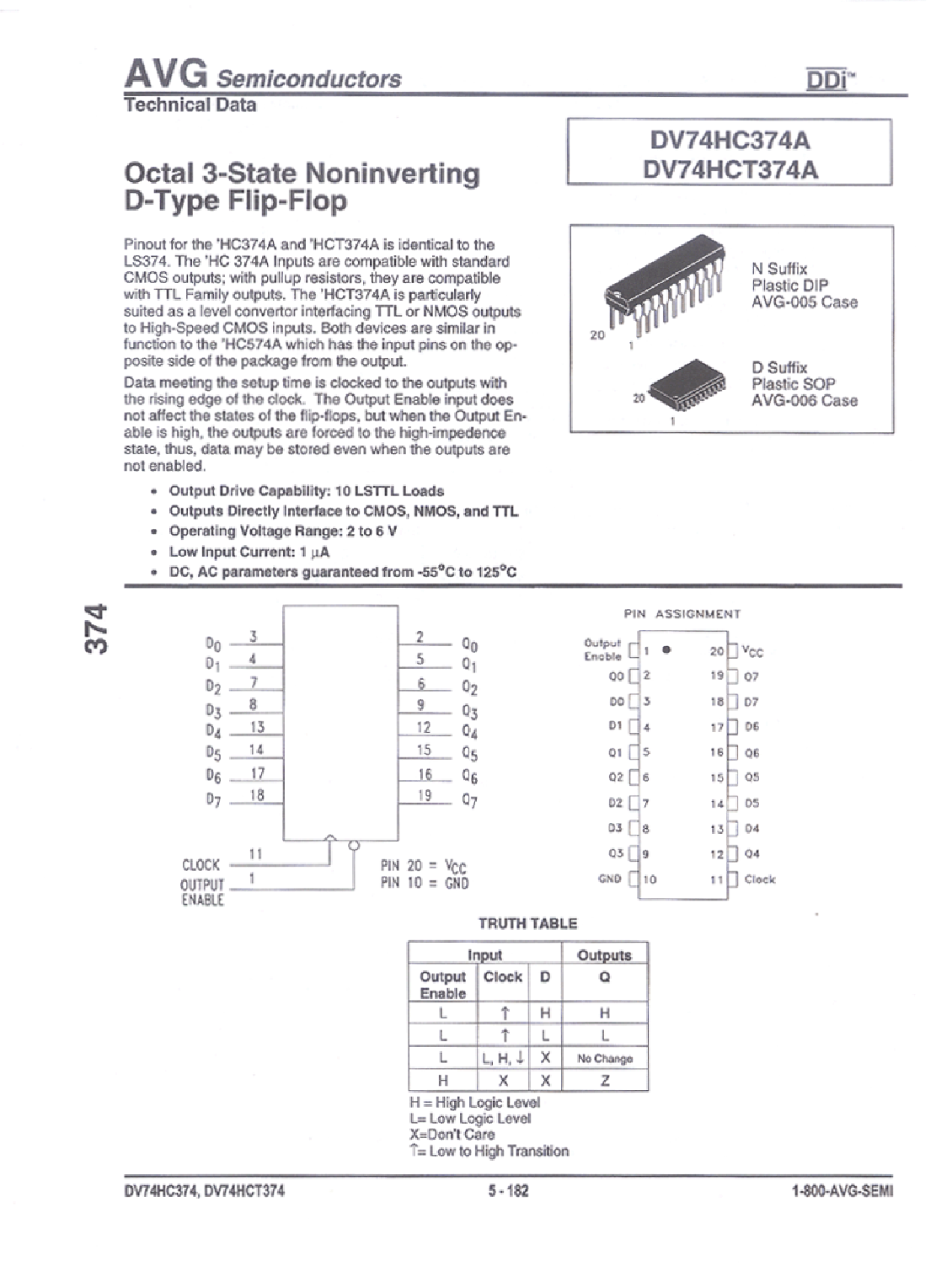

Preview

Download Datasheet

View All

DV74HCT374AN Related Products

	DV74HCT374AN	DV74HCT374AD	DV74HC374AN	DV74HC374AD
Description	Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20	Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, PLASTIC, SOP-20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, PLASTIC, SOP-20
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	SOIC	DIP	SOIC
package instruction	DIP,	SOP,	DIP,	SOP,
Contacts	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown
series	HCT	-	HC/UH	HC/UH
JESD-30 code	R-PDIP-T20	-	R-PDIP-T20	R-PDSO-G20
length	26.415 mm	-	26.415 mm	12.8 mm
Load capacitance (CL)	50 pF	-	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	-	BUS DRIVER	BUS DRIVER
Number of digits	8	-	8	8
Number of functions	1	-	1	1
Number of ports	2	-	2	2
Number of terminals	20	-	20	20
Maximum operating temperature	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C
Output characteristics	3-STATE	-	3-STATE	3-STATE
Output polarity	TRUE	-	TRUE	TRUE
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	DIP	SOP
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	20 ns	-	190 ns	190 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	-	4.57 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	-	6 V	6 V
Minimum supply voltage (Vsup)	4.5 V	-	2 V	2 V
Nominal supply voltage (Vsup)	5 V	-	4.5 V	4.5 V
surface mount	NO	-	NO	YES
technology	CMOS	-	CMOS	CMOS
Temperature level	MILITARY	-	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	-	2.54 mm	1.27 mm
Terminal location	DUAL	-	DUAL	DUAL
width	7.62 mm	-	7.62 mm	7.5 mm
