54ACT153LMQB datasheet, PDF - EEWORLD Datasheet

54ACT153LMQB: DescriptionMultiplexer, 2-Func, 4 Line Input, CMOS, CQCC20,; Categorylogic logic; File Size353KB，9 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

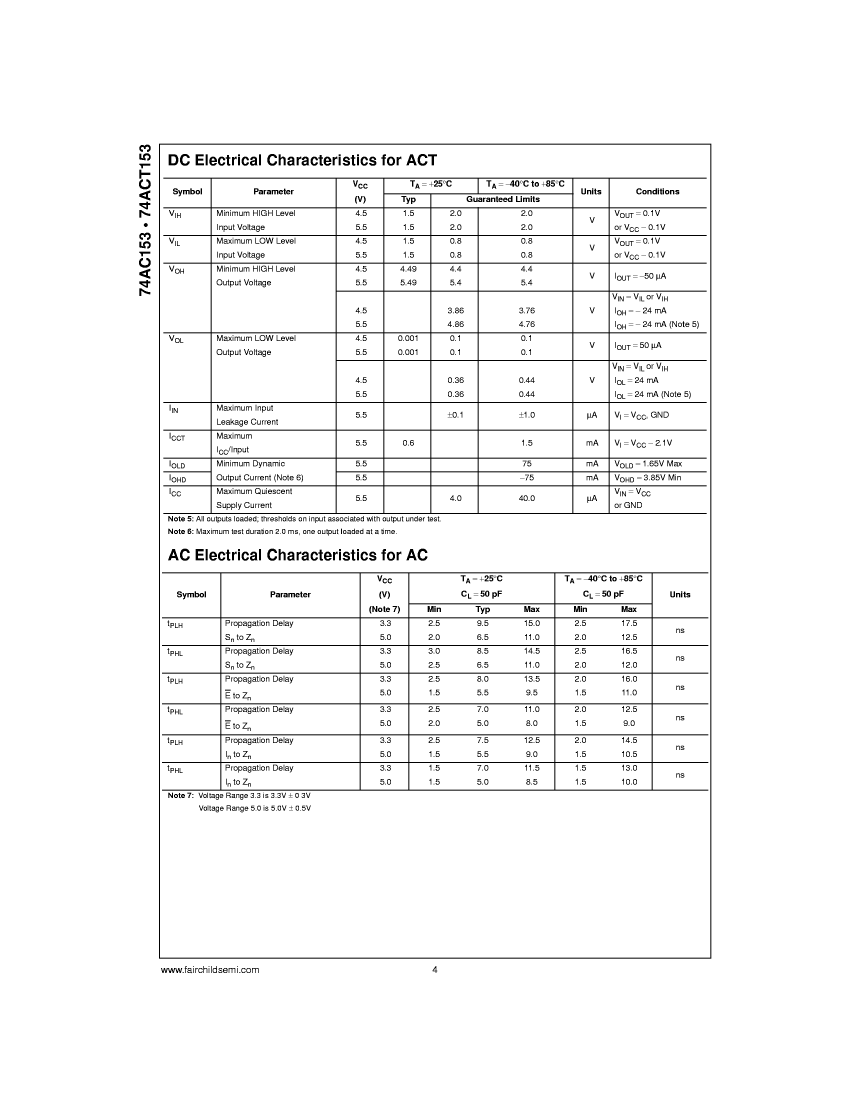

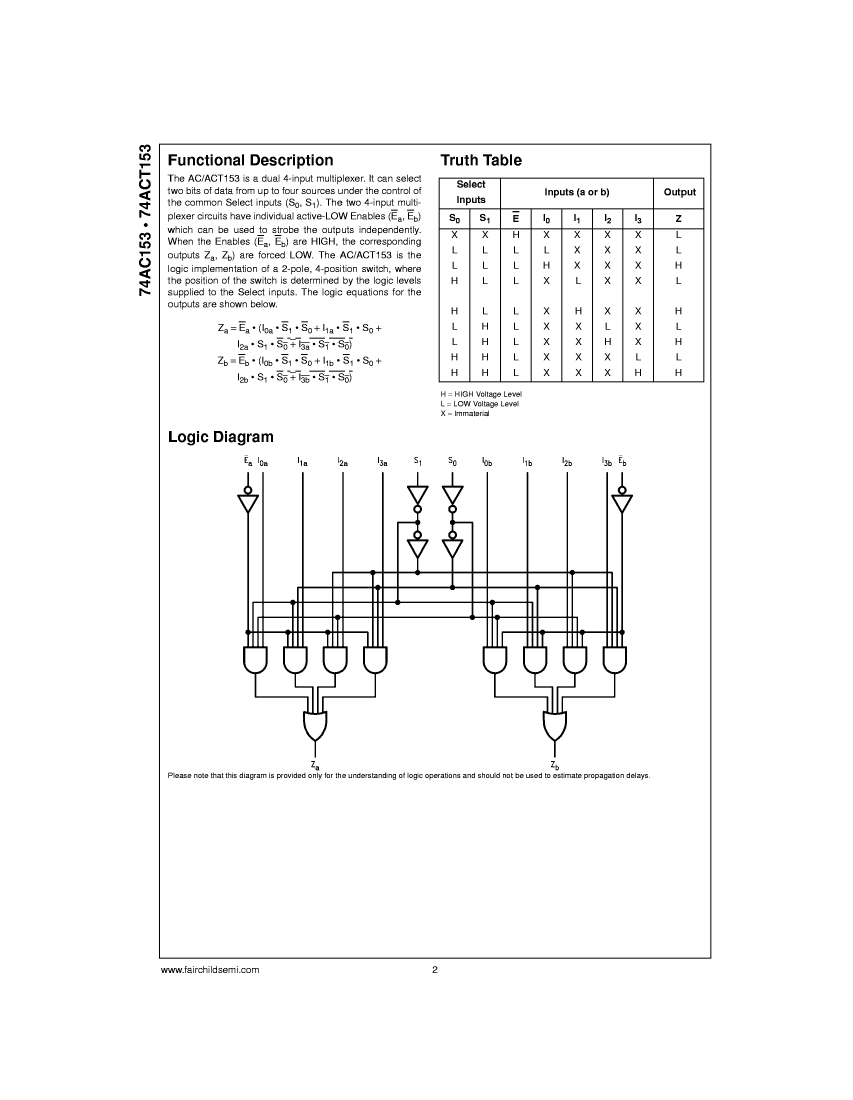

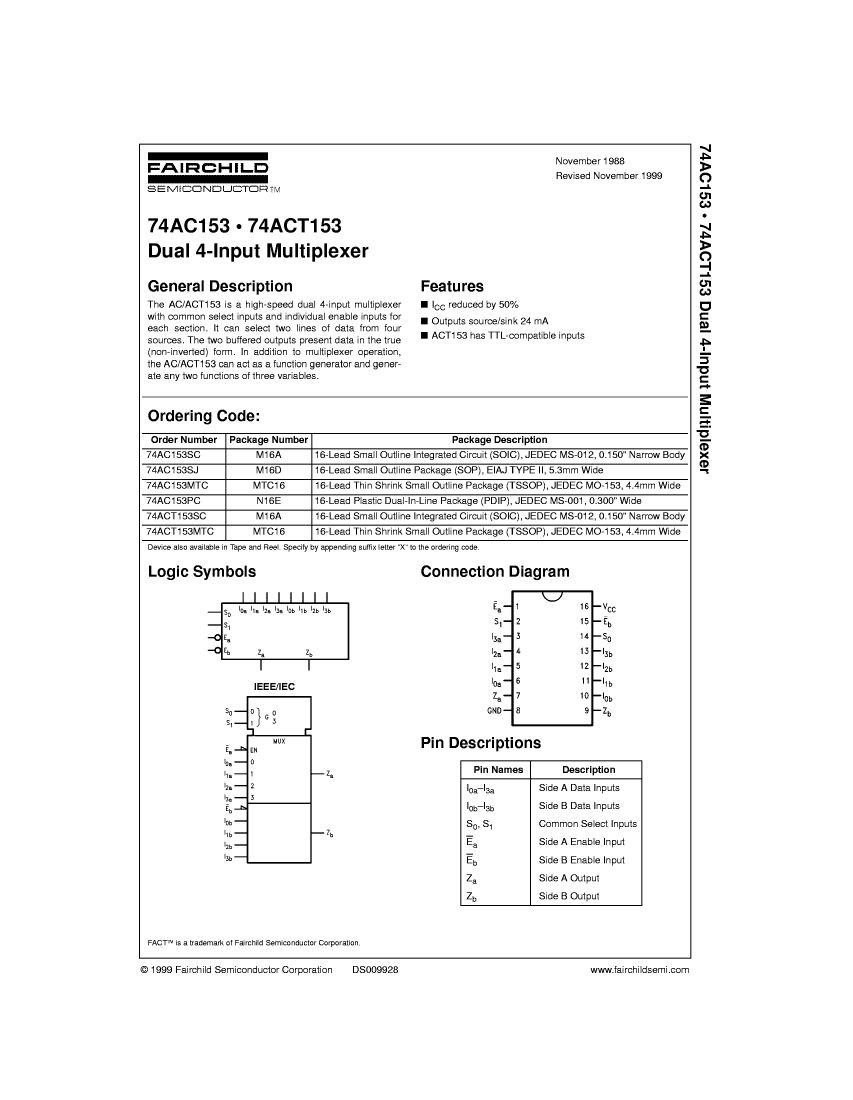

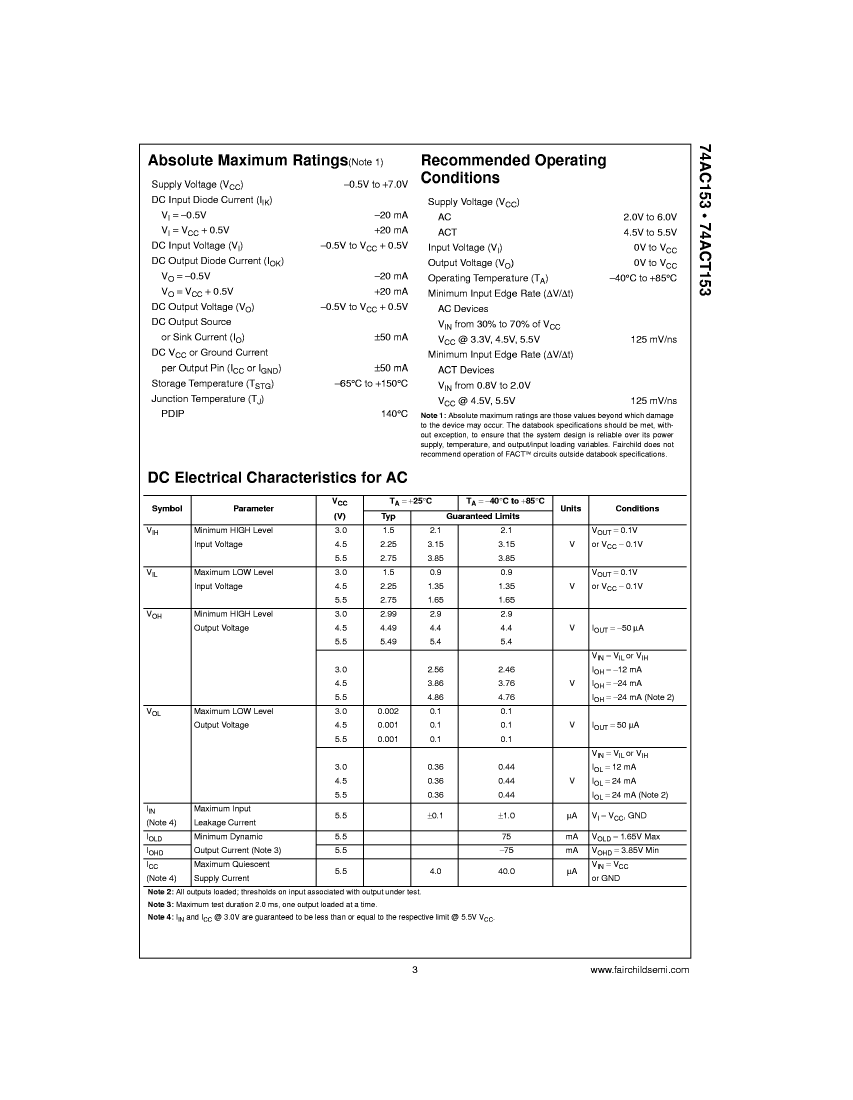

54ACT153LMQB Overview

Multiplexer, 2-Func, 4 Line Input, CMOS, CQCC20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.024 A
Number of functions	2
Number of entries	4
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Prop。Delay @ Nom-Sup	12.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

	54ACT153LMQB	54AC153LMQB
Description	Multiplexer, 2-Func, 4 Line Input, CMOS, CQCC20,	Multiplexer, 2-Func, 4 Line Input, CMOS, CQCC20,
Is it Rohs certified?	incompatible	incompatible
package instruction	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown
JESD-30 code	S-XQCC-N20	S-XQCC-N20
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.024 A	0.012 A
Number of functions	2	2
Number of entries	4	4
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	QCCN	QCCN
Encapsulate equivalent code	LCC20,.35SQ	LCC20,.35SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
power supply	5 V	3.3/5 V
Prop。Delay @ Nom-Sup	12.5 ns	16 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Base Number Matches	1	1
