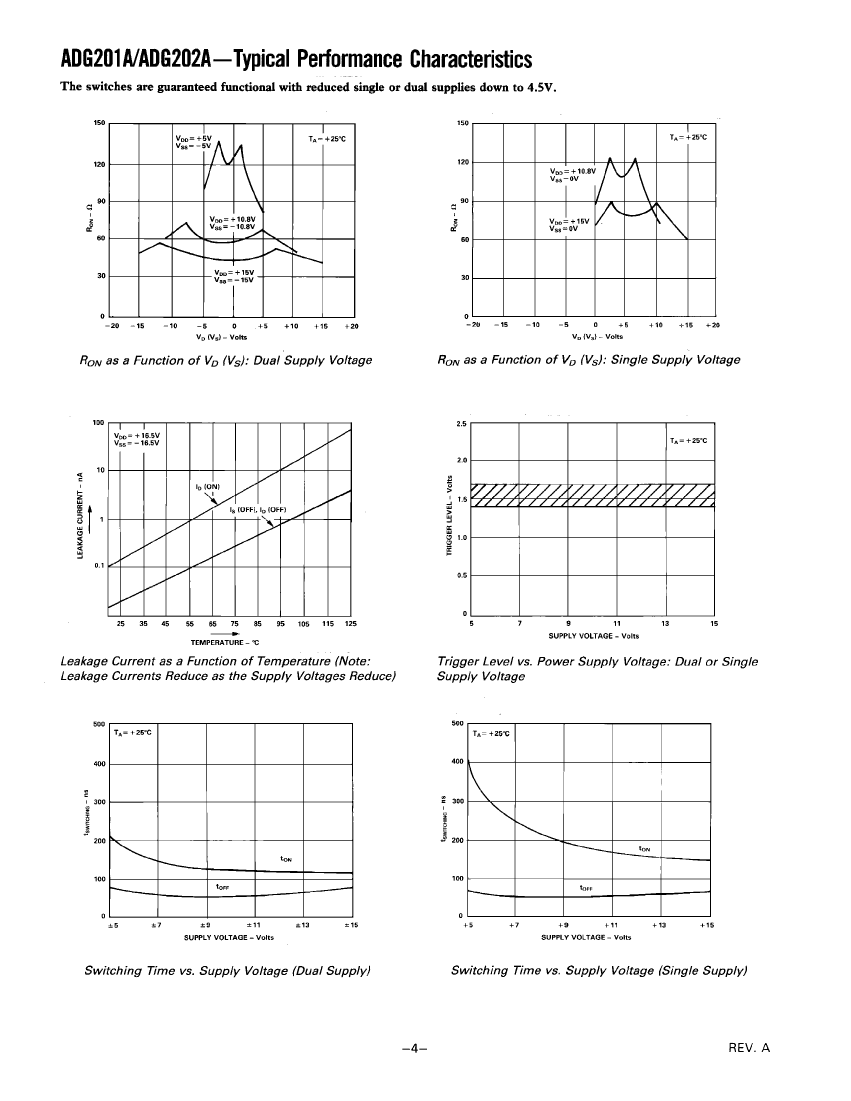

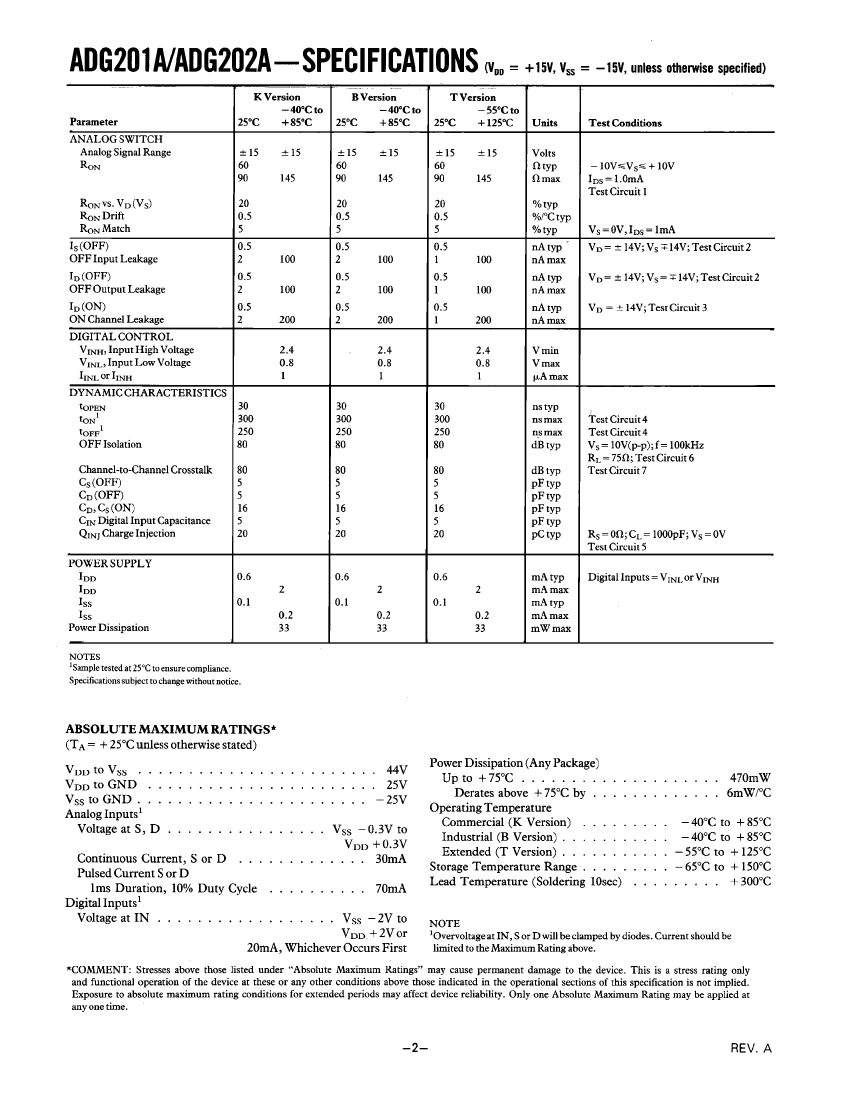

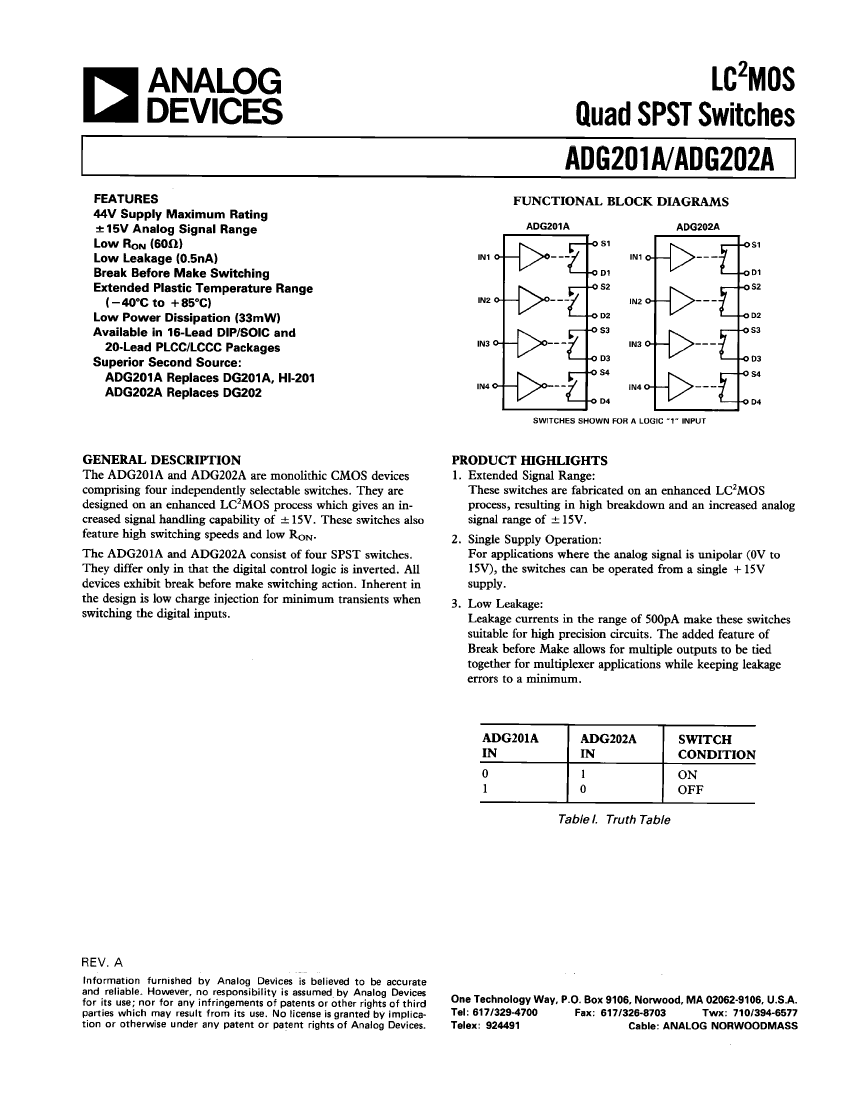

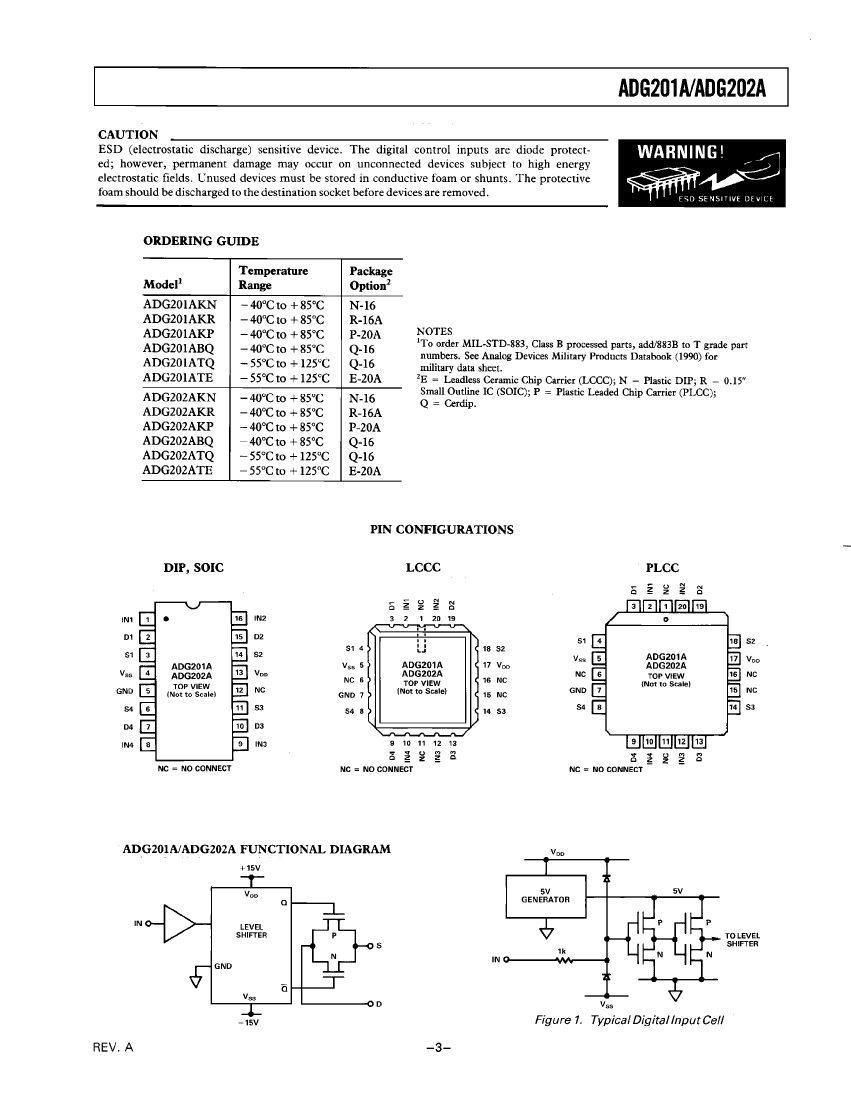

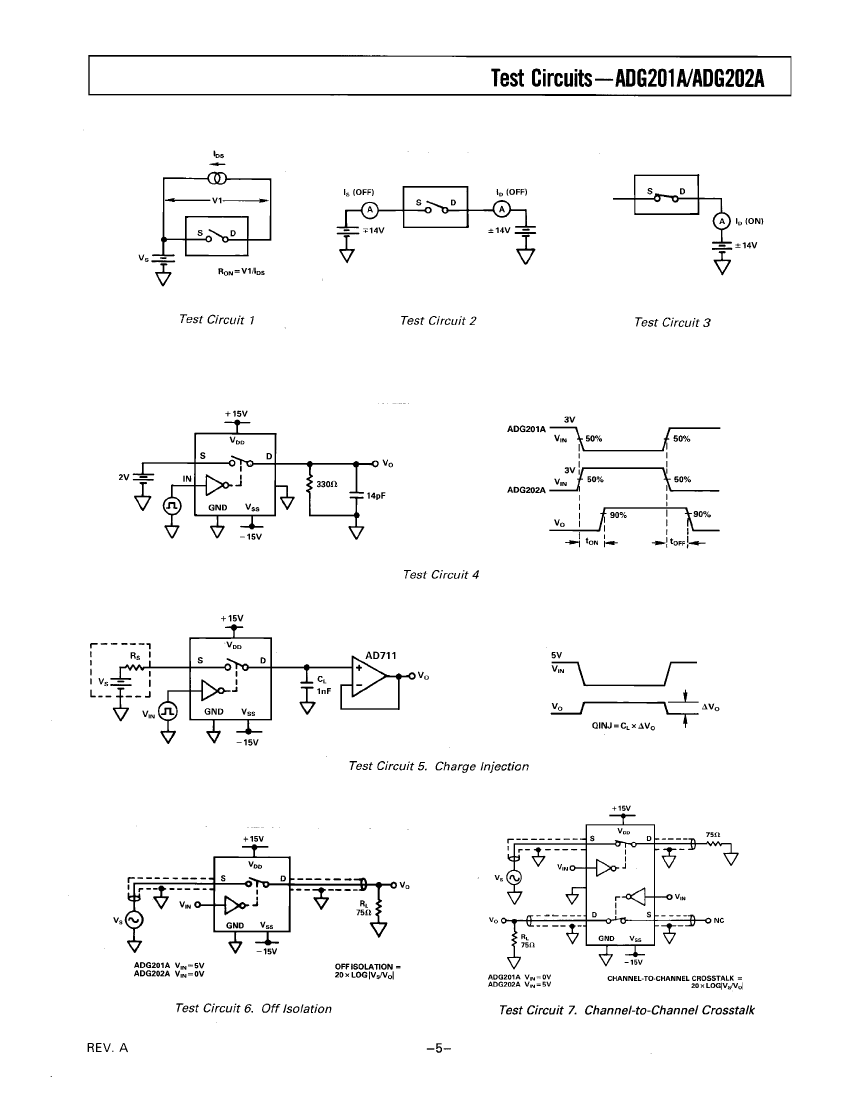

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERDIP-16, Multiplexer or Switch
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | CERDIP-16 |
| Contacts | 16 |
| Reach Compliance Code | _compli |
| Analog Integrated Circuits - Other Types | SPST |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| length | 19.495 mm |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of channels | 1 |
| Number of functions | 4 |
| Number of terminals | 16 |
| Nominal off-state isolation | 80 dB |
| On-state resistance matching specifications | 4.5 Ω |
| Maximum on-state resistance (Ron) | 90 Ω |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 4.57 mm |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| Maximum disconnect time | 250 ns |
| Maximum connection time | 300 ns |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| ADG202ATQ/883 | ADG201ATQ/883 | ADG201ATE/883 | ADG202ATE/883 | |
|---|---|---|---|---|
| Description | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERDIP-16, Multiplexer or Switch | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERDIP-16, Multiplexer or Switch | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DIP | QLCC | QLCC |
| package instruction | CERDIP-16 | DIP, | CERAMIC, LCC-20 | CERAMIC, LCC-20 |
| Contacts | 16 | 16 | 20 | 20 |
| Reach Compliance Code | _compli | compliant | compliant | compliant |
| Analog Integrated Circuits - Other Types | SPST | SPST | SPST | SPST |
| JESD-30 code | R-GDIP-T16 | R-GDIP-T16 | S-CQCC-N20 | S-CQCC-N20 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| length | 19.495 mm | 19.495 mm | 8.89 mm | 8.89 mm |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V |
| Number of channels | 1 | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 20 | 20 |
| Nominal off-state isolation | 80 dB | 80 dB | 80 dB | 80 dB |
| On-state resistance matching specifications | 4.5 Ω | 4.5 Ω | 4.5 Ω | 4.5 Ω |
| Maximum on-state resistance (Ron) | 90 Ω | 90 Ω | 90 Ω | 90 Ω |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP | QCCN | QCCN |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE |
| Package form | IN-LINE | IN-LINE | CHIP CARRIER | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.57 mm | 4.57 mm | 2.54 mm | 2.54 mm |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | YES | YES |
| Maximum disconnect time | 250 ns | 250 ns | 250 ns | 250 ns |
| Maximum connection time | 300 ns | 300 ns | 300 ns | 300 ns |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | NO LEAD |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | QUAD | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 7.62 mm | 7.62 mm | 8.89 mm | 8.89 mm |
