Part Number

Search

54LS33FM

Description
NOR Gate, TTL, CDFP14,
Categorylogic    logic

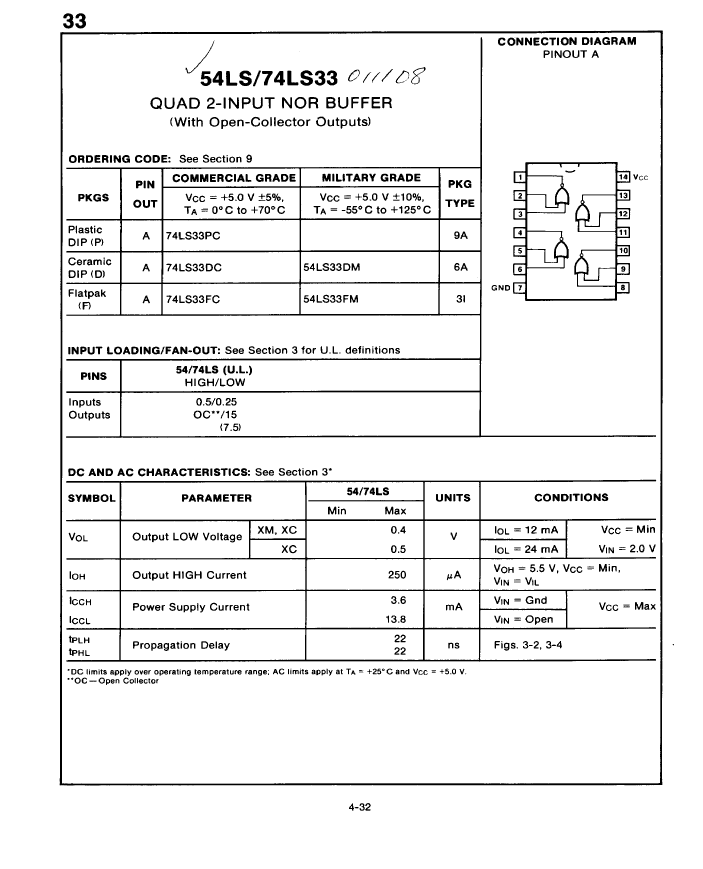

File Size25KB,1 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

54LS33FM Overview

NOR Gate, TTL, CDFP14,

54LS33FM Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerFairchild
Reach Compliance Codecompliant
JESD-30 codeR-XDFP-F14
JESD-609 codee0
Logic integrated circuit typeNOR GATE
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristicsOPEN-COLLECTOR
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
Certification statusNot Qualified
Schmitt triggerNO
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Base Number Matches1
This Material Copyrighted By Its Respective Manufacturer

54LS33FM Related Products

54LS33FM 54LS33DM 74LS33DC 74LS33FC 74LS33PC
Description NOR Gate, TTL, CDFP14, NOR Gate, TTL, CDIP14, NOR Gate, TTL, CDIP14, NOR Gate, TTL, CDFP14, NOR Gate, TTL, PDIP14
Maker Fairchild Fairchild Fairchild Fairchild Fairchild
Reach Compliance Code compliant compliant compliant compliant unknown
JESD-30 code R-XDFP-F14 R-XDIP-T14 R-XDIP-T14 R-XDFP-F14 R-PDIP-T14
Logic integrated circuit type NOR GATE NOR GATE NOR GATE NOR GATE NOR GATE
Number of terminals 14 14 14 14 14
Maximum operating temperature 125 °C 125 °C 70 °C 70 °C 70 °C
Output characteristics OPEN-COLLECTOR OPEN-COLLECTOR OPEN-COLLECTOR OPEN-COLLECTOR OPEN-COLLECTOR
Package body material CERAMIC CERAMIC CERAMIC CERAMIC PLASTIC/EPOXY
encapsulated code DFP DIP DIP DFP DIP
Encapsulate equivalent code FL14,.3 DIP14,.3 DIP14,.3 FL14,.3 DIP14,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLATPACK IN-LINE IN-LINE FLATPACK IN-LINE
power supply 5 V 5 V 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Schmitt trigger NO NO NO NO NO
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V
surface mount YES NO NO YES NO
technology TTL TTL TTL TTL TTL
Temperature level MILITARY MILITARY COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form FLAT THROUGH-HOLE THROUGH-HOLE FLAT THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm 2.54 mm 1.27 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL
Base Number Matches 1 1 1 1 1
Is it Rohs certified? incompatible incompatible incompatible incompatible -
JESD-609 code e0 e0 e0 e0 -
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) -
