Z115-HF: DescriptionZener Diode, 115V V(Z), 20%, Silicon, Unidirectional, DO-41, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size540KB，4 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/

Download Datasheet Parametric Compare View All

Z115-HF Overview

Zener Diode, 115V V(Z), 20%, Silicon, Unidirectional, DO-41, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2

Z115-HF Parametric

Parameter Name	Attribute value
Maker	Rectron Semiconductor
Parts packaging code	DO-41
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Nominal reference voltage	115 V
surface mount	NO
technology	ZENER
Terminal surface	TIN
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	20%
Working test current	2.2 mA
Base Number Matches	1

Preview

Download Datasheet

View All

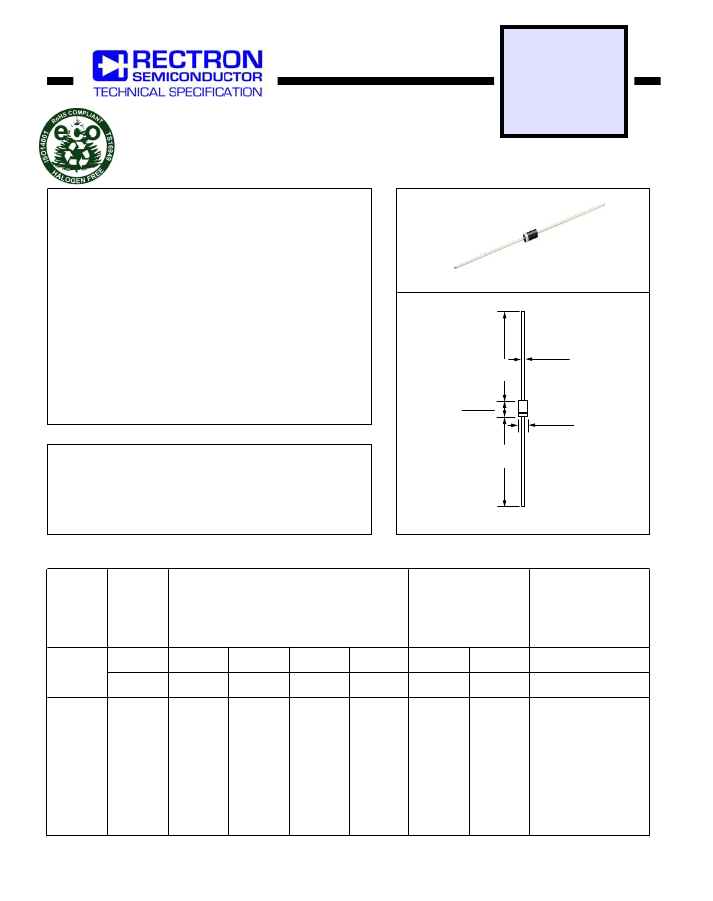

Z75

THRU

ZENER SILICON RECTIFIER

VOLTAGE RANGE 75 to 330 Volts CURRENT 1.0 Watts

FEATURES

Z330

High reliability

Low leakage

Low forward voltage drop

Excellent clamping capability

DO-41

MECHANICAL DATA

Case: Molded plastic

Epoxy: Device has UL flammability classification 94V-O

Lead: MIL-STD-202E method 208C guaranteed

Mounting position: Any

Weight: 0.4 gram

.034 (0.9)

DIA.

.028 (0.7)

1.0 (25.4)

MIN.

.205 (5.2)

.166 (4.2)

.107 (2.7)

.080 (2.0)

DIA.

MA X IMU M R A ING S A ND E L E C T R IC A L C HA R A C T E R IS T IC S

R a tings a t 25 C a mbie nt te mpe ra ture unle s s othe rwis e s pe cifie d.

S ingle pha s e , ha lf wa ve , 6 0 H z , re s is tive or induc tive loa d.

F or c a pa c itive loa d, de ra te c urre nt by 2 0 % .

1.0 (25.4)

MIN.

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(At T

= 25 C unless otherwise noted)

Maximum Reverse

Zener

TYPE

Breakdown

Voltage

Dynamic Impedances

C T

Current

@ Measurement

Voltage

and 25

C T

Z75

Z90

Z100

Z105

Z110

Z115

Z120

Z130

Z135

100

105

110

115

120

130

135

3.0

2.7

2.5

2.4

2.3

2.2

2.1

1.9

1.85

Ohms

200

250

350

400

450

500

550

700

750

.25

Ohms

1500

2000

3000

3500

4000

4250

4500

5000

5250

100

5.0

Maximum Forward

Voltage

@ 25

C T

@ I

= 1.0A

1.2

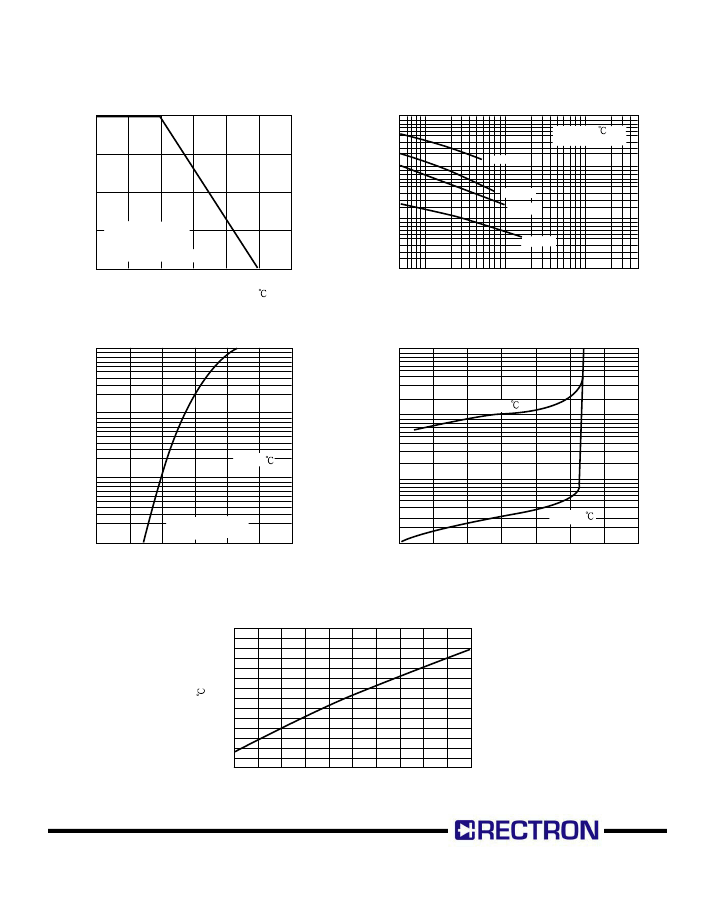

Z115-HF Related Products

	Z115-HF	Z220A	Z180A	Z330A
Description	Zener Diode, 115V V(Z), 20%, Silicon, Unidirectional, DO-41, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2	Zener Diode, 220V V(Z), 10%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2	Zener Diode, 180V V(Z), 10%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2	Zener Diode, 330V V(Z), 10%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
Parts packaging code	DO-41	DO-41	DO-41	DO-41
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Contacts	2	2	2	2
Reach Compliance Code	compliant	_compli	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-41	DO-41	DO-41	DO-41
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e3	e3	e3	e3
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Nominal reference voltage	115 V	220 V	180 V	330 V
surface mount	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER
Terminal surface	TIN	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
Maximum voltage tolerance	20%	10%	10%	10%
Working test current	2.2 mA	1.1 mA	1.4 mA	0.75 mA
Is it Rohs certified?	-	conform to	conform to	conform to
Maximum dynamic impedance	-	2000 Ω	1350 Ω	4000 Ω
Maximum operating temperature	-	175 °C	175 °C	175 °C
Peak Reflow Temperature (Celsius)	-	265	265	265
Maximum power dissipation	-	1 W	1 W	1 W
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
