54LS273FM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS273FM

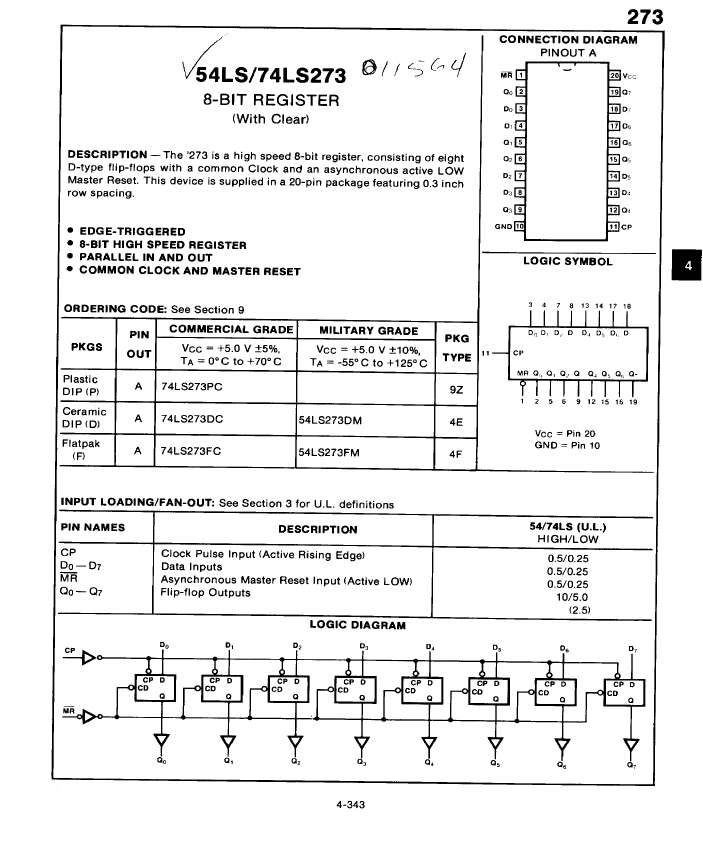

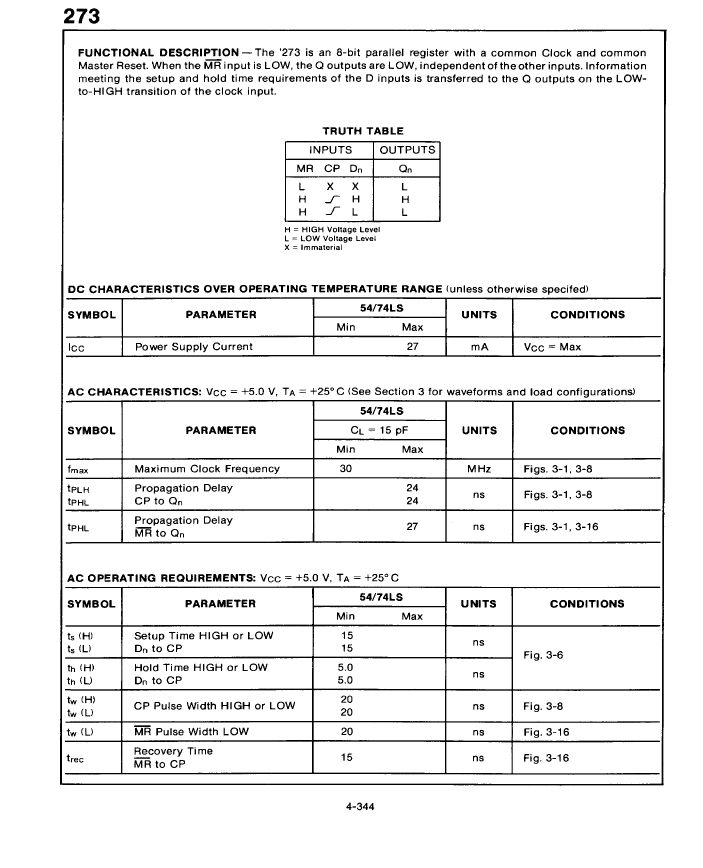

54LS273FM: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDFP20,; Categorylogic logic; File Size57KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS273FM Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDFP20,

54LS273FM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
Logic integrated circuit type	D FLIP-FLOP
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS273FM Related Products

	54LS273FM	54LS273DM	74LS273DC	74LS273PC	74LS273FC
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDFP20,	Parallel In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, PDIP20, DIP-20	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDIP20,	Parallel In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, PDIP20, PLASTIC, DIP-20	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDFP20,
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	unknown	compliant	unknown	compliant
JESD-30 code	R-XDFP-F20	R-PDIP-T20	R-XDIP-T20	R-PDIP-T20	R-XDFP-F20
Logic integrated circuit type	D FLIP-FLOP	PARALLEL IN PARALLEL OUT	D FLIP-FLOP	PARALLEL IN PARALLEL OUT	D FLIP-FLOP
Number of functions	8	1	8	1	8
Number of terminals	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DFP	DIP	DIP	DIP	DFP
Encapsulate equivalent code	FL20,.3	DIP20,.3	DIP20,.3	DIP20,.3	FL20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible
JESD-609 code	e0	e0	e0	-	e0
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	-
package instruction	-	DIP-20	DIP, DIP20,.3	DIP, DIP20,.3	DFP, FL20,.3
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
