MAT03 Overview

20 mA, 36 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-78

User Manual

【User Guides】DC903A - Demo Manual

Preview

Download Datasheet

View All

FEATURES

Dual Matched PNP Transistor

Low Offset Voltage: 100 V Max

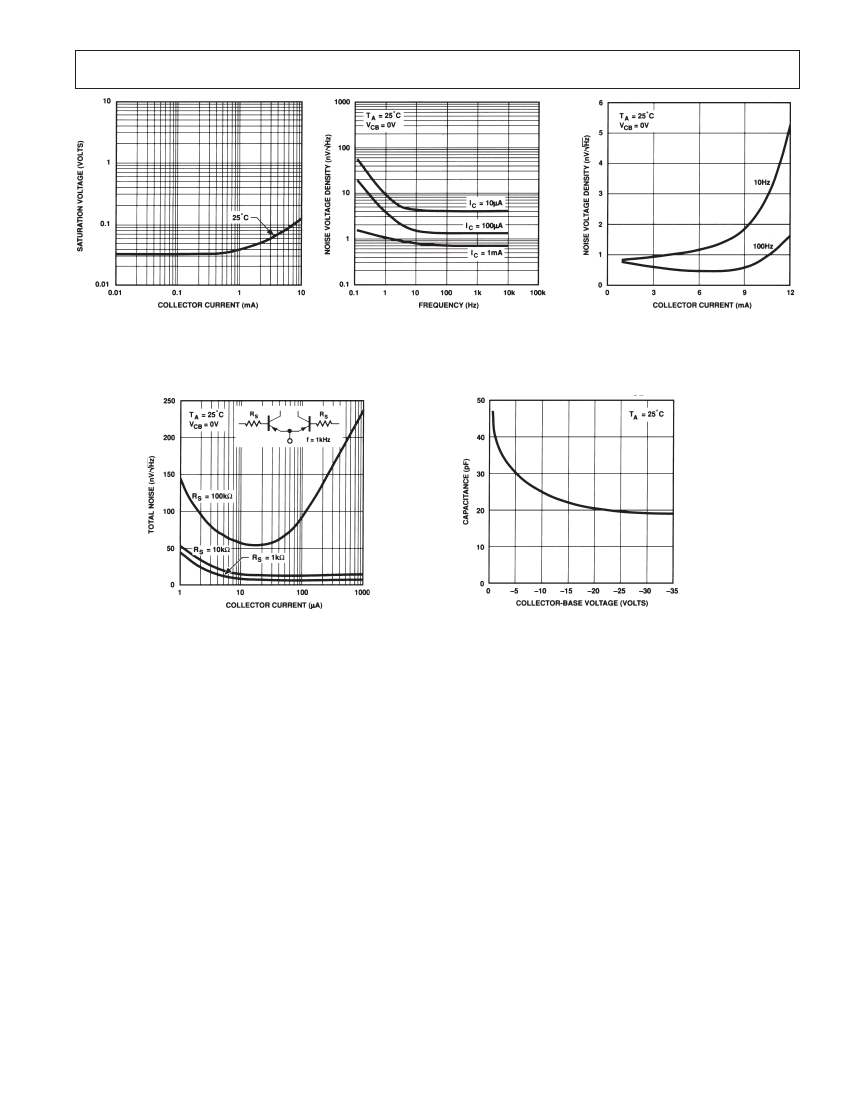

Low Noise: 1 nV/√Hz @ 1 kHz Max

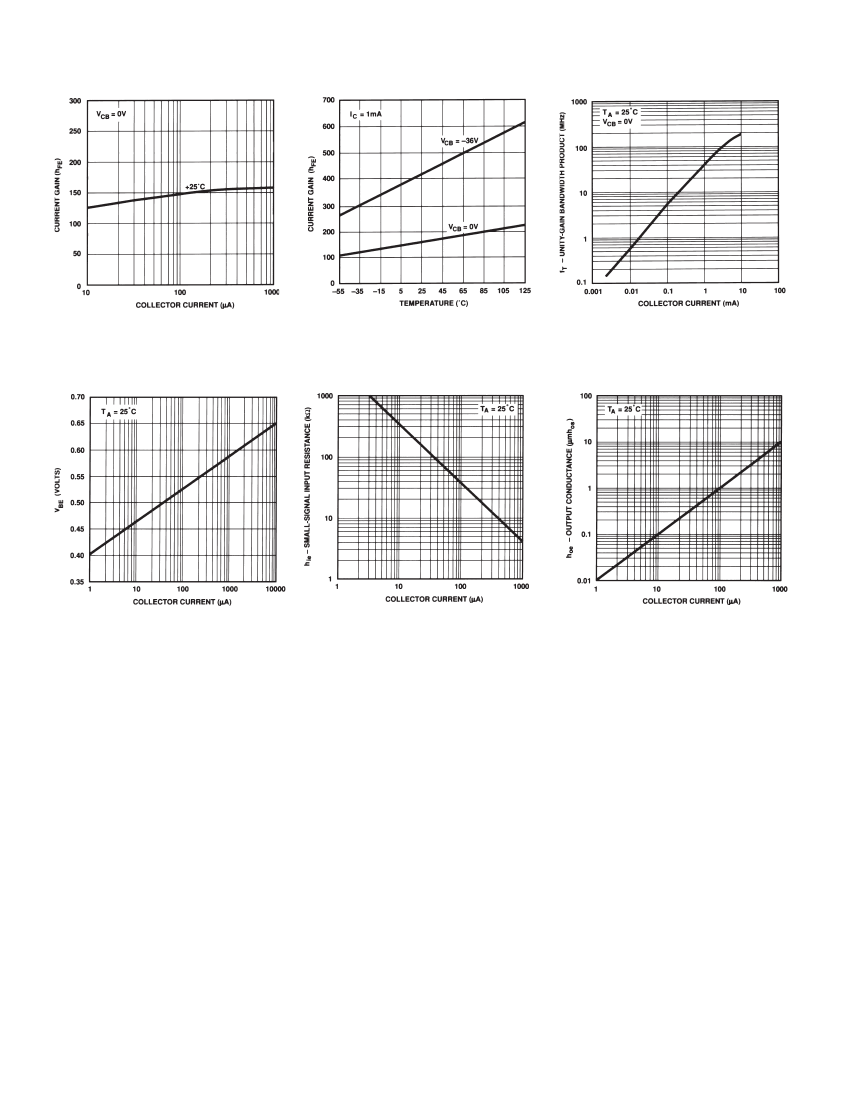

High Gain: 100 Min

High Gain Bandwidth: 190 MHz Typ

Tight Gain Matching: 3% Max

Excellent Logarithmic Conformance: r

Low Noise, Matched

Dual PNP Transistor

MAT03

PIN CONNECTION

TO-78

(H Suffix)

0.3

typ

GENERAL DESCRIPTION

The MAT03 dual monolithic PNP transistor offers excellent

parametric matching and high frequency performance. Low

noise characteristics (1 nV/

√

max @ 1 kHz), high bandwidth

(190 MHz typical), and low offset voltage (100

µV

max), makes

the MAT03 an excellent choice for demanding preamplifier appli-

cations. Tight current gain matching (3% max mismatch) and

high current gain (100 min), over a wide range of collector cur-

rent, makes the MAT03 an excellent choice for current mirrors.

A low value of bulk resistance (typically 0.3

Ω)

also makes the

MAT03 an ideal component for applications requiring accurate

logarithmic conformance.

Each transistor is individually tested to data sheet specifications.

Device performance is guaranteed at 25°C and over the extended

industrial and military temperature ranges. To ensure the long-

term stability of the matching parameters, internal protection

diodes across the base-emitter junction clamp any reverse base-

emitter junction potential. This prevents a base-emitter breakdown

condition that can result in degradation of gain and matching

performance due to excessive breakdown current.

REV. C

Information furnished by Analog Devices is believed to be accurate and

reliable. However, no responsibility is assumed by Analog Devices for its

use, nor for any infringements of patents or other rights of third parties that

may result from its use. No license is granted by implication or otherwise

under any patent or patent rights of Analog Devices.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781/329-4700

www.analog.com

Fax: 781/326-8703
