Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MAN6940

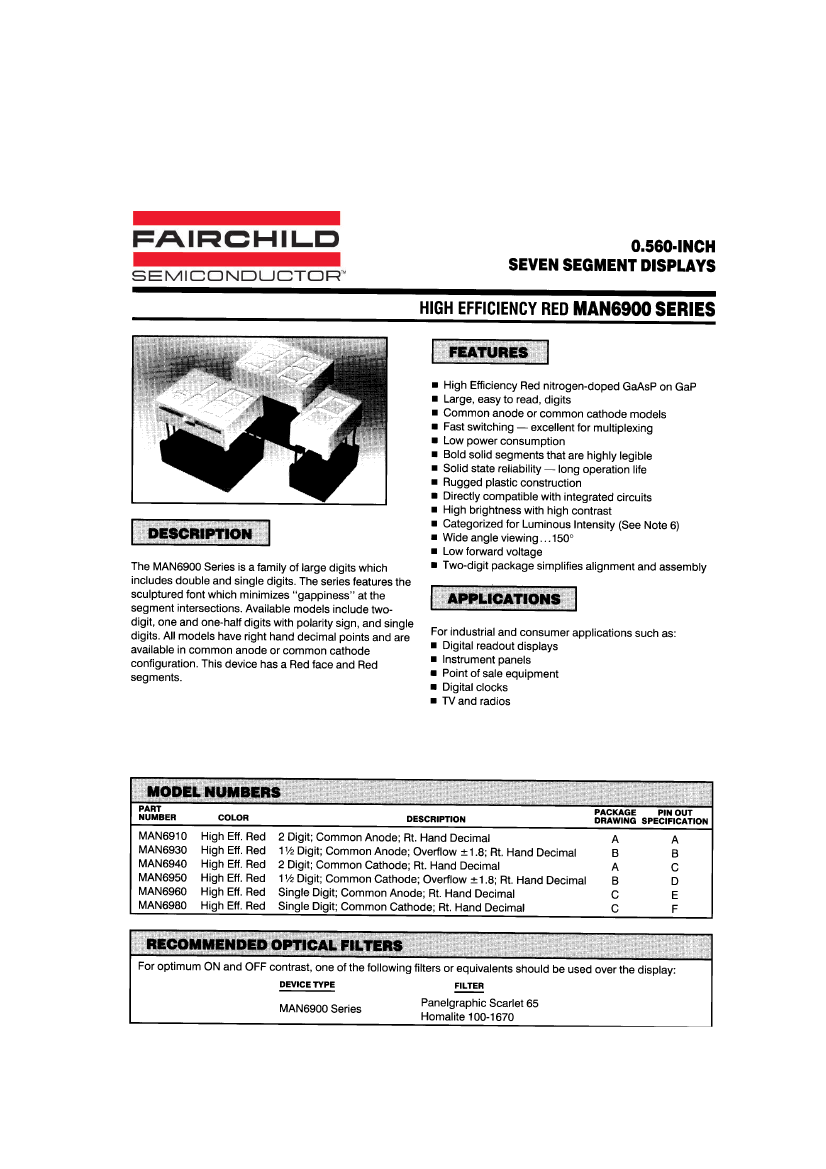

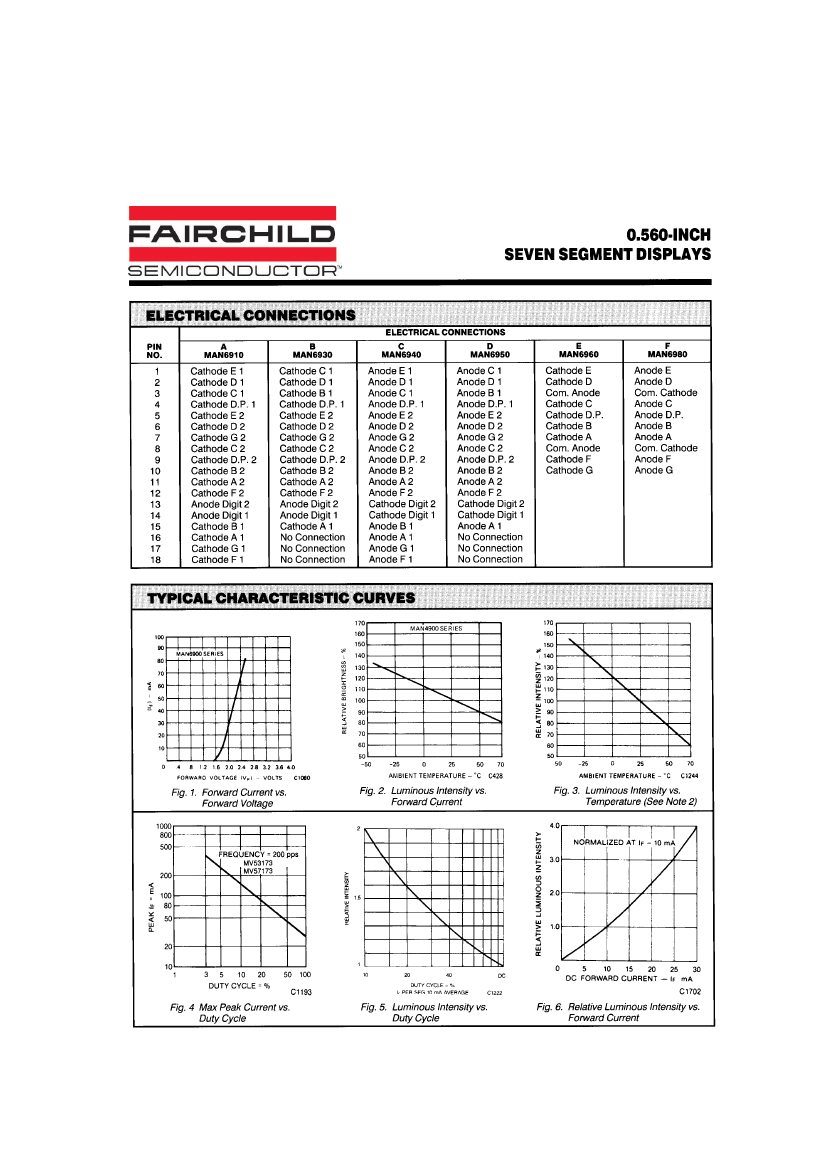

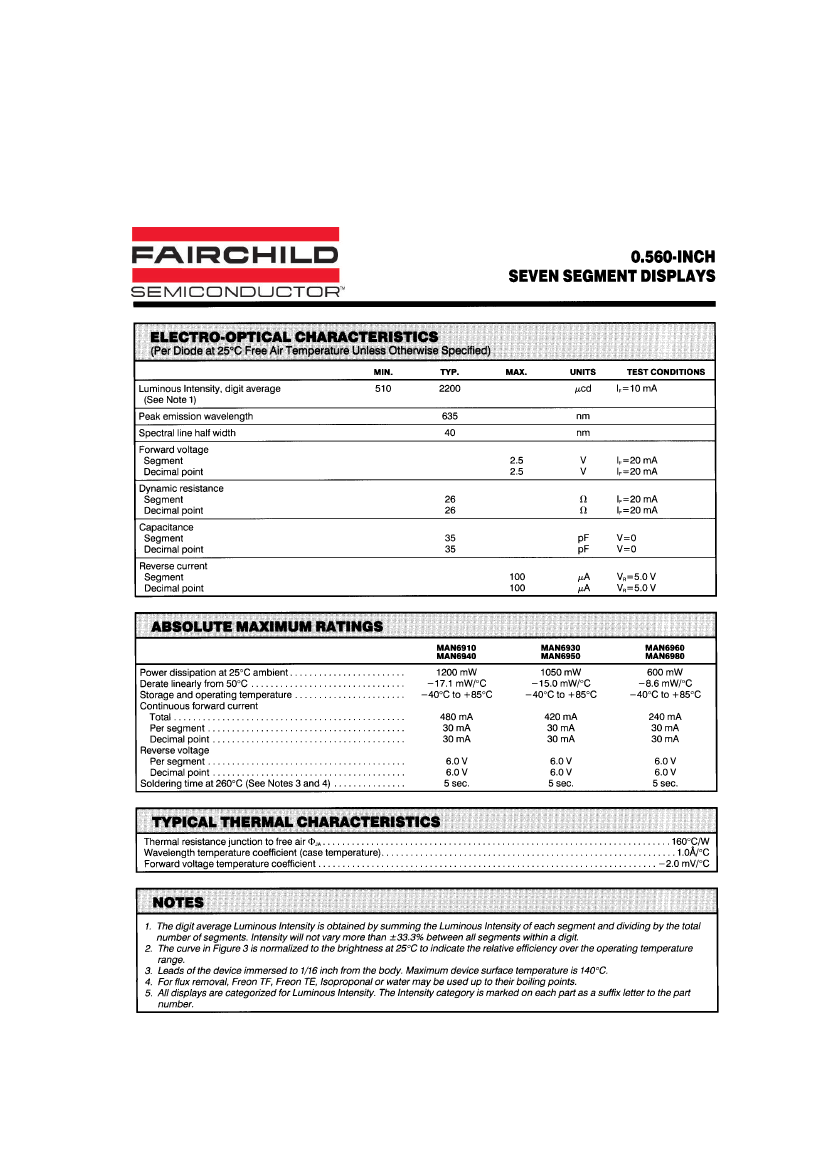

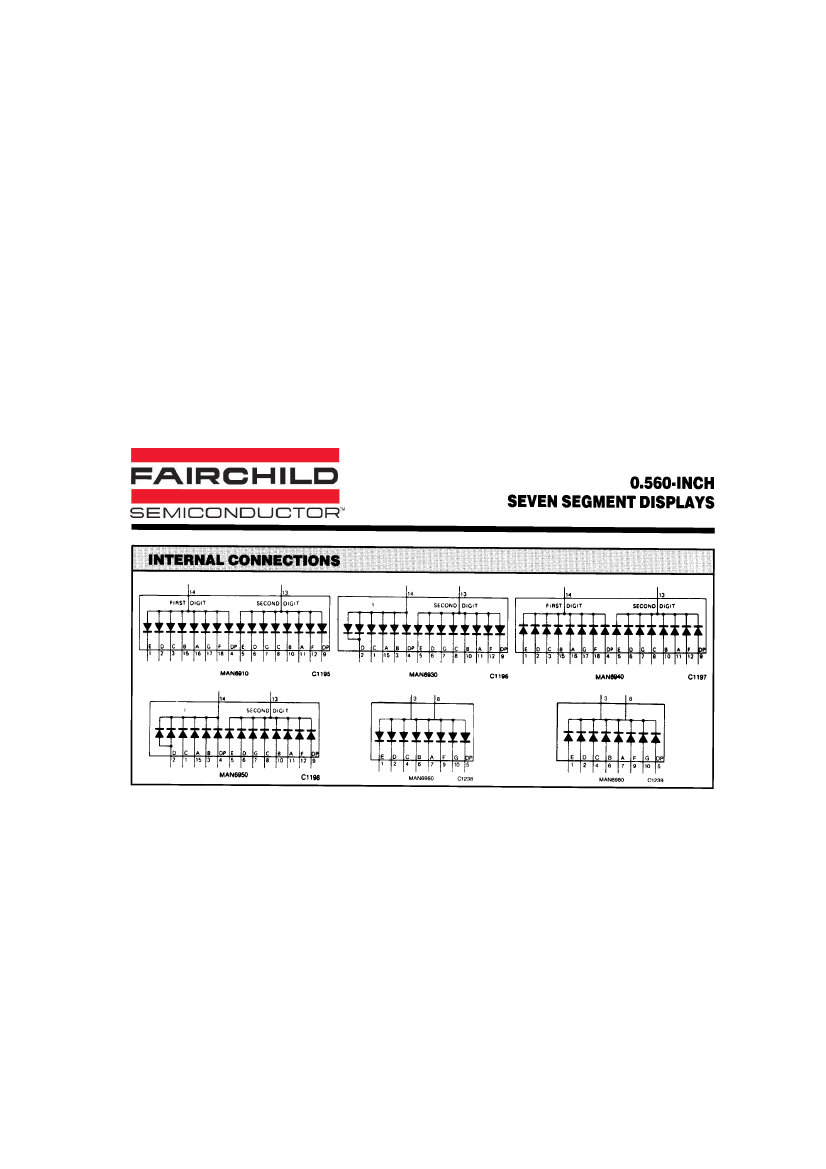

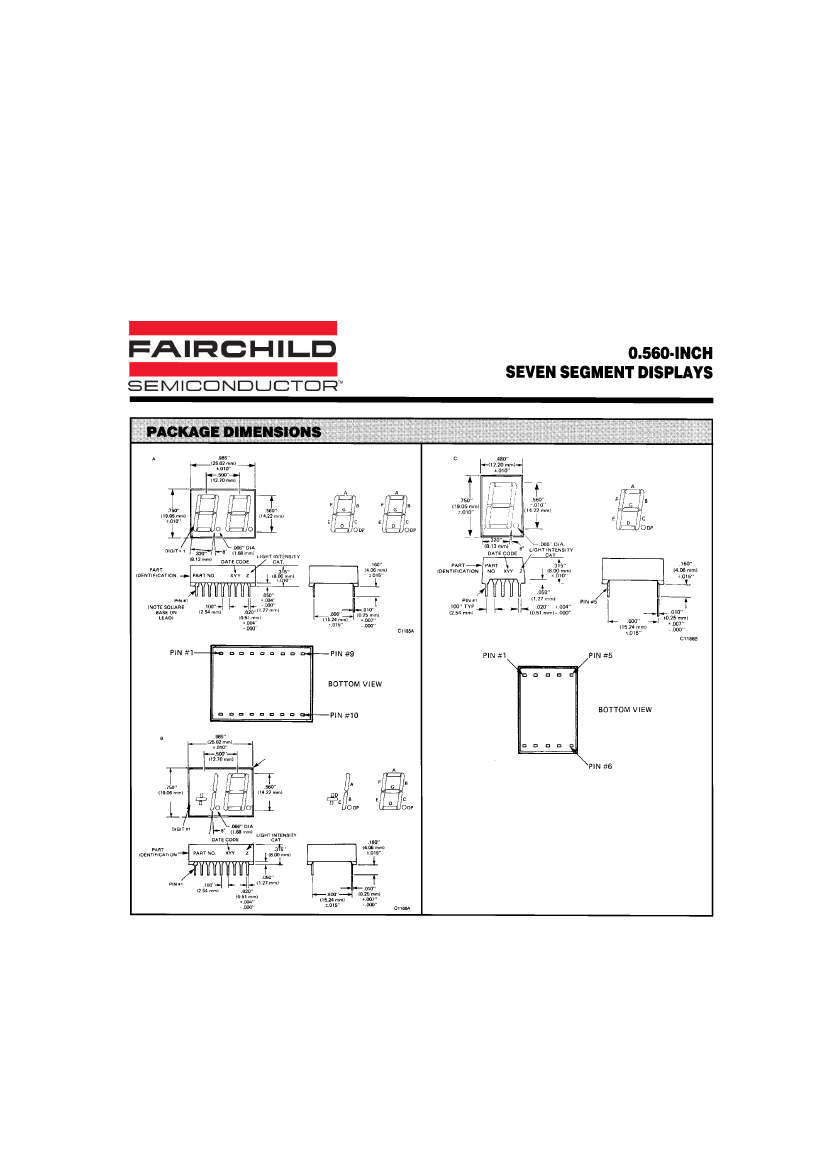

Preview

MAN6940: Description7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 14.22 mm; CategoryLED optoelectronic/LED photoelectric; File Size534KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MAN6940 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAN6940	-	-	View	Buy Now

MAN6940 Overview

7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 14.22 mm

MAN6940 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	IC COMPATIBLE
color	HIGH EFFICIENCY RED
color@wavelength	Red
Configuration	COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT
Display height	14.22 mm
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
JESD-609 code	e3
Number of characters	2
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	635 nm
Terminal surface	Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

MAN6940 Related Products

	MAN6940	MAN6960	MAN6950	MAN6930	MAN6900	MAN6910
Description	7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 14.22 mm	7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 14.22 mm	7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 14.22 mm	7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 14.22 mm	7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 14.22 mm	7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 14.22 mm
color	HIGH EFFICIENCY RED	Efficient red	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED
Display height	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm
Number of functions	2	1	1.5	1.5	1	2
Maximum operating temperature	85 °C	85 Cel	85 °C	85 °C	85 Cel	85 °C
Minimum operating temperature	-40 °C	-40 Cel	-40 °C	-40 °C	-40 Cel	-40 °C
Is it Rohs certified?	conform to	-	conform to	conform to	-	conform to
Reach Compliance Code	compli	-	compli	compli	-	compli
Other features	IC COMPATIBLE	-	IC COMPATIBLE	IC COMPATIBLE	-	IC COMPATIBLE
color@wavelength	Red	-	Red	Red	-	Red
Configuration	COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT	-	COMMON CATHODE, 1.5 DIGITS WITH DECIMAL POINT	COMMON ANODE, 1.5 DIGITS WITH DECIMAL POINT	-	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Maximum forward current	0.03 A	-	0.03 A	0.03 A	-	0.03 A
Maximum forward voltage	2.5 V	-	2.5 V	2.5 V	-	2.5 V
JESD-609 code	e3	-	e3	e3	-	e3
Number of characters	2	-	1.5	1.5	-	2
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	-	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	-	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	635 nm	-	635 nm	635 nm	-	635 nm
Terminal surface	Tin (Sn)	-	Tin (Sn)	Tin (Sn)	-	Tin (Sn)
