AA10C-048L-120SL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AA10C-048L-120SL

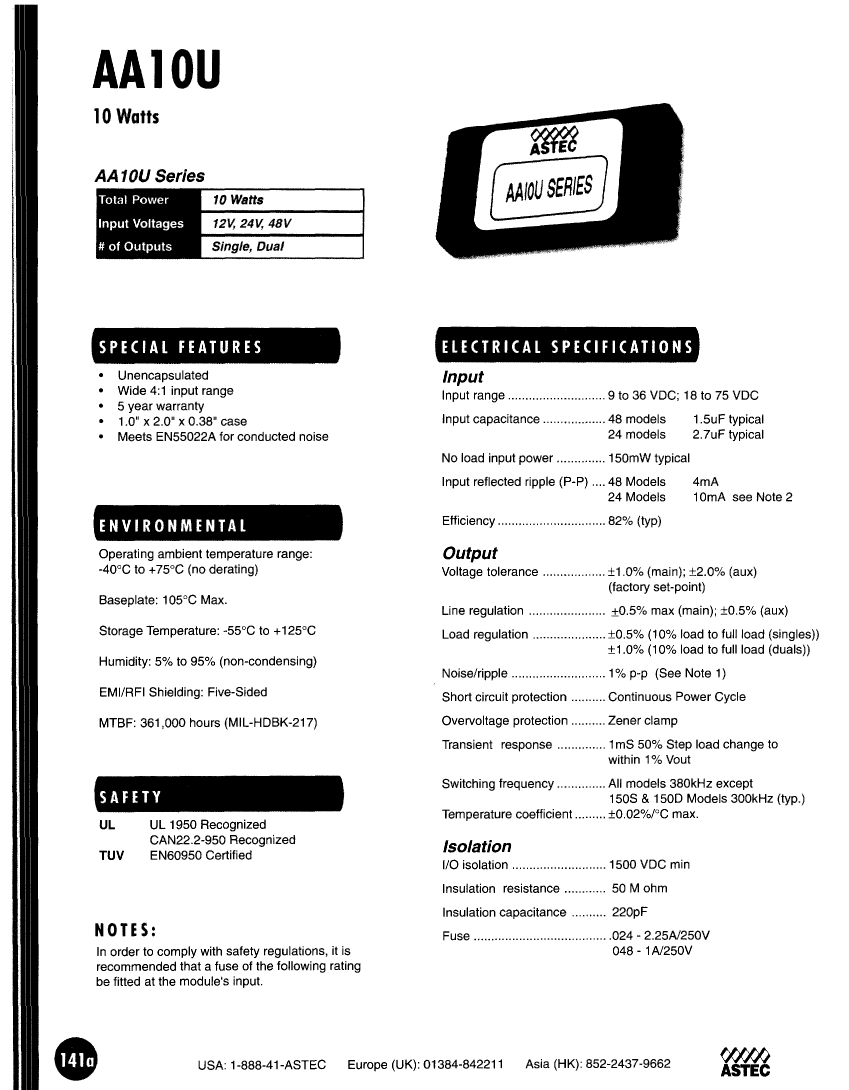

Preview

AA10C-048L-120SL: Description1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size111KB，2 Pages; ManufacturerEmerson Embedded Power; Environmental Compliance

Download Datasheet Parametric Compare View All

AA10C-048L-120SL Overview

1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE

AA10C-048L-120SL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Emerson Embedded Power
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P6
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	6
Maximum operating temperature	60 °C
Minimum operating temperature	-40 °C
Maximum output voltage	12.12 V
Minimum output voltage	11.88 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	10 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

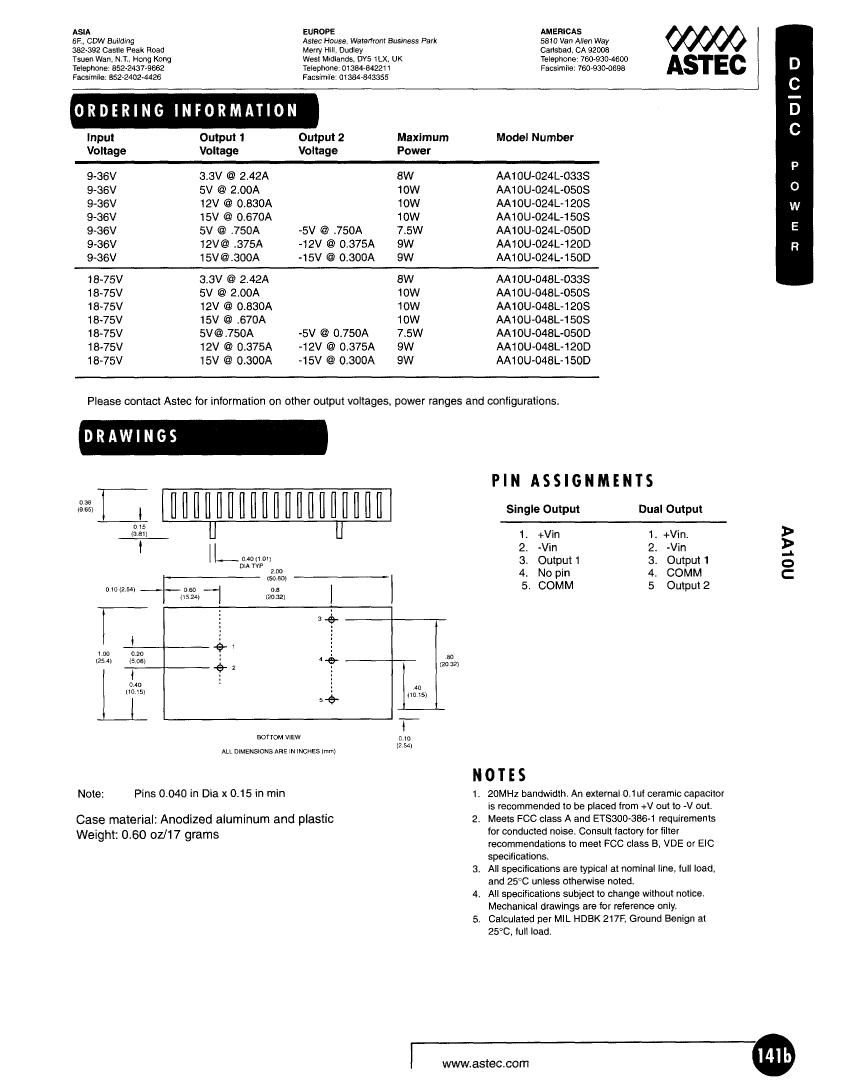

Preview

Download Datasheet

View All

AA10C-048L-120SL Related Products

	AA10C-048L-120SL	AA10C-048L-120S	AA10C-048L-033S	AA10C-048L-033SL	AA10C-048L-015SL	AA10C-048L-020S	AA10C-048L-020SL	AA10C-048L-015S
Description	1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE
Is it Rohs certified?	conform to	incompatible	incompatible	conform to	conform to	incompatible	conform to	incompatible
Maker	Emerson Embedded Power	Emerson Embedded Power	Emerson Embedded Power	Emerson Embedded Power	Emerson Embedded Power	Emerson Embedded Power	Emerson Embedded Power	Emerson Embedded Power
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V	75 V	75 V	75 V	75 V	75 V	75 V	75 V
Minimum input voltage	36 V	36 V	36 V	36 V	36 V	36 V	36 V	36 V
Nominal input voltage	48 V	48 V	48 V	48 V	48 V	48 V	48 V	48 V
JESD-30 code	R-XDMA-P6	R-XDMA-P6	R-XDMA-P6	R-XDMA-P6	R-XDMA-P6	R-XDMA-P6	R-XDMA-P6	R-XDMA-P6
Maximum load regulation	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%
Number of functions	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1
Number of terminals	6	6	6	6	6	6	6	6
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	12.12 V	12.12 V	3.333 V	3.333 V	1.515 V	2.02 V	2.02 V	1.515 V
Minimum output voltage	11.88 V	11.88 V	3.267 V	3.267 V	1.485 V	1.98 V	1.98 V	1.485 V
Nominal output voltage	12 V	12 V	3.3 V	3.3 V	1.5 V	2 V	2 V	1.5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	10 W	10 W	10 W	10 W	10 W	10 W	10 W	10 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO
