MAFRIN0160 Overview

Drop-In, High Power, Low Intermod Isolators

MAFRIN0160 Parametric

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	compli
Other features	HIGH RELIABILITY, I/P POWER-MAX (PEAK)=2000W
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	53.01 dBm
Maximum insertion loss	0.25 dB
Maximum operating frequency	960 MHz
Minimum operating frequency	925 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
RF/Microwave Device Types	ISOLATOR
Maximum voltage standing wave ratio	1.22

Preview

Download Datasheet

View All

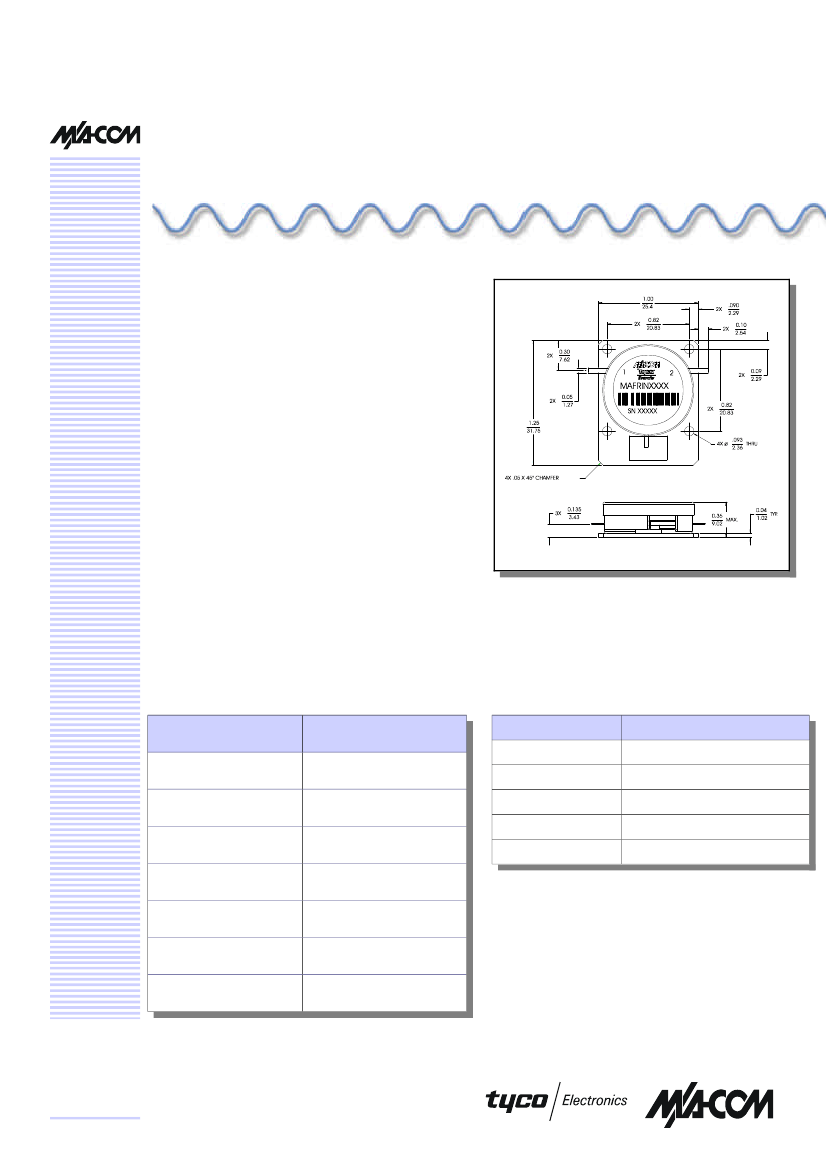

Drop-In, High Power, Low

Intermod Isolators

MAFRIN0167, MAFRIN0160, MAFRIN0164,

MAFRIN0165, MAFRIN0166

Features

Outline Drawing

Designed for Wireless Telecommunication Systems,

Base Stations and Power Amplifier applications

Excellent IM performance

High Performance at low cost

High power handling utilizing non-toxic aluminum

nitride termination and copper heat sink

Stable ceramic magnet based design

Robust construction

Custom products available with alternate configurations

including a dual junction, the addition of an attenuator,

detector, TTL logic etc.

Description

M/A-COM’s drop-in circulators and isolators, designed for

wireless Base Station and Power Amplifier applications,

feature high reliability performance at a low cost. These

proven robust designs are qualification tested. Tests include

temperature cycling, high temperature exposure, vibration,

shock, and corrosion / moisture testing. These designs

feature a low cost package ideally suited for high volume

manufacturing. M/A-COM is the world’s largest supplier

of drop-in isolators and circulators for the wireless

infrastructure market.

Specifications

Parameter

20 dB Min.

25 dB Typical

0.25 Max.

0.20 dB Typical

100 Watts

MAFRIN0166

Reflected Power

VSWR

Passive Intermod Prod.

70 Watts

1.22:1 Max.

-80 dBc with two 30 W tones

-10 °C to +70°C

2090 - 2190 MHz

Model Number

MAFRIN0167

MAFRIN0160

MAFRIN0164

MAFRIN0165

Forward Power

Frequency Range

869 –894 MHz

925 - 960 MHz

1805 -1880 MHz

1930 - 1990 MHz

Isolation

Insertion Loss

Operating Temperature

M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s)

or information contained herein without notice. MA-COM makes no warranty,

representation or guarantee regarding the suitability of its products for any

particular purpose, nor does M/A-COM assume any liability whatsoever arising out

of the use or application of any product(s) or information.

Visit www.macom.com for additional data sheets and product information.

North America:

Tel. (800) 366-2266

Asia/Pacific:

Tel.+81-44-844-8296, Fax +81-44-844-8298

Europe:

Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020

MAFRIN0160 Related Products

	MAFRIN0160	MAFRIN0166	MAFRIN0164	MAFRIN0167	MAFRIN0165
Description	Drop-In, High Power, Low Intermod Isolators	Drop-In, High Power, Low Intermod Isolators	Drop-In, High Power, Low Intermod Isolators	Drop-In, High Power, Low Intermod Isolators	Drop-In, High Power, Low Intermod Isolators
Maker	MACOM	MACOM	MACOM	MACOM	MACOM
Reach Compliance Code	compli	compli	compli	compli	compli
Other features	HIGH RELIABILITY, I/P POWER-MAX (PEAK)=2000W	HIGH RELIABILITY	-	-	HIGH RELIABILITY
structure	MODULE	MODULE	-	-	MODULE
Maximum input power (CW)	53.01 dBm	50 dBm	-	-	50 dBm
Maximum insertion loss	0.25 dB	0.3 dB	-	-	0.3 dB
Maximum operating frequency	960 MHz	2170 MHz	-	-	1990 MHz
Minimum operating frequency	925 MHz	2110 MHz	-	-	1930 MHz
Maximum operating temperature	85 °C	85 °C	-	-	85 °C
Minimum operating temperature	-10 °C	-40 °C	-	-	-40 °C
RF/Microwave Device Types	ISOLATOR	ISOLATOR	-	-	ISOLATOR
Maximum voltage standing wave ratio	1.22	1.22	-	-	1.22
Is it lead-free?	-	Contains lead	Contains lead	-	Contains lead
Is it Rohs certified?	-	incompatible	incompatible	-	incompatible
