3040500000: DescriptionBoard Connector, 405 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Hole .099-.111, Black Insulator, Receptacle; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

3040500000 Overview

Board Connector, 405 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Hole .099-.111, Black Insulator, Receptacle

3040500000 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	XD/P, PINLESS
Board mount options	HOLE .099-.111
body width	0.485 inch
subject depth	0.462 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	PHENOLIC
MIL compliance	NO
Manufacturer's serial number	30
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation option 2	NON-THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Total number of contacts	405
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

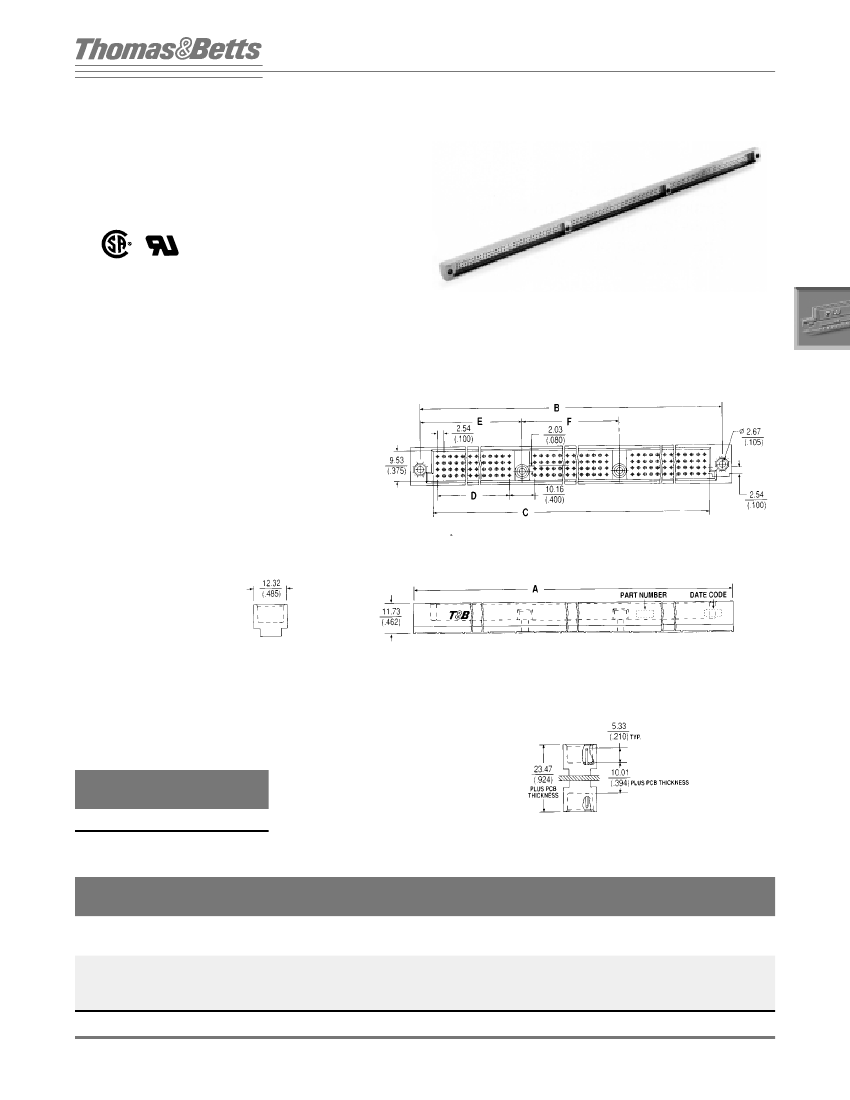

Two–Piece Connectors

XD/P System

THREE ROW, THREE CELL

PINLESS XD/P

™

SHROUDS

378-450 POSITIONS

TWO CENTER MOUNTING

FEATURES

LR49571

E60980

HYSICAL

ROPERTIES

Insulation Material: Glass filled thermoplastic

rated UL 94V-0

Color: Black

LECTRICAL

ROPERTIES

Insulation Resistance: >1 x 10

0hms

Dielectric Strength: > 1000 VDC at sea level

NVIRONMENTAL

ROPERTIES

Temperature Rating: -55˚C TO 125°C

OUNTING

ARDWARE

See pages 310-314

Typical Application

XD/P MALE

CONTACT

STYLE

RECOMMENDED

NOMINAL PCB

THICKNESS

3.18 (.125)

Ordering Information

NO.

POS.

378

387

405

423

450

PART NUMBER

346.71 (13.650)

354.33 (13.950)

369.57 (14.550)

384.81 (15.150)

407.67 (16.050)

336.55 (13.250)

344.17 (13.550)

359.41 (14.150)

374.65 (14750)

397.51 (15.650)

104.14 (4.100)

106.68 (4.200)

111.76 (4.400)

116.84 (4.600)

124.46 (4900)

116.21 (4 575)

118.75 (4.675)

123.83 (4.875)

128.91 (5.075)

136.53 (5.375)

114.30 (4.500)

116.84 (4.600)

121.92 (4.800)

127.00 (5.000)

134.62 (5.300)

3037800000 354.33 (13.950)

3038700000 361.95 (14.250)

3040500000 377.19 (14.850)

3042300000 392.43 (15.450)

3045000000 415.29 (16.350)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

303

3040500000 Related Products

	3040500000	3042300000	3037800000	3038700000	3045000000
Description	Board Connector, 405 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Hole .099-.111, Black Insulator, Receptacle	Board Connector, 423 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Hole .099-.111, Black Insulator, Receptacle	Board Connector, 378 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Hole .099-.111, Black Insulator, Receptacle	Board Connector, 387 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Hole .099-.111, Black Insulator, Receptacle	Board Connector, 450 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Hole .099-.111, Black Insulator, Receptacle
Maker	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	XD/P, PINLESS	XD/P, PINLESS	XD/P, PINLESS	XD/P, PINLESS	XD/P, PINLESS
Board mount options	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
body width	0.485 inch	0.485 inch	0.485 inch	0.485 inch	0.485 inch
subject depth	0.462 inch	0.462 inch	0.462 inch	0.462 inch	0.462 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VDC V	1000VDC V	1000VDC V	1000VDC V	1000VDC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	30	30	30	30	30
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
Installation option 2	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	3	3	3	3	3
Number of rows loaded	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
polarization key	ENDS	ENDS	ENDS	ENDS	ENDS
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Total number of contacts	405	423	378	387	450
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	-
