3100-0-15-80-34-01-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 3100-0-15-80-34-01-10-0

3100-0-15-80-34-01-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size196KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

3100-0-15-80-34-01-10-0 Overview

PCB Terminal

3100-0-15-80-34-01-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	3100
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

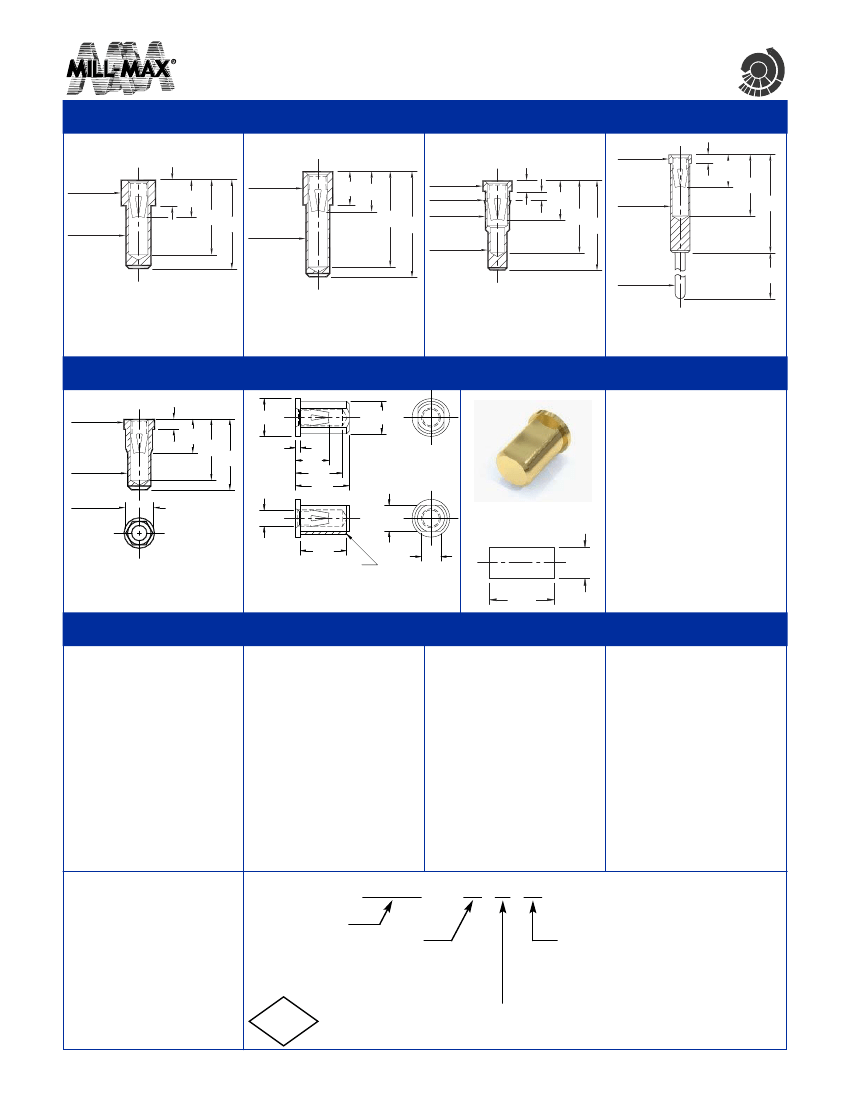

PIN RECEPTACLES

for 0,81 - 1,17 diameter pins (#34 contact)

CHI

PINS

8838

2,92 DIA.

2,18

3,2

6,35

2,13 DIA.

7,52

3100

2,29 DIA.

2,51 3,2

8,2

1,83 DIA.

8853

2,16 DIA.

1,85 DIA.

1,78 DIA.

0,76

0,71

6800

2,29 DIA.

0,76

3,3

7,62

3,2

5,33

6,6

1,98 DIA.

12,7

8,97

1,4 DIA.

1,02 DIA.

7,62

8838-0-15-XX-34-XX-10-0

Solder mount in 2,18 min.

mounting hole

3100-0-15-XX-34-XX-10-0

Solder mount in 1,88 min.

mounting hole

8853-0-15-XX-34-XX-10-0

Press-fit in 1,8 mounting hole

6800-0-15-XX-34-XX-04-0

Solder mount in 2,03 min.

mounting hole

0739

2,29 DIA.

0,76

3,05

4,57

1,78 DIA.

8206

3,68 DIA.

3,18 DIA.

0,46

5,23

3,23

4,57

5,23

2,08 DIA.

1,63 DIA.

2,54

P.C.B. Layout

4,52

P.C.B. PAD

1,91

2,16

0739-0-15-XX-34-XX-10-0

Hex press-fit in 1,98

plated thru hole

8206-0-15-XX-34-XX-40-0

Surface mount

4,52

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±0,13

DIAMETERS: ±0,05

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - 34 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

5,08μm TIN/LEAD OVER NICKEL



5,08μmTIN OVER NICKEL (RoHS)



0,25μm GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

5,08μm TIN/LEAD OVER NICKEL



5,08μm TIN OVER NICKEL (RoHS)



0,76μm GOLD OVER NICKEL (RoHS)

RoHS

CONTACT

#34

CONTACT (DATA ON PAGE 224)

w w w. m i l l - m a x . c o m

155



516-922-6000
