D70L6B-50.0KHZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> D70L6B-50.0KHZ

D70L6B-50.0KHZ: DescriptionActive Filter, 1 Func, PDIP14, DIP-14; CategoryAnalog mixed-signal IC filter; File Size672KB，14 Pages; ManufacturerFrequency Devices

Download Datasheet Parametric Compare View All

D70L6B-50.0KHZ Overview

Active Filter, 1 Func, PDIP14, DIP-14

D70L6B-50.0KHZ Parametric

Parameter Name	Attribute value
Maker	Frequency Devices
package instruction	DIP, DIP14,.6
Reach Compliance Code	unknown
Other features	LG-MAX, WD-MAX
JESD-30 code	R-PDIP-T14
length	21.336 mm
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	7.874 mm
Maximum supply current (Isup)	15 mA
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	16.51 mm
Base Number Matches	1

Preview

Download Datasheet

View All

D70 Series

100 Hz to 50 kHz

Fixed Frequency

Description

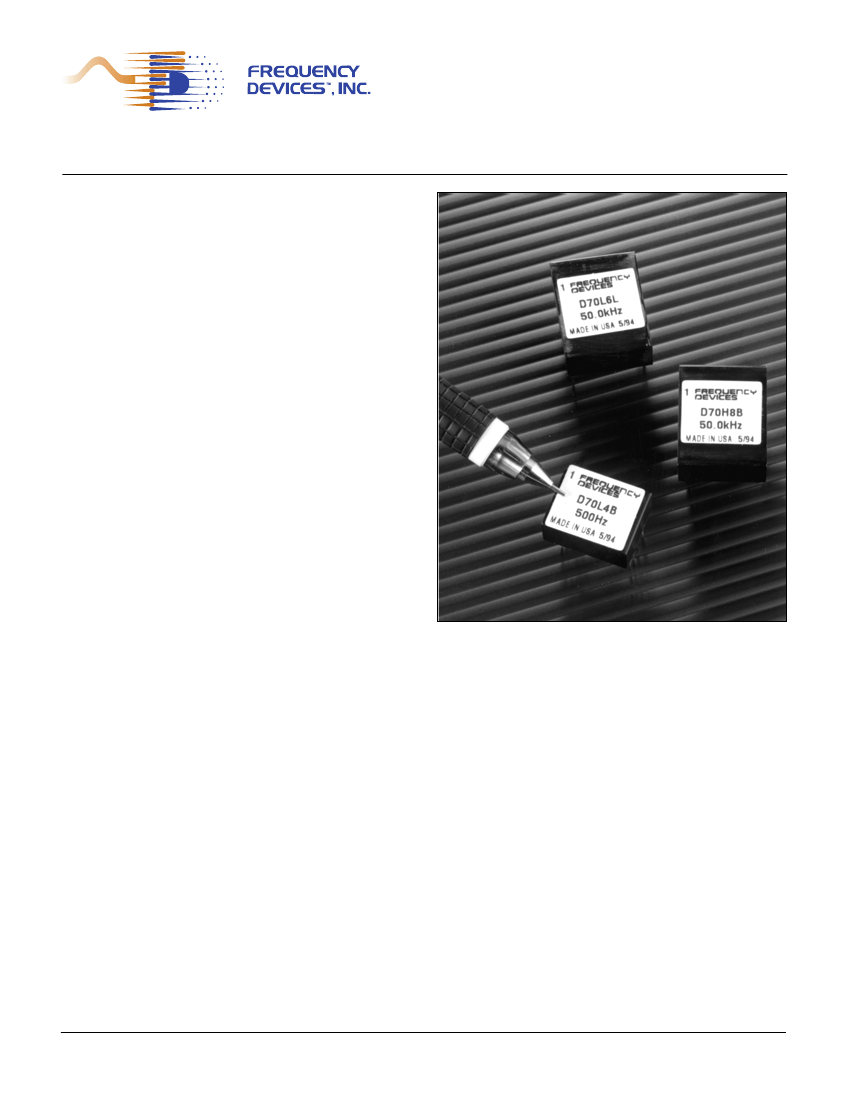

The D70 Series of small, fixed-frequency, linear

active DIP filters provide high performance linear,

multi-pole filtering in a compact package, with a

broad range of pole configurations. These

Butterworth and Bessel low-pass and Butterworth

high-pass filters combine the excellent performance

of linear multi-pole filter design with the space sav-

ing of the dual in-line package (DIP). Each model

comes factory tuned to a user-specified corner fre-

quency between 100Hz and 50kHz. These fully

self-contained units require no external compo-

nents or adjustments. They operate with dynamic

input voltage range from non-critical ±5V to ±18V

power supplies.

Features/Benefits:

• Compact DIP design minimizes board space

requirements

• Plug-in ready-to-use, reducing engineering

design and manufacturing time

• Factory tuned, no external clocks or adjustments

needed

• Low harmonic distortion and wide signal-to-noise

ratio to 14 bit resolution

• Broad range of pole configurations and corner fre-

quencies to meet a wide range of applications

Applications

• Anti-alias filtering

• Data acquisition systems

• Communication systems and electronics

• Medical electronics equipment and research

• Aerospace, navigation and sonar applications

• Sound and vibration testing

• Real and compressed time data analysis

• Noise elimination

• Signal reconstruction

DIP Filters

8-, 6-, 4-Pole Filters

Available Low-Pass Models:

. . . . . . . . . . .Page

D70L8B

D70L6B

D70L4B

D70L8L

D70L6L

D70L4L

8-pole

6-pole

4-pole

8-pole

6-pole

4-pole

Butterworth

Bessel . . . .

Available High-Pass Models:

D70H8B

D70H6B

D70H4B

8-pole Butterworth . . . . . . . . . . . . . . .4

6-pole Butterworth . . . . . . . . . . . . . . .4

4-pole Butterworth . . . . . . . . . . . . . . .4

General Specifications:

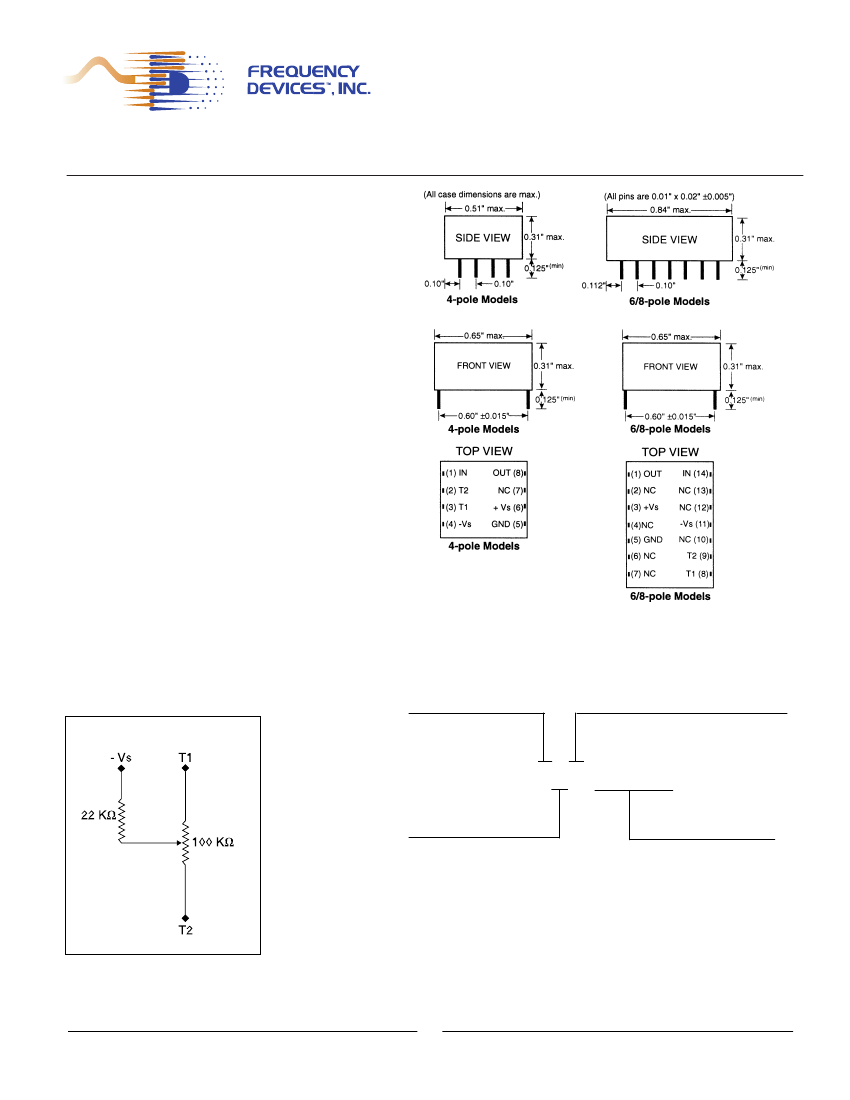

Pin-out/package data & ordering information . . . .5

1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176

e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com

D70L6B-50.0KHZ Related Products

	D70L6B-50.0KHZ	D70L8B-50.0KHZ	D70H4B-50.0KHZ	D70H6B-50.0KHZ	D70L4B-50.0KHZ	D70L8L-50.0KHZ	D70L6L-50.0KHZ	D70H8B-50.0KHZ	D70L4L-50.0KHZ
Description	Active Filter, 1 Func, PDIP14, DIP-14	Active Filter, 1 Func, PDIP14, DIP-14	Active Filter, 1 Func, PDIP8, DIP-8	Active Filter, 1 Func, PDIP14, DIP-14	Active Filter, 1 Func, PDIP8, DIP-8	Active Filter, 1 Func, PDIP14, DIP-14	Active Filter, 1 Func, PDIP14, DIP-14	Active Filter, 1 Func, PDIP14, DIP-14	Active Filter, 1 Func, PDIP8, DIP-8
Maker	Frequency Devices	Frequency Devices	Frequency Devices	Frequency Devices	Frequency Devices	Frequency Devices	Frequency Devices	Frequency Devices	Frequency Devices
package instruction	DIP, DIP14,.6	DIP, DIP14,.6	DIP, DIP8,.6	DIP, DIP14,.6	DIP, DIP8,.6	DIP, DIP14,.6	DIP, DIP14,.6	DIP, DIP14,.6	DIP, DIP8,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LG-MAX, WD-MAX	LG-MAX, WD-MAX	LG-MAX, WD-MAX	LG-MAX, WD-MAX	LG-MAX, WD-MAX	LG-MAX, WD-MAX	LG-MAX, WD-MAX	LG-MAX, WD-MAX	LG-MAX, WD-MAX
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDIP-T8	R-PDIP-T14	R-PDIP-T8	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T8
length	21.336 mm	21.336 mm	16.51 mm	21.336 mm	16.51 mm	21.336 mm	21.336 mm	21.336 mm	16.51 mm
Maximum negative supply voltage (Vsup)	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V
Negative supply voltage minimum (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	14	14	8	14	8	14	14	14	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.6	DIP14,.6	DIP8,.6	DIP14,.6	DIP8,.6	DIP14,.6	DIP14,.6	DIP14,.6	DIP8,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum seat height	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm
Maximum supply current (Isup)	15 mA	18 mA	10 mA	15 mA	10 mA	18 mA	15 mA	18 mA	10 mA
Maximum supply voltage (Vsup)	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	16.51 mm	16.51 mm	12.954 mm	16.51 mm	12.954 mm	16.51 mm	16.51 mm	16.51 mm	12.954 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
