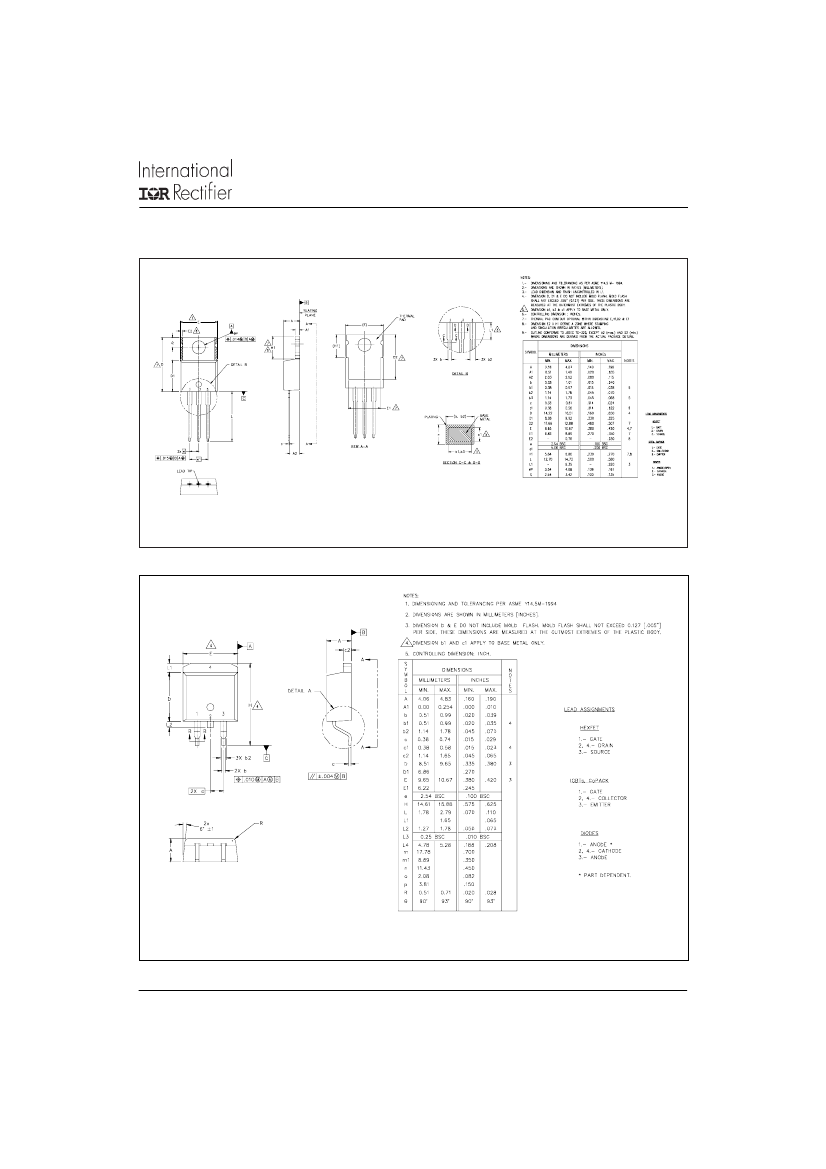

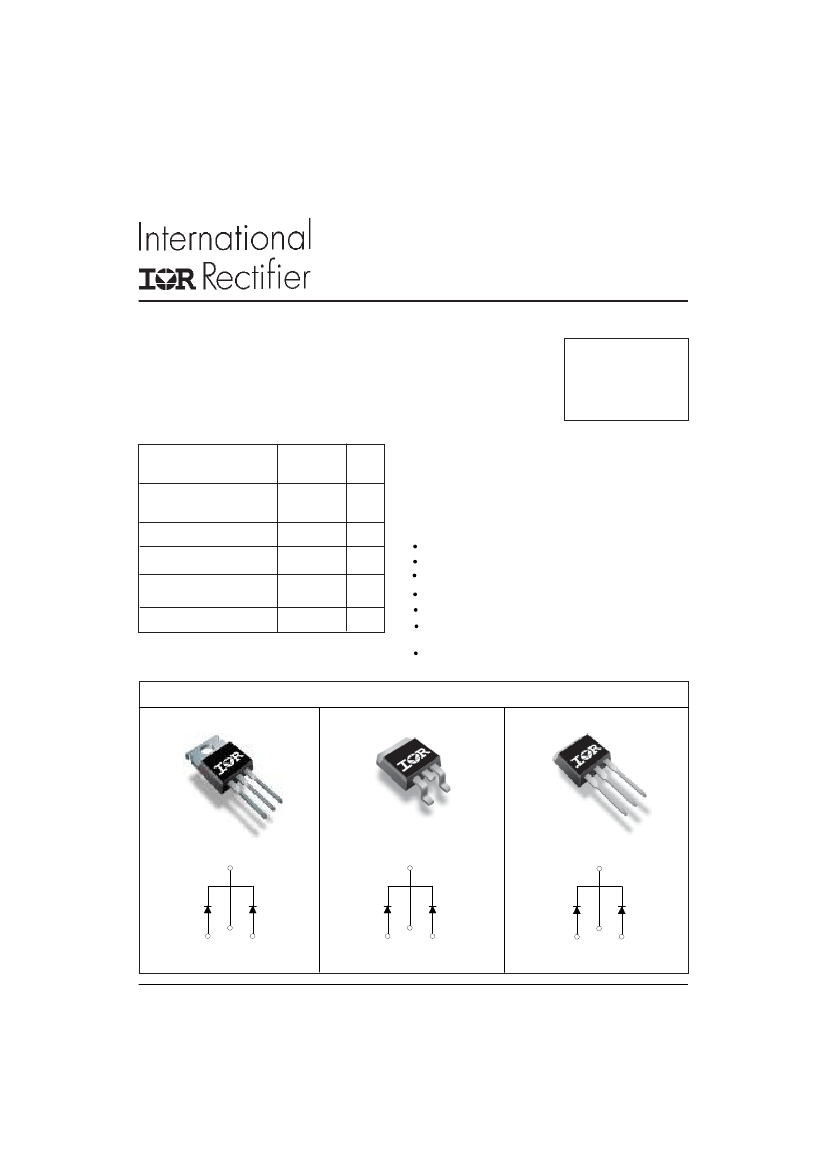

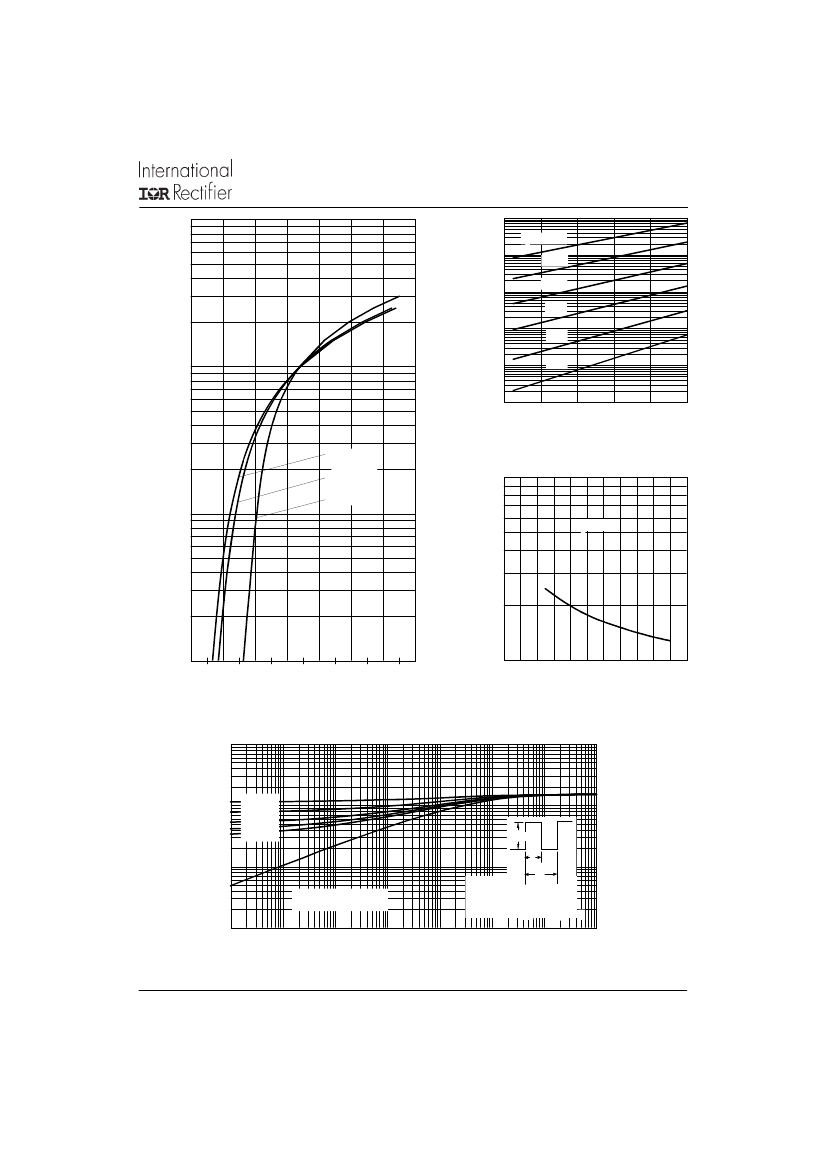

Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 10V V(RRM), Silicon, TO-262AA, PLASTIC, MODIFIED TO-262, 3 PIN
| Parameter Name | Attribute value |
| Maker | Vishay |
| Parts packaging code | TO-262AA |
| package instruction | PLASTIC, MODIFIED TO-262, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | FREE WHEELING DIODE, HIGH RELIABILITY |
| application | GENERAL PURPOSE |
| Shell connection | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JEDEC-95 code | TO-262AA |
| JESD-30 code | R-PSIP-T3 |
| Maximum non-repetitive peak forward current | 250 A |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -55 °C |
| Maximum output current | 20 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 10 V |
| surface mount | NO |
| technology | SCHOTTKY |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Base Number Matches | 1 |
| 47CTQ010-1 | 47CTQ010S | 47CTQ010STRR | 47CTQ010SPBF | 47CTQ010STRLPBF | 47CTQ010STRRPBF | 47CTQ010-1PBF | 47CTQ010STRL | |
|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 10V V(RRM), Silicon, TO-262AA, PLASTIC, MODIFIED TO-262, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 10V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3 | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 10V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3 | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 10V V(RRM), Silicon, LEAD FREE, PLASTIC, SMD-220, D2PAK-3 | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 10V V(RRM), Silicon, LEAD FREE, PLASTIC, SMD-220, D2PAK-3 | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 10V V(RRM), Silicon, LEAD FREE, PLASTIC, SMD-220, D2PAK-3 | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 10V V(RRM), Silicon, TO-262AA, LEAD FREE, PLASTIC, MODIFIED TO-262, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 10V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3 |
| Maker | Vishay | Vishay | Vishay | Vishay | Vishay | Vishay | Vishay | Vishay |
| Parts packaging code | TO-262AA | TO-263 | TO-263 | TO-263 | TO-263 | TO-263 | TO-262AA | TO-263 |
| package instruction | PLASTIC, MODIFIED TO-262, 3 PIN | PLASTIC, SMD-220, D2PAK-3 | PLASTIC, SMD-220, D2PAK-3 | LEAD FREE, PLASTIC, SMD-220, D2PAK-3 | LEAD FREE, PLASTIC, SMD-220, D2PAK-3 | LEAD FREE, PLASTIC, SMD-220, D2PAK-3 | R-PSIP-T3 | PLASTIC, SMD-220, D2PAK-3 |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown | compliant | compliant | compliant | compliant | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY | FREE WHEELING DIODE, HIGH RELIABILITY |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JESD-30 code | R-PSIP-T3 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSIP-T3 | R-PSSO-G2 |
| Maximum non-repetitive peak forward current | 250 A | 250 A | 250 A | 250 A | 250 A | 250 A | 250 A | 250 A |
| Number of components | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 2 | 2 | 2 | 2 | 2 | 3 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Maximum output current | 20 A | 20 A | 20 A | 20 A | 20 A | 20 A | 20 A | 20 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V |
| surface mount | NO | YES | YES | YES | YES | YES | NO | YES |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
