5962R9574601VXX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9574601VXX

5962R9574601VXX: DescriptionParallel In Parallel Out, HCT Series, 8-Bit, Bidirectional, True Output, CMOS, CDFP20; Categorylogic logic; File Size298KB，10 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9574601VXX Overview

Parallel In Parallel Out, HCT Series, 8-Bit, Bidirectional, True Output, CMOS, CDFP20

5962R9574601VXX Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Counting direction	BIDIRECTIONAL
series	HCT
JESD-30 code	R-CDFP-F20
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	34 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
Base Number Matches	1

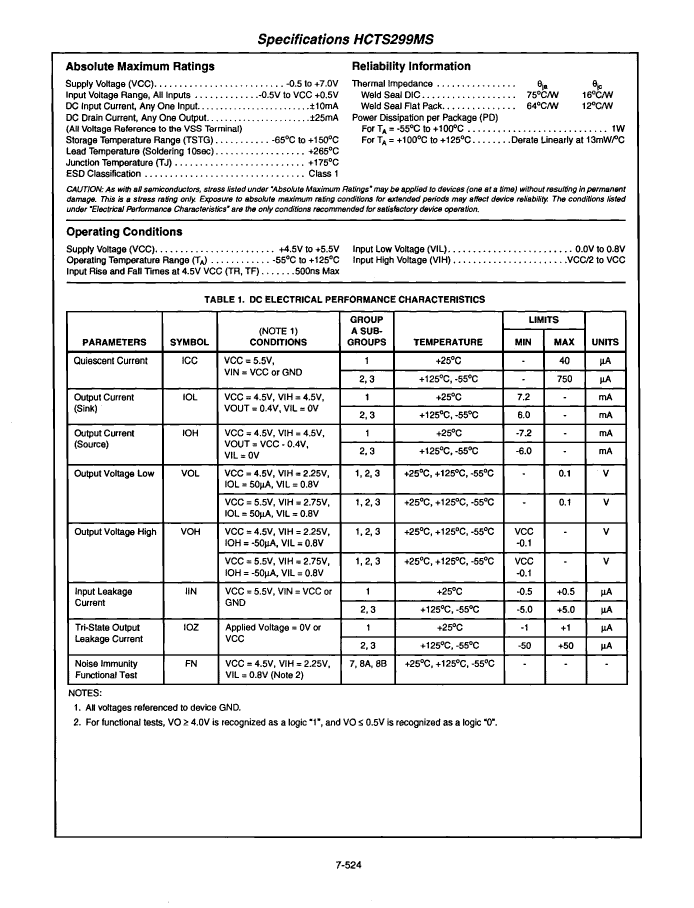

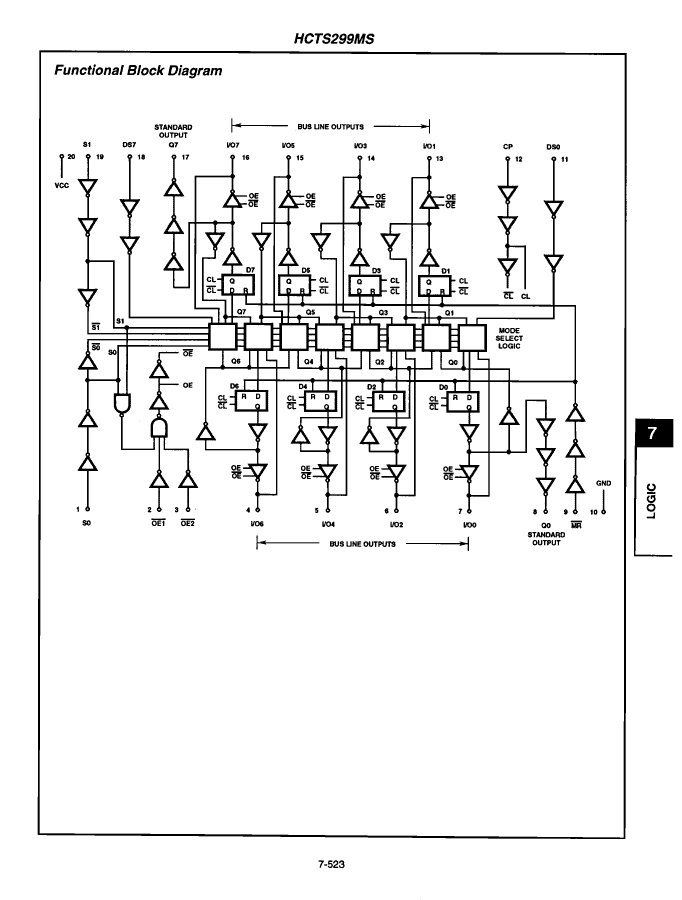

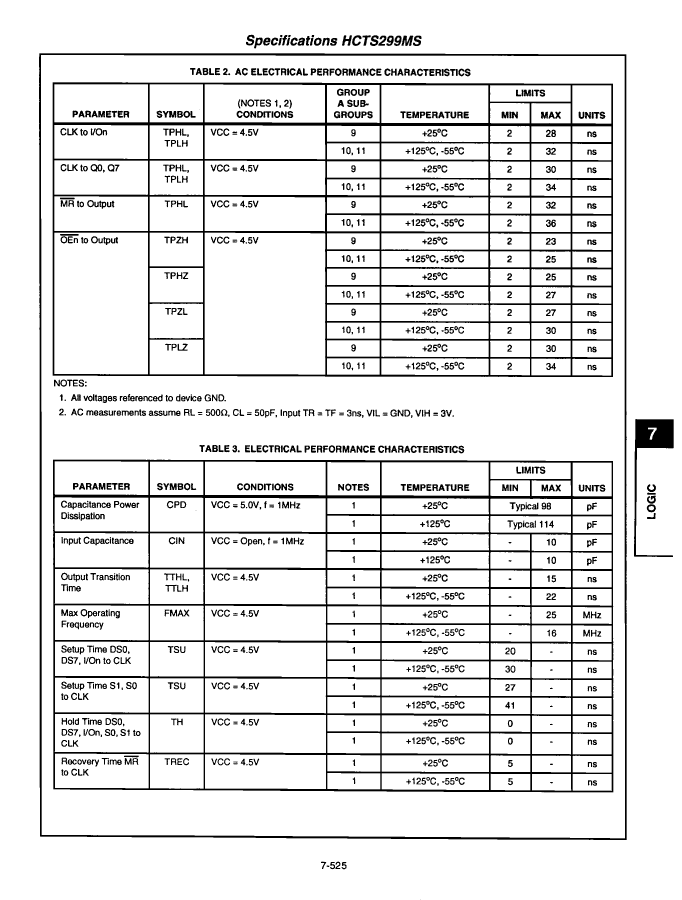

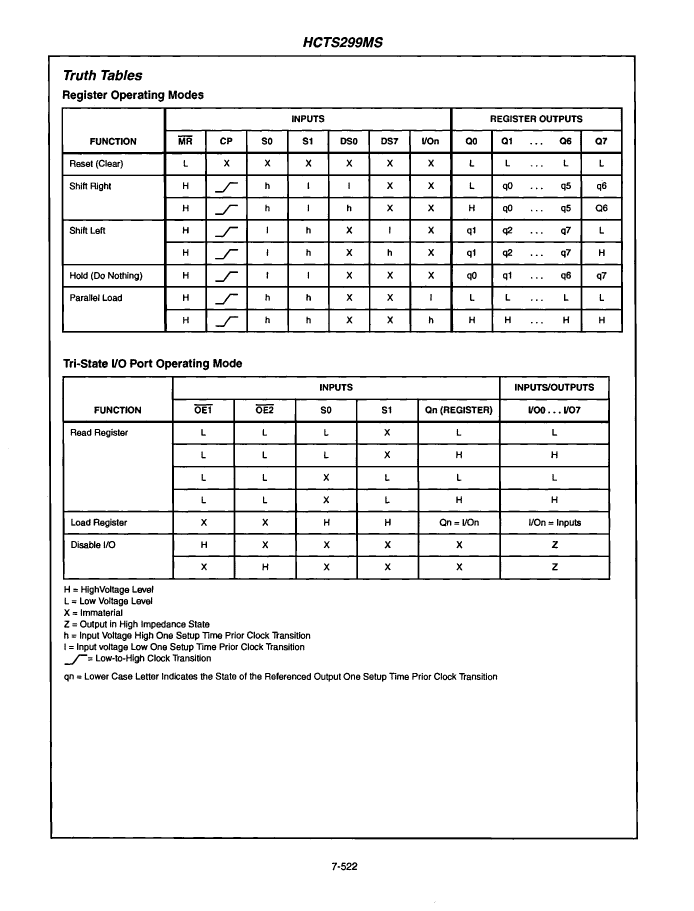

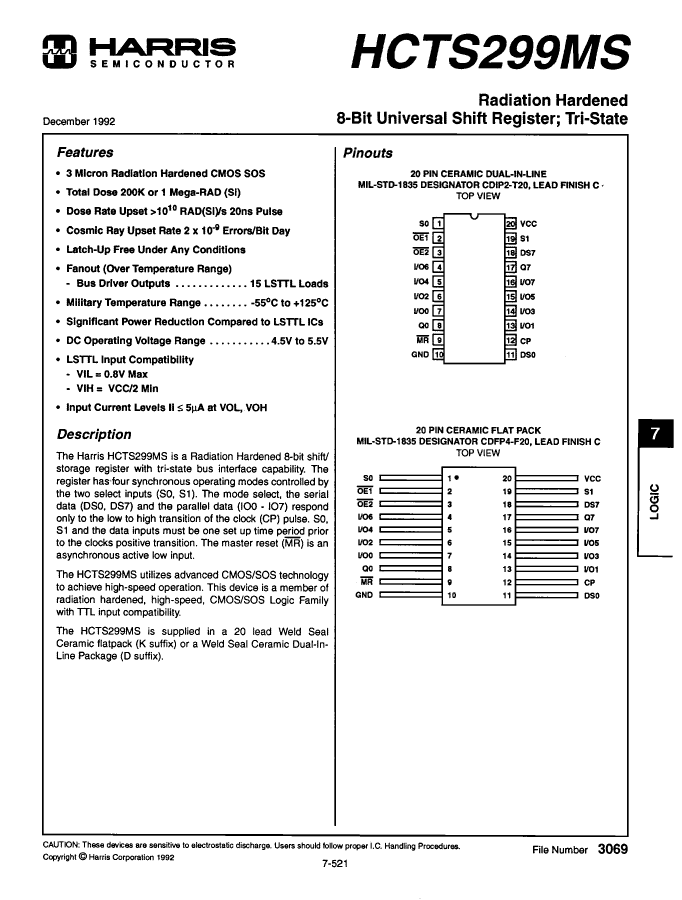

Preview

Download Datasheet

View All

5962R9574601VXX Related Products

	5962R9574601VXX	5962R9574601VRX	HCTS299KMSH	HCTS299DMSH
Description	Parallel In Parallel Out, HCT Series, 8-Bit, Bidirectional, True Output, CMOS, CDFP20	Parallel In Parallel Out, HCT Series, 8-Bit, Bidirectional, True Output, CMOS, CDIP20	Parallel In Parallel Out, HCT Series, 8-Bit, Bidirectional, True Output, CMOS, CDFP20	Parallel In Parallel Out, HCT Series, 8-Bit, Bidirectional, True Output, CMOS, CDIP20
Reach Compliance Code	unknown	unknown	unknown	unknow
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	HCT	HCT	HCT	HCT
JESD-30 code	R-CDFP-F20	R-CDIP-T20	R-CDFP-F20	R-CDIP-T20
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	IN-LINE
propagation delay (tpd)	34 ns	34 ns	43 ns	43 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
