32K151-S00E3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 32K151-S00E3

Preview

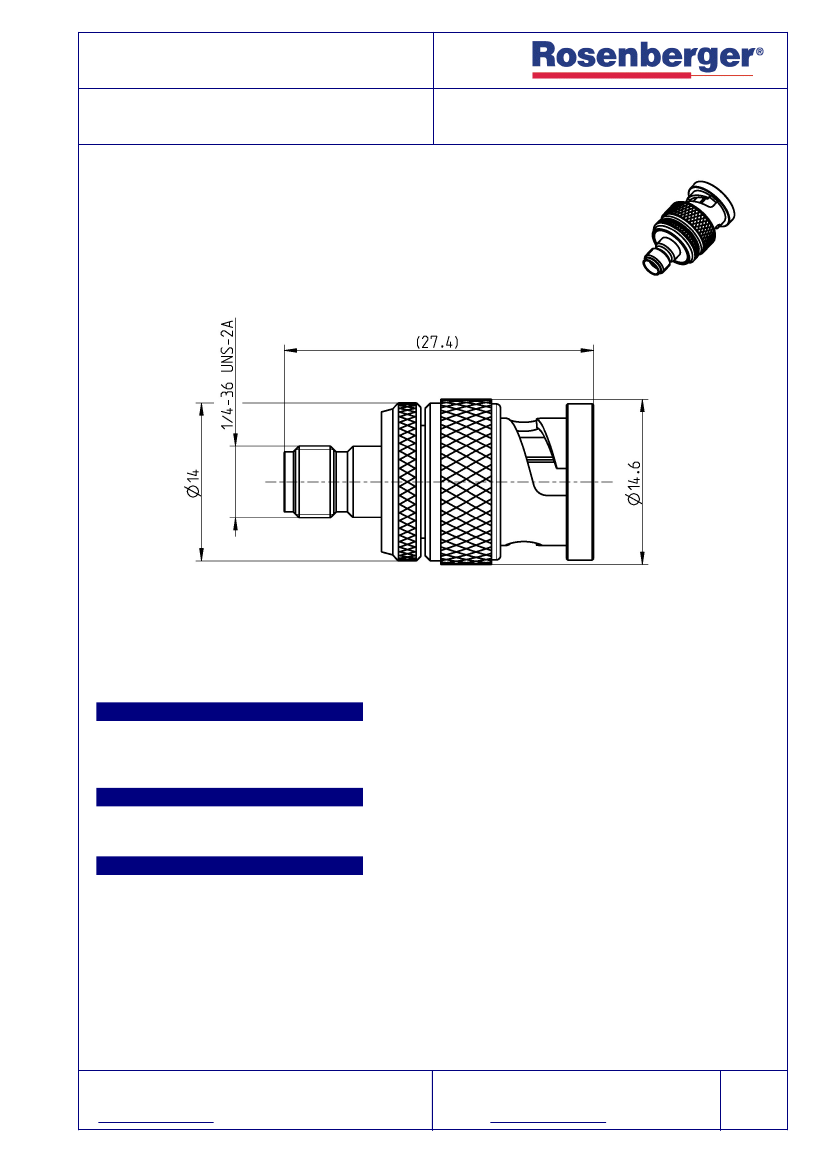

32K151-S00E3: DescriptionRF Connector Adapter, SMA-BNC, Female-Male, Jack-plug,; CategoryThe connector The connector; File Size306KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

32K151-S00E3 Overview

RF Connector Adapter, SMA-BNC, Female-Male, Jack-plug,

32K151-S00E3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Adapter type	SMA-BNC
Other features	CAPTIVE CENTER CONTACT
Body/casing type	JACK-PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	FEMALE-MALE
Coupling type	BAYONET-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.13 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	32K151-S00E3
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.11
Base Number Matches	1
