5SDD51L2600 datasheet, PDF - EEWORLD Datasheet

5SDD51L2600: DescriptionRectifier Diode, 1 Phase, 1 Element, 5150A, 1850V V(RRM), Silicon, L, 2 PIN; CategoryDiscrete semiconductor diode; File Size327KB，4 Pages; ManufacturerABB; Websitehttp://www.abb.com/

Download Datasheet Parametric Compare View All

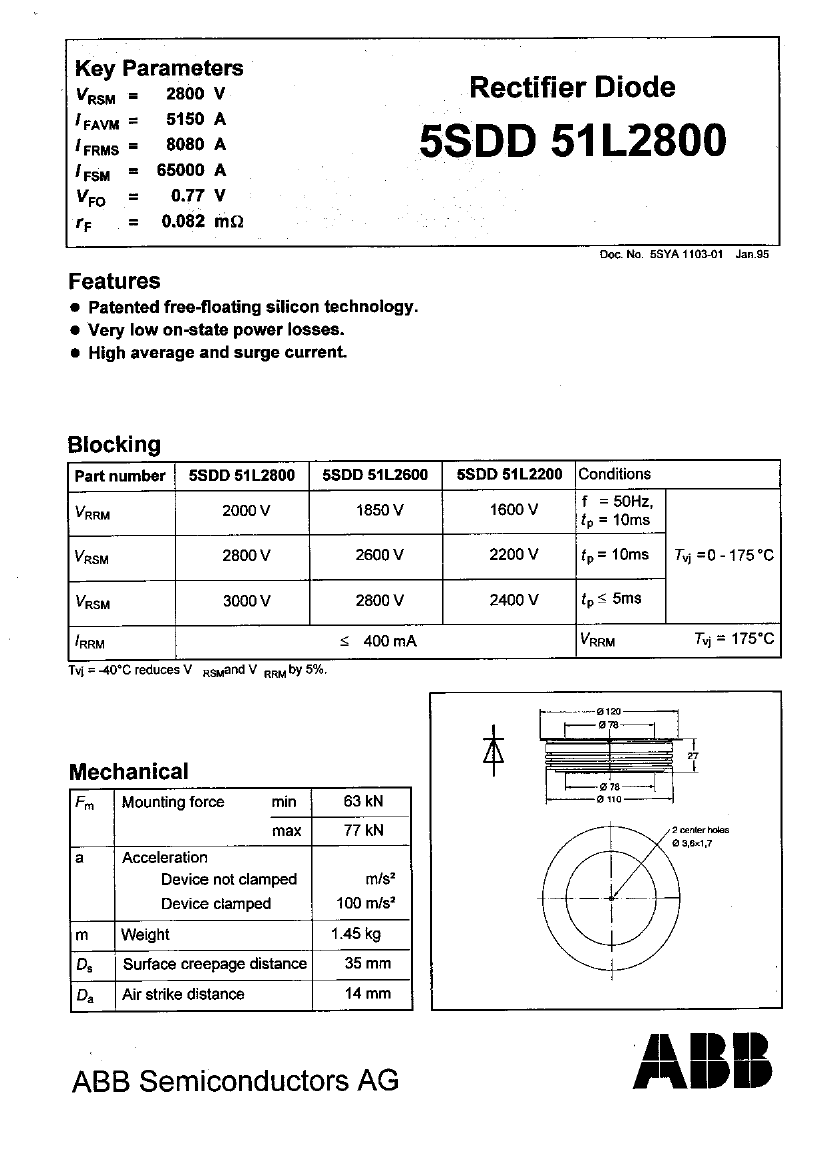

5SDD51L2600 Overview

Rectifier Diode, 1 Phase, 1 Element, 5150A, 1850V V(RRM), Silicon, L, 2 PIN

Parameter Name	Attribute value
Maker	ABB
package instruction	L, 2 PIN
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW POWER LOSS
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

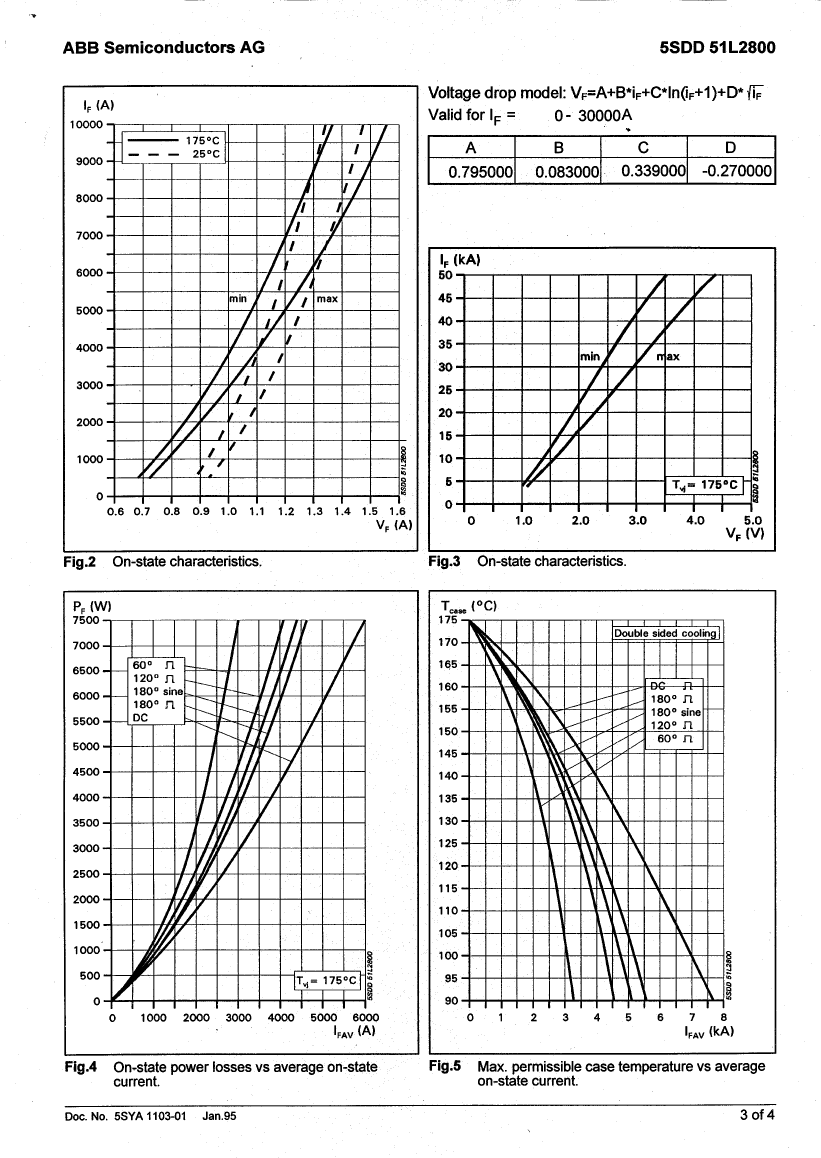

Maximum forward voltage (VF)	0.77 V
JESD-30 code	O-CEDB-N2

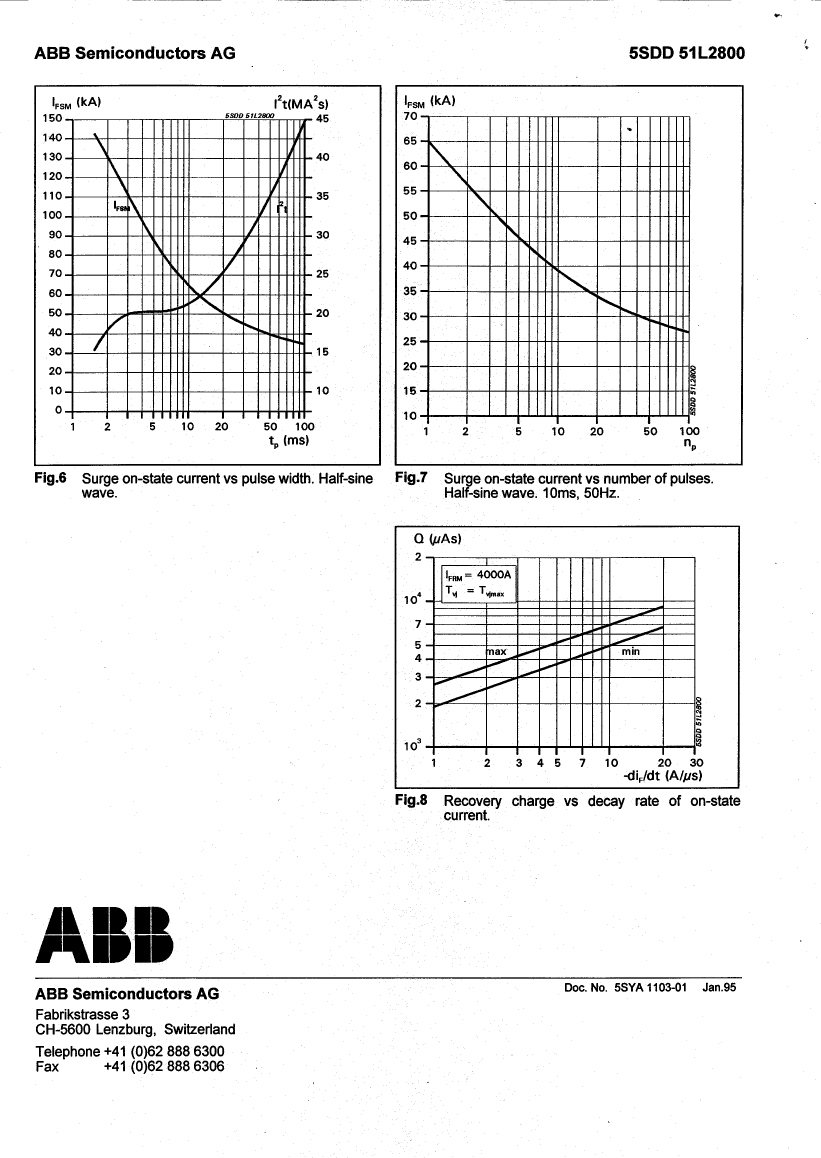

Maximum non-repetitive peak forward current	70000 A
Number of components	1
Phase	1
Number of terminals	2

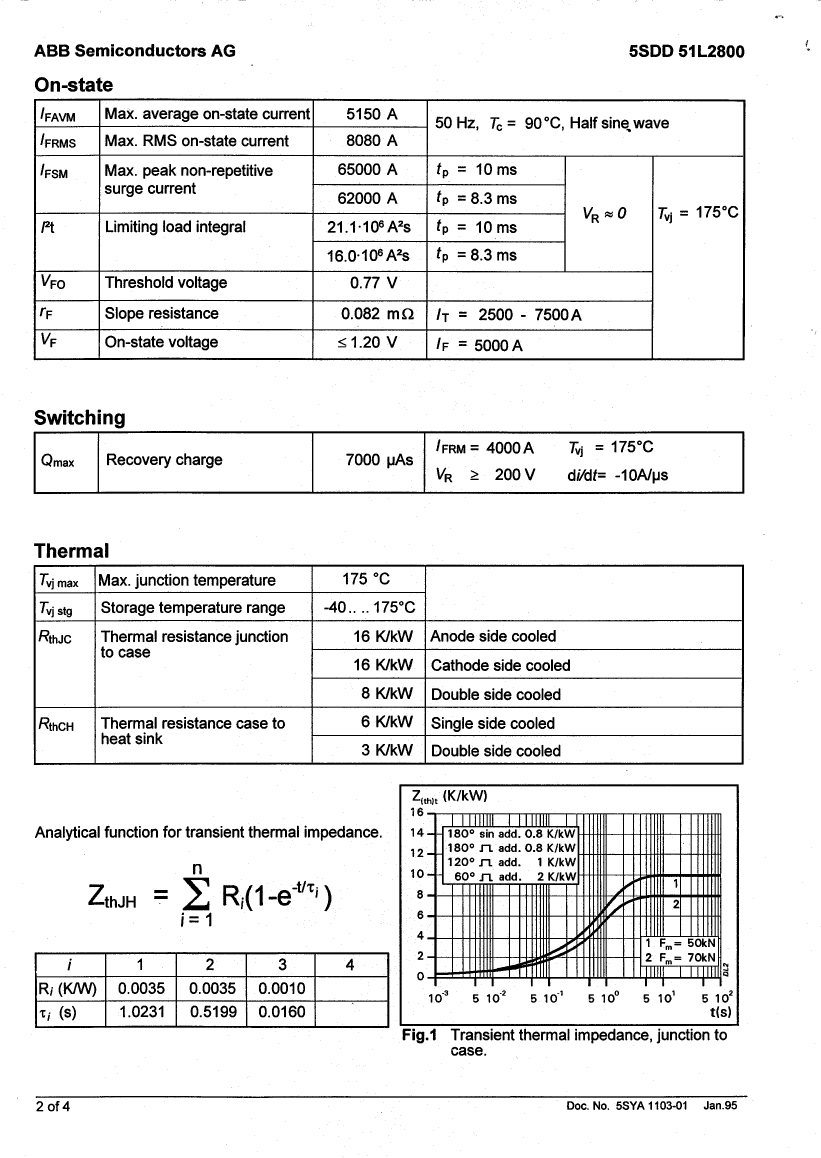

Maximum operating temperature	175 °C
Maximum output current	5150 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1850 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Base Number Matches	1

	5SDD51L2600	5SDD51L2200
Description	Rectifier Diode, 1 Phase, 1 Element, 5150A, 1850V V(RRM), Silicon, L, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 5150A, 1600V V(RRM), Silicon, L, 2 PIN
package instruction	L, 2 PIN	L, 2 PIN
Contacts	2	2
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS
application	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.77 V	0.77 V
JESD-30 code	O-CEDB-N2	O-CEDB-N2
Maximum non-repetitive peak forward current	70000 A	70000 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum output current	5150 A	5150 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1850 V	1600 V
surface mount	YES	YES
Terminal form	NO LEAD	NO LEAD
Terminal location	END	END
Base Number Matches	1	1
