AMPAL10020EV8-6DCB datasheet, PDF

AMPAL10020EV8-6DCB: DescriptionOT PLD, 6ns, PAL-Type, ECL, CDIP24, 0.300 INCH, SLIM, HERMETIC SEALED, CERAMIC, DIP-24; CategoryProgrammable logic devices Programmable logic; File Size595KB，18 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

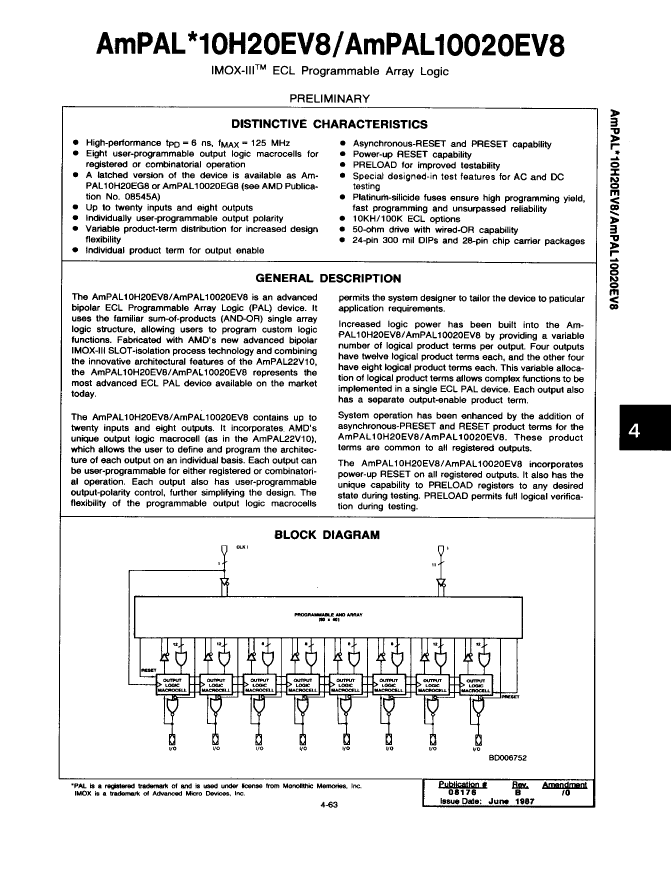

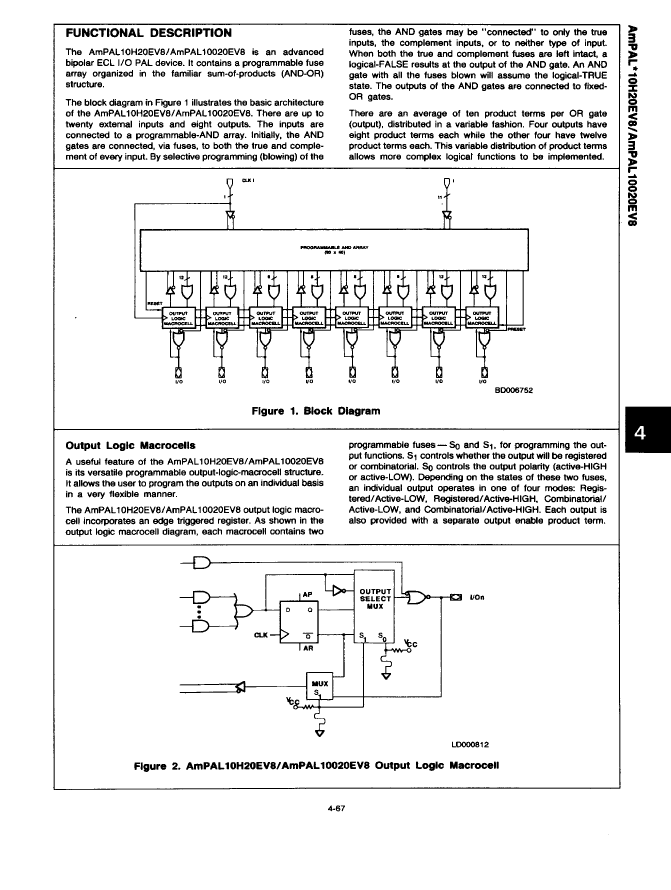

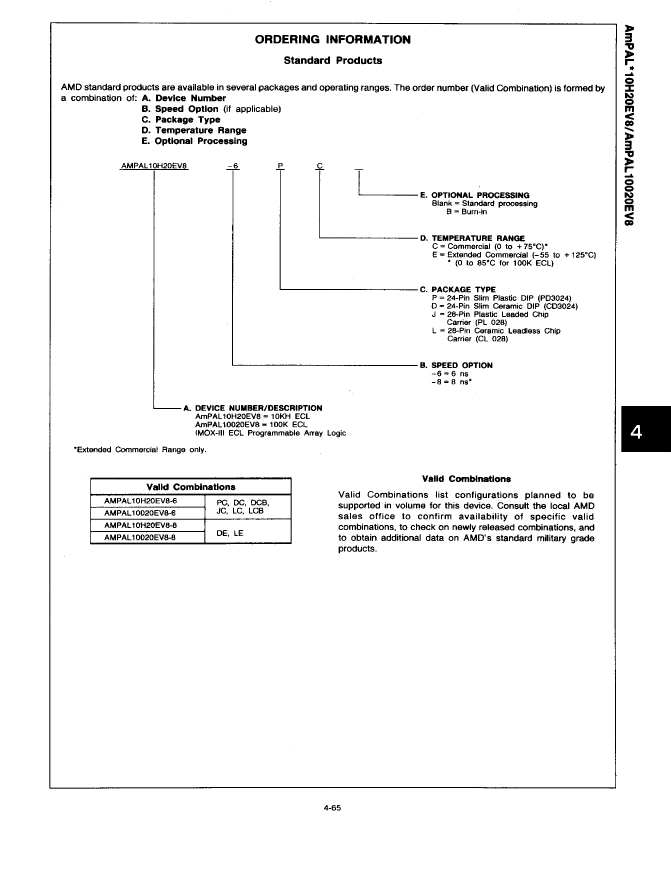

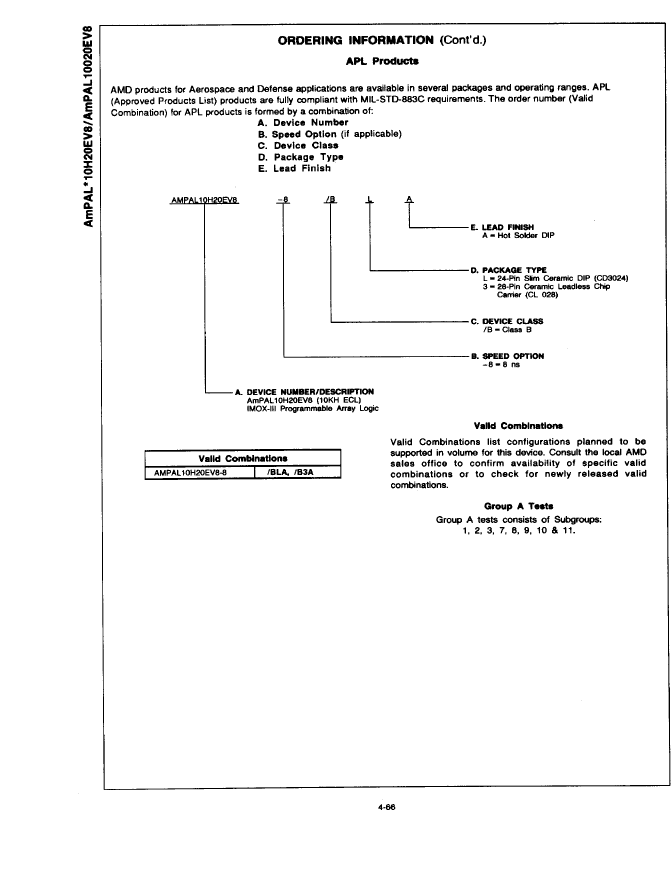

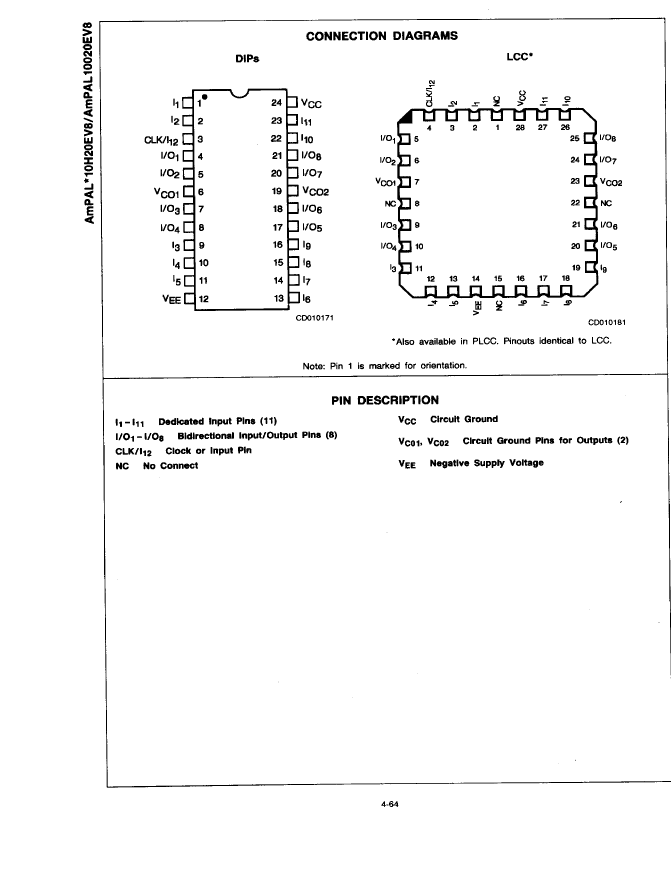

AMPAL10020EV8-6DCB Overview

OT PLD, 6ns, PAL-Type, ECL, CDIP24, 0.300 INCH, SLIM, HERMETIC SEALED, CERAMIC, DIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknow
Architecture	PAL-TYPE
maximum clock frequency	125 MHz
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
Dedicated input times	11
Number of I/O lines	8
Number of entries	20
Output times	8
Number of product terms	90
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature
organize	11 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	-4.5 V
Programmable logic type	OT PLD
propagation delay	6 ns
Certification status	Not Qualified
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer
