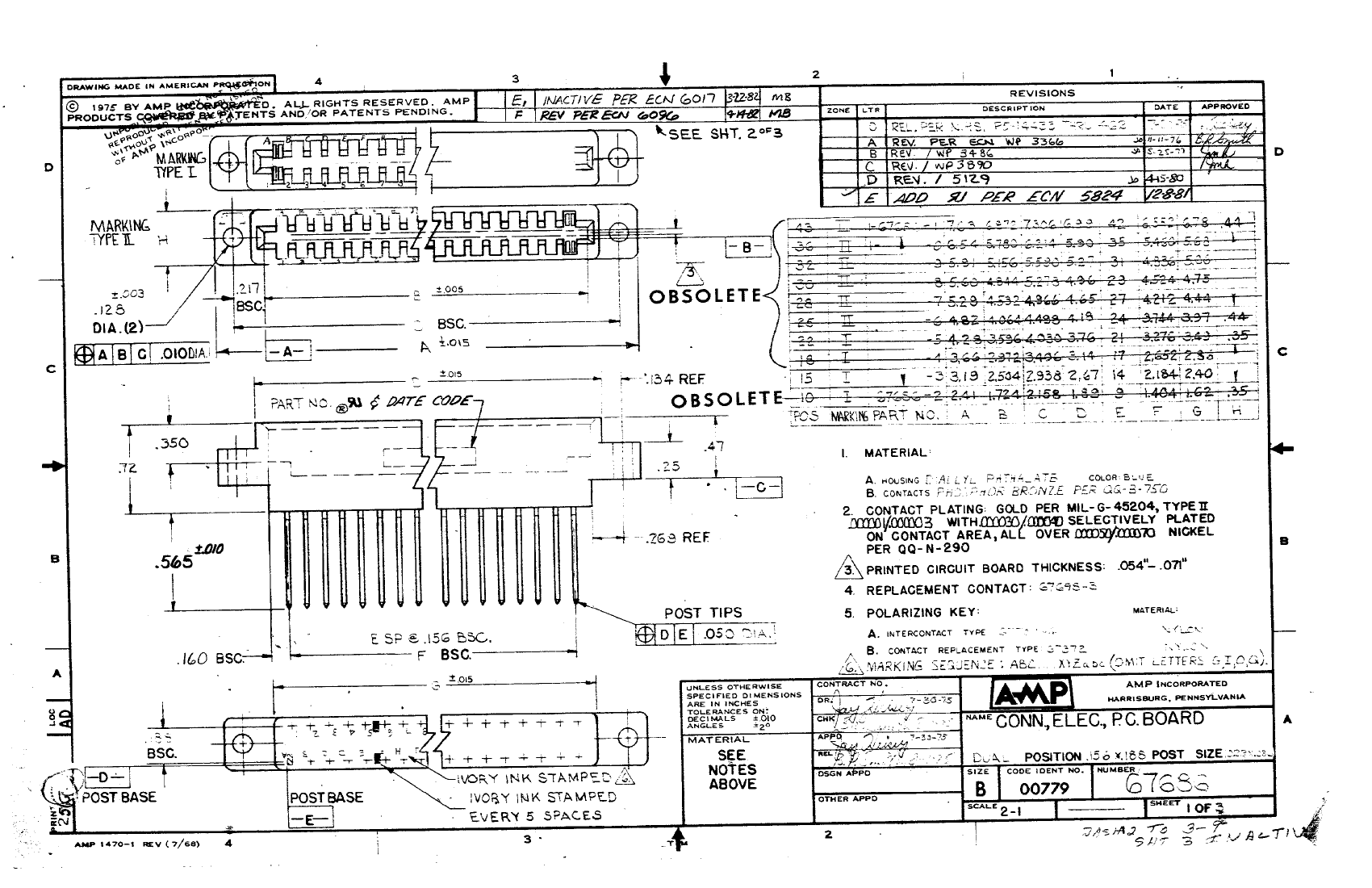

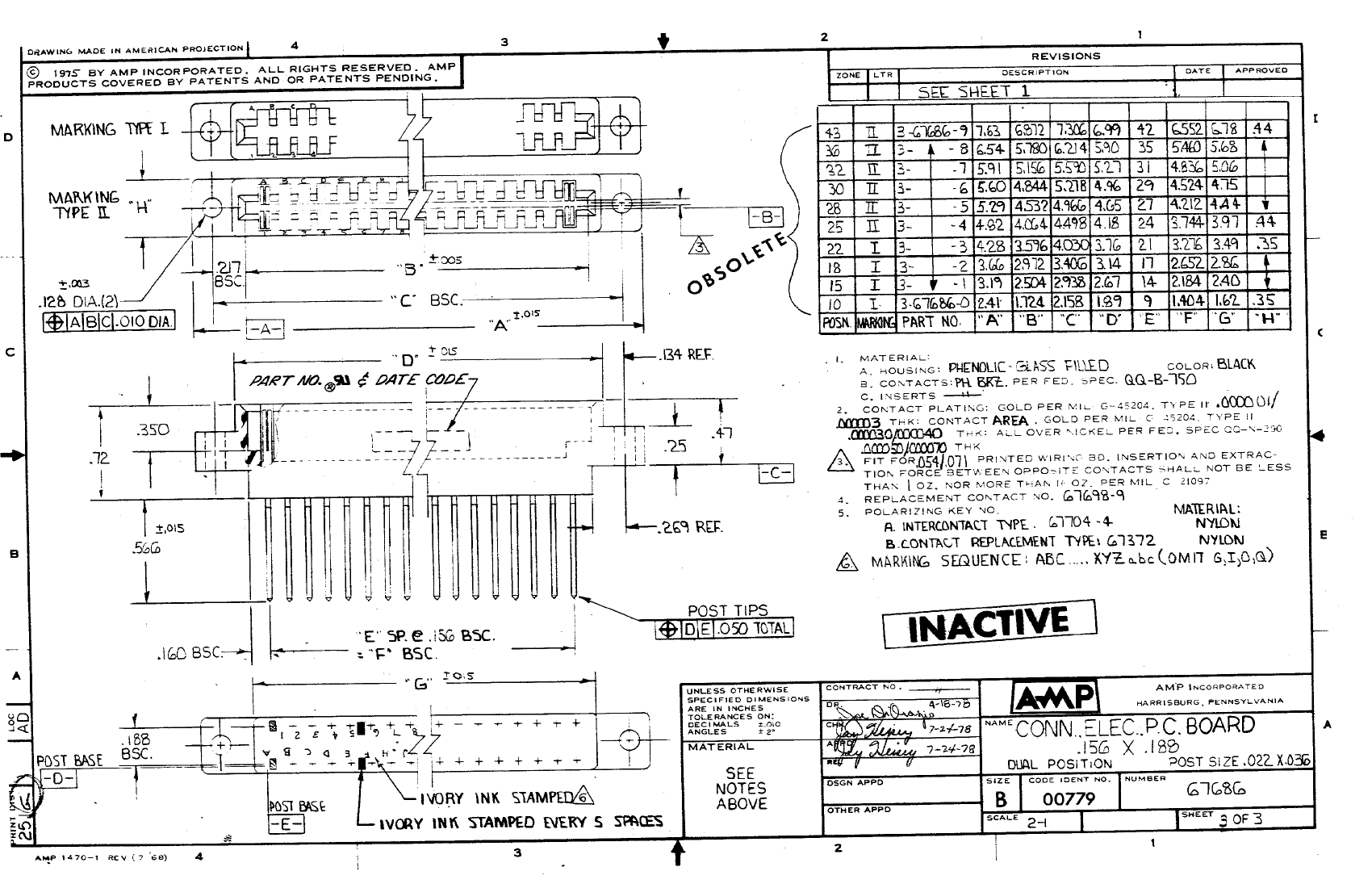

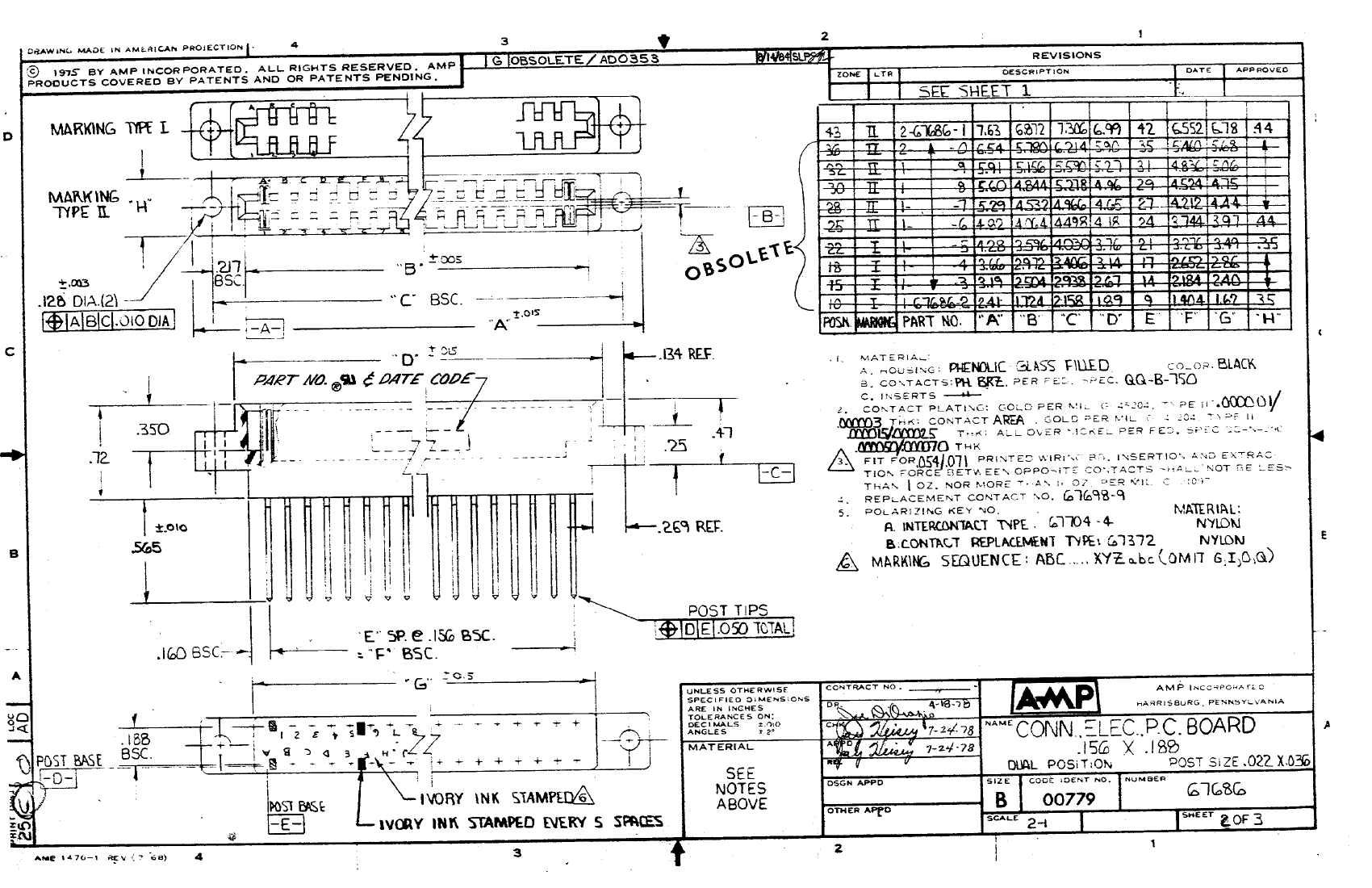

3-67686-5: DescriptionCONNECTOR, 56 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, STD TERMI POINT; CategoryThe connector The connector; File Size226KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

3-67686-5 Overview

CONNECTOR, 56 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, STD TERMI POINT

3-67686-5 Parametric

Parameter Name	Attribute value
Objectid	1928172755
Reach Compliance Code	unknown
YTEOL	0
Other features	POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	WIRE WRAP
Total number of contacts	56
