GXO-L72L-108.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GXO-L72L-108.000MHZ

GXO-L72L-108.000MHZ: DescriptionOscillator, 80MHz Min, 200MHz Max, 108MHz Nom; CategoryPassive components oscillator; File Size69KB，2 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GXO-L72L-108.000MHZ Overview

Oscillator, 80MHz Min, 200MHz Max, 108MHz Nom

GXO-L72L-108.000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Golledge Electronics
package instruction	DILCC6,.2
Reach Compliance Code	compliant
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	200 MHz
Minimum operating frequency	80 MHz
Nominal operating frequency	108 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	70 mA
Nominal supply voltage	3.3 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

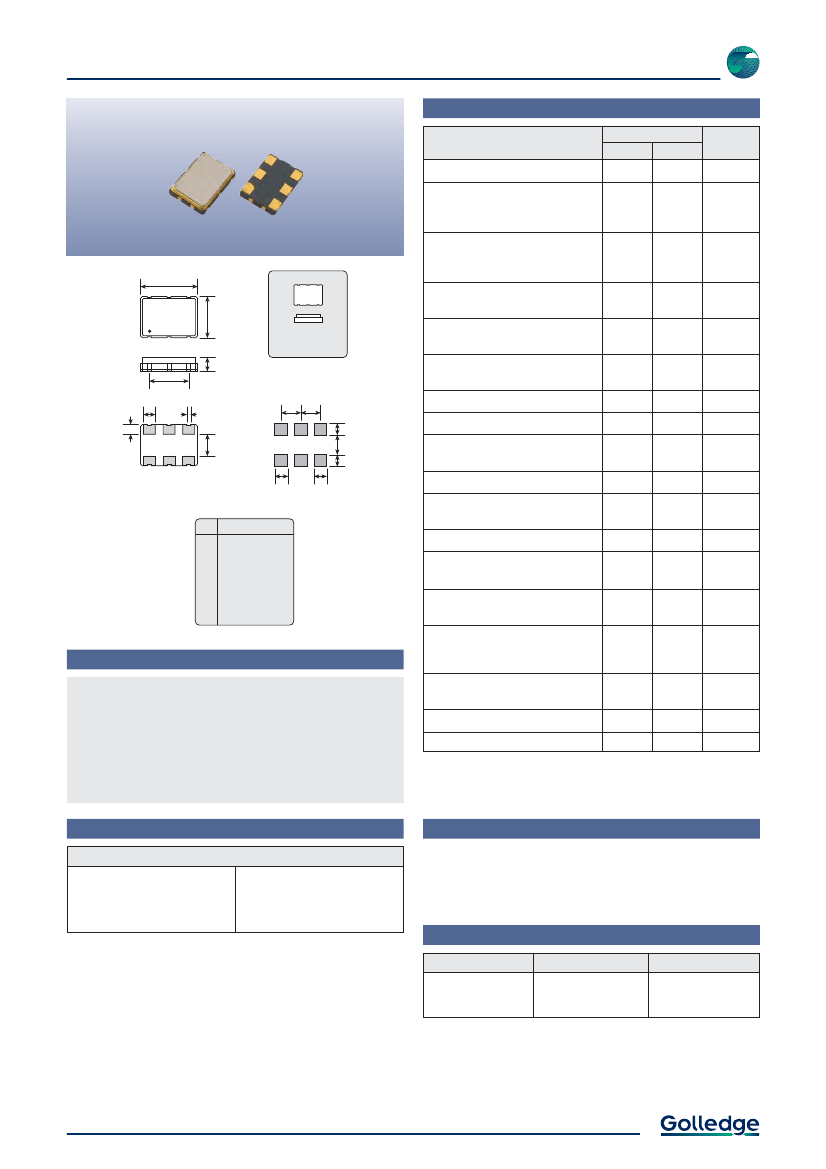

2.5V & 3.3V LVDS Oscillator

Specifications

GXO-L72

Variant

Option

Codes

Parameters

Frequency range:

80.0 ~ 200MHz

Frequency stability*:

±100ppm

±50ppm

±25ppm

7.20

(max)

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-40 to +85°C

Supply voltage (V

+3.3V (±5%)

+2.5V (±5%)

Supply current:

70mA max, 50mA typ

Output:

1.50

2.40

1.50

1.60

5.20

(max)

1.80

(max)

5.08

1.10

1.40

0.60

2.60

ACTUAL SIZE

SOLDER PAD LAYOUT

2.54 2.54

LVDS

1.25V typ

Offset voltage:

Differential output voltage:

0.33V typ

Output load:

Logic levels:

Start up time:

100

‘0’

level = 0.9V max

‘1’

level = 1.6V min

10ms max

TOP VIEW

PAD

CONNECTION

Enable / disable or

Not connected

Ground

Output 1

Output 2

Supply

Waveform symmetry:

45:55 max @ 50%V

P-P

Rise / fall time:

1.0ns max (20 ~ 80%V

P-P

)

Enable / disable function:

Tristate (control via pad 1)

None (pad 1 not connected)

Output enable / disable time:

2 ms / 200ns max

Stand-by current:

30µA max

Scale 2:1

Features

Differential outputs

Enable / disable tristate option

Fast rise / fall times

Designed for SONET, SDH, IEEE1394 etc

Period jitter RMS:

5ps max, 3ps typ

Standard.

Optional - Please specify required code(s) when ordering

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change and load change.

Standard Frequencies

Frequencies in MHz

100.0000

106.2500

108.0000

125.0000

133.0000

Other frequencies available. Please consult our sales office.

155.5200

156.2500

161.1230

164.3550

Ordering Information

Product name + variant + option codes (if any) + frequency

eg:

GXO-L72L 108.0MHz

3.3V, ±100ppm -10+70°C

GXO-L72J/BI 125.0MHz

2.5V, ±50ppm -40+85°C

Option code X (eg GXO-L72L/X) denotes a custom spec.

Enable / Disable Function

Input (pad 1)

Open

‘1’

level ( 0.7V

)

‘0’

level ( 0.3V

)

Output 1 (pad 4)

Enabled

High Impedance

Output 2 (pad 5)

Enabled

High Impedance

Tel:

+44 1460 256 100

09 Sep 2010

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
