BZW06-85B: DescriptionTrans Voltage Suppressor Diode, 600W, 85.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC, ROHS COMPLIANT, PLASTIC, DO-15, 2 PIN; CategoryDiscrete semiconductor diode; File Size110KB，3 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric View All

BZW06-85B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZW06-85B	-	-	View	Buy Now

BZW06-85B Overview

Trans Voltage Suppressor Diode, 600W, 85.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC, ROHS COMPLIANT, PLASTIC, DO-15, 2 PIN

BZW06-85B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
Parts packaging code	DO-15
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum breakdown voltage	105 V
Minimum breakdown voltage	95 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-204AC
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	85.8 V
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

BZW06-5V8 ... BZW06-376B

Unidirectional and bidirectional Transient Voltage Suppressor Diodes

Unidirektionale und bidirektionale Spannungs-Begrenzer-Dioden

Version 2005-07-19

Peak pulse power dissipation

Impuls-Verlustleistung

±0.05

600 W

5.8...376 V

DO-15

(DO-204AC)

0.4 g

Nominal stand-off voltage

Nominale Sperrspannung

Plastic case

Kunststoffgehäuse

Weight approx.

Gewicht ca.

Plastic material has UL classification 94V-0

Gehäusematerial UL94V-0 klassifiziert

Standard packaging taped in ammo pack

Standard Lieferform gegurtet in Ammo-Pack

±0.5

Type

62.5

0.8

±0.05

Dimensions - Maße [mm]

For bidirectional types (add suffix “B”), electrical characteristics apply in both directions.

Für bidirektionale Dioden (ergänze Suffix “B”) gelten die elektrischen Werte in beiden Richtungen.

Maximum ratings and Characteristics

Peak pulse power dissipation (10/1000 µs waveform)

Impuls-Verlustleistung (Strom-Impuls 10/1000 µs)

Steady state power dissipation

Verlustleistung im Dauerbetrieb

Peak forward surge current, 60 Hz half sine-wave

Stoßstrom für eine 60 Hz Sinus-Halbwelle

Max. instantaneous forward voltage

Augenblickswert der Durchlass-Spannung

= 50 A

= 25°C

= 75°C

= 25°C

≤

200 V

> 200 V

6.3

±0.1

Grenz- und Kennwerte

PPM

M(AV)

FSM

thA

thL

600 W

)

100 A

)

< 3.0 V

)

< 6.5 V

)

-50...+175°C

< 45 K/W

< 15 K/W

Operating junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

Thermal resistance junction to ambient air

Wärmewiderstand Sperrschicht – umgebende Luft

Thermal resistance junction to terminal

Wärmewiderstand Sperrschicht – Anschluss

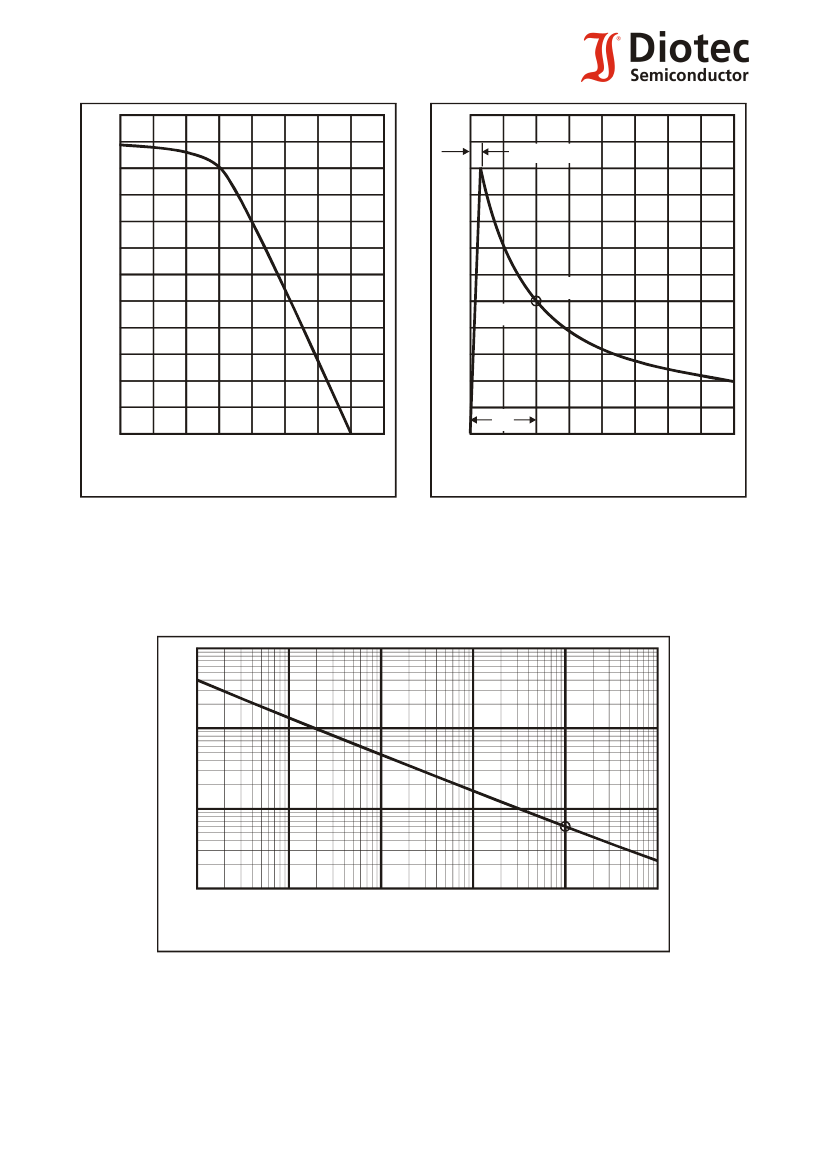

Non-repetitive pulse see curve I

= f (t) / P

= f (t)

Höchstzulässiger Spitzenwert eines einmaligen Impulses, siehe Kurve I

= f (t) / P

= f (t)

Unidirectional diodes only – Nur für unidirektionale Dioden

http://www.diotec.com/
