MVUH Series – 5 x 3.2 VCXO Specification
5 X 3.2 SMT Package – 6 Pins
HCMOS Output
Tri-State Option
Tape and Reel Packaging Available
ELECTRICAL SPECIFICATION:
Frequency Range
Temperature Stability
Absolute Pull Range (APR) Inclusive of all conditions:
Calibration at +25ºC, Frequency Stability over the operating
temperature range, supply voltage change, output load
change, shock, and vibration
Aging at +25ºC
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
dd
) ±5%
Supply Current
Output
Logic “1”
Logic “0”
Symmetry (50% of waveform)
Load
Rise/Fall Time (20% to 80%)
RMS Phase Jitter (12kHZ to 20MHZ)
Phase Noise
Start-up Time
Tri-state Operation
Control Voltage
Control Voltage Range
Slope
1.544MHZ to 77.760MHZ
(See Part Number Guide for Options)
(See Part Number Guide for Options)
±2 ppm / 1
st
year typ
(See Part Number Guide for Options)
-55°C to +125°C
+2.50 VDC
+3.30 VDC
15mA max
15mA max
HCMOS
90% of V
dd
min
10% of V
dd
max
(See Part Number Guide for Options)
15pF max
5 nSec max
1pSec max
100 Hz
1 kHz
10 kHz
100 kHz
-95 dBc/Hz
-125 dBc/Hz
-142 dBc/Hz
-152 dBc/Hz
10mSec max
Voh = 70% of Vdd min or No Connection to Enable Output
Vol = 30% max or grounded to Disable Output (High Impedance)
+0.30 VDC to 2.30 VDC
+0.30 VDC to 3.30 VDC
0.00 VDC to V
dd
Positive
PART NUMBER GUIDE:
MVU
5 x 3.2 Ceramic SMD 6 Pads
H
Frequency
Supply Voltage
Output
H = HCMOS
2 = +2.50 VDC
3 = +3.30 VDC
Frequency
Stability
020 = ±20 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
Operating
Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
Symmetry
Blank = 40%/60%
A = 45%/55%
Absolute Pull Range (APR)
D = ±50 ppm min
P = ±80 ppm min: less than 51.814MHZ
C = ±100 ppm min: less than 36.000MHZ
Linearity
Blank = ±20% max
Y = ±10% max
Pin 2 & 5 Connection
Blank = Pins 2 & 5 = N/C
H = Pin 2-Tri-state, Pin 5-N/C
R = Pin 2-N/C, Pin 5-Tri-state
T = Pins 2 & 5 = Tri-state
Packaging
Blank = Bulk
T = Tape and Reel
Please Consult with MMD Sales Department for any other Parameters or Options
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
In the event of conflict, the requirements of this specification shall govern
Specification Subject to change without notice
Revision:
Pb
RoHS
Free
Compliant
MVUH111809B
Page 1 of 2

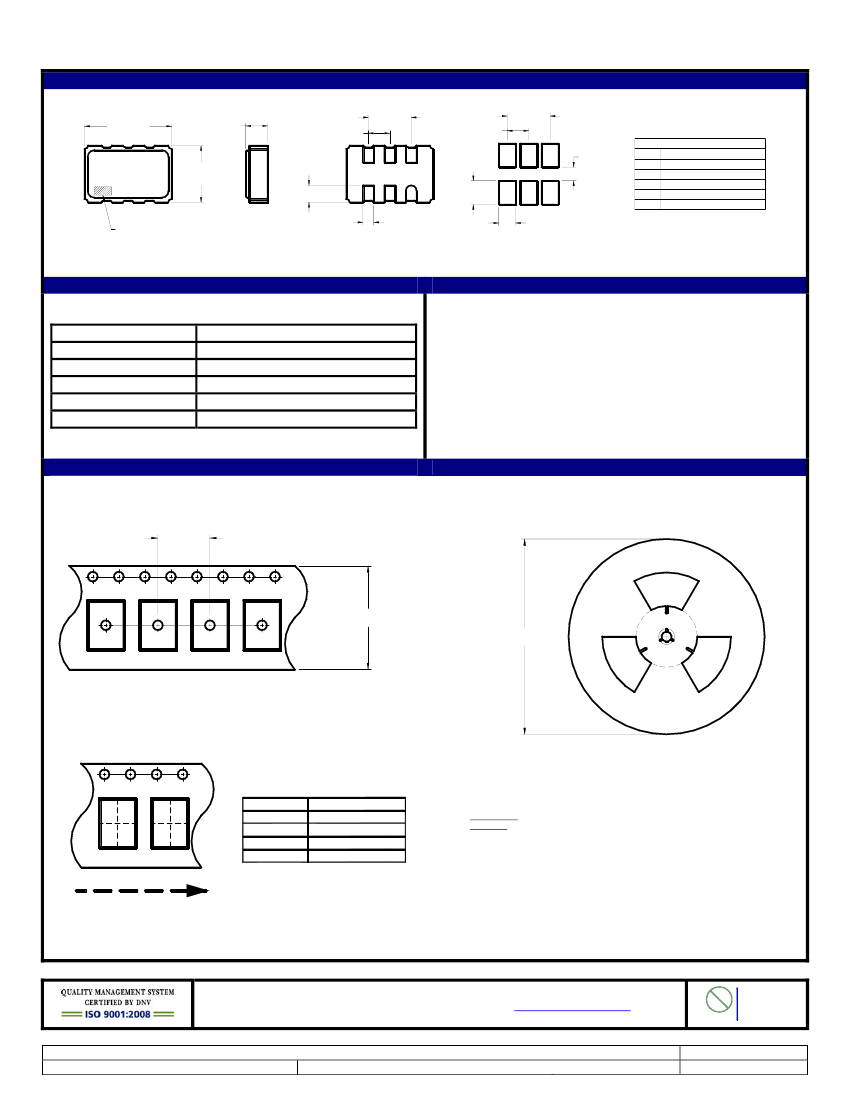

MECHANICAL DIMENSIONS:
5.15 [.203]
MAX
2.54 [.100]
1.30 [.051]
1.27 [.050]
4
MXX.XXX
SYYMML
3.35 [.132]
MAX
1.00 [.039]
3
2
1
1.40 [.055]
5
6
1.27 [.050]
PIN CONNECTIONS
VOLTAGE CONTROL
PIN 1
PIN 2 TRI-STATE OR NO CONNECTION
CASE GROUND
PIN 3
PIN 4
OUTPUT
PIN 5 TRI-STATE OR NO CONNECTION
PIN 6
SUPPLY VOLTAGE
2.54 [.100]
0.80 [.031]
PIN 1 DESIGNATOR LOCATED IN THIS AREA.
0.64 [.025]
1.00 [.039]
DIMENSION IN BRACKETS ARE IN INCHES
EXTERNAL BYPASS CAPACITOR IS RECOMMENDED
RECOMMENDED
LAND PATTERN
ENVIRONMENTAL/MECHANICAL SPECIFICATION:
Shock
Solderability
Vibration
Gross Leak Test
Fine Leak Test
Reflow Solder
MIL-STD-883, Meth 2002, Cond
MIL-STD-883, Meth 2003
MIL-STD-883, Meth 2007, Cond
MIL-STD-883, Meth 1014, Cond
MIL-STD-883, Meth 1014, Cond
+260ºC for 10 sec max
B
A
C
A
MARKING DETAIL:
Line 1 = MXX.XXX
M
= MMD COMPONENTS
XX.XXX = Frequency in MHZ
Line 2 = SYYMML
S = Internal Code
YYWW = 4 Digit Date Code (Year / Week)
L = Denotes RoHS Compliant
Pin 1 Designator
TAPE AND REEL DIMENSIONS:
PITCH
TAPE WIDTH
REEL DIA
Q1 Q2
Q3 Q4
Q1 Q2
Q3 Q4
PITCH
TAPE WIDTH
REEL DIA
QTY PER REEL
PIN 1 ORIENT.
8.0 [.315]
16.0 [.630]
178 [7 IN]
1000
Q1
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters [inches].
3. Tolerances are ±0.1 [.004] unless otherwise specified.
4. Do not scale drawing.
DIRECTION OF FEED
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
In the event of conflict, the requirements of this specification shall govern
Specification Subject to change without notice
Revision:
Pb
RoHS
Free
Compliant
MVUH111809B
Page 2 of 2
