BC057-04-A-A-0150-L-C datasheet, PDF

Datasheet> All Categories > The connector> The connector> BC057-04-A-A-0150-L-C

BC057-04-A-A-0150-L-C: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator,; CategoryThe connector The connector; File Size134KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC057-04-A-A-0150-L-C Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator,

BC057-04-A-A-0150-L-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.122 inch
subject depth	0.256 inch
body length	0.087 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BC057
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.3876 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

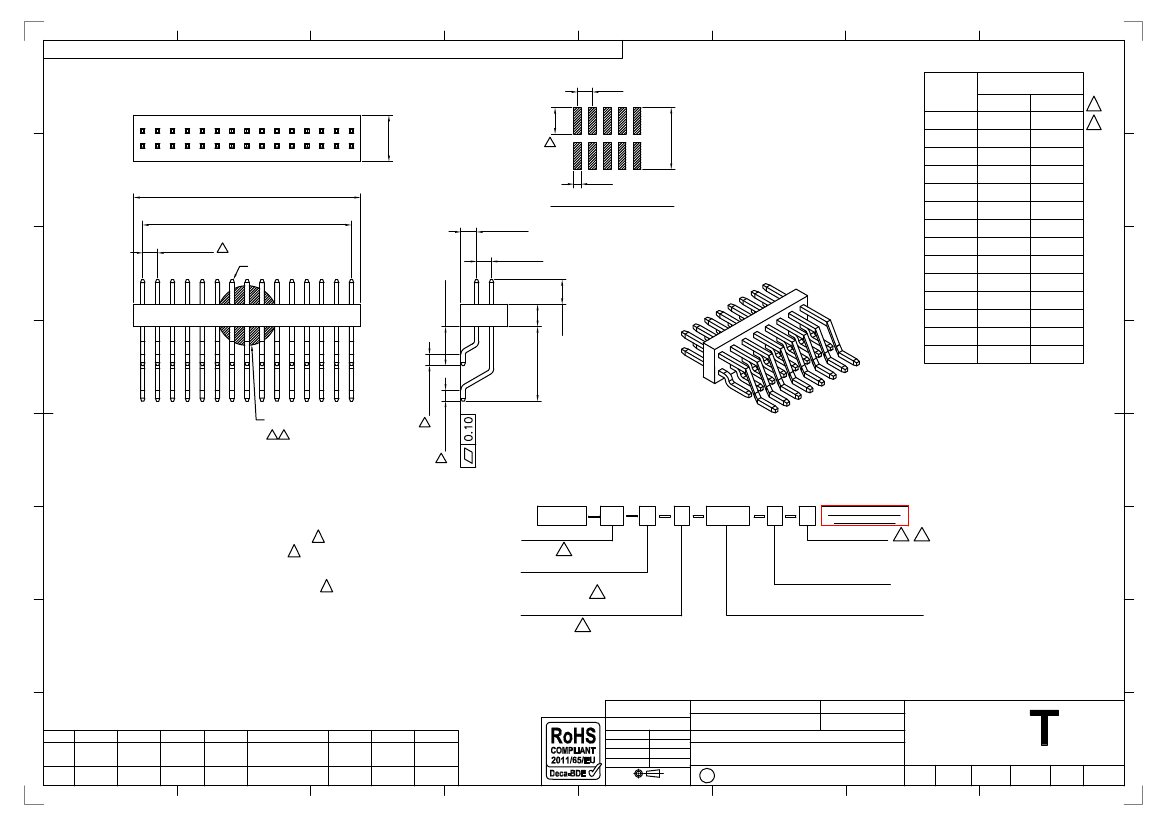

Global Connector Technology Ltd. - BC057: 1.00mm PITCH PIN HEADER, DUAL ROW, SURFACE MOUNT, HORIZONTAL

1.75

1.00

Typ (Non-Accum.)

CONTACTS

4.15

DIMENSIONS

1.00

2.00

3.00

4.00

5.00

6.00

7.00

8.00

9.00

10.00

11.00

12.00

13.00

14.00

2.20

3.20

4.20

5.20

6.20

7.20

8.20

9.20

10.20

11.20

12.20

13.20

14.20

15.20

3.10

B±0.30

A±0.25

1.00±0.10

0.50

(Typ.)

RECOMMENDED PCB LAYOUT

(TOLERANCE: ±0.05)

1.05±0.25

1.00±0.10

2.60±0.25

0.30 Sq Pin

1.50

C±0.2

REF 0.75

5.00±0.25

Thickness = 0.15mm (All)

Ø = 4.00mm (08-30 Contacts)

REF 0.75

Film

Ø = 3.00mm (04-06 Contacts)

SPECIFICATIONS

规格

CURRENT RATING

电流额定值：

1 Amp.

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

CONTACT RESISTANCE

接触电阻值：

20 mΩ Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94V-0

SOLDERING PROCESS

可焊性

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BC084

BC085

Ordering Grid

BC057

No. of Contacts

04 to 30

XXXX

REQUEST SAMPLES

AND QUOTATION

Packing Options

C = Tape & Reel with Film

(04-30 contacts)

Insulator Material

L = LCP

(Standard)

Dimension C (1/100mm)

(Post Height)

0150 = 1.50mm

(Standard)

or specify Dimension C

eg 0250 = 2.50mm

Contact Plating

A = Gold Flash All Over

(Standard)

C = Tin All Over

Insulator Width

A = 1.50mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

BC057

Description:-

09 SEP 09

DETAIL

REV

DATE

ASE

DRAWING

RELEASE

09/09/09

DIM B

UPDATE

24/09/09

SPEC

UPDATE

30/09/09

PLATING

UPDATE

21/12/09

HEIGHT OPTIONS

& NO. OF CONTACTS

29/07/10

AJO

PACKING

OPTIONS

02/07/13

AJO

PCN

BC057-001 BC057-002

30/09/13

17/10/13

X.°± 5°

.X°± 3°

X.X ± 0.25

X.XX ± 0.15

.XX°± 2°

X.XXX ± 0.10 .XXX°± 1°

X. ± 0.30

Third Angle Projection

1.00mm PITCH PIN HEADER, DUAL ROW,

SURFACE MOUNT, HORIZONTAL

Scale

NTS

Sheet No.

E & OE

1/1

www.gct.co

Drawn by

ASE

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note
