38DSP13B20M7GT: DescriptionPushbutton Switch, SPDT, Alternate, 6A, 28VDC, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size320KB，5 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

38DSP13B20M7GT Overview

Pushbutton Switch, SPDT, Alternate, 6A, 28VDC, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT

38DSP13B20M7GT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	PLUNGER
body width	6.86 mm
body height	12.7 mm
Body length or diameter	12.7 mm
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated R load	6A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	50000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	ALTERNATE
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

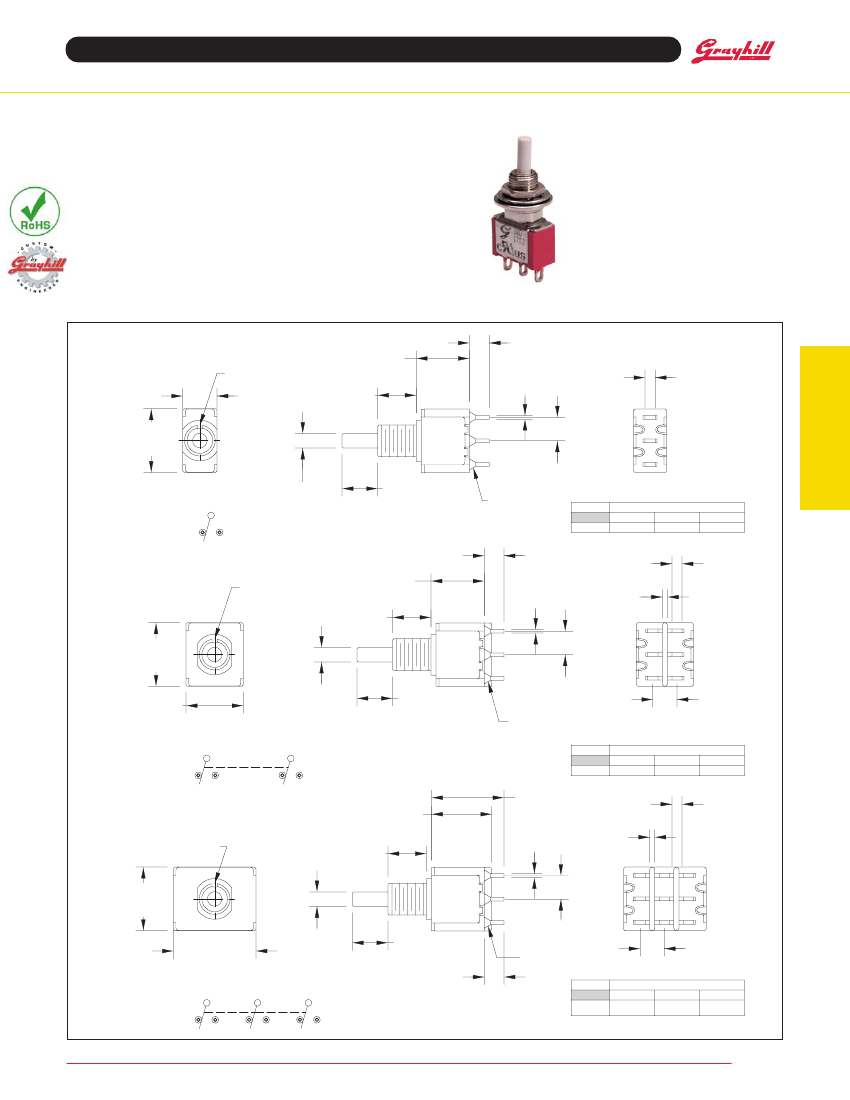

Alternate Action Pushbutton Switches

SERIES 38D

Alternate Action

Pushbutton Switches

FEATURES

•

SPDT, DPDT, 3PDT, 4PDT Circuitry

•

Choice of Plunger Length, Bushings,

and Terminations

•

UL Recognized

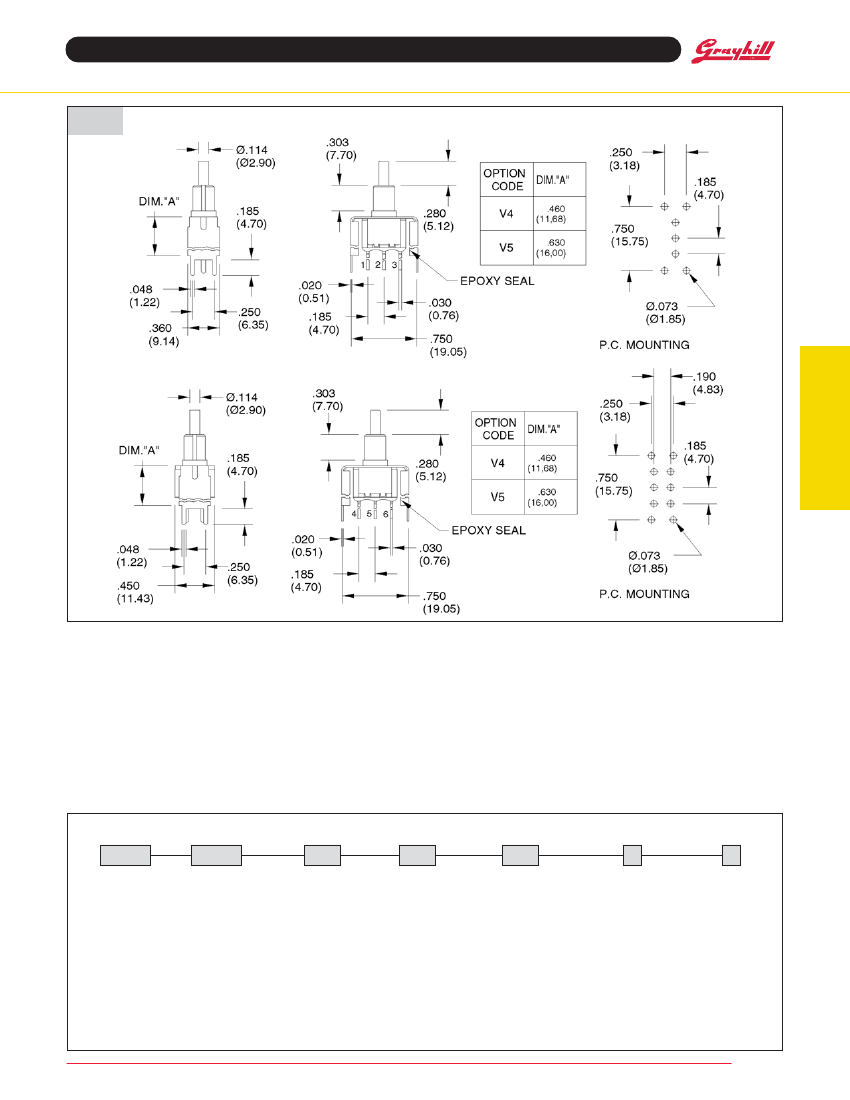

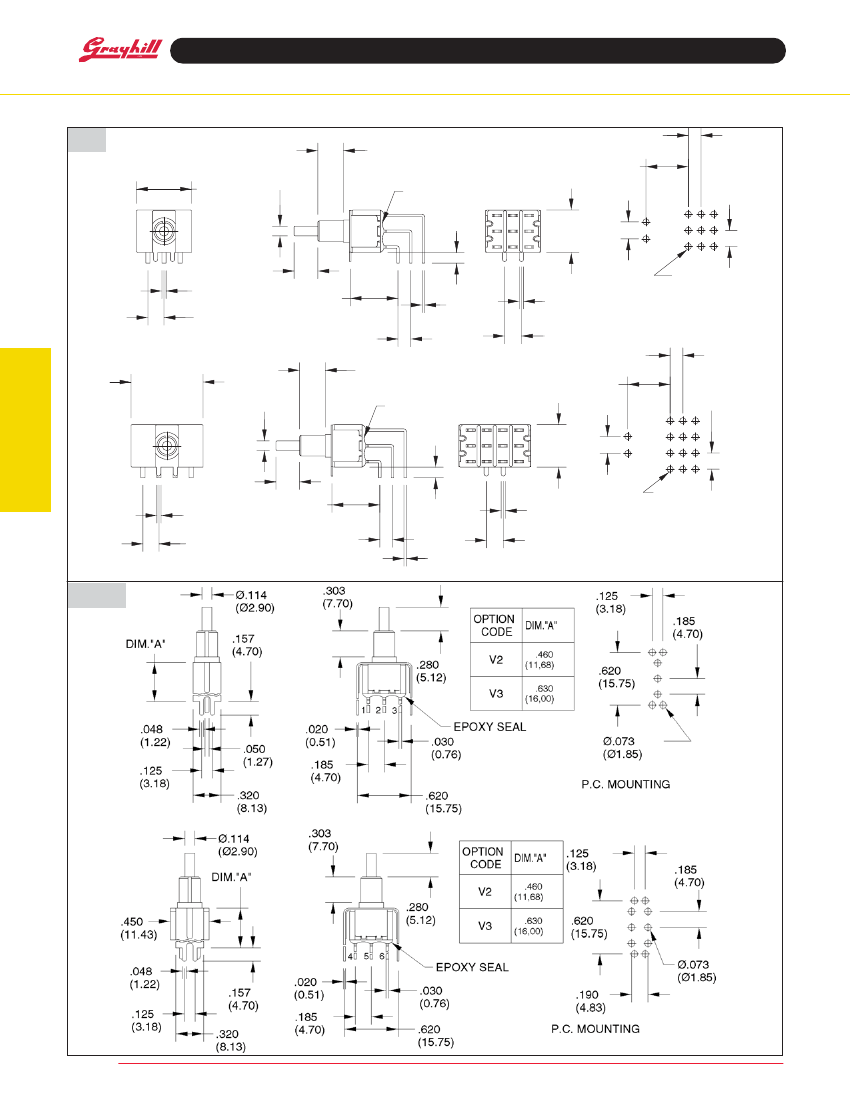

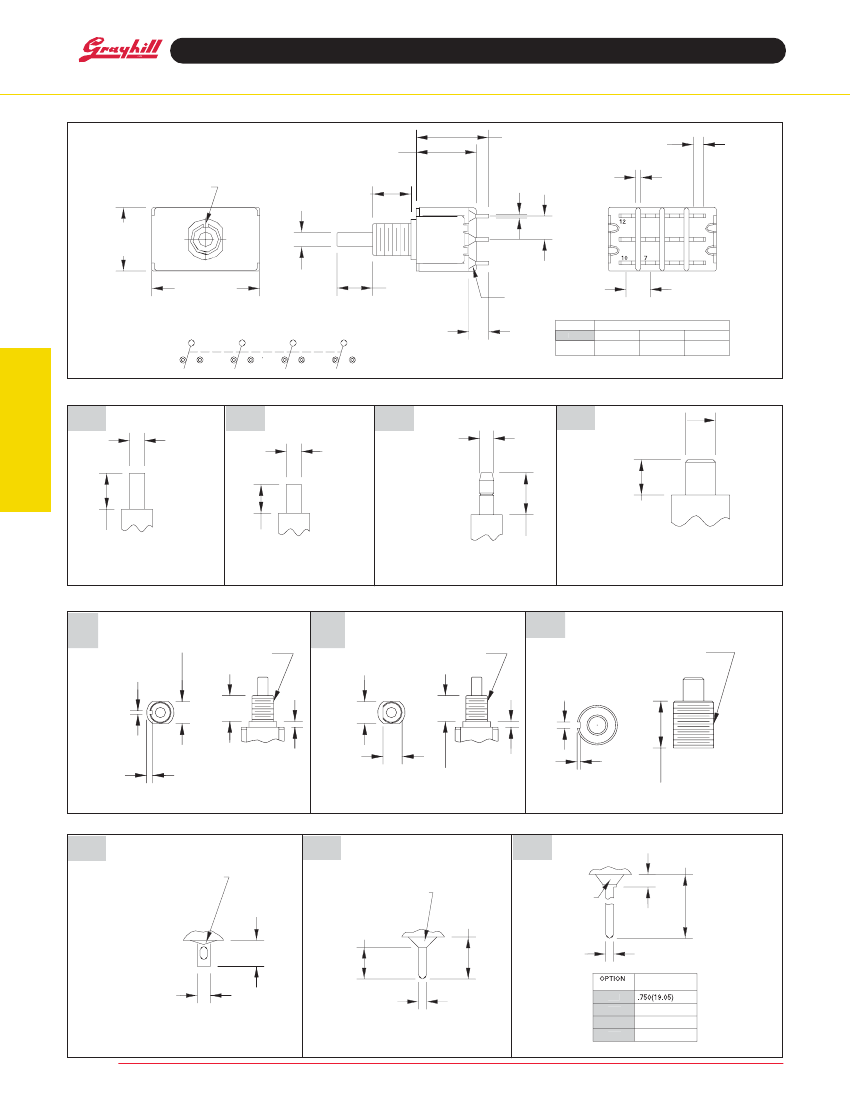

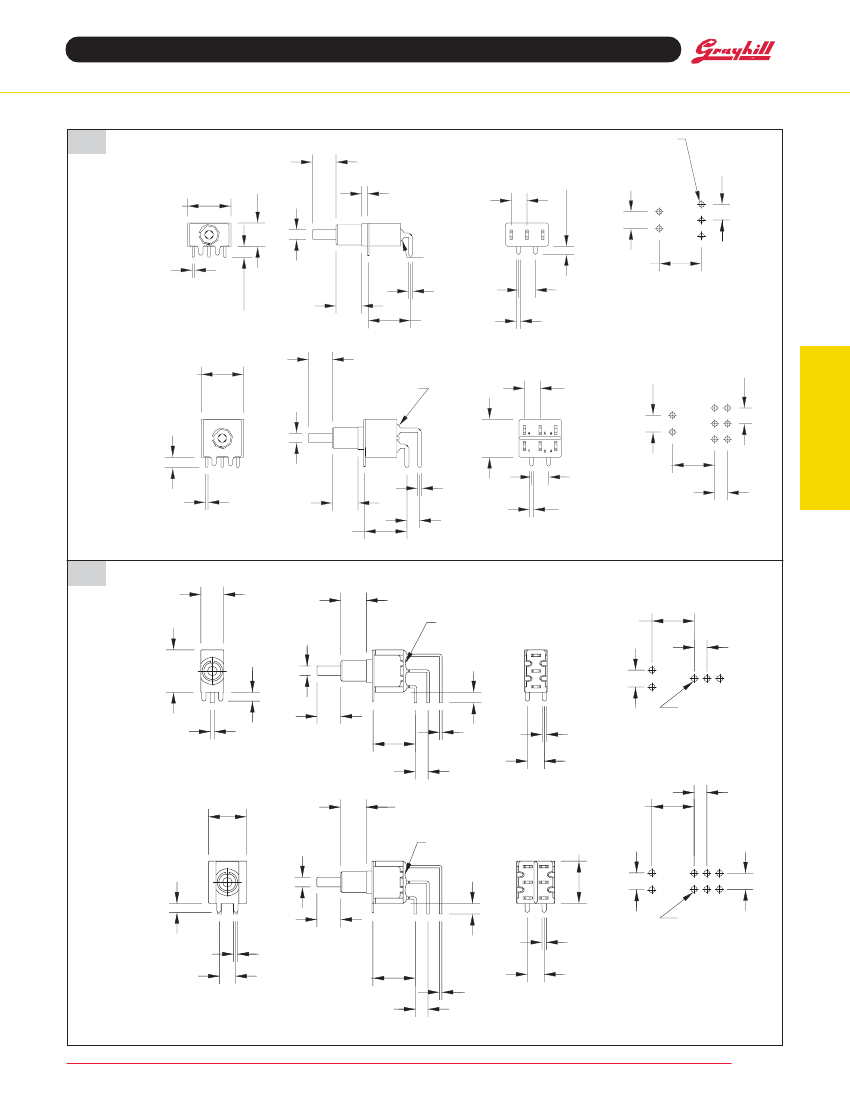

MODELS

IN INCHES (AND MILLIMETERS)

SPDT

KEYWAY

.270

(6.86)

.500

(12.7)

.419

(10.65)

.303

(7.70)

.156

(3.96)

.030

(0.76)

.080

(2.03)

Pushbutton Switches

02COMM.

Ø.114

(Ø2.90)

.280

(7.11)

.185

(4.70)

EPOXY

SEAL

MODEL NO.

SP1

TERM. COMM.

SCHEMATIC

2-3

SWITCH POSITION

NONE

OPEN

2-1

.156

(3.96)

DPDT

KEYWAY

.419

(10.65)

.303

(7.70)

.030

(0.76)

.080

(2.03)

.040

(1.02)

.500

(12.7)

Ø.114

(Ø2.90)

.280

(7.11)

.185

(4.70)

EPOXY

SEAL

MODEL NO.

DP1

TERM. COMM.

.450

(11.43)

02COMM.

.190

(4.83)

05COMM.

SCHEMATIC

SWITCH POSITION

NONE

2-3,5-6

OPEN

2-1,5-4

.475

(12.06)

KEYWAY

.303

(7.70)

.571

(14.50)

.030

(0.76)

.080

(2.03)

.040

(1.02)

.500

(12.7)

3PDT

.650

(16.51)

02COMM.

05COMM.

Ø.114

(Ø2.90)

.280

(7.11)

.156

(3.96)

.185

(4.70)

EPOXY SEAL

MODEL NO.

3P1

TERM. COMM.

.190

(4.83)

SWITCH POSITION

NONE

2-3,5-6

OPEN

8-9

2-1,5-4

8-7

08COMM.

SCHEMATIC

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
