54ACTQ543FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54ACTQ543FMQB

54ACTQ543FMQB: DescriptionRegistered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDFP24,; Categorylogic logic; File Size583KB，12 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54ACTQ543FMQB Overview

Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDFP24,

54ACTQ543FMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL24,.4
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDFP-F24
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL24,.4
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Sup	9.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

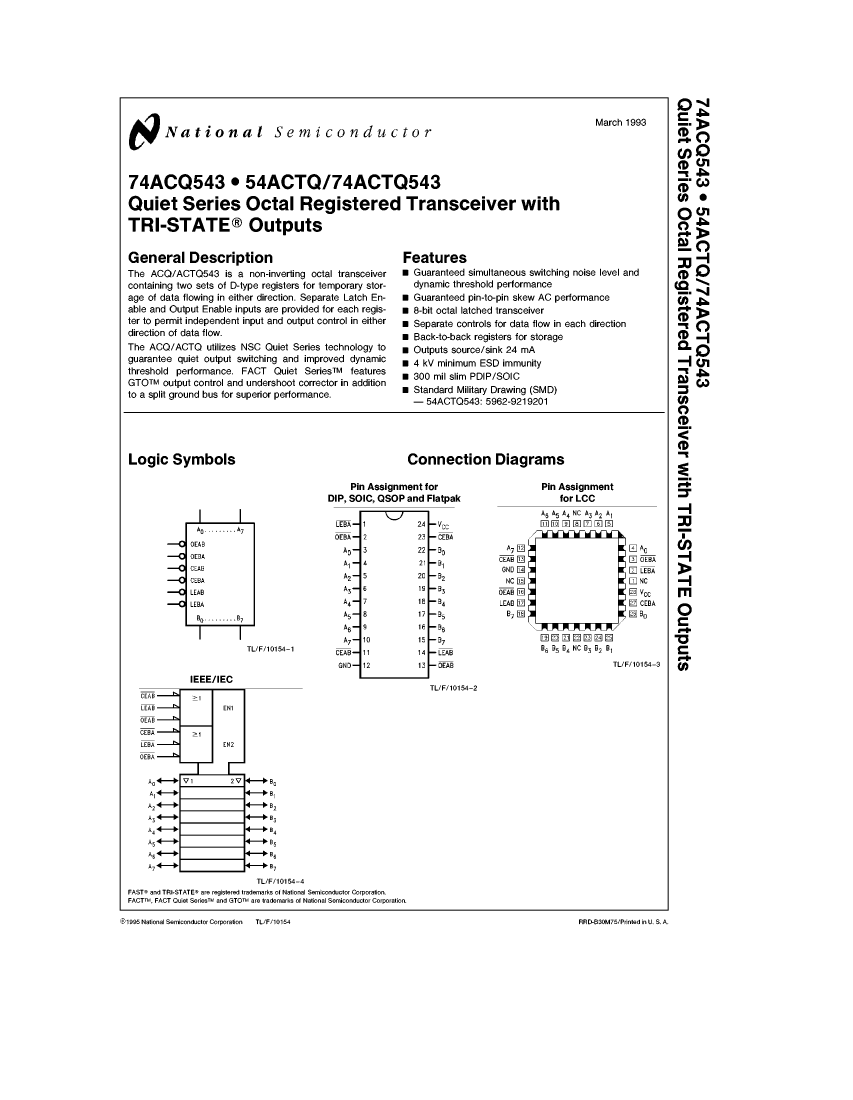

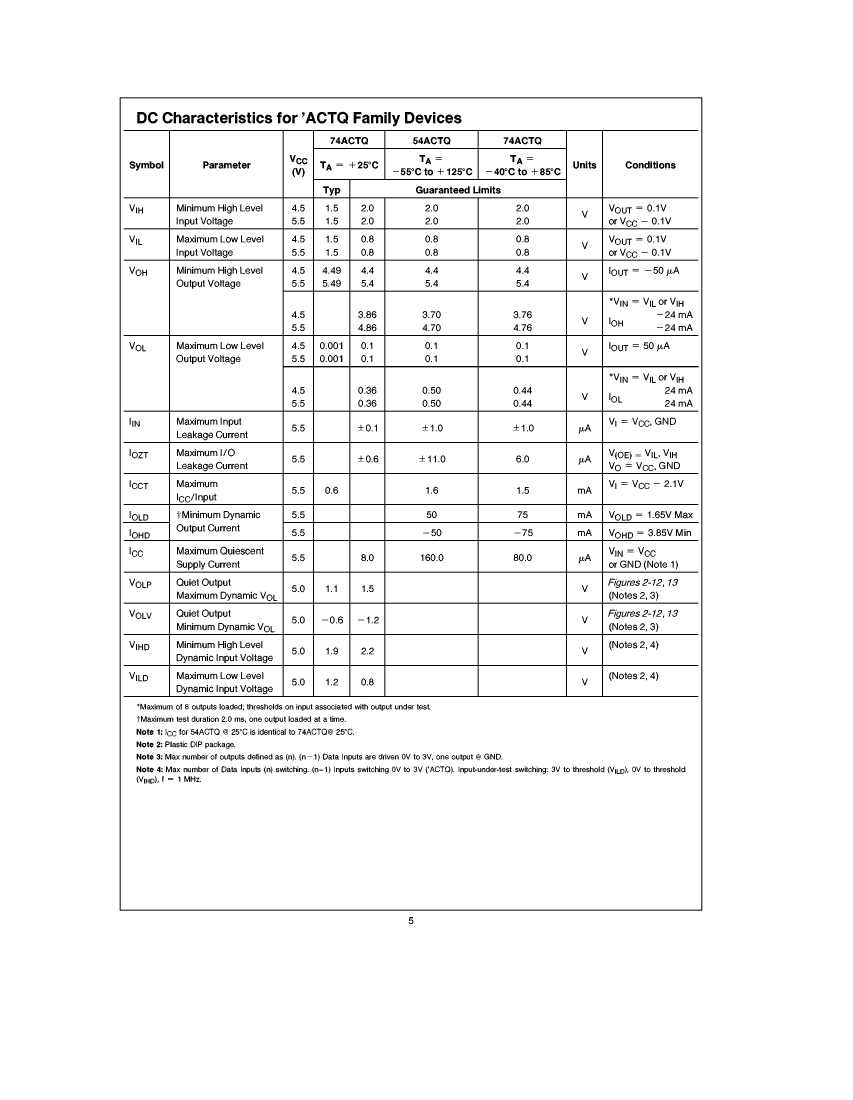

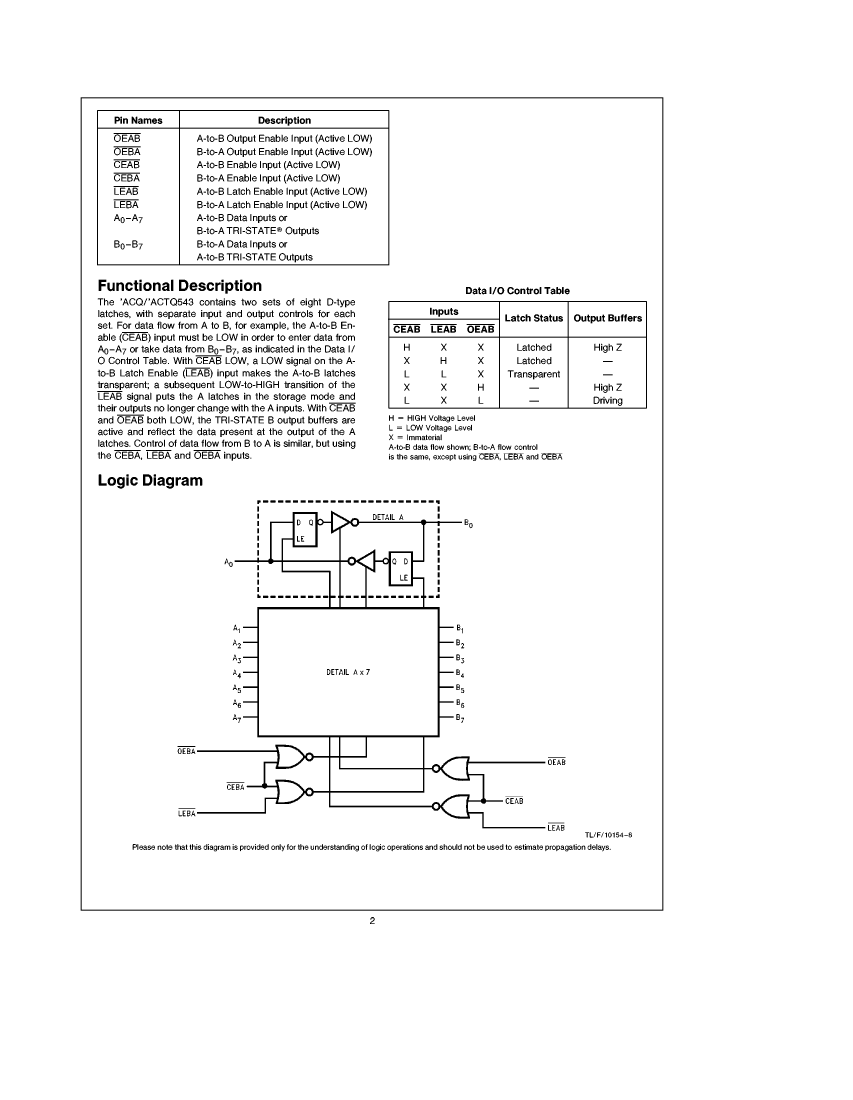

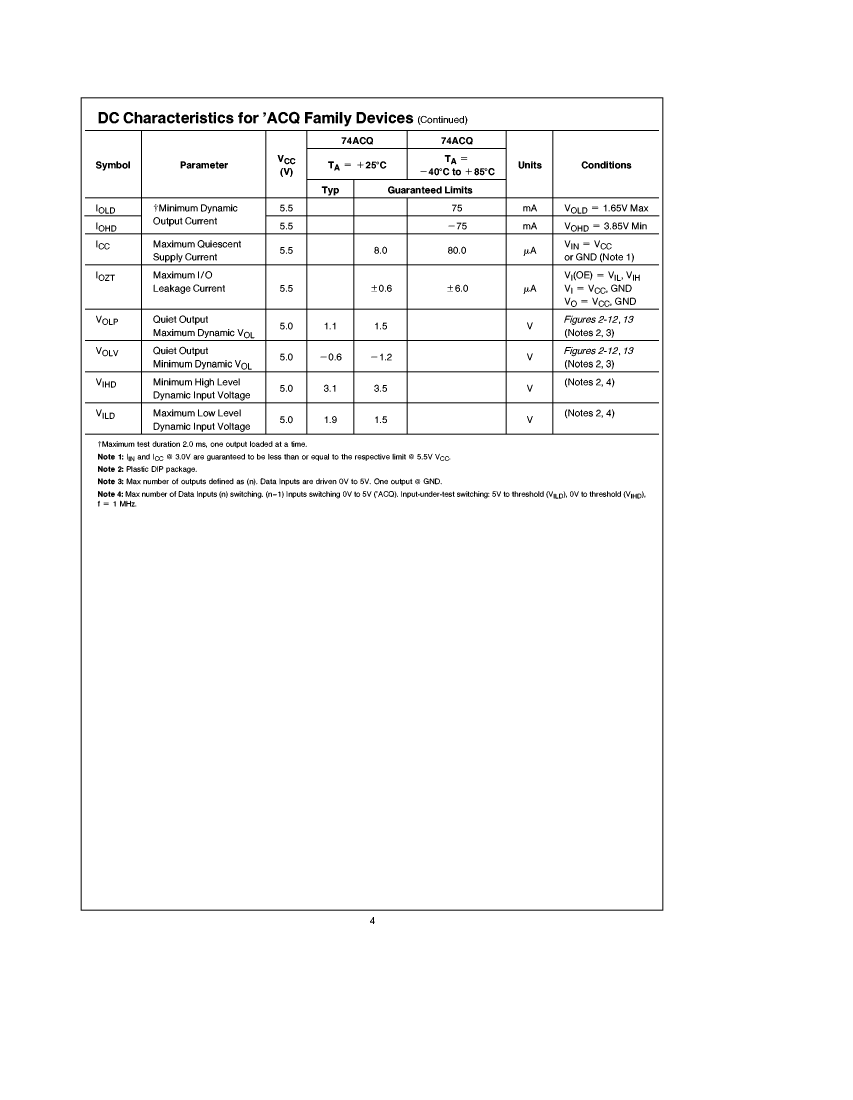

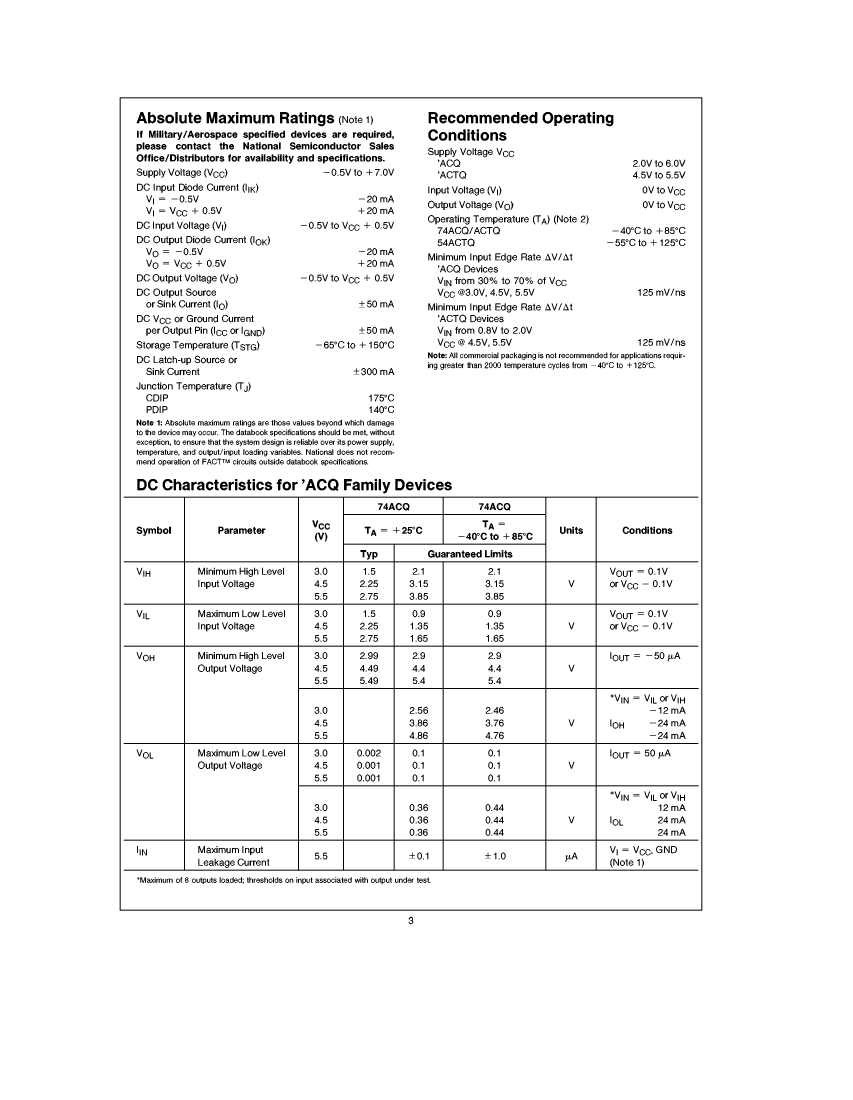

Preview

Download Datasheet

View All

54ACTQ543FMQB Related Products

	54ACTQ543FMQB	54ACTQ543LMQB	74ACQ543QS	74ACQ543QSQR	74ACTQ543QS	74ACTQ543QSQR	74ACQ543PC	74ACQ543PCQR	74ACTQ543PCQR	74ACTQ543PC
Description	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDFP24,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CQCC28,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO24,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO24,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO24,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO24,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDIP24,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDIP24,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDIP24,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DFP, FL24,.4	QCCN, LCC28,.45SQ	SSOP, SSOP24,.24	SSOP, SSOP24,.24	SSOP, SSOP24,.24	SSOP, SSOP24,.24	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDFP-F24	S-XQCC-N28	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A	0.012 A	0.024 A	0.024 A	0.024 A
Number of digits	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	24	28	24	24	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	QCCN	SSOP	SSOP	SSOP	SSOP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	FL24,.4	LCC28,.45SQ	SSOP24,.24	SSOP24,.24	SSOP24,.24	SSOP24,.24	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	2/6 V	2/6 V	5 V	5 V	3.3/5 V	2/6 V	5 V	5 V
Prop。Delay @ Nom-Sup	9.5 ns	9.5 ns	11.5 ns	11.5 ns	8 ns	8 ns	11.5 ns	11.5 ns	8 ns	8 ns
surface mount	YES	YES	YES	YES	YES	YES	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	NO LEAD	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified	-	-	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	-	-	5 V	5 V	-	-	5 V	5 V
Base Number Matches	1	1	1	1	1	1	1	1	-	-
