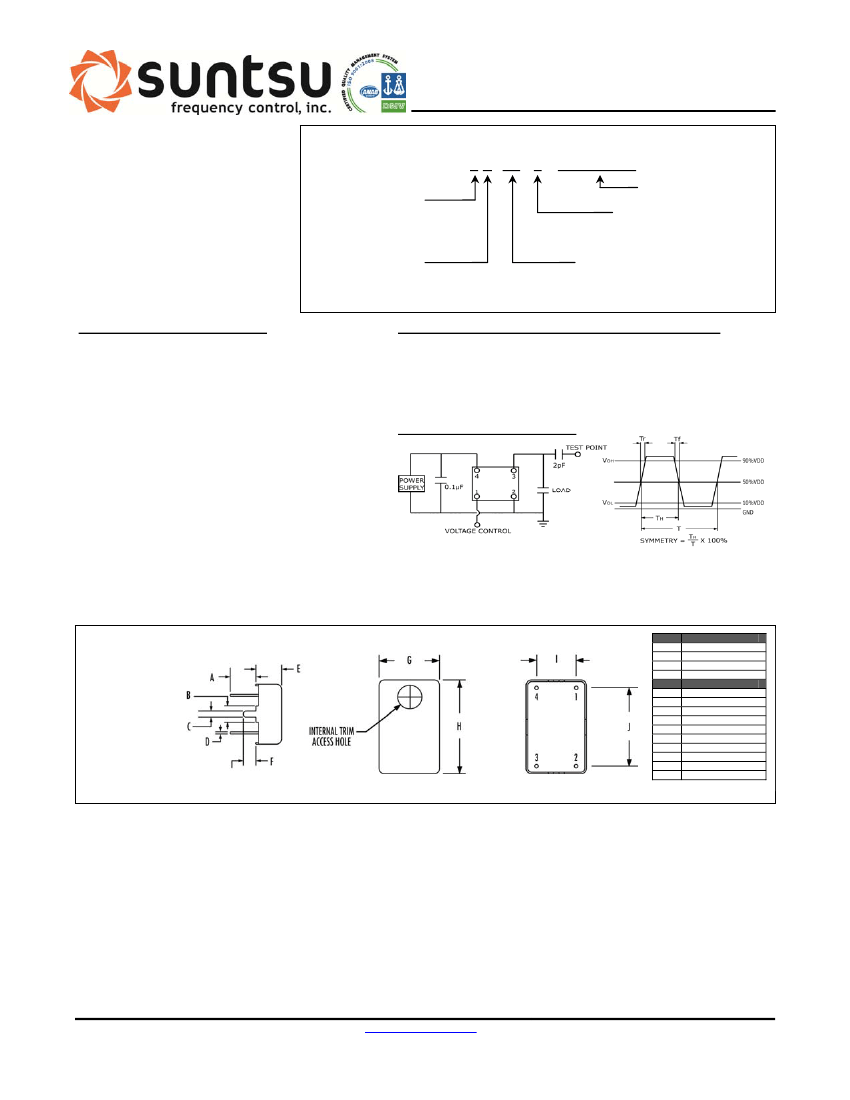

STH SERIES
14 PIN DIP VCTCXO
STH SERIES FEATURES
AVAILABLE TO ±1.0ppm
STANDARD FULL-SIZE PACKAGE
HCMOS/TTL COMPATIBLE
VOLTAGE CONTROLLED
RoHS COMPLIANT
3.3±0.3V OR 5.0±0.5V
PART NUMBERING GUIDE
STH F 3 27 L - 15.000MHz
FREQUENCY
FREQUENCY STABILITY
F: ±5.0ppm
G: ±2.5ppm
H: ±2.0ppm
I: ±1.5ppm
J: ±1.0ppm
SUPPLY VOLTAGE
3: 3.3±0.3 V
5: 5.0±0.5 V
*FOR CUSTOM PARAMETERS CONTACT YOUR SUNTSU REPRESENTATIVE.
CAGE CODE: 4GUT4
PUULABILITY
L: ±5.0ppm
M: ±10.0ppm
N: ±20.0ppm
OPERATING TEMPERATURE RANGE
BLANK: 0°C to + 70°C
16: -10°C to + 60°C
27: -20°C to + 70°C
37: -30°C to + 75°C
48: -40°C to + 85°C
ELECTRICAL SPECIFICATIONS
FREQUENCY RANGE:
STABILITY (VS. AGING):
STABILITY (VS. VOLTAGE):
FREQUENCY ADJUSTMENT
(INTERNAL TRIMMER):
STORAGE TEMPERATURE:
DUTY CYCLE:
CURRENT CONSUMPTION:
5.0V:
3.3V:
LOAD:
CMOS:
TTL:
RISE/FALL TIME:
STABILITY (VS. AGING):
VOLTAGE CONTROL (PIN 1):
5.0V:
3.3V:
LINEARITY:
PHASE NOISE (TYPICAL):
10Hz OFFSET:
2.000MHz-100.000MHz
±1.0ppm/FIRST YEAR MAX
±0.3ppm MAX
±3.0ppm MIN
-55°C TO 125°C
40%/60%
40mA MAX
20mA MAX
15pF MAX
2 TTL GATES
10ns MAX
±1.0ppm/FIRST YEAR MAX
2.5±2.0V
1.65±1.65V
20% MAX
-95dBc/Hz
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
DROP TEST:
MECHANICAL SHOCK:
VIBRATION:
30cm ONTO 2mm STEEL PLATE (3 TIMES)
MIL-STD-883, METHOD 2002, CONDITION B
MIL-STD-883, METHOD 2007, CONDITION A
TEST CIRCUIT & WAVEFORM
PRODUCT SCHEMATIC
PIN
1
2
3
4
A
B
C
D
E
F
G
H
I
J
FUNCTION
VOLTAGE CONTROL
CASE GROUND
OUTPUT
SUPPLY VOLTAGE
DIMENSIONS
9.00 MAX
4.00±0.1
1.00±0.1
0.50
9.20 MAX
2.50±0.1
11.85
18.45
7.62
15.24
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
2 south pointe dr., suite 195
lake forest, ca 92630
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
REV. 07/14/11
www.suntsuinc.com
telephone • 949.305.0220
facsimile • 949.305.0221
