1N4003SGP ........ 1N4007SGP
1.0 Amp. Glass Passivated Rectifiers
A-405
(Plastic)
Pb
Voltage
200 V to 1000 V
• Glass passivated chip junction.
• High efficiency, Low VF
• High current capabilityy
• High reliability
• High surge current capability
• Low power loss
• ø0.6mm
leads
Current
1.0 A
MECHANICAL DATA
• Cases: Molded plastic
• Epoxy: UL 94V-0 rate flame retardant
• Lead: Pure tin plated, lead free., solderable per
MIL-STD-202, Method 208 guaranteed
• Polarity: Color band denotes cathode
• High temperature soldering guaranteed:
260 °C/10 seconds/9.5mm lead
lengths at 2.3kg., tension
• Weight: 0.22 gram
Dimensions in mm.
Maximum Ratings and Electrical Characteristics at 25 ºC
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
C
j
T
j
T
stg
1N
1N
1N
1N
1N
4003SGP 4004SGP 4005SGP 4006SGP 4007SGP
Maximum Recurrent Peak Reverse Voltage (V)
200
400
600
800
1000
Maximum RMS Voltage (V)
Maximum DC Blocking Voltage (V)
Maximum Average Forward Rectified Current
9.5mm Lead Length @ T
a
= 50 °C
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated Load
(JEDEC Method)
140
200
280
400
420
600
560
800
700
1000
1.0 A
30 A
Typical Junction Capacitance at 1 MHz
and reverse voltage of 4V
DC
Operating Temperature Range
Storage Temperature Range
10 pF
-65 to +150 °C
-65 to +150 °C
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
R
th (j-a)
Maximum Instantaneous Forward Voltage @ = 1.0 A
Maximum DC Reverse Current @ T
a
= 25 °C
at Rated DC Blocking Voltage @ T
a
=125°C
Typical Thermal Resistance
(See note)
1.0 V
5 µA
100 µA
80 °C/W
NOTE: Mount on Cu-Pad size 5mm x 5mm on PCB.
May - 08
1N4003SGP ........ 1N4007SGP

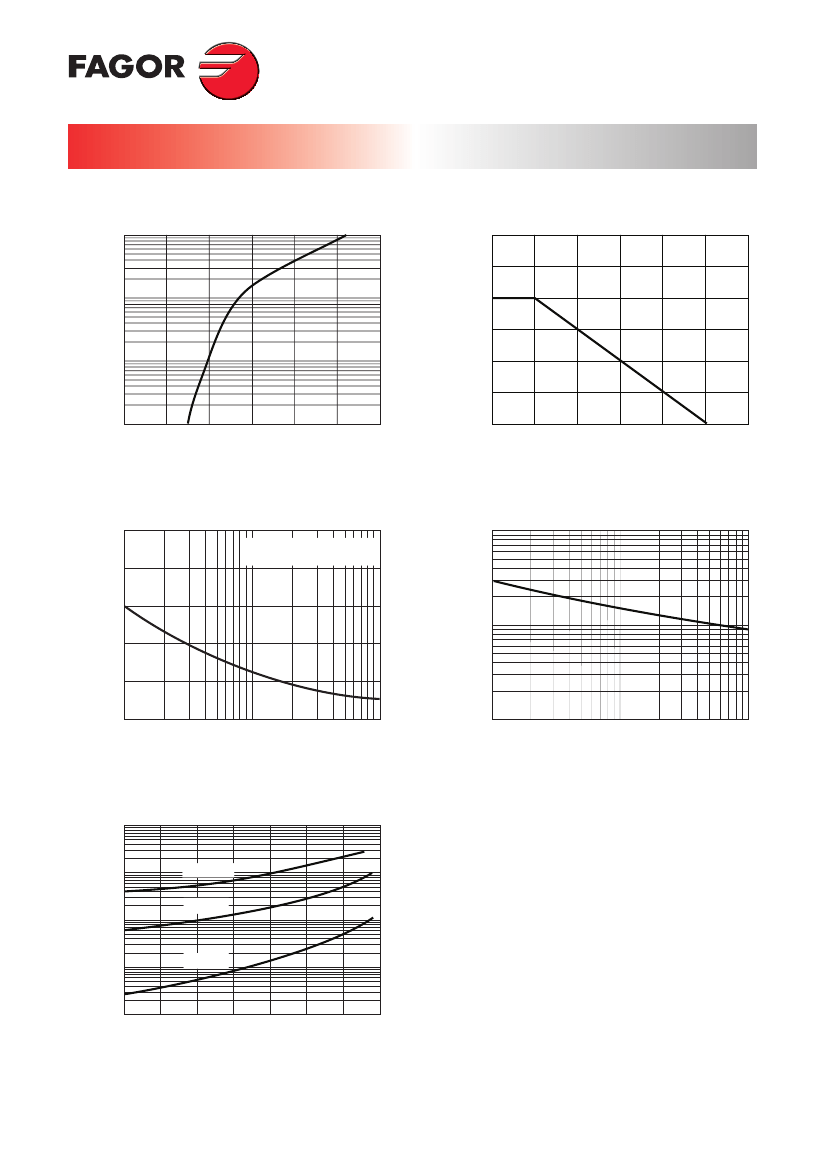

Rating And Charasterictic Curves
MAXIMUM FORWARD CURRENT DERATING
CURVE
I
F
, instantaneous forward current (A)
TYPICAL FORWARD CHARACTERISTIC
I
F(AV)
, average forward rectified
current (A)
10
1.50
1.25
1.00
0.75
0.5
0.25
0
25
50
75
100
125
150
175
1
0.1
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
V
F
, forward voltage (V)
MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
8.3ms Single Half Sine Wawe
JEDEC Method
Tamb, ambient temperature (°C)
I
FSM
, peak forward surge current (A)
TYPICAL JUNCTION CAPACITANCE
100
40
30
20
10
0
1
2
4
6
Cj, junction capacitance (pF)
50
10
10
20
40 60 100
1
0.1
0.5
1
2
5
10
Number of cycles at 60 Hz
TYPICAL REVERSE CHARACTERISTIC
PER LEG
100
V
R
, reverse voltage (V)
I
R
, Instantaneous reverse
current (µA)
10
T
j
= 125 °C
T
j
= 75 °C
1
T
j
= 25 °C
0.1
0.01
0
20
40
60
80
100
120
140
Percent of rated peak reverse voltage (%)
May - 08
