BX7481PM: Description15 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1; CategoryWireless rf/communication Radio frequency and microwave; File Size50KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX7481PM Overview

15 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1

BX7481PM Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COAXIAL
Gain	27 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	15 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

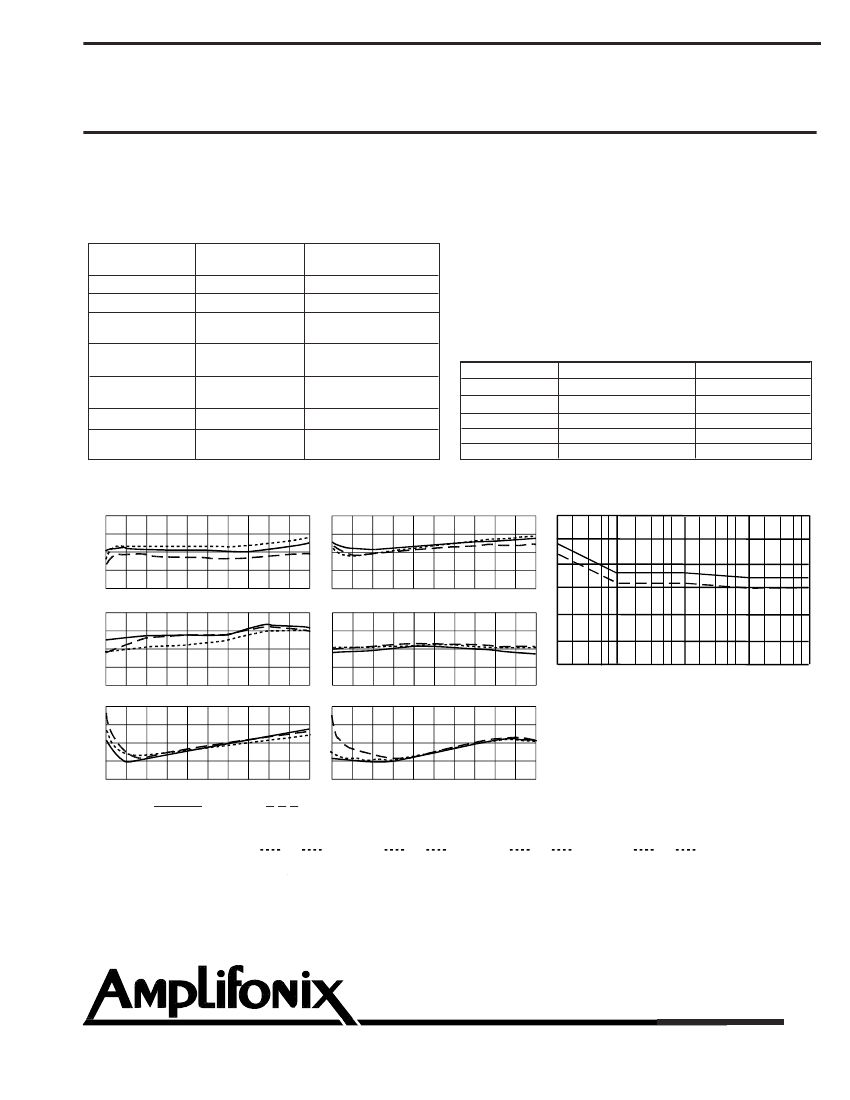

RF AMPLIFIER

MODEL

TM7481PM

Features

!

Superior Phase Noise Performance

Low Noise Figure: 2.3 dB Typical

Medium Output Power: +16.5 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

TYPICAL

Ta= 25 ºC

10 - 300 MHz

28.0

+16.5

-32

<1.8:1

2.3

+15

27

MIN/MAX

Ta = -55 ºC to +85 ºC

15 - 300 MHz

27.0 Min.

+15.0 Min.

-30 Max.

2.0:1 Max.

3.0 Max.

+15

32 Max.

Available as:

TM7481PM, 4 Pin TO-8 (T4)

TN7481PM, 4 Pin Surface Mount (SM3)

FP7481PM, 4 Pin Flatpack (FP4)

BX7481PM, Connectorized Housing (H1)

PN7481PM,

Reduced Size Surface Mount (SM11)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +39 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +33 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +29 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 17 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.2 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

In

Out

Noise figure (dB)

Power

Vdc

mA

VSWR

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-146

-158

-160

Guarantee (Min.)

-142

-154

-156

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

30

29

28

27

26

+18

+17

+16

+15

+14

2.0

1.5

1.0

Start 15 MHz

Stop 300 MHz

Gain (dB)

-20

-30

-40

-50

-60

4

3

2

1

0

2.0

1.5

1.0

Reverse Isolation (dB)

-130

-140

-150

-160

-170

-180

-190

100

Phase Noise (dBc/Hz)

Start 15 MHz

Stop 300 MHz

1 dB Comp. (dBm)

Noise Figure (dB)

1K

10K

100K

1M

Input VSWR

Stop 300 MHz

Start 15 MHz

Output VSWR

Stop 300 MHz

_________Guarantee __ __ __ __Typical

Phase Noise Test Conditions:

Carrier Frequency: 200 MHz

Power Output: +16.2 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 300 MHz

Start 15 MHz

Stop 300 MHz

Start 15 MHz

Legend

+ 25 ºC

Linear S-Parameters

+ 85 ºC - - - - - - -55 ºC

FREQ.

S11

S21

S12

S22

MHz

Mag.

Deg.

Mag.

Deg.

Mag.

Deg.

Mag.

Deg.

========================================================================================

15

50

100

150

200

250

300

.25

.02

.12

.19

.25

.29

.33

- 80

95

57

35

13

- 11

- 41

25.44

26.48

26.03

25.57

25.36

25.61

26.53

- 163

158

129

103

77

50

21

.0220

.0213

.0223

.0231

.0233

.0232

.0231

-2

-3

-7

- 11

- 21

- 30

- 37

.04

.03

.04

.09

.15

.19

.21

- 93

- 159

- 115

- 121

- 139

- 160

- 177
