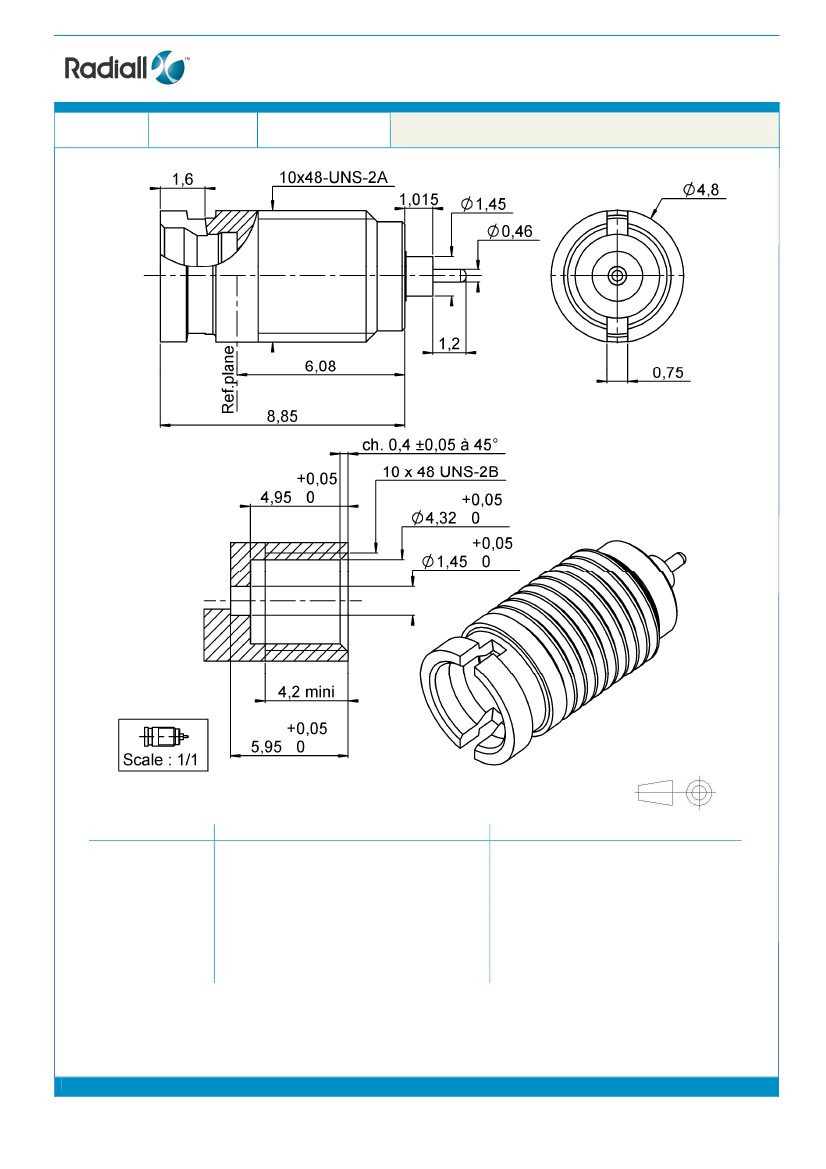

Technical Data Sheet
MALE THREAD-IN RECEPTACLE LIMITED-DETENT
PAGE
2/3
ISSUE
1428A
SERIES
SMP LOCK
PART NUMBER
R222L10001
PACKAGING
Standard
100
Unit
Contact us
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
Frequency
1.35 +
VSWR
Insertion loss
RF leakage
-(
Voltage rating
Dielectric withstanding voltage
Insulation resistance
50
0-26.5
0,0000
0.1
80*
335
500
5000
Ω
GHz
x F(GHz) Maxi
√F(GHz)
dB Maxi
- F(GHz)) dB Maxi
Veff Maxi
Veff mini
MΩ mini
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-65/+165
NA
NA
°
C
Atm.cm3/s
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating End
Axial force – Opposite end
Torque
Recommended torque
Mating
Panel nut
Mating life
Weight
SPECIFICATION
6.7
6.7
NA
N mini
N mini
N.cm mini
OTHER CHARACTERISTICS
NA
90
500
0,7700
N.cm
N.cm
Cycles mini
g
Others:
* up to 18 GHz
Assembly instruction:
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written
agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
MALE THREAD-IN RECEPTACLE LIMITED-DETENT
PAGE
3/3
ISSUE
1428A
SERIES
SMP LOCK
PART NUMBER
R222L10001
ADDITIONAL INFORMATIONS
MOUNTING AND REPLEACEMENT INSTRUCTIONS

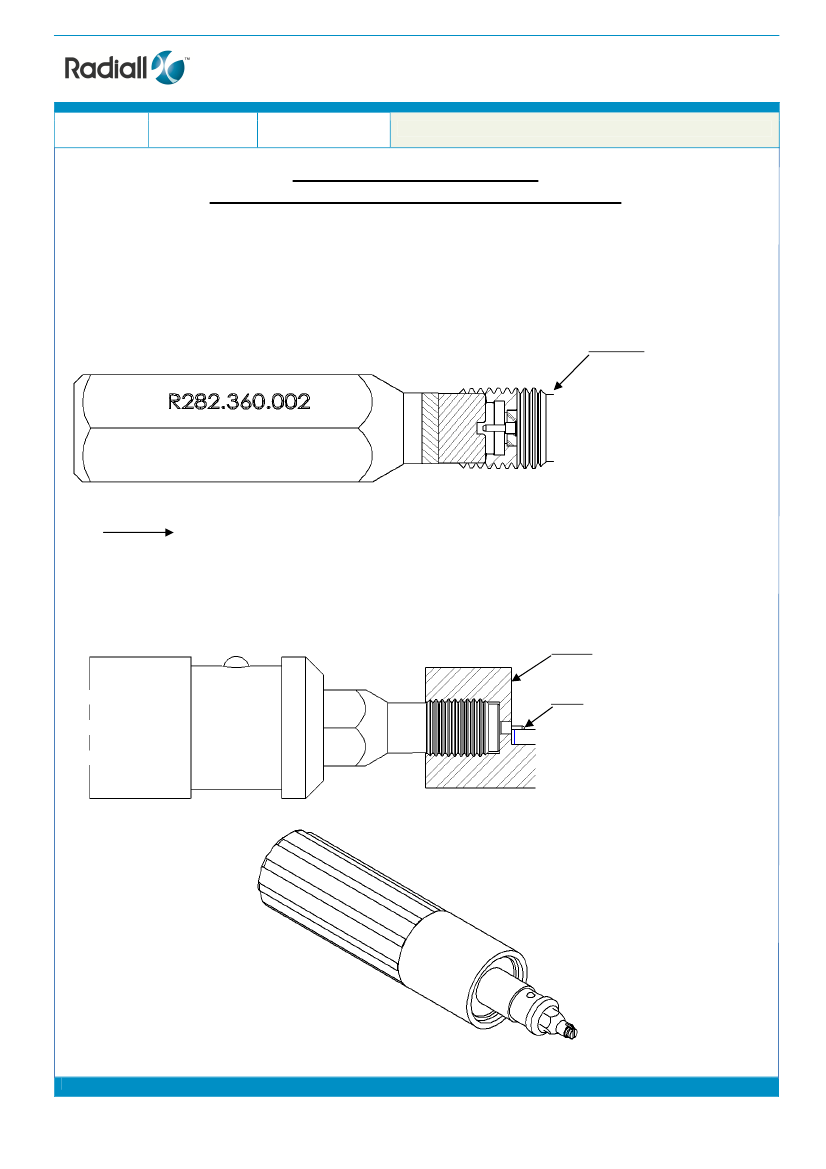

1.
Connector must be screwed or unsrewed with adapted torque driver R282.339.002 (recommanded
coupling torque : 90 Ncm)
Screx driver : R282.360.002
2.
Slide on the connector in F direction until it stops against the tool.
Receptacle
F
3.
Screw the whole into the housing until activation of the torque driver.
4.
Withdraw the tool and solder the center contact
Housing
Solder
