532469-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 532469-4

532469-4: Description120 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE; CategoryThe connector The connector; File Size21KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

532469-4 Overview

120 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE

532469-4 Parametric

Parameter Name	Attribute value
Objectid	1430669321
Reach Compliance Code	unknown
Other features	AMP
Board mount options	HOLE .086-.098
body width	0.248 inch
subject depth	0.69 inch
body length	6.855 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	532469
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	ENDS
reliability	COMMERCIAL
Terminal length	0.2 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	120

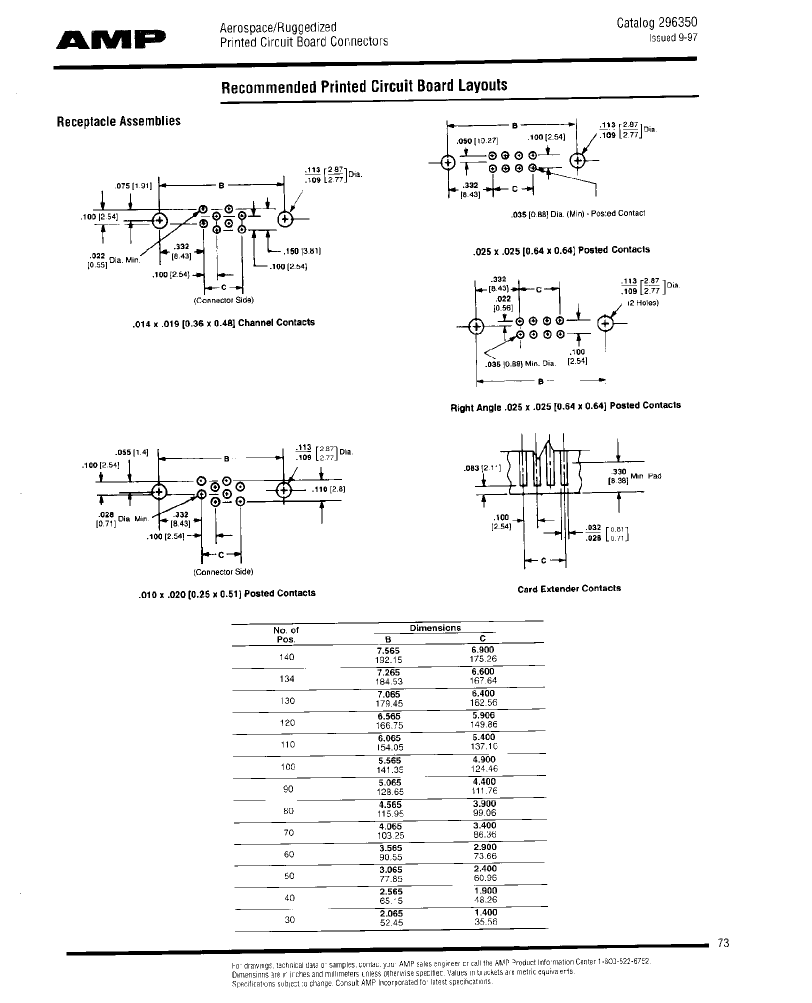

Preview

Download Datasheet

View All

532469-4 Related Products

	532469-4	1-532469-0	RN732BLTDD2183C25	530779-9	530779-8	530780-2	530780-9
Description	120 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	110 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	Fixed Resistor, Thin Film, 0.125W, 218000ohm, 150V, 0.25% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP	110 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; WIRE WRAP, RECEPTACLE	100 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; WIRE WRAP, RECEPTACLE	40 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; WIRE WRAP, RECEPTACLE	110 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; WIRE WRAP, RECEPTACLE
Reach Compliance Code	unknown	unknown	not_compliant	unknown	unknown	unknown	compliant
Other features	AMP	AMP	-	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302
body width	0.248 inch	0.248 inch	-	0.248 inch	0.248 inch	0.248 inch	0.248 inch
subject depth	0.69 inch	0.69 inch	-	0.4 inch	0.4 inch	0.4 inch	0.4 inch
body length	6.855 inch	6.355 inch	-	6.355 inch	5.855 inch	2.855 inch	6.355 inch
Body/casing type	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	GOLD (30)	-	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED
Contact completed and terminated	GOLD	TIN LEAD OVER NICKEL	-	GOLD	GOLD	GOLD	-
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	-	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	-	NO	NO	NO	NO
Filter function	NO	NO	-	NO	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO	NO
MIL compliance	NO	NO	-	YES	YES	YES	YES
Manufacturer's serial number	532469	532469	-	530779	530779	530780	530780
Plug contact pitch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	-	NO	NO	NO	NO
Installation option 1	#2-56	#2-56	-	#2-56	#2-56	#2-56	#2-56
Installation option 2	THREADED	THREADED	-	THREADED	THREADED	THREADED	THREADED
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	-	ONE	ONE	ONE	ONE
PCB row number	2	2	-	2	2	2	2
Number of rows loaded	2	2	-	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	-	50u inch	50u inch	50u inch	50u inch
polarization key	ENDS	ENDS	-	ENDS	ENDS	ENDS	ENDS
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.2 inch	0.2 inch	-	0.725 inch	0.725 inch	0.565 inch	0.565 inch
Terminal pitch	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	WIRE WRAP	WIRE WRAP	-	SOLDER; WIRE WRAP	SOLDER; WIRE WRAP	SOLDER; WIRE WRAP	SOLDER; WIRE WRAP
Total number of contacts	120	110	-	110	100	40	110
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	-	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
