Part Number

Search

54HCTLS367AJ

Description
Bus Driver, 2-Func, 6-Bit, True Output, CMOS, CDIP16
Categorylogic    logic
File Size314KB,4 Pages
ManufacturerIdeal Semiconductor Inc
Download Datasheet Parametric Compare View All

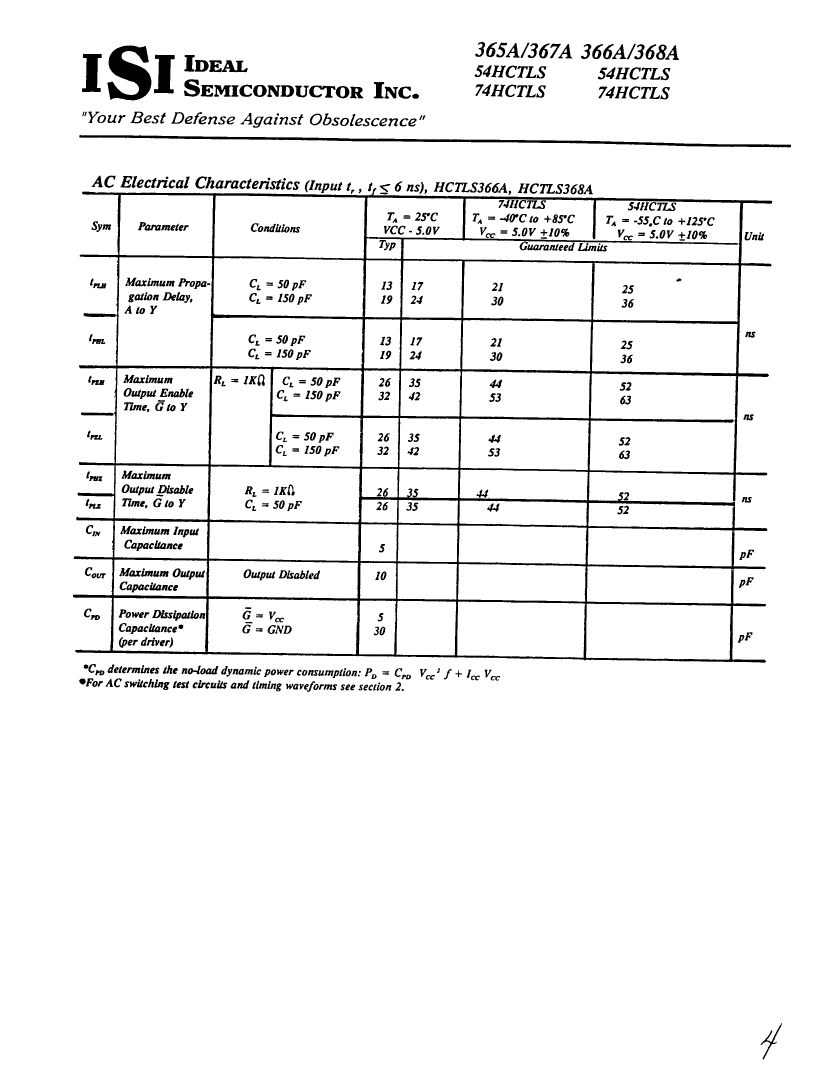

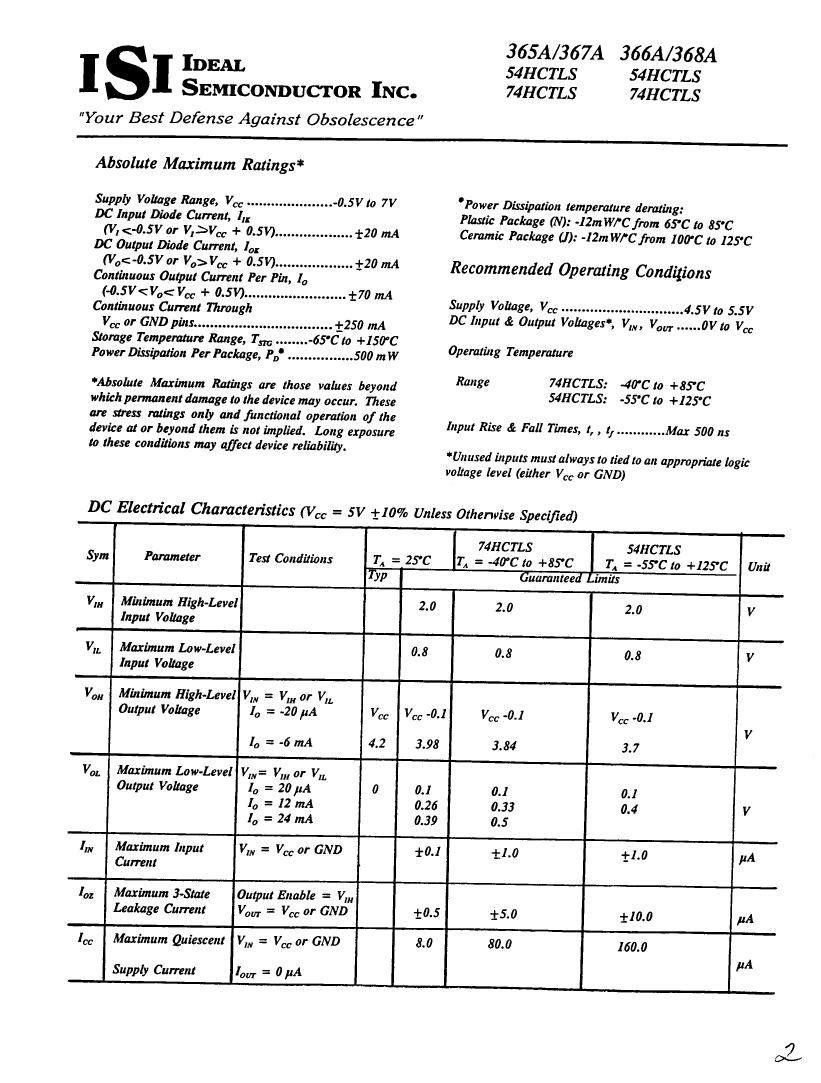

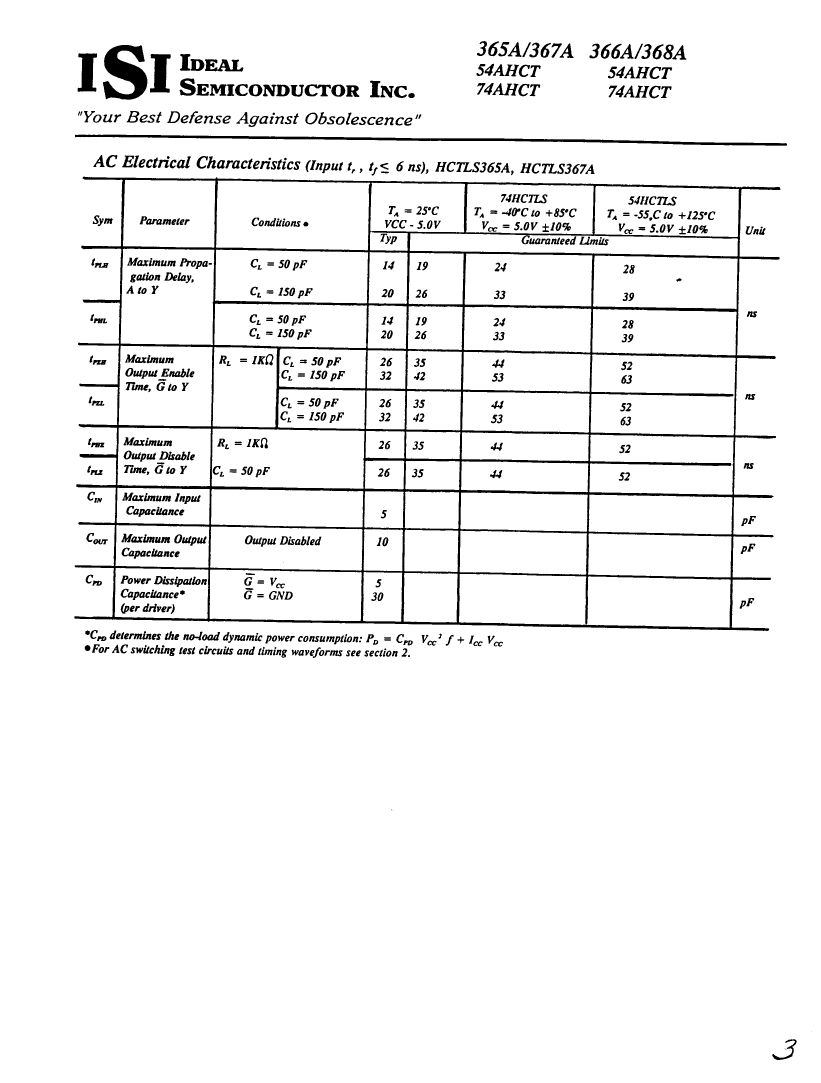

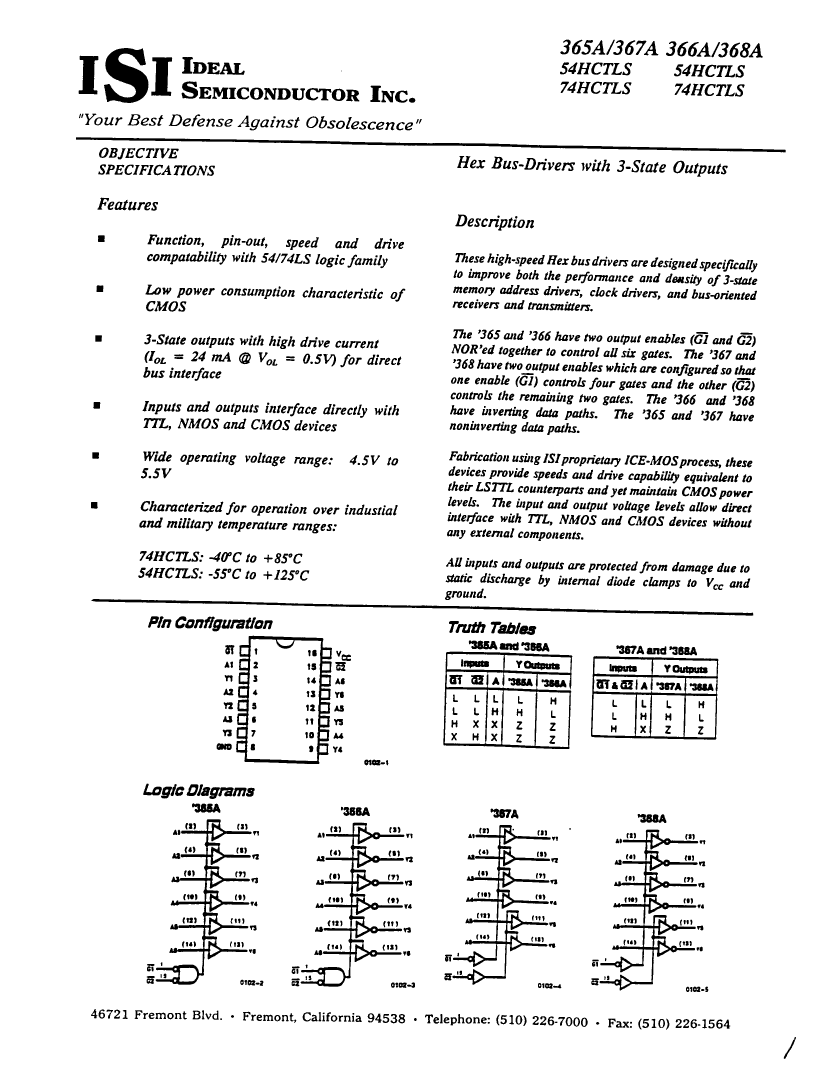

54HCTLS367AJ Overview

Bus Driver, 2-Func, 6-Bit, True Output, CMOS, CDIP16

54HCTLS367AJ Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerIdeal Semiconductor Inc
package instructionDIP, DIP16,.3
Reach Compliance Codeunknown
Control typeENABLE LOW
JESD-30 codeR-XDIP-T16
JESD-609 codee0
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
MaximumI(ol)0.024 A
Number of digits6
Number of functions2
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Prop。Delay @ Nom-Sup28 ns
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Base Number Matches1

54HCTLS367AJ Related Products

54HCTLS367AJ 74HCTLS367AN 74HCTLS367AD 74HCTLS367ADT
Description Bus Driver, 2-Func, 6-Bit, True Output, CMOS, CDIP16 Bus Driver, 2-Func, 6-Bit, True Output, CMOS, PDIP16 Bus Driver, 2-Func, 6-Bit, True Output, CMOS, PDSO16 Bus Driver, 2-Func, 6-Bit, True Output, CMOS, PDSO16
Is it Rohs certified? incompatible incompatible incompatible incompatible
Maker Ideal Semiconductor Inc Ideal Semiconductor Inc Ideal Semiconductor Inc Ideal Semiconductor Inc
package instruction DIP, DIP16,.3 DIP, DIP16,.3 SOP, SOP16,.25 SOP, SOP16,.25
Reach Compliance Code unknown unknown unknown unknown
Control type ENABLE LOW ENABLE LOW ENABLE LOW ENABLE LOW
JESD-30 code R-XDIP-T16 R-PDIP-T16 R-PDSO-G16 R-PDSO-G16
JESD-609 code e0 e0 e0 e0
Load capacitance (CL) 50 pF 50 pF 50 pF 50 pF
Logic integrated circuit type BUS DRIVER BUS DRIVER BUS DRIVER BUS DRIVER
MaximumI(ol) 0.024 A 0.024 A 0.024 A 0.024 A
Number of digits 6 6 6 6
Number of functions 2 2 2 2
Number of terminals 16 16 16 16
Maximum operating temperature 125 °C 85 °C 85 °C 85 °C
Minimum operating temperature -55 °C -40 °C -40 °C -40 °C
Output characteristics 3-STATE 3-STATE 3-STATE 3-STATE
Output polarity TRUE TRUE TRUE TRUE
Package body material CERAMIC PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP DIP SOP SOP
Encapsulate equivalent code DIP16,.3 DIP16,.3 SOP16,.25 SOP16,.25
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE SMALL OUTLINE SMALL OUTLINE
power supply 5 V 5 V 5 V 5 V
Prop。Delay @ Nom-Sup 28 ns 24 ns 24 ns 24 ns
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V
surface mount NO NO YES YES
technology CMOS CMOS CMOS CMOS
Temperature level MILITARY INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE GULL WING GULL WING
Terminal pitch 2.54 mm 2.54 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL
Base Number Matches 1 1 1 1
